Hydraulic Loading Ramp (HPSU) 2700 kg
Price
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Loading Ramps
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

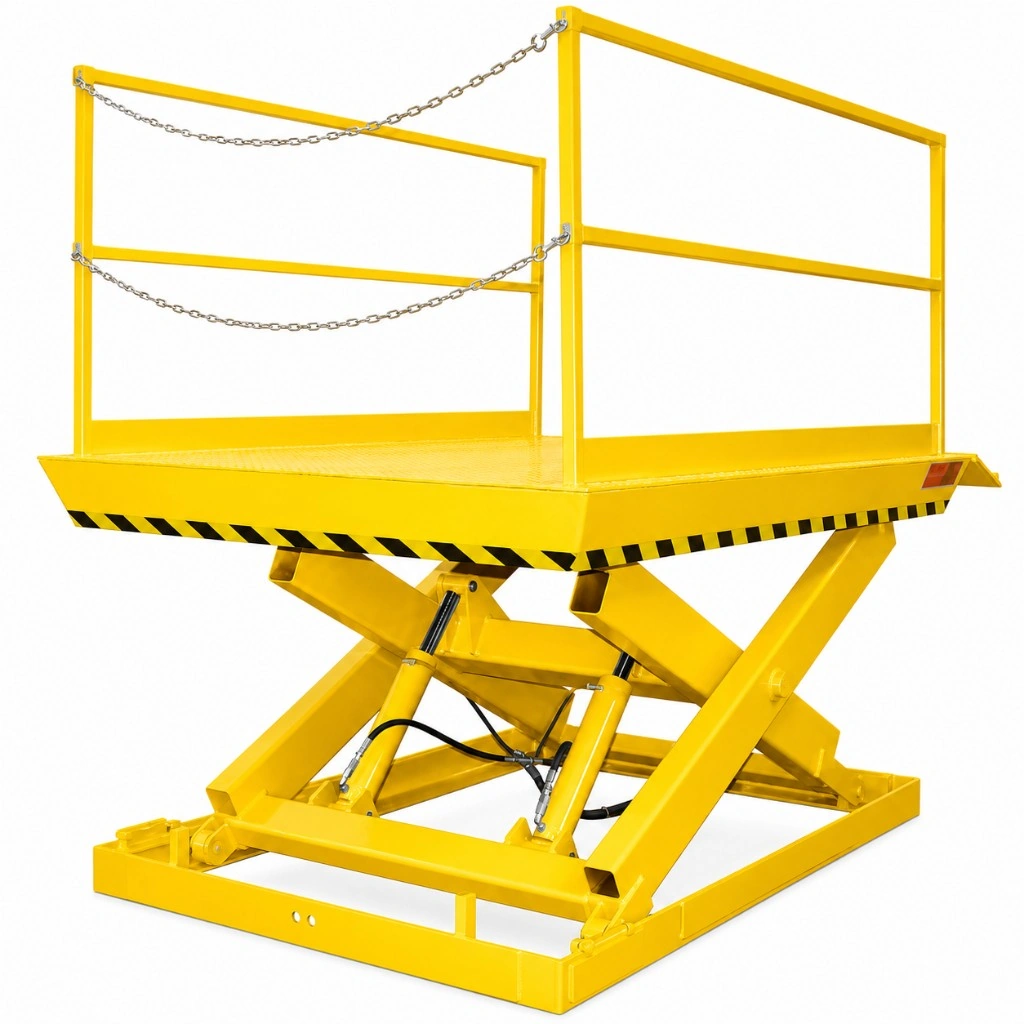

Professional hydraulic loading ramp rated at 2700 kg with a 2445x1830 mm platform and 1500 mm raised height, engineered for fast and safe vehicle loading and unloading.
Key features
- High capacity and durability: built from high-grade steel for outstanding stability even under full load
- Proven scissor mechanism ensures smooth, safe lifting and lowering without sudden movements
- Safety first: overload and uncontrolled-descent protection valves plus safety edges that stop lowering when an obstacle is detected
- Intuitive control unit allows precise height control, making operation fast and simple for every employee
- Applications: logistics and distribution centres, production lines, service workshops, retail and warehouse pallet handling
- Motor power: 3 kW; lifting speed 35-45 s
- CE certified, compliant with EN 1570-1
- Strict quality control, warranty and assured service support
Technical overview
- Model / SKU: HPSU
- Product family: Loading Ramps
- Load capacity: 2700 kg
- Platform length: 2445 mm
- Platform width: 1830 mm
- Lowered height: 210 mm
- Raised height: 1500 mm
- Lifting speed: 35-45 s
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Bridging the level difference between floor and vehicle/container for forklifts and pallet trucks.
- Sites and warehouses without a dock.
This model
Capacity options: 2700 kg. Lift heights: 1500 mm. Platform width: 1830 mm. Platform length: 2445 mm. Lowered height: 210 mm.
Check before you choose
- Capacity incl. forklift weight
- Length vs. height difference and gradient
- Width
- Mobile with wheels vs. fixed
Not suitable for
- Passenger traffic
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Total mass of the vehicle entering (pallet truck/forklift) + load; wheel base/track and wheel loads; platform; min/max vehicle height; cycles; ground? Capacity must cover machine + load; wheel contact pressure and dynamic load can be critical.
Typical mistakes to avoid
- Capacity must cover machine + load; wheel contact pressure and dynamic loads can be critical.
Helpful to have ready: Mass of forklift/pallet truck + load · Wheelbase/track · Vehicle heights · Cycles · Photo of the site
Attributes
| Load capacity | 2700 kg |
|---|---|
| Platform length | 2445 mm |
| Platform width | 1830 mm |
| Lowered height | 210 mm |
| Raised height | 1500 mm |
| Lifting speed | 35-45 s |
