Electric Rider Pallet Truck (EPV20-P/EPV25-P) 2000-2500 kg

Name: Electric Rider Pallet Truck (EPV20-P/EPV25-P) 2000-2500 kg
Brand: Delacco
SKU: EPV20-P_EPV25-P
Availability: OutOfStock

SKU root: EPV20-P_EPV25-P | Market: EN | Locale: en

Price From 7.730,00 EUR

Direct factory order — 16–20 weeks · 40% deposit

Select configuration

Choose attribute values to resolve the exact variant, SKU and price.

1Load capacity

2Battery type/voltage/capacity

Choose all attributes to lock a variant.

SKU: Not selected

Direct factory order (made to order)

Shipping estimate

Qty

This product —

Select your delivery country for an instant freight estimate.

Categories: Electric Pallet Trucks

Tags: Electric Pallet Jacks, Electric Rider Pallet Trucks, Pallet Jacks

Need a tailored offer?

Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

Request a quote

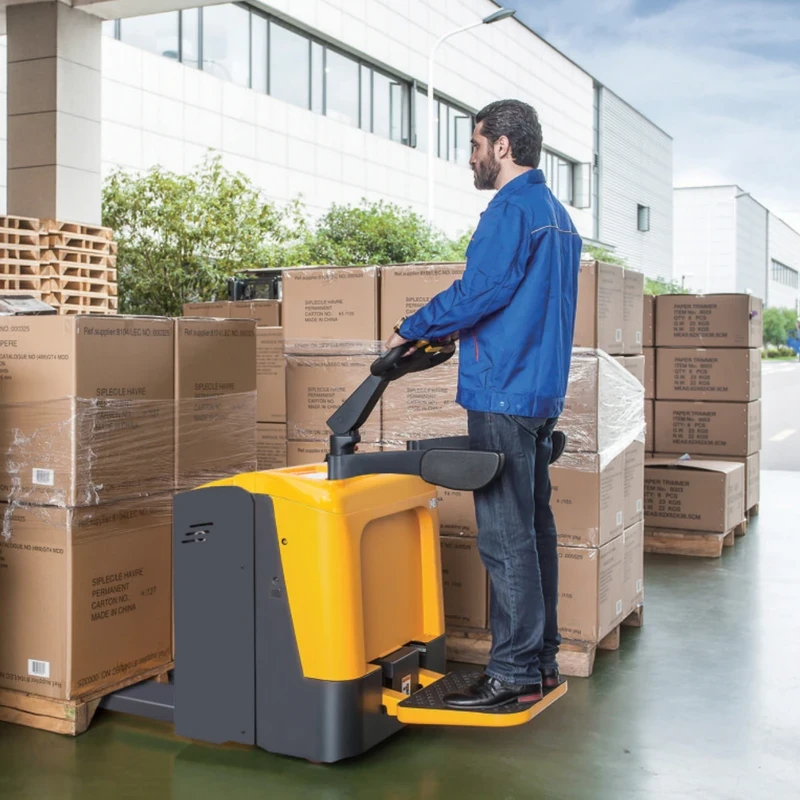

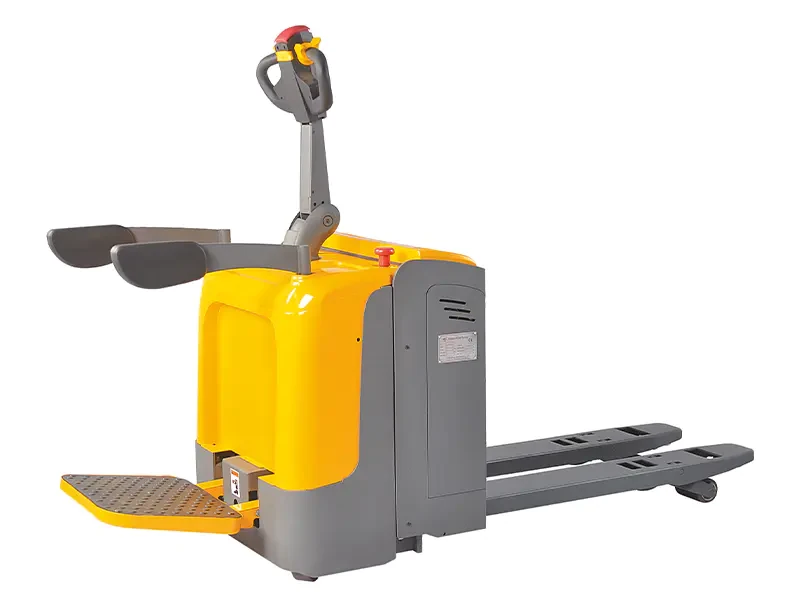

Stand-on platform rider pallet truck with 2000-2500 kg capacity, brushless AC motor, emergency stop and belly-button reversing, BDI display and speed-sensing platform — for medium-distance transport in large warehouses.

Key features

Folding stand-on platform with speed sensor

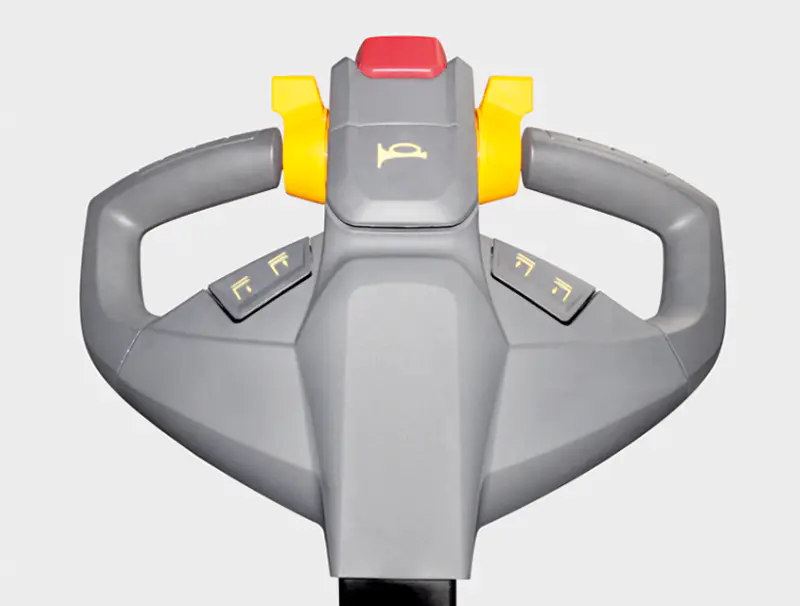

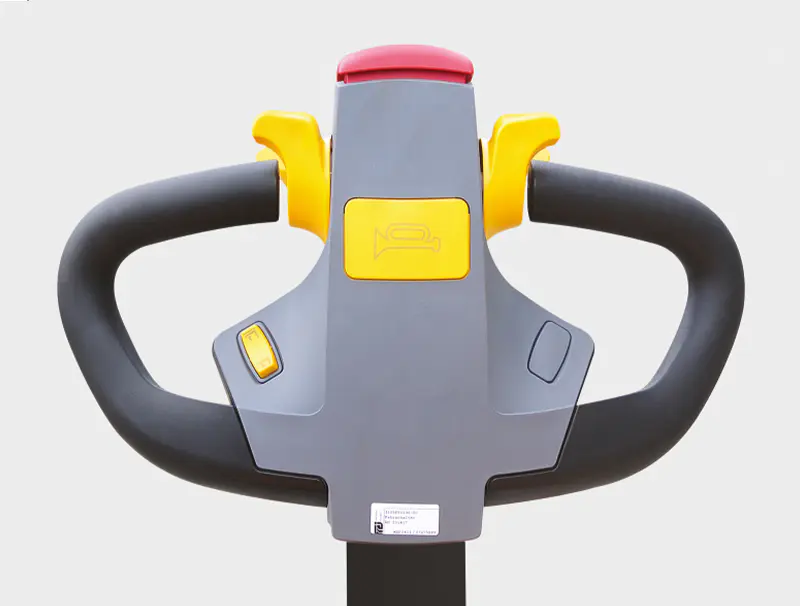

Emergency stop and belly-button switch for safe operation
BDI and hour meter included
Brushless AC motor needs very little maintenance
Stabilising casters and vertical drive motor
Side-way battery change with built-out charger
Options: load backrest, built-in charger, cold-storage rubber drive wheel, EPS

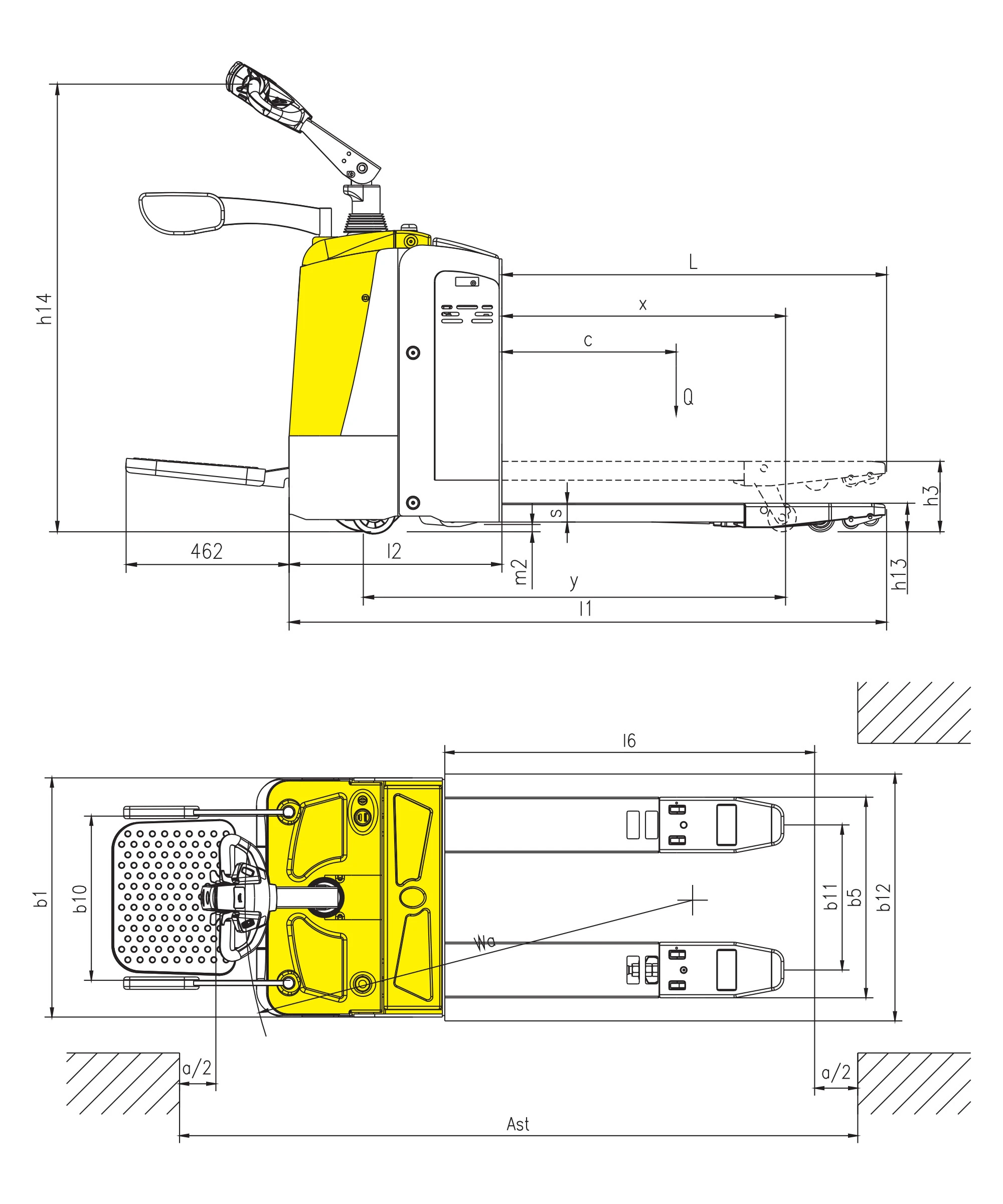

Technical overview

Model / SKU: EPV20-P_EPV25-P
Product family: Electric Pallet Trucks
Load capacity: 2000 kg, 2500 kg
Engine type: AC
Load center: 600 mm
Load distance, center of drive axle to fork: 914/965/1034mm
Fork height, lowered: 82 mm
Tyre size, front: 250x70mm
Tyre size, rear: 82x126(98)mm
Additional wheels (dimensions): 127x57mm
Number of wheels, front/rear (x=driving) Φ: 1X+2/2(4)
Max. lift height: 202 mm
Height of tiller min/max: 1150/1430mm
Overall length: 1710/1760/1830mm
Length to face of forks: 610 mm
Overall width: 775 mm
Fork dimensions: 53x180x1100mm (1150/1220)
Width overall forks: 520/550/650/685mm
Aisle width for pallets 1000x1200mm: 2360/2405/2475mm
Aisle width for pallets 800x1200mm: 2245/2270/2305mm
Turning radius: 1550/1600/1670mm
Travel speed, laden/unladen: 7.0/7.1km/h
Initial lift: no
Folding platform: yes
Electric power steering: option
Battery type/voltage/capacity: LA/24/210, LA/24/240, LFP/24/125, LFP/24/225
Battery weight: 195 kg, 200 kg
Battery dimensions (I/W/H): 750x170x534mm, 750x170x570mm
Service weight (with battery): 720 kg, 750 kg

Order online or send a quote request for delivery terms and customer-specific configurations.

Attributes

Load capacity	2000 kg, 2500 kg
Battery type/voltage/capacity	LA/24/210, LA/24/240, LFP/24/125, LFP/24/225
Engine type	AC
Load center	600 mm
Load distance, center of drive axle to fork	914/965/1034mm
Fork height, lowered	82 mm
Tyre size, front	250x70mm
Tyre size, rear	82x126(98)mm
Additional wheels (dimensions)	127x57mm
Number of wheels, front/rear (x=driving) Φ	1X+2/2(4)
Max. lift height	202 mm
Height of tiller min/max	1150/1430mm
Overall length	1710/1760/1830mm
Length to face of forks	610 mm
Overall width	775 mm
Fork dimensions	53x180x1100mm (1150/1220)
Width overall forks	520/550/650/685mm
Aisle width for pallets 1000x1200mm	2360/2405/2475mm
Aisle width for pallets 800x1200mm	2245/2270/2305mm
Turning radius	1550/1600/1670mm
Travel speed, laden/unladen	7.0/7.1km/h
Initial lift	no
Folding platform	yes
Electric power steering	option
Battery weight	195 kg, 200 kg
Battery dimensions (I/W/H)	750x170x534mm, 750x170x570mm
Service weight (with battery)	720 kg, 750 kg
