Hand Electric Pallet Truck (EPV15HE/EPV20HE) 1500-2000 kg
Price
From 1.495,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Mini hand electric pallet truck the same size as a manual pallet truck, 1500-2000 kg capacity, 24V 50Ah Li-ion battery and floating balancing wheels — made for narrow aisles, supermarkets and cargo containers.
Key features
- Same footprint as a hand pallet truck — narrow aisles and containers
- Lithium-ion (LFP) 24V 50Ah battery
- Floating balancing wheels reduce side swing; smooth anti-vibration travel
- Removable balancing wheel assembly makes maintenance simple
- One-piece rocker arm mechanism increases structural strength
- Horizontal drive-wheel structure keeps the motor away from mud and water
- Height limit switch fitted as standard

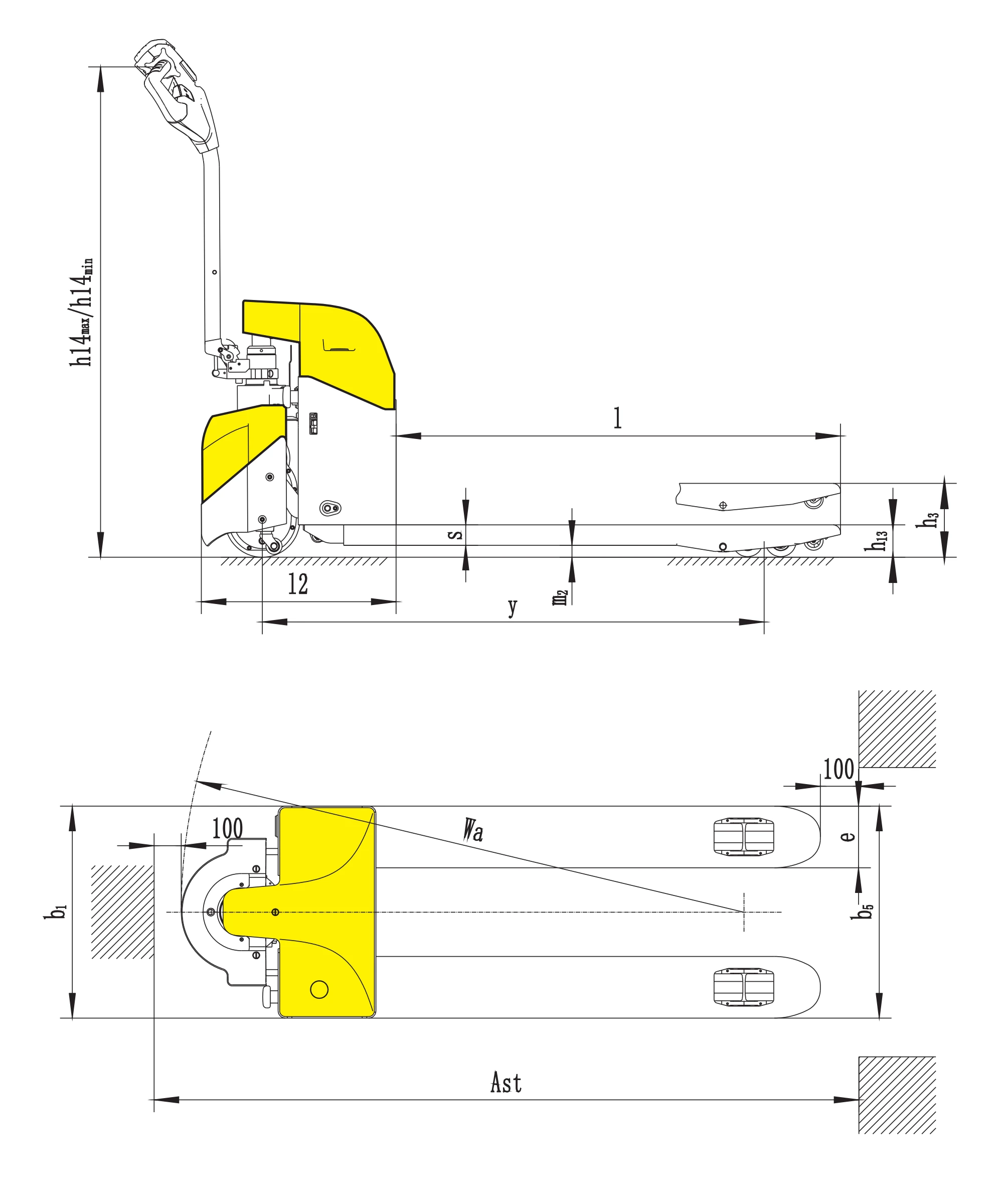

Technical overview
- Model / SKU: EPV15HE_EPV20HE
- Product family: Electric Pallet Trucks
- Load capacity: 1500 kg, 2000 kg
- Engine type: DC
- Load center: 600 mm
- Fork height, lowered: 75 mm, 85 mm
- Tyre size, front: 195x70mm
- Rear wheel size (single): 80x93mm/74x93mm
- Rear wheel size (double): 80x70mm/74x70mm
- Number of wheels, front/rear (x=driving) Φ: 1x2(4)
- Max. lift height: 190/180mm
- Height of tiller min/max: 700/1250mm
- Overall length: 1654/1724mm
- Length to face of forks: 504 mm
- Overall width: 685/562mm
- Fork dimensions: 53x160x1150mm (1220)
- Width overall forks: 520/550/685mm
- Aisle width for pallets 1000x1200mm: 2244/2310mm, 2260/2328mm
- Aisle width for pallets 800x1200mm: 2120/2155mm, 2128/2160mm
- Turning radius: 1440/1510mm, 1454/1524mm
- Travel speed, laden/unladen: 4.3/4.8km/h
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LFP/24/50
- Battery dimensions (I/W/H): 228x138x214mm, 260x169x215mm
- Battery weight: 36 kg, 49 kg
- Service weight (with battery): 205 kg, 220 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Powered horizontal transport of pallets over longer distances and higher frequency than hand trucks.
- Loading/unloading trucks, cross-docking, supermarket back-of-house.
- Rider (platform/seated) versions for long routes; double-decker for two pallets.
This model
Capacity options: 1500 kg, 2000 kg. Battery: LFP/24/50. Drive: DC. Initial lift: no. Folding platform: no. Power steering: no. Fork dimensions: 53x160x1150mm (1220). Turning radius: 1440/1510mm, 1454/1524mm.
Check before you choose
- Capacity 1 500–3 000 kg
- Walkie vs. platform/stand-on vs. seated by distance and shifts
- Battery type (Li-ion for opportunity charging), charger
- Fork length for 1 or 2 pallets
- Ramps and gradients (drive motor power)
- Aisle width
Not suitable for
- Lifting onto racking (lift ~120–200 mm) — use a stacker
- Outdoor rough terrain
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet sizes; one or two pallets per trip; fork length?
- Distance per trip and pallets per hour? Decides pedestrian vs. platform vs. seated.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- A small walkie is no substitute for a rider truck on long routes — choose the operator position by distance and intensity.
Helpful to have ready: Mass/pallet · Average and max distance · Pallets per hour · Gradients · Shifts · Charging
Attributes
| Load capacity | 1500 kg, 2000 kg |
|---|---|
| Engine type | DC |
| Load center | 600 mm |
| Lowered fork height | 75 mm, 85 mm |
| Tyre size, front | 195x70 mm |
| Rear wheel size (single) | 80x93 mm/74x93 mm |
| Rear wheel size (double) | 80x70 mm/74x70 mm |
| Number of wheels, front/rear (x=driving) Φ | 1x2(4) |
| Lift height | 190/180 mm |
| Height of tiller min/max | 700/1250 mm |
| Overall length | 1654/1724 mm |
| Length to face of forks | 504 mm |
| Overall width | 685/562 mm |
| Fork dimensions | 53x160x1150 mm (1220) |
| Width overall forks | 520/550/685 mm |
| Aisle width for pallets 1000x1200mm | 2244/2310 mm, 2260/2328 mm |
| Aisle width for pallets 800x1200mm | 2120/2155 mm, 2128/2160 mm |
| Turning radius | 1440/1510 mm, 1454/1524 mm |
| Travel speed, laden/unladen | 4.3/4.8 km/h |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery type/voltage/capacity | LFP/24/50 |
| Battery dimensions (I/W/H) | 228x138x214 mm, 260x169x215 mm |
| Battery weight | 36 kg, 49 kg |
| Service weight | 205 kg, 220 kg |
