Super-light electric walkie pallet jack with 1800-2000 kg capacity, low-profile chassis, AC control with regenerative braking and roll-out side battery — for narrow spaces and mid-distance transport.
Key features
- Modern AC control — no motor brushes or directional contactors
- Intelligent regenerative braking extends battery charge intervals
- Side-way battery with roll-out system (EPV20PM) for quick swaps
- Emergency reversing device and emergency power disconnect
- Built-in pressure relief valve protects against overload
- Long handle tube for flexible, labour-saving operation
- Low-speed switch in the handle

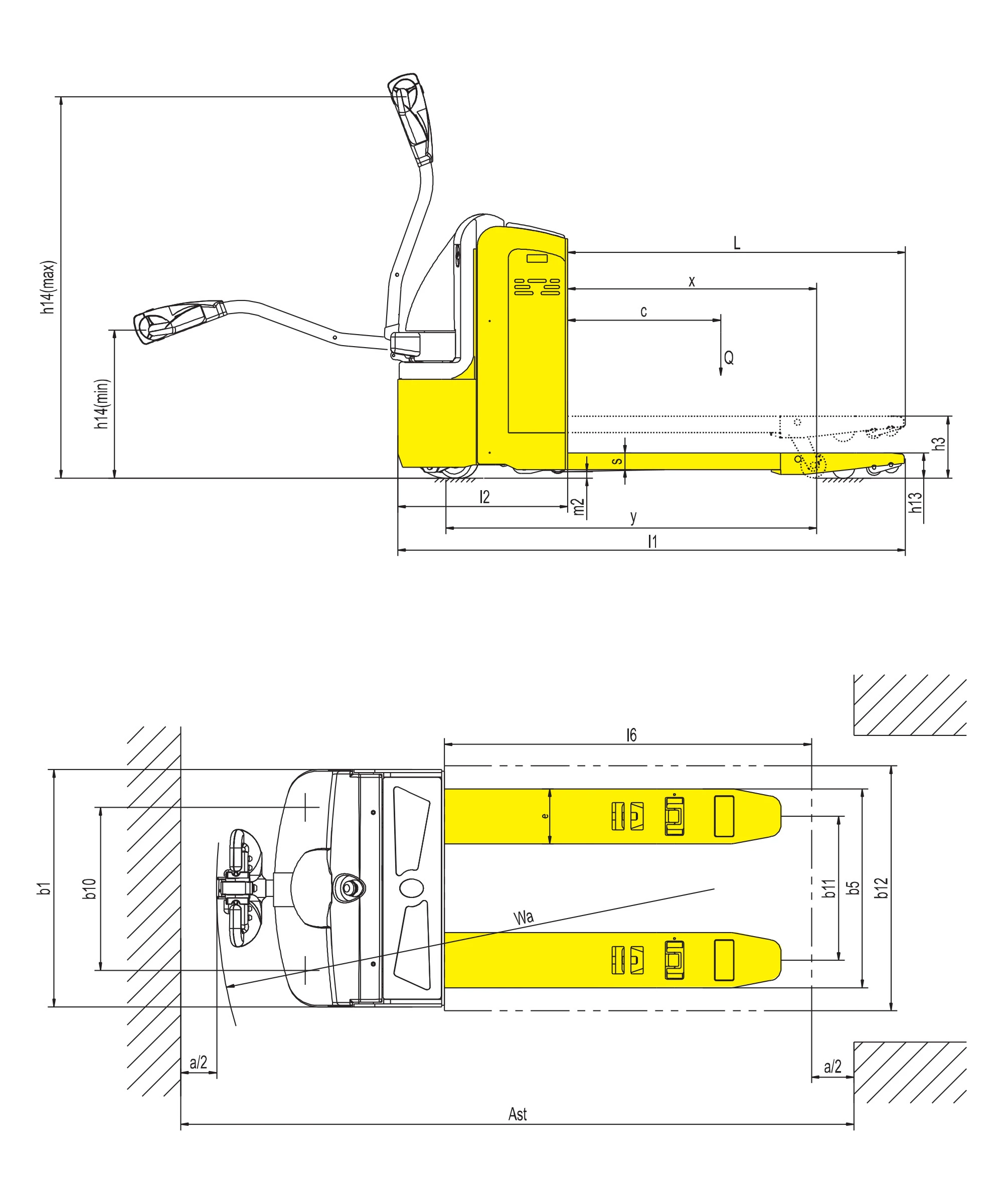

Technical overview
- Model / SKU: EPV18PM_EPV20PM_EPV20PMO
- Product family: Electric Pallet Trucks
- Load capacity: 1800 kg, 2000 kg
- Engine type: AC
- Load center: 600 mm
- Load distance, center of drive axle to fork: 1034 mm, 856 mm, 914/965/1034mm
- Fork height, lowered: 82 mm, 84 mm
- Tyre size, front: 250x70mm
- Tyre size, rear: 80x70mm, 82x126(98)mm
- Additional wheels (dimensions): 114x60mm, 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/2(4), 1X+2/4
- Max. lift height: 202 mm, 204 mm
- Height of tiller min/max: 530/1230mm
- Overall length: 1651 mm, 1655/1705/1775mm, 1805 mm
- Length to face of forks: 500 mm, 555 mm, 585 mm
- Overall width: 550/685mm, 775 mm
- Fork dimensions: 54x150x1150mm, 54x180x1100mm (1150/1220), 54x180x1220mm
- Width overall forks: 520/550/650/685mm, 550/685mm
- Aisle width for pallets 1000x1200mm: 2230 mm, 2275/2320/2385mm, 2415 mm
- Aisle width for pallets 800x1200mm: 2110 mm, 2160/2180/2220mm, 2250 mm
- Turning radius: 1430 mm, 1470/1520/1590mm, 1620 mm
- Travel speed, laden/unladen: 5.5/5.6km/h
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LFP/24/100, LFP/24/125
- Battery weight: 128 kg, 160 kg, 195 kg
- Battery dimensions (I/W/H): 245x190x252mmx4, 645x148x560mm, 750x170x534mm
- Service weight (with battery): 535 kg, 580-585 kg, 640-645 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Powered horizontal transport of pallets over longer distances and higher frequency than hand trucks.
- Loading/unloading trucks, cross-docking, supermarket back-of-house.
- Rider (platform/seated) versions for long routes; double-decker for two pallets.
This model
Pedestrian (walkie): short to medium distances, compact in tight aisles. Jack: lifting from below over short heights. Capacity options: 1800 kg, 2000 kg. Battery: LFP/24/100, LFP/24/125. Drive: AC. Initial lift: no. Folding platform: no. Power steering: no. Fork dimensions: 54x150x1150mm, 54x180x1100mm (1150/1220), 54x180x1220mm. Turning radius: 1430 mm, 1470/1520/1590mm, 1620 mm.
Check before you choose
- Capacity 1 500–3 000 kg
- Walkie vs. platform/stand-on vs. seated by distance and shifts
- Battery type (Li-ion for opportunity charging), charger
- Fork length for 1 or 2 pallets
- Ramps and gradients (drive motor power)
- Aisle width
Not suitable for
- Lifting onto racking (lift ~120–200 mm) — use a stacker
- Outdoor rough terrain
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet sizes; one or two pallets per trip; fork length?
- Distance per trip and pallets per hour? Decides pedestrian vs. platform vs. seated.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- A small walkie is no substitute for a rider truck on long routes — choose the operator position by distance and intensity.
Helpful to have ready: Mass/pallet · Average and max distance · Pallets per hour · Gradients · Shifts · Charging
Attributes
| Load capacity | 1800 kg, 2000 kg |
|---|---|
| Battery type/voltage/capacity | LFP/24/100, LFP/24/125 |
| Engine type | AC |
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 1034 mm, 856 mm, 914/965/1034 mm |
| Lowered fork height | 82 mm, 84 mm |
| Tyre size, front | 250x70 mm |
| Tyre size, rear | 80x70 mm, 82x126(98)mm |
| Additional wheels (dimensions) | 114x60 mm, 127x57 mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/2(4), 1X+2/4 |
| Lift height | 202 mm, 204 mm |
| Height of tiller min/max | 530/1230 mm |
| Overall length | 1651 mm, 1655/1705/1775 mm, 1805 mm |
| Length to face of forks | 500 mm, 555 mm, 585 mm |
| Overall width | 550/685 mm, 775 mm |
| Fork dimensions | 54x150x1150 mm, 54x180x1100 mm (1150/1220), 54x180x1220 mm |
| Width overall forks | 520/550/650/685 mm, 550/685 mm |
| Aisle width for pallets 1000x1200mm | 2230 mm, 2275/2320/2385 mm, 2415 mm |
| Aisle width for pallets 800x1200mm | 2110 mm, 2160/2180/2220 mm, 2250 mm |
| Turning radius | 1430 mm, 1470/1520/1590 mm, 1620 mm |
| Travel speed, laden/unladen | 5.5/5.6 km/h |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery weight | 128 kg, 160 kg, 195 kg |
| Battery dimensions (I/W/H) | 245x190x252mmx4, 645x148x560 mm, 750x170x534 mm |
| Service weight | 535 kg, 580-585 kg, 640-645 kg |
