Li-Ion Powered Pallet Jack (EPV15) 1500 kg
Price
1.390,00 EUR
1.112,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Indoor Li-ion powered pallet jack with 1500 kg capacity, manual pallet truck footprint and a small turning radius — super light and easy to operate, with an external-charging 24V/20Ah battery.
Key features
- Manual-pallet-truck footprint with a small turning radius
- Lithium battery 24V/20Ah; optional 24V/30Ah upgrade
- Ruyi handle with bully switch and high-quality emergency key switch
- Split rocker arm equalises stress for long service life

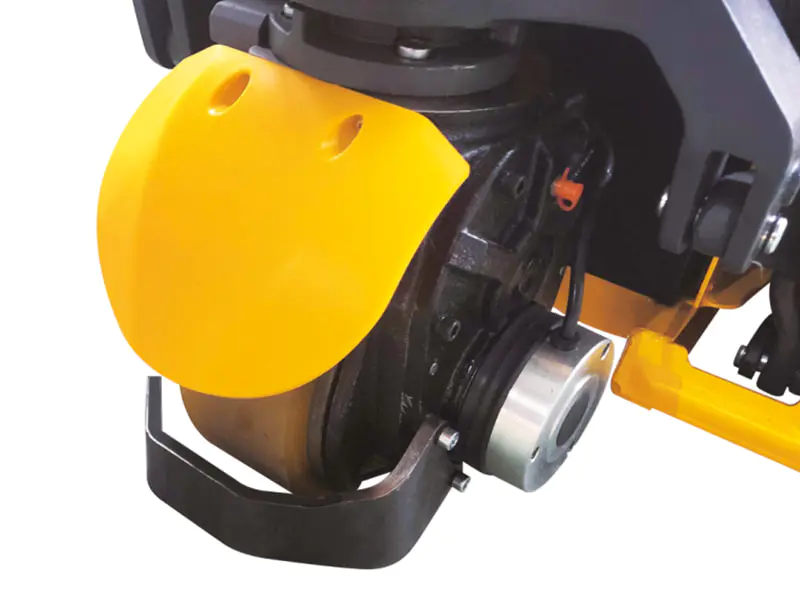

- Horizontal motor on the drive wheel simplifies maintenance

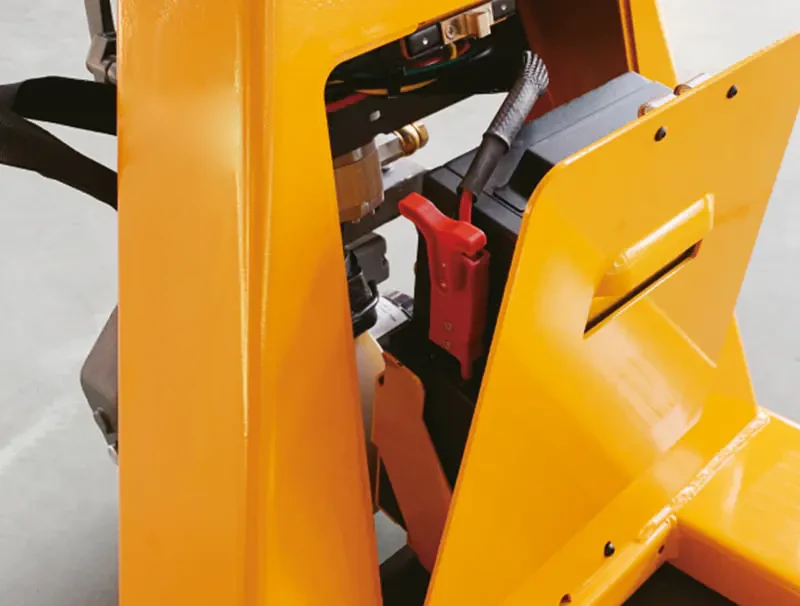

- External charger connector — recharge the battery separately

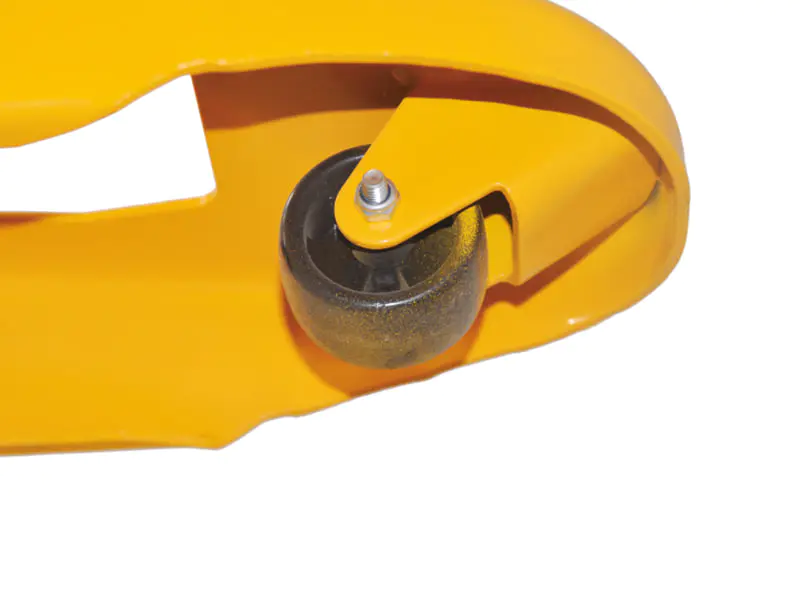

- Options: entry roller, double fork roller
Technical overview
- Model / SKU: EPV15
- Product family: Electric Pallet Trucks
- Load capacity: 1500 kg
- Engine type: DC
- Load center: 600 mm
- Fork height, lowered: 80 mm
- Tyre size, front: 210x70mm
- Tyre size, rear: 80x70mm, 80x93mm
- Max. lift height: 110 mm
- Height of tiller min/max: 635/1200mm
- Overall length: 1580/1650mm
- Length to face of forks: 430 mm
- Overall width: 550/685mm
- Fork dimensions: 53x160x1150mm (1220)
- Width overall forks: 550/685mm
- Aisle width for pallets 1000x1200mm: 2180/2250mm
- Aisle width for pallets 800x1200mm: 2050/2085mm
- Turning radius: 1380/1450mm
- Travel speed, laden/unladen: 4.3/4.5km/h
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LFP/24/20
- Battery weight: 5.5 kg
- Service weight (with battery): 114 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Powered horizontal transport of pallets over longer distances and higher frequency than hand trucks.
- Loading/unloading trucks, cross-docking, supermarket back-of-house.
- Rider (platform/seated) versions for long routes; double-decker for two pallets.
This model
Li-ion battery: opportunity charging, multi-shift, maintenance-free. Jack: lifting from below over short heights. Capacity options: 1500 kg. Battery: LFP/24/20. Drive: DC. Initial lift: no. Folding platform: no. Power steering: no. Fork dimensions: 53x160x1150mm (1220). Turning radius: 1380/1450mm.
Check before you choose
- Capacity 1 500–3 000 kg
- Walkie vs. platform/stand-on vs. seated by distance and shifts
- Battery type (Li-ion for opportunity charging), charger
- Fork length for 1 or 2 pallets
- Ramps and gradients (drive motor power)
- Aisle width
Not suitable for
- Lifting onto racking (lift ~120–200 mm) — use a stacker
- Outdoor rough terrain
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet sizes; one or two pallets per trip; fork length?
- Distance per trip and pallets per hour? Decides pedestrian vs. platform vs. seated.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- A small walkie is no substitute for a rider truck on long routes — choose the operator position by distance and intensity.
Helpful to have ready: Mass/pallet · Average and max distance · Pallets per hour · Gradients · Shifts · Charging
Attributes
| Load capacity | 1500 kg |
|---|---|
| Engine type | DC |
| Load center | 600 mm |
| Lowered fork height | 80 mm |
| Tyre size, front | 210x70 mm |
| Tyre size, rear | 80x70 mm, 80x93 mm |
| Lift height | 110 mm |
| Height of tiller min/max | 635/1200 mm |
| Overall length | 1580/1650 mm |
| Length to face of forks | 430 mm |
| Overall width | 550/685 mm |
| Fork dimensions | 53x160x1150 mm (1220) |
| Width overall forks | 550/685 mm |
| Aisle width for pallets 1000x1200mm | 2180/2250 mm |
| Aisle width for pallets 800x1200mm | 2050/2085 mm |
| Turning radius | 1380/1450 mm |
| Travel speed, laden/unladen | 4.3/4.5 km/h |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery type/voltage/capacity | LFP/24/20 |
| Battery weight | 5.5 kg |
| Service weight | 114 kg |
