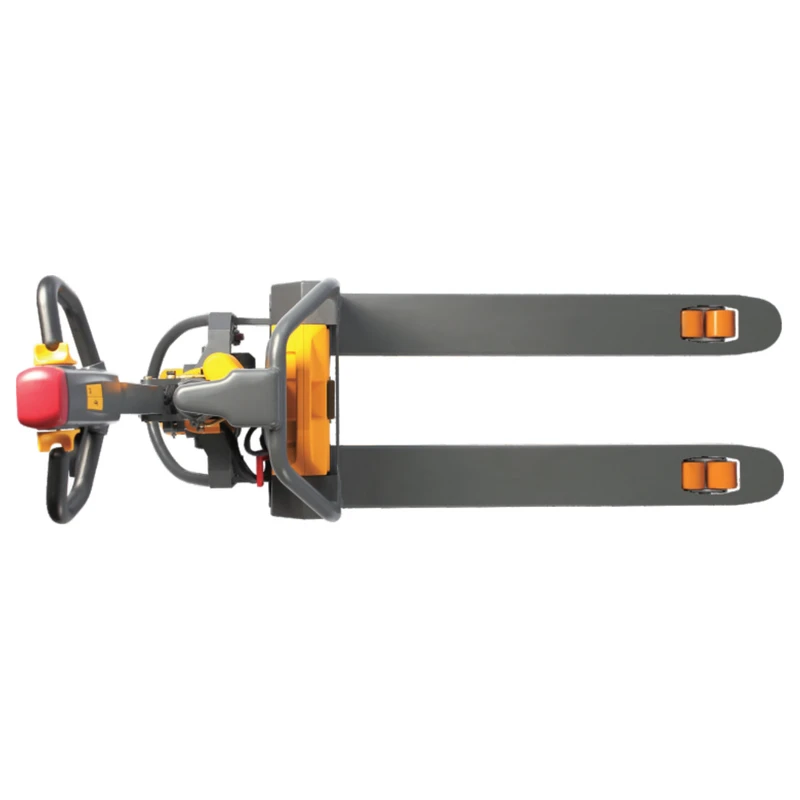

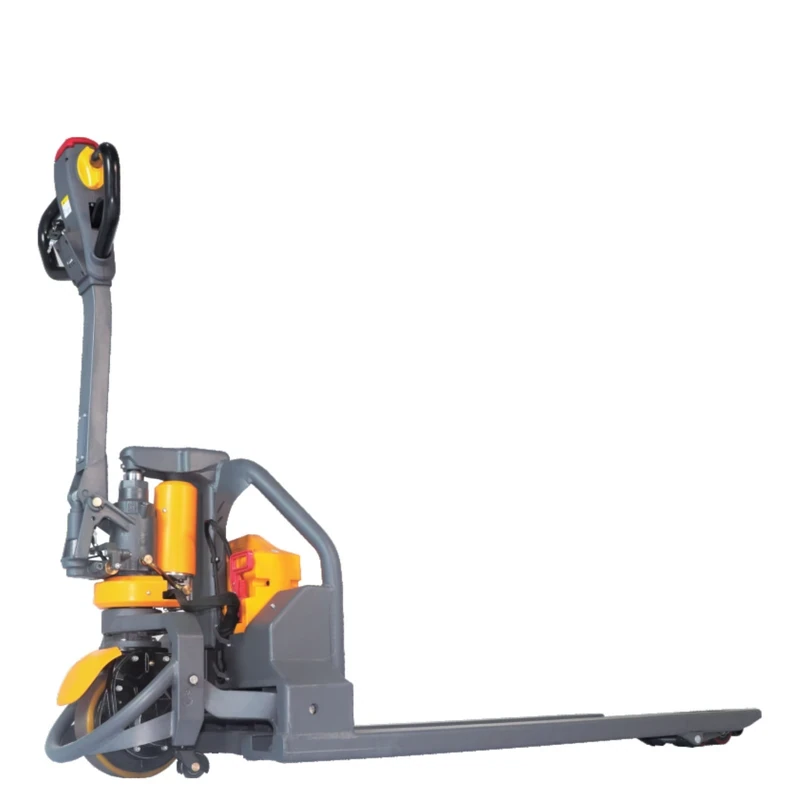

Li-Ion Powered Pallet Truck (EPV15LD-Li) 1500 kg
Price
2.415,00 EUR
1.932,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Compact Li-ion powered pallet truck with 1500 kg capacity, 48V/20Ah battery, one-piece cast rocker arm and electromagnetic brake with regenerative braking — agile in confined indoor spaces.
Key features
- Multi-function handle: key switch, horn, butterfly thumb controls, emergency reverse
- One-piece cast rocker arm for extra strength
- Ergonomic spring-loaded steering handle reduces operator fatigue
- Rugged, lightweight body — outstanding agility in confined spaces
- EM brake with regenerative braking
- Simple mechanical and electronic components — easy service
- 48V/20Ah Li-ion battery weighing only 8.5 kg

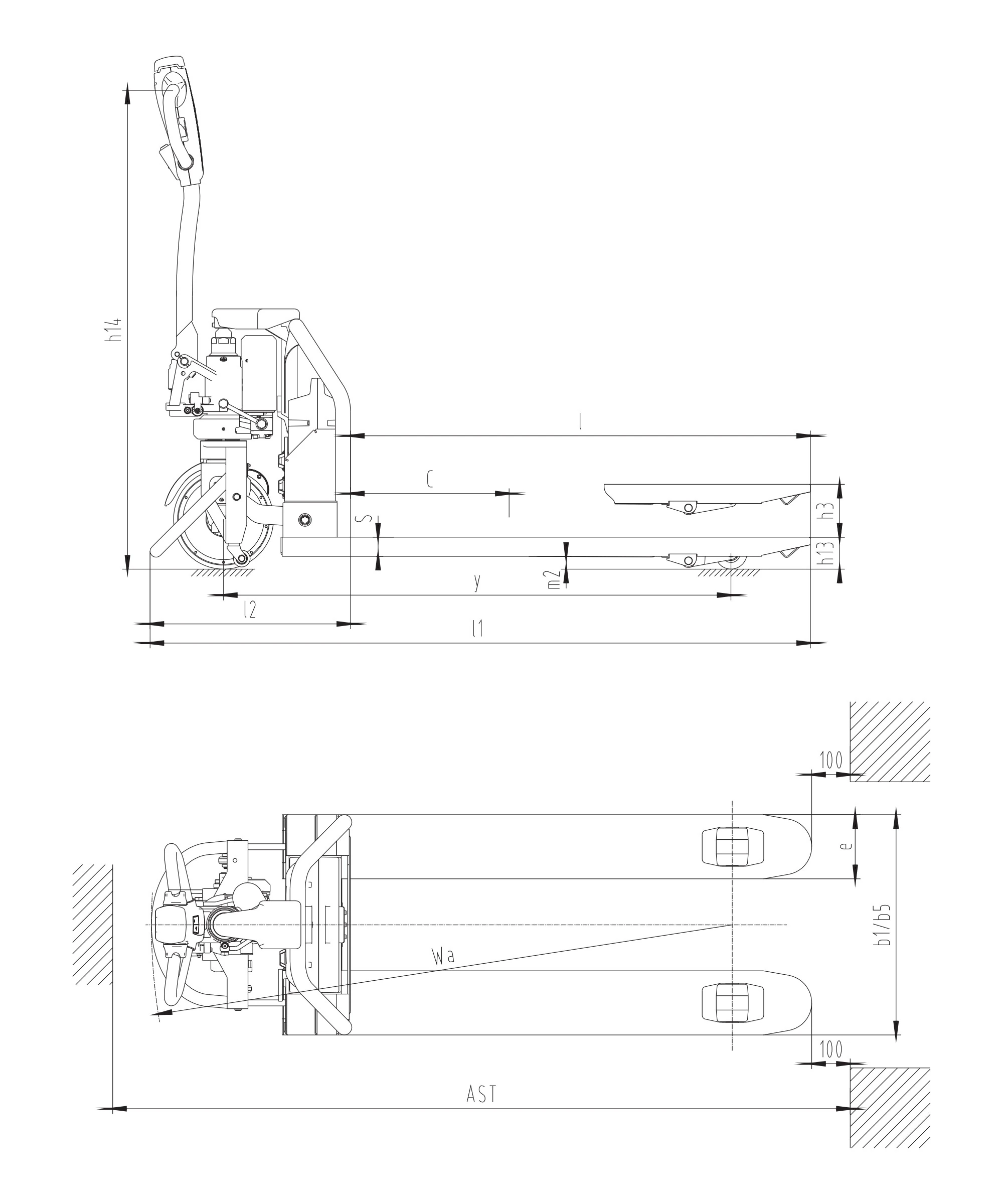

Technical overview
- Model / SKU: EPV15LD-Li
- Product family: Electric Pallet Trucks
- Load capacity: 1500 kg
- Engine type: DC
- Load center: 600 mm
- Fork height, lowered: 80 mm
- Tyre size, front: 210 mm
- Tyre size, rear: 80 mm
- Number of wheels, front/rear (x=driving) Φ: 1x2(4)
- Max. lift height: 110 mm
- Height of tiller min/max: 635/1200mm
- Overall length: 1623/1693mm
- Length to face of forks: 473 mm
- Overall width: 550/685mm
- Fork dimensions: 45x160x1150mm (1220)
- Width overall forks: 550/685mm
- Aisle width for pallets 1000x1200mm: 2226/2294mm
- Aisle width for pallets 800x1200mm: 2095/2132mm
- Turning radius: 1424/1494mm
- Travel speed, laden/unladen: 4.8/5.0km/h
- Max. gradeability laden/unladen: 5/20%
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LFP/48/20
- Battery weight: 8.5 kg
- Battery dimensions (I/W/H): 340x130x307mm
- Service weight (with battery): 135 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Powered horizontal transport of pallets over longer distances and higher frequency than hand trucks.
- Loading/unloading trucks, cross-docking, supermarket back-of-house.
- Rider (platform/seated) versions for long routes; double-decker for two pallets.
This model
Li-ion battery: opportunity charging, multi-shift, maintenance-free. Capacity options: 1500 kg. Battery: LFP/48/20. Drive: DC. Initial lift: no. Folding platform: no. Power steering: no. Fork dimensions: 45x160x1150mm (1220). Turning radius: 1424/1494mm.
Check before you choose
- Capacity 1 500–3 000 kg
- Walkie vs. platform/stand-on vs. seated by distance and shifts
- Battery type (Li-ion for opportunity charging), charger
- Fork length for 1 or 2 pallets
- Ramps and gradients (drive motor power)
- Aisle width
Not suitable for
- Lifting onto racking (lift ~120–200 mm) — use a stacker
- Outdoor rough terrain
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet sizes; one or two pallets per trip; fork length?
- Distance per trip and pallets per hour? Decides pedestrian vs. platform vs. seated.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- A small walkie is no substitute for a rider truck on long routes — choose the operator position by distance and intensity.
Helpful to have ready: Mass/pallet · Average and max distance · Pallets per hour · Gradients · Shifts · Charging
Attributes
| Load capacity | 1500 kg |
|---|---|
| Engine type | DC |
| Load center | 600 mm |
| Lowered fork height | 80 mm |
| Tyre size, front | 210 mm |
| Tyre size, rear | 80 mm |
| Number of wheels, front/rear (x=driving) Φ | 1x2(4) |
| Lift height | 110 mm |
| Height of tiller min/max | 635/1200 mm |
| Overall length | 1623/1693 mm |
| Length to face of forks | 473 mm |
| Overall width | 550/685 mm |
| Fork dimensions | 45x160x1150 mm (1220) |
| Width overall forks | 550/685 mm |
| Aisle width for pallets 1000x1200mm | 2226/2294 mm |
| Aisle width for pallets 800x1200mm | 2095/2132 mm |
| Turning radius | 1424/1494 mm |
| Travel speed, laden/unladen | 4.8/5.0 km/h |
| Max. gradeability laden/unladen | 5/20% |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery type/voltage/capacity | LFP/48/20 |
| Battery weight | 8.5 kg |
| Battery dimensions (I/W/H) | 340x130x307 mm |
| Service weight | 135 kg |
