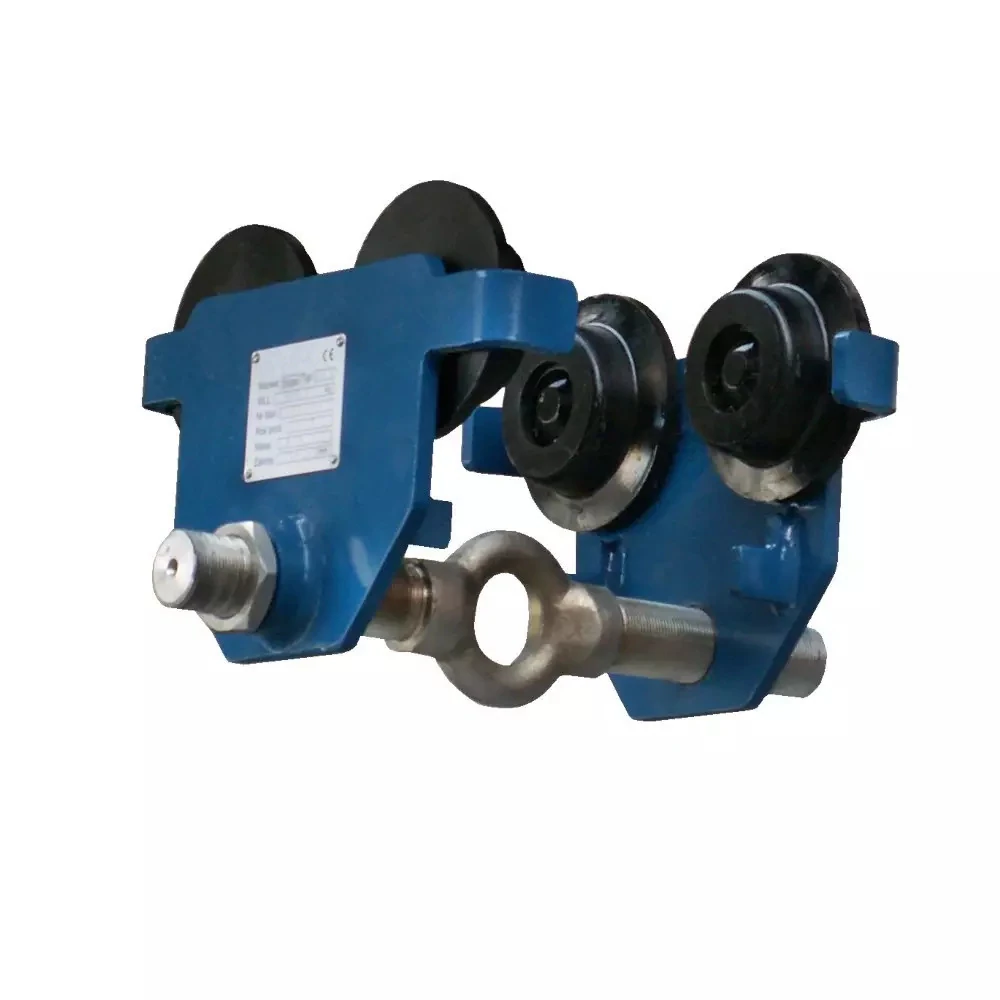

Push Beam Trolley (M-TROLLEY) 500-5000 kg
From 70,00 EUR
Back to catalog
Geared Beam Trolley (MG-TROLLEY) 1000-5000 kg
Price
From 135,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Available — ships in 1–2 working days
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Manual Trolley Hoists
Tags:
Chain Blocks,
Hoist Trolleys
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Geared beam trolley with manual chain drive — a movable suspension point moved along the beam by pulling the hand chain through a gear mechanism, for precise, controlled positioning of heavy loads even on higher beams. Working load limits from 1,000 to 5,000 kg, standard flange range 58–220 mm. Standard maneuvering chain 2.5 m, extendable on request.
Key features
- Geared travel by hand chain via a gear mechanism — accurate, controlled positioning of heavy loads
- Standard maneuvering chain 2.5 m; extendable on request
- Suspension point for hoists on a wide range of I-beams (INP, IPE, IPB)
- Wheel track adjustment mechanism centres the hoist on the flange
- Wheels with bearings for excellent rolling; for running-surface slopes up to 20%
- Working load limit (WLL): 1,000 – 5,000 kg
- Complies with the Machinery Directive 2006/42/EC; made to the harmonized standard EN 13155
- Marked with manufacturer's mark, CE mark, capacity, factory number and year of production
Technical overview
- Model / SKU: MG-TROLLEY
- Product family: Manual Trolley Hoists
- Load capacity: 1000 kg, 2000 kg, 3000 kg, 5000 kg
- Flange width range: 58–220 mm
- Hand chain length: 2.5 m standard, up to 10 m (extendable on request)
Add the product to the quote list for delivery terms and customer-specific configurations.
What it is for
- Chain block with integrated push trolley to travel along a beam by hand.
- Monorails and light cranes without power.
This model
Integrated trolley: check beam flange width. Capacity options: 1000 kg, 2000 kg, 3000 kg, 5000 kg.
Check before you choose
- Beam flange width fits the trolley
- WLL and lift height
- Push vs. geared travel
Not suitable for
- Long travel distances or heavy loads — electric trolley
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Beam profile (IPE/HEA/HEB or exact dimensions), flange width and thickness; WLL; push or geared; hand-chain length; hook path; curve radius? Most common mistake: ordering without checking flange width and shape. Beam capacity must also be sufficient.
Typical mistakes to avoid
- Ordering without checking flange width/shape is the most common mistake; the beam's own capacity must be sufficient.
Helpful to have ready: IPE/HEA/HEB designation or exact measurements · Mass · Photo of the beam · Hook path
Attributes
| Load capacity | 1000 kg, 2000 kg, 3000 kg, 5000 kg |
|---|---|
| Hand chain length | 2.5 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m, 10 m |
| Brand | DELACCO |
| Compliance | Harmonized Standard: EN 13155, Machinery Directive: 2006/42/EC |
| Flange Kind | Standard flange |
| Standard Chain M | 2.5 |
| Code | WLL [kg] | Flange width M [mm] | A [mm] | B [mm] | C [mm] | D [mm] | F [mm] | G [mm] | H [mm] | S [mm] | Mass [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MG-TROLLEY-1000 | 1,000 | 58–220 | 354 | 238 | 183 | 30 | 3 | 36 | 95 | 43 | 12.5 |
| MG-TROLLEY-2000 | 2,000 | 66–220 | 362 | 277 | 208 | 35 | 3 | 48 | 106 | 38 | 18 |
| MG-TROLLEY-3000 | 3,000 | 74–220 | 407 | 324 | 249 | 46 | 3 | 58 | 121 | 40 | 28 |
| MG-TROLLEY-5000 | 5,000 | 90–220 | 435 | 373 | 297 | 50 | 3 | 65 | 136 | 42 | 45 |

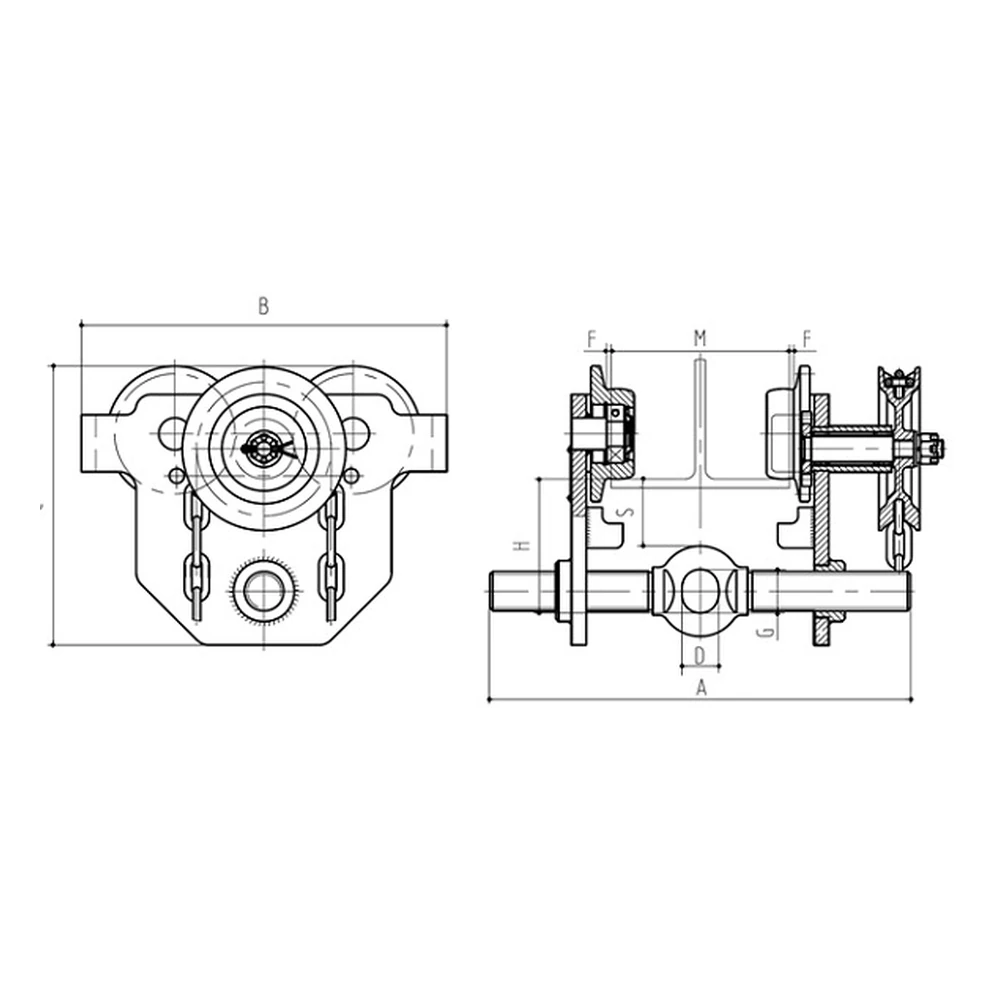

Standard maneuvering chain 2.5 m (extendable on request). Mass is given for the standard 2.5 m chain. Dimensions A, B, C, D, F, G, H and S per the dimensional drawing; M is the recommended beam flange width.
