Electric Stacker with Initial Lift (EVV15-I) 1500 kg 2500-5600 mm
Price
From 11.040,00 EUR
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Stackers with Initial Lift
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Electric pallet stacker with initial lift, 1500 kg rated capacity (2000 kg in double-pallet transport) and mast options up to 5600 mm, designed for intensive stocking in medium-height warehouses.
Key features
- Initial lift raises the load legs — 2000 kg in double-pallet transport
- Handles two pallets simultaneously thanks to the double-pallet design
- Increased ground clearance for ramps, dock levelers and bridge plates
- Four-point support structure with side tiller and low centre of gravity
- Brushless AC motor with effective electromagnetic parking brake
- Free-lift mast with two side cylinders offers a wide operator view
- Vertical driving wheel: small turning radius, dust- and water-proof motor
Technical overview
- Model / SKU: EVV15-I
- Product family: Electric Stackers with Initial Lift
- Load capacity: 1500 kg
- Engine type: AC
- Load center: 600 mm
- Load distance: 697 mm
- Tyre size, front: 250x70mm
- Tyre size, rear: 80x70mm
- Additional wheels (dimensions): 150x60mm
- Number of wheels, front/rear (x=driving) Φ: 1X+1/4
- Height, mast lowered: 1757 mm, 2007 mm, 2022 mm, 2157 mm, 2182 mm, 2257 mm, 2382 mm
- Free lift: 1300 mm, 1550 mm, 1700 mm, 1800 mm, 1570 mm, 1740 mm, 1940 mm
- Max. lift height: 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm
- Initial lift: yes
- Overall length: 1982 mm
- Length to face of forks: 878 mm
- Overall width: 820 mm
- Fork dimensions: 60x180x1070mm (1150)
- Width overall forks: 570/650mm

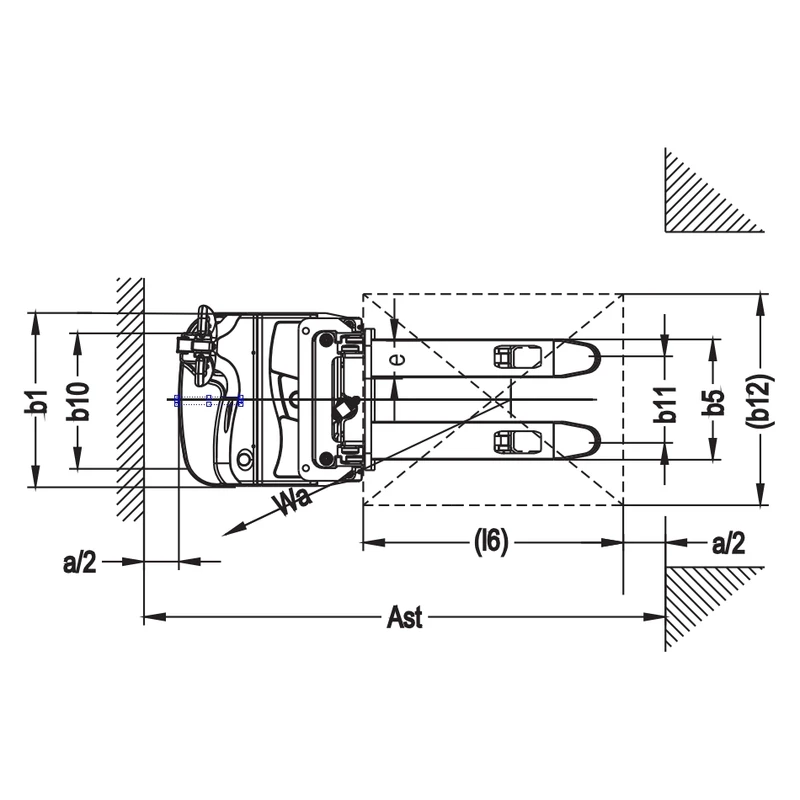

- Aisle width for pallets 800x1200mm: 2500 mm
- Turning radius: 1575 mm
- Travel speed, laden/unladen: 5.8/6km/h
- Lifting speed laden/unladen: 0.11/0.16m/s
- Lowering speed laden/unladen: 0.12/0.12m/s
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LA/24/240, LFP/24/125, LFP/24/225
- Battery weight: 220 kg
- Battery dimensions (I/W/H): 675x254x500mm
- Service weight (with battery): 1205 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Max. lift height | 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm |
|---|---|
| Battery type/voltage/capacity | LA/24/240, LFP/24/125, LFP/24/225 |
| Load capacity | 1500 kg |
| Engine type | AC |
| Load center | 600 mm |
| Load distance | 697 mm |
| Tyre size, front | 250x70mm |
| Tyre size, rear | 80x70mm |
| Additional wheels (dimensions) | 150x60mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+1/4 |
| Height, mast lowered | 1757 mm, 2007 mm, 2022 mm, 2157 mm, 2182 mm, 2257 mm, 2382 mm |
| Free lift | 1300 mm, 1550 mm, 1700 mm, 1800 mm, 1570 mm, 1740 mm, 1940 mm |
| Initial lift | yes |
| Overall length | 1982 mm |
| Length to face of forks | 878 mm |
| Overall width | 820 mm |
| Fork dimensions | 60x180x1070mm (1150) |
| Width overall forks | 570/650mm |
| Aisle width for pallets 800x1200mm | 2500 mm |
| Turning radius | 1575 mm |
| Travel speed, laden/unladen | 5.8/6km/h |
| Lifting speed laden/unladen | 0.11/0.16m/s |
| Lowering speed laden/unladen | 0.12/0.12m/s |
| Folding platform | no |
| Electric power steering | no |
| Battery weight | 220 kg |
| Battery dimensions (I/W/H) | 675x254x500mm |
| Service weight (with battery) | 1205 kg |
