Electric Rider Stacker with Initial Lift (EVV15-IP) 1500 kg 2500-5600 mm
Price
From 12.465,00 EUR
From 9.972,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Stackers with Initial Lift
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Electric rider stacker with initial lift and folding platform, 1500 kg rated capacity (2000 kg in double-pallet transport) and mast options up to 5600 mm for intensive stocking operations.
Key features
- Initial lift raises the load legs — 2000 kg in double-pallet transport
- Handles two pallets simultaneously thanks to the double-pallet design
- Increased ground clearance for ramps, dock levelers and bridge plates
- Four-point support structure with side tiller and low centre of gravity
- Brushless AC motor with effective electromagnetic parking brake
- Free-lift mast with two side cylinders offers a wide operator view
- Vertical driving wheel: small turning radius, dust- and water-proof motor
Technical overview
- Model / SKU: EVV15-IP
- Product family: Electric Stackers with Initial Lift
- Load capacity: 1500 kg
- Load center: 600 mm
- Load distance: 768 mm
- Engine type: AC
- Tyre size, front: 250x70mm
- Tyre size, rear: 80x70mm
- Additional wheels (dimensions): 150x47mm
- Number of wheels, front/rear (x=driving) Φ: 1X+1/4
- Height, mast lowered: 1757 mm, 2007 mm, 2022 mm, 2157 mm, 2182 mm, 2257 mm, 2382 mm
- Free lift: 1300 mm, 1550 mm, 1570 mm, 1700 mm, 1740 mm, 1800 mm, 1940 mm
- Max. lift height: 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm
- Initial lift: yes
- Overall length: 2058 mm
- Length to face of forks: 988 mm
- Overall width: 850 mm
- Fork dimensions: 60x180x1070mm (1150)
- Width overall forks: 570/650mm
- Aisle width for pallets 800x1200mm: 2575 mm
- Turning radius: 1655 mm
- Travel speed, laden/unladen: 7.0/7.1km/h
- Lifting speed laden/unladen: 0.11/0.16m/s
- Lowering speed laden/unladen: 0.12/0.12m/s
- Folding platform: yes
- Electric power steering: option
- Battery type/voltage/capacity: LA/24/240, LA/24/300, LFP/24/125, LFP/24/225
- Battery weight: 220 kg, 260 kg
- Battery dimensions (I/W/H): 675x254x500mm
- Service weight (with battery): 1260 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Stacker whose support legs lift too — cross ramps, dock levellers and uneven floors while stacking to racking.
- Truck unloading plus put-away with one machine.
This model
Rider/platform: for longer travel distances and multi-shift use; check turning radius. Initial lift raises the support legs: for ramps > 3 %, dock levellers and uneven floors (electric stackers and double-decker pallet trucks only). Capacity options: 1500 kg. Battery: LA/24/240, LA/24/300, LFP/24/125, LFP/24/225. Drive: AC. Initial lift: yes. Folding platform: yes. Power steering: option. Free lift: 1300 mm, 1550 mm, 1570 mm, 1700 mm, 1740 mm, 1800 mm. Fork dimensions: 60x180x1070mm (1150). Turning radius: 1655 mm.
Check before you choose
- Initial lift height vs. ramp/threshold
- Capacity at height
- Walkie vs. rider
Not suitable for
- Closed-bottom pallets (legs go under the pallet)
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Why initial lift: thresholds/ramps, dock levellers, double pallets, uneven floor? Height the support legs must lift? Initial lift solves ramp breaks and thresholds; it is not a substitute for sufficient ground clearance or a proper ramp.
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.

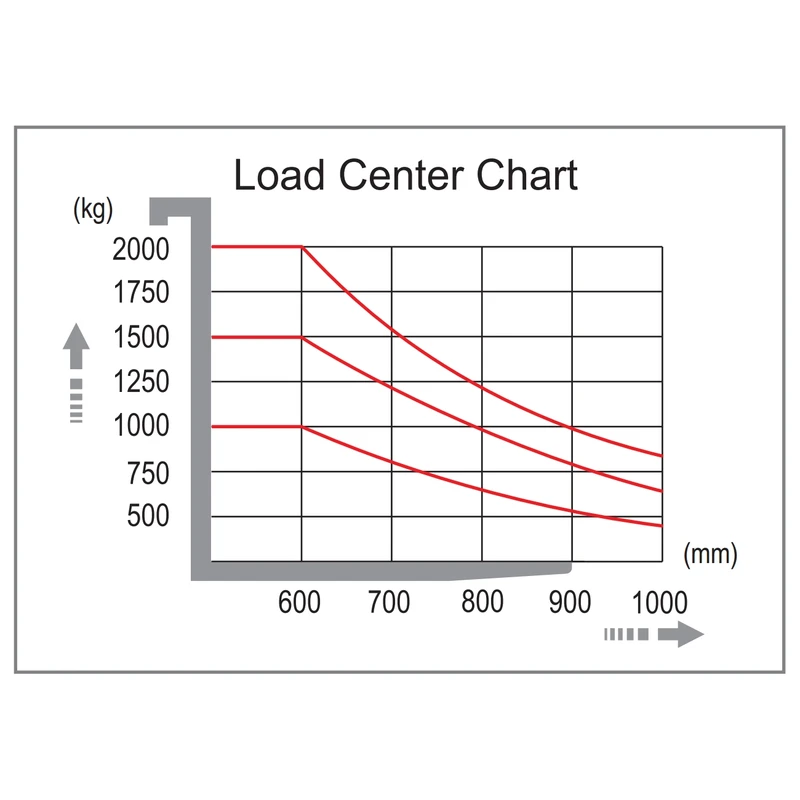

- Dimensions (L×W×H) of the largest and of the heaviest load? Is the centre of gravity known and centred? The load centre moves away from the mast as the load gets longer; real capacity falls with load-centre distance and lift height (capacity diagram). Tall loads raise the COG.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Initial lift solves specific obstacles but does not replace ground clearance or a proper ramp.
Helpful to have ready: Route/thresholds · Pallets · Masses · Height · Photos of ramp/vehicle
Attributes
| Max. lift height | 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm |
|---|---|
| Battery type/voltage/capacity | LFP/24/125, LFP/24/225, LA/24/240, LA/24/300 |
| Load capacity | 1500 kg |
| Load center | 600 mm |
| Load distance | 768 mm |
| Engine type | AC |
| Tyre size, front | 250x70 mm |
| Tyre size, rear | 80x70 mm |
| Additional wheels (dimensions) | 150x47 mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+1/4 |
| Height, mast lowered | 1757 mm, 2007 mm, 2022 mm, 2157 mm, 2182 mm, 2257 mm, 2382 mm |
| Free lift | 1300 mm, 1550 mm, 1570 mm, 1700 mm, 1740 mm, 1800 mm, 1940 mm |
| Lift height | 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm |
| Initial lift | yes |
| Overall length | 2058 mm |
| Length to face of forks | 988 mm |
| Overall width | 850 mm |
| Fork dimensions | 60x180x1070 mm (1150) |
| Width overall forks | 570/650 mm |
| Aisle width for pallets 800x1200mm | 2575 mm |
| Turning radius | 1655 mm |
| Travel speed, laden/unladen | 7.0/7.1 km/h |
| Lifting speed laden/unladen | 0.11/0.16 m/s |
| Lowering speed laden/unladen | 0.12/0.12 m/s |
| Folding platform | yes |
| Electric power steering | option |
| Battery weight | 220 kg, 260 kg |
| Battery dimensions (I/W/H) | 675x254x500 mm |
| Service weight | 1260 kg |
