ENDO Zero Gravity Spring Balancer (EK-0) 0.5-1.5 kg
Price
77,00 EUR
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Spring Balancers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Japanese-made zero gravity spring balancer with a 0.5-1.5 kg working range and 1 m steel wire rope (3 mm), holding tools weightless and drift-free to cut handling time and operator fatigue.

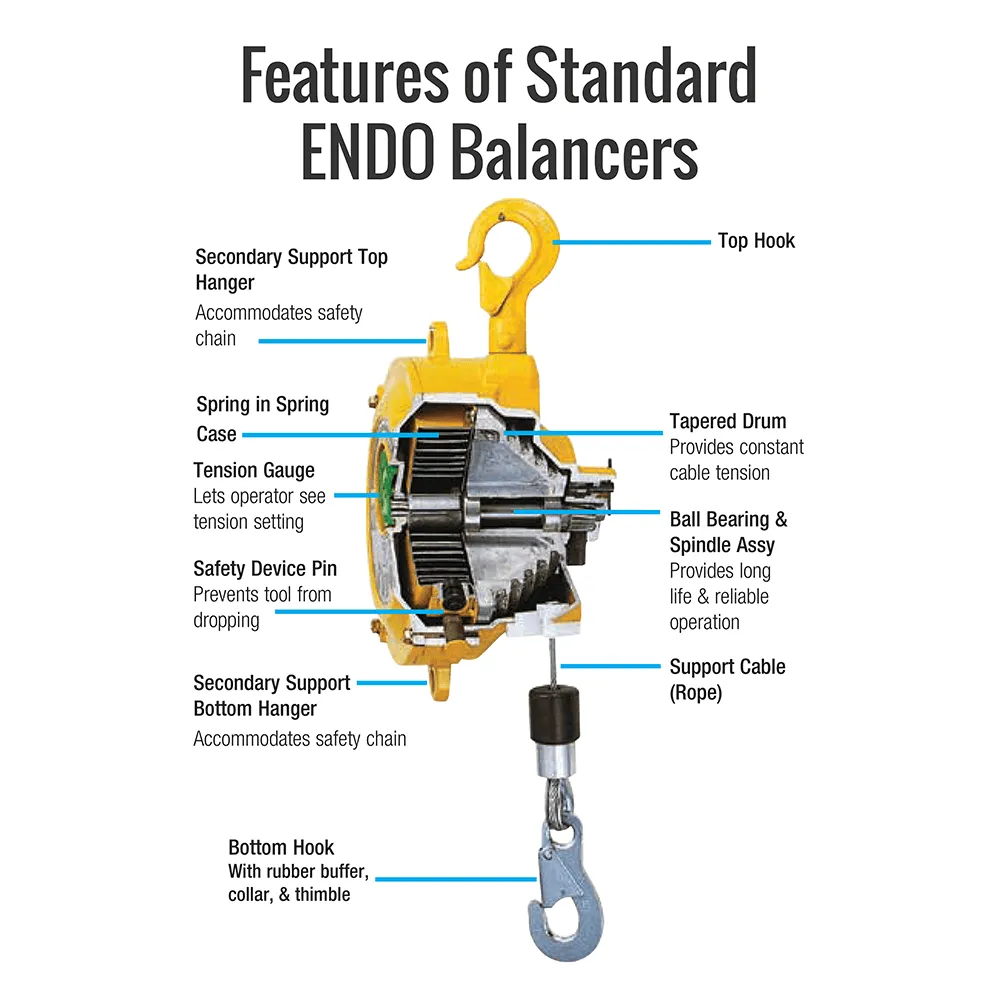

Key features
- Holds the tool weightless (zero gravity) without drift or tension
- Tapered drum, quality springs and ball bearings for smooth cable travel
- Forged aluminium swivel top hook with safety latch
- Steel bottom hook with safety latch and rubber bumper
- Top support lug for fitting a safety chain (secondary support)
- Durable cast aluminium housing in safety yellow
- Plug-type cable set — cable replacement without disassembling the balancer

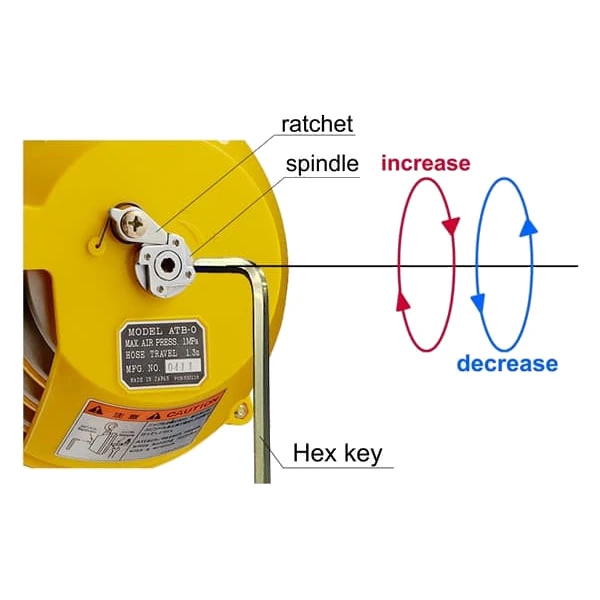

- Simple, precise ratchet spring tension adjustment
- CE marked, made in Japan
Technical overview
- Model / SKU: EK-0
- Product family: Spring Balancers
- Working load range: 0,5 - 1,5kg
- Cable length: 1 m
- Cable diameter: 3 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Spring balancer keeps hand tools (screwdrivers, grinders, nut runners) weightless within a set range.
- Assembly and production workstations.
This model
Balancer: tool/part weight must be inside the min–max range. Spring balancer: hand tools; not a hoist.
Check before you choose
- Tool weight inside the model's range
- Cable travel
- Safety features: drum lock, fall arrest
Not suitable for
- Tools heavier than range
- Precise zero-gravity of heavy parts — use pneumatic/electric balancer
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Total suspended mass: tool + adapters + the part of hose/cable the balancer carries? Any mass change during work? Mass must be inside the working range; an oversized balancer gives too much return force, an undersized one sinks.
- Cable stroke needed; mounting height; highest and lowest working point? Stroke must cover the working range.
Typical mistakes to avoid
- Mass must be inside the working range; too large a balancer gives excessive return force.
Helpful to have ready: Measured total mass · Required stroke · Photo of the suspension point
Attributes
| Working load range | 0.5 - 1.5 kg |
|---|---|
| Cable length | 1 m |
| Cable diameter | 3 mm |
