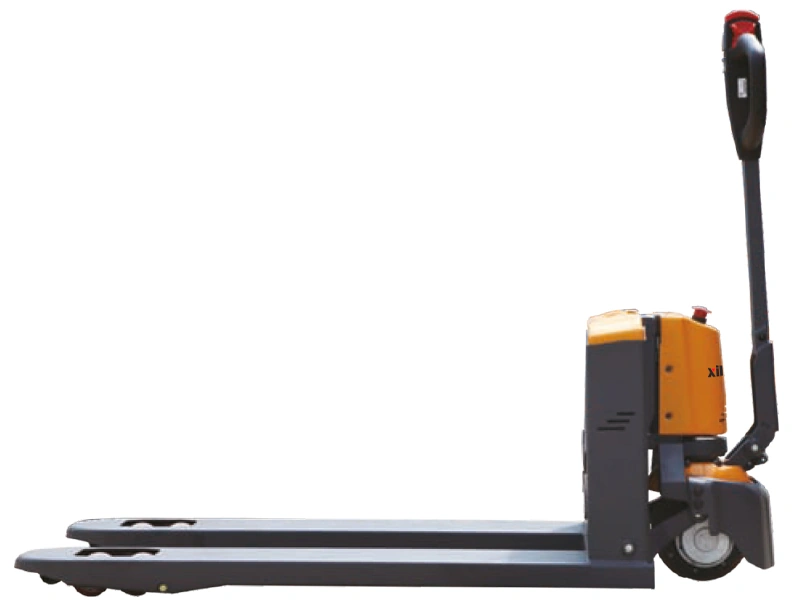

Li-ion Powered Pallet Truck (CBD15W-II Li/CBD20W-II Li) 1500-2000 kg
Price
From 1.455,00 EUR
From 1.164,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

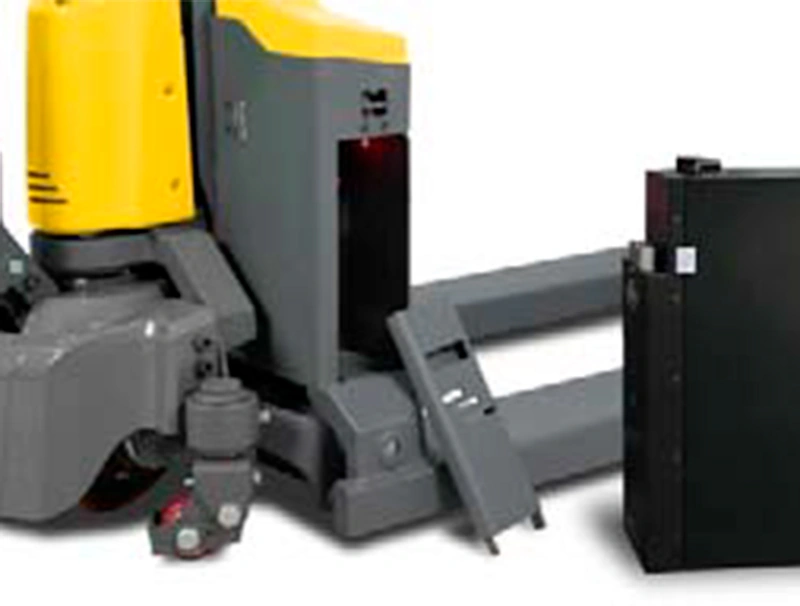

This is the pallet truck for operations that treat the battery as a consumable: instead of parking the truck at a charger, the operator slides the side-mounted lithium pack out by hand and pushes a charged one in. The swap takes around ten seconds and needs no tools, so one truck with two packs effectively runs around the clock.
Built for hard use
- Outer covers are steel, not plastic, so a knock from a pallet corner leaves a dent instead of a hole

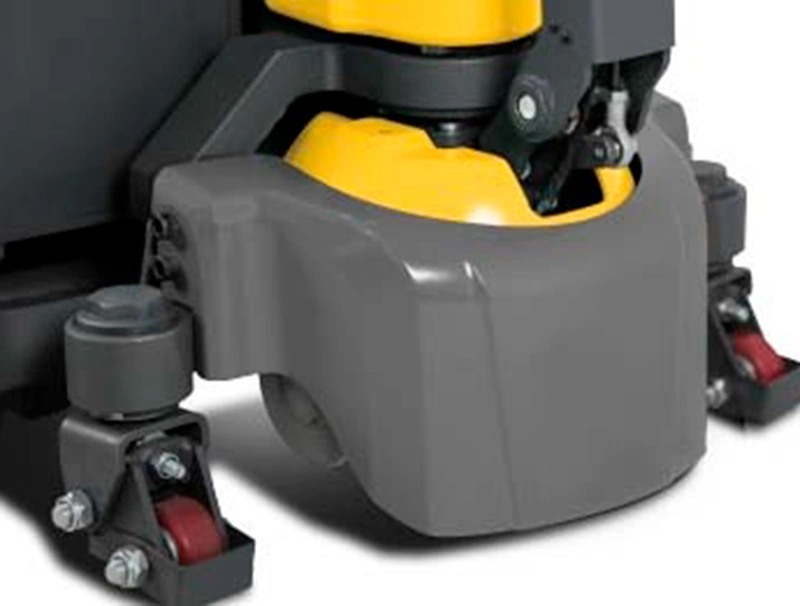

- One-piece rocker arm stiffens the chassis and keeps the drive wheel pressed to the floor on uneven concrete
- Large-diameter plunger cylinder runs the hydraulics at low pressure, which is what makes pumps of this type last

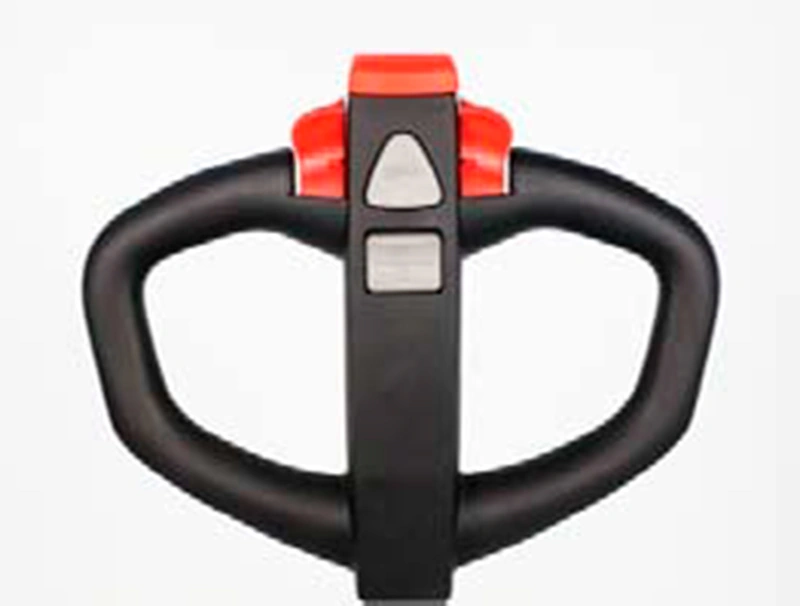

- Handle folds flat and detaches for transport, and the low-speed button lets the truck creep with the tiller upright in tight corners
Two capacities, one footprint
- 1500 kg version with 24 V drivetrain and 0.75 kW motor; packs of 20 to 60 Ah
- 2000 kg version with 48 V drivetrain, 1 kW brushless motor and packs of 20 to 30 Ah
- Both share the 1345-1415 mm turning radius and pass the same 2015 mm aisle with an 800 x 1200 pallet lengthways
Safety equipment
Lifting overload protection, an electrical lift limit at full height and the belly-button emergency reverse come as standard. Guided fork rollers and floating stabiliser wheels are available as options.
Price and delivery
Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
What it is for
- Powered horizontal transport of pallets over longer distances and higher frequency than hand trucks.
- Loading/unloading trucks, cross-docking, supermarket back-of-house.
- Rider (platform/seated) versions for long routes; double-decker for two pallets.
This model
Li-ion battery: opportunity charging, multi-shift, maintenance-free. Capacity options: 1500 kg, 2000 kg.
Check before you choose
- Capacity 1 500–3 000 kg
- Walkie vs. platform/stand-on vs. seated by distance and shifts
- Battery type (Li-ion for opportunity charging), charger
- Fork length for 1 or 2 pallets
- Ramps and gradients (drive motor power)
- Aisle width
Not suitable for
- Lifting onto racking (lift ~120–200 mm) — use a stacker
- Outdoor rough terrain
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet sizes; one or two pallets per trip; fork length?
- Distance per trip and pallets per hour? Decides pedestrian vs. platform vs. seated.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- A small walkie is no substitute for a rider truck on long routes — choose the operator position by distance and intensity.
Helpful to have ready: Mass/pallet · Average and max distance · Pallets per hour · Gradients · Shifts · Charging
Attributes
| Load capacity | 1500 kg, 2000 kg |
|---|---|
| Lift height | 110 mm |
| Lowered fork height | 80 mm |
| Fork dimensions | 70/160/1150 (1220) mm |
| Width overall forks | 550 mm, 680 mm |
| Turning radius | 1345-1415 mm |
| Travel speed | 4.3-4.8 km/h |
| Service weight | 135 kg (1.5 t), 140 kg (2 t) |
| Battery | Li-ion 24 V (1.5 t), Li-ion 48 V (2 t) |
| Drive motor | 0.75 kW (1.5 t), 1.0 kW brushless (2 t) |
