Semi-Electric Order Picker (PEKV400) 400 kg 3500-4500 mm
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Semi-electric order picker with 400 kg capacity and 3500-4500 mm lifting height, electric lifting with quiet operation, large working platform and self-locking safety gate.
Key features
- Large working platform with solid slip-resistant floor
- Self-locking gate provides maximum safety for aerial work
- Electric motor: smooth, quiet, zero-emission operation
- Ergonomic design prioritises operator safety and comfort
- 400 kg capacity with 3500-4500 mm lifting height
- Semi-electric drive — electric lifting with manual travel

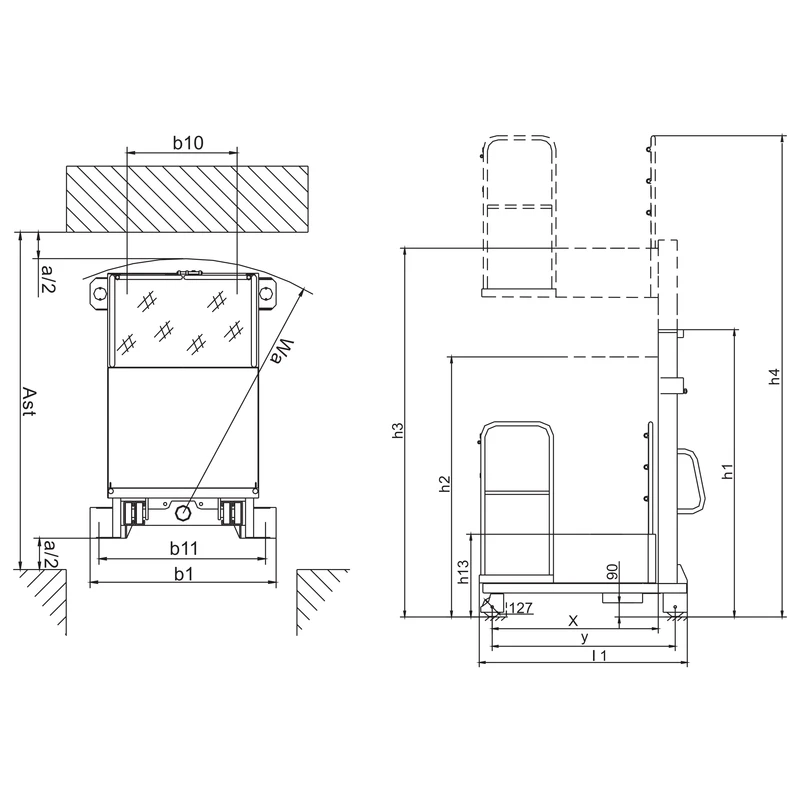

Technical overview
- Model / SKU: PEKV400
- Product family: Order Pickers
- Load capacity: 400 kg
- Load distance, center of drive axle to fork: 1052 mm
- Fork height, lowered: 524 mm
- Wheelbase: 1160 mm
- Tread, front: 522 mm
- Tread, rear: 868 mm
- Height, mast lowered: 2250/2500/2750mm
- Max. lift height: 3500/4000/4500mm
- Height, mast extended: 3500/4000/4500mm
- Overall length: 1520 mm
- Overall width: 1174 mm
- Aisle width for pallets 1000x1200mm: 1760 mm
- Turning radius: 1460 mm
- Lifting speed laden/unladen: 0.08/0.10m/s
- Lowering speed laden/unladen: 0.14/0.12m/s
- Lift motor rating at S3 15%: 1.5kW
- Battery type/voltage/capacity: LA/12/200
- Battery weight: 60 kg
- Battery dimensions (I/W/H): 250x190x295mm
- Service weight (with battery): 420/450/480kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 400 kg |
|---|---|
| Load distance, center of drive axle to fork | 1052 mm |
| Fork height, lowered | 524 mm |
| Wheelbase | 1160 mm |
| Tread, front | 522 mm |
| Tread, rear | 868 mm |
| Height, mast lowered | 2250/2500/2750mm |
| Max. lift height | 3500/4000/4500mm |
| Height, mast extended | 3500/4000/4500mm |
| Overall length | 1520 mm |
| Overall width | 1174 mm |
| Aisle width for pallets 1000x1200mm | 1760 mm |
| Turning radius | 1460 mm |
| Lifting speed laden/unladen | 0.08/0.10m/s |
| Lowering speed laden/unladen | 0.14/0.12m/s |
| Lift motor rating at S3 15% | 1.5kW |
| Battery type/voltage/capacity | LA/12/200 |
| Battery weight | 60 kg |
| Battery dimensions (I/W/H) | 250x190x295mm |
| Service weight (with battery) | 420/450/480kg |
