Electric Low Level Order Picker (NKV10/NKV12) 1000-1200 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

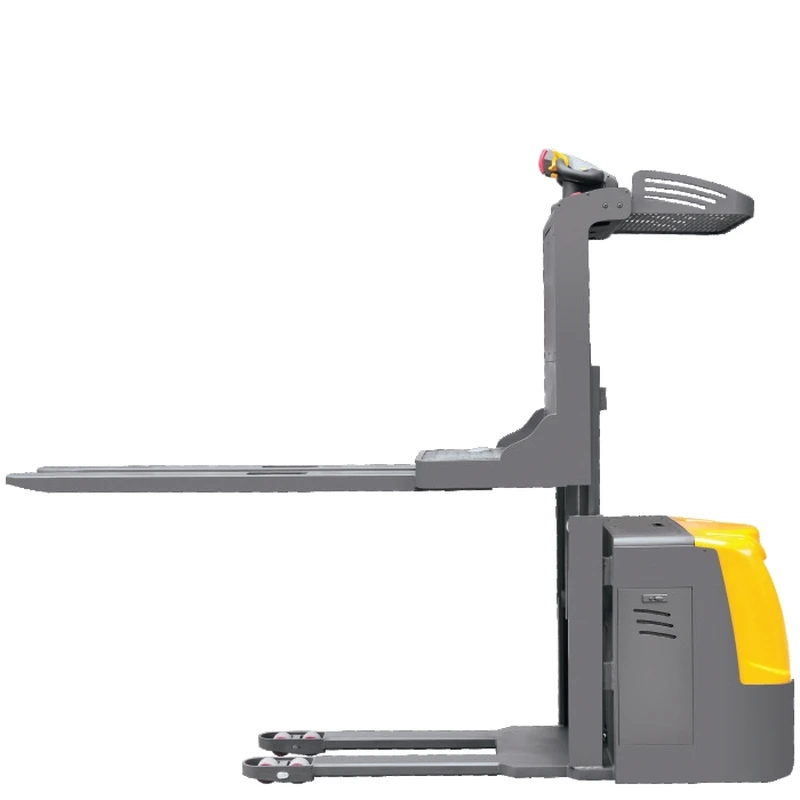

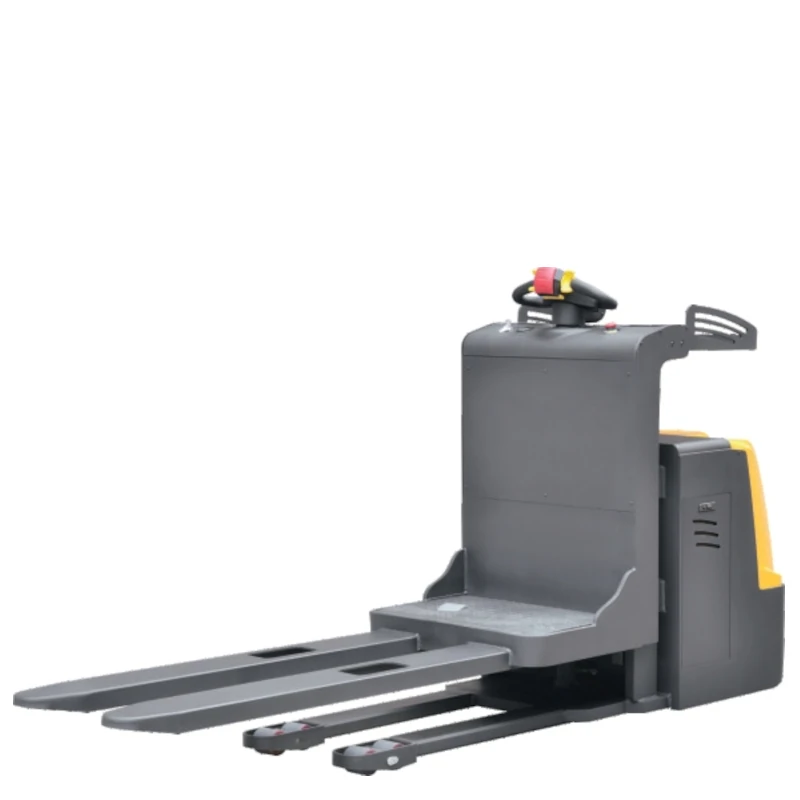

Electric low level order picker with 1000-1200 kg capacity, 1.2 m platform lift and a 60 kg storage compartment, with EPS power steering and combined regenerative and electromagnetic braking.
Key features
- 1000-1200 kg capacity with 1.2 m max platform lift
- 60 kg storage compartment in front of the operator
- EPS power steering handle for effortless manoeuvrability
- Ergonomic human-engineering design for comfortable operation
- Combined regenerative and electromagnetic braking
Technical overview
- Model / SKU: NKV10_NKV12
- Product family: Order Pickers

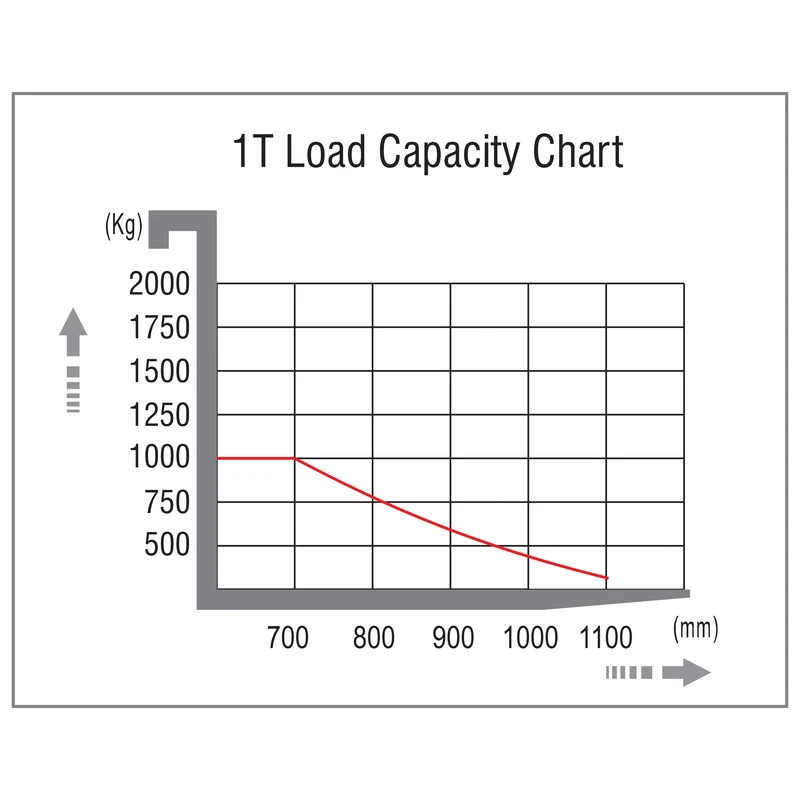

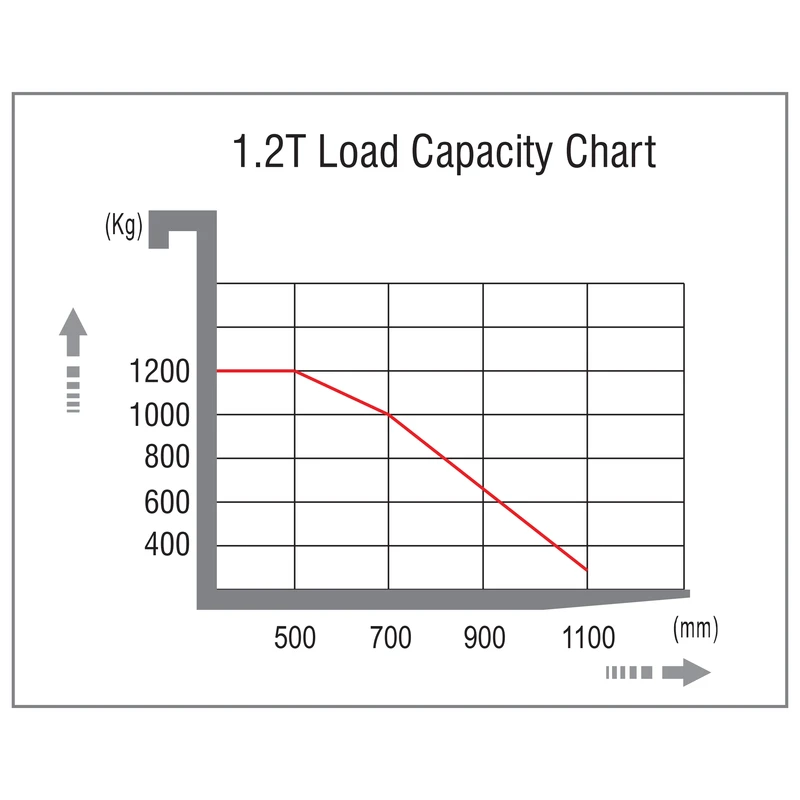

- Load capacity: 1000 kg, 1200 kg
- Load center: 500 mm, 700 mm
- Load distance, center of drive axle to fork: 515 mm
- Tyre size, front: 250x80mm
- Rear wheel size (double): 80x84mm
- Additional wheels: Φ150×60mm
- Number of wheels, front/rear (x=driving) Φ: 1X+1/4

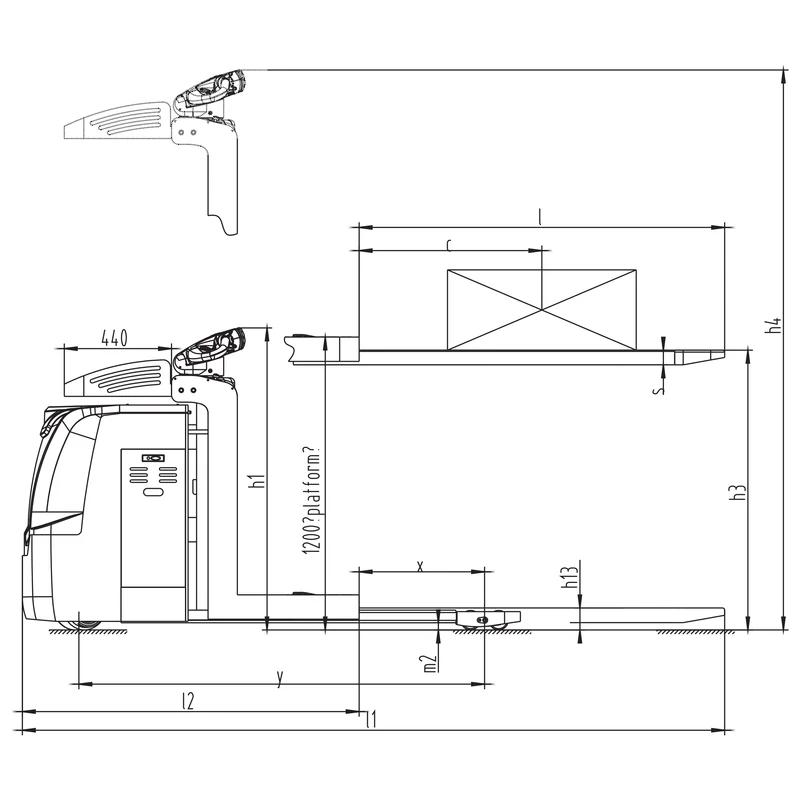

- Height, mast lowered: 1275 mm
- Max. lift height: 1140 mm
- Height, mast extended: 2335 mm
- Fork height, lowered: 90 mm
- Overall length: 2455 mm, 2885 mm
- Coupling height: 1383 mm
- Overall width: 812 mm
- Fork dimensions: 60x180x1500mm
- Width overall forks: 580 mm
- Ground clearance: 29 mm

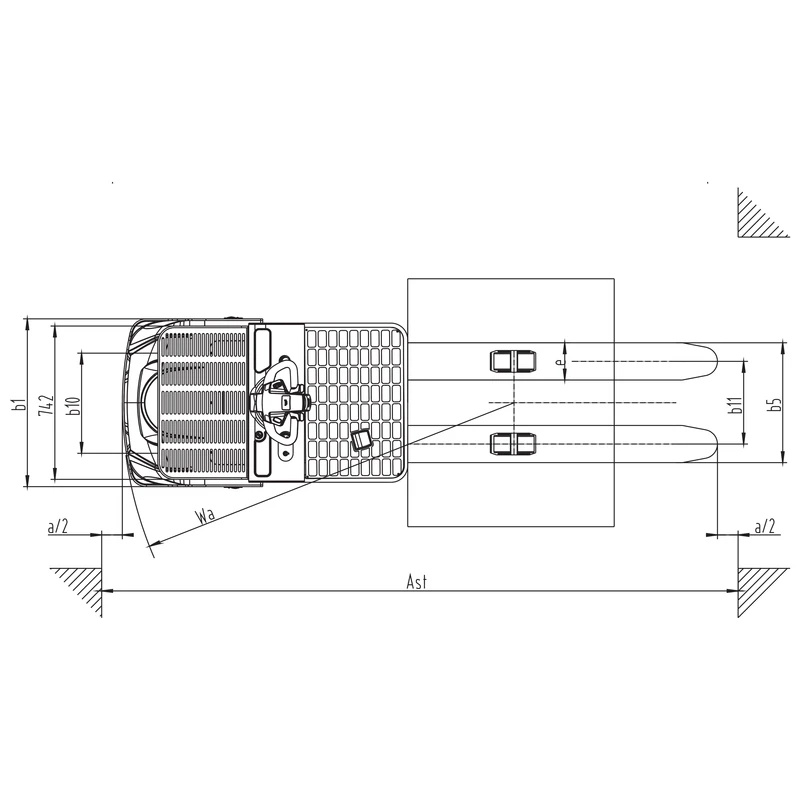

- Aisle width for pallets 1000x1200mm: 2904 mm
- Aisle width for pallets 800x1200mm: 2904 mm
- Turning radius: 1897 mm
- Travel speed, laden/unladen: 7.0/7.1km/h
- Lifting speed laden/unladen: 0.1/0.14m/s
- Lowering speed laden/unladen: 0.10/0.10m/s
- Battery type/voltage/capacity: LA/24/240
- Battery dimensions (I/W/H): 654x440x254mm
- Service weight (with battery): 1195 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Picking individual items or cartons from shelves — low level (floor to 2nd level) or high level (man-up).
- E-commerce, spare parts, retail distribution.
This model
Order picking of cartons/items; check picking height. Capacity options: 1000 kg, 1200 kg. Battery: LA/24/240. Fork dimensions: 60x180x1500mm. Turning radius: 1897 mm.
Check before you choose
- Picking height
- Load capacity of platform/forks
- Aisle width
- Battery and shifts
Not suitable for
- Full-pallet stacking
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Picking height: highest shelf; does the operator rise with the load? First determine the picking level, then capacity.
- Mass of goods/pallet per round; picks per hour; forks or platform; container type?
- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Determine the picking level first, then capacity; high-level machines depend on floor, protective systems and procedures.
Helpful to have ready: Shelf heights · Plan · Goods/pallets · Picks per hour · Aisle width · Shifts
Attributes
| Load capacity | 1000 kg, 1200 kg |
|---|---|
| Load center | 500 mm, 700 mm |
| Load distance, center of drive axle to fork | 515 mm |
| Tyre size, front | 250x80 mm |
| Rear wheel size (double) | 80x84 mm |
| Additional wheels | Φ150×60 mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+1/4 |
| Height, mast lowered | 1275 mm |
| Lift height | 1140 mm |
| Height, mast extended | 2335 mm |
| Lowered fork height | 90 mm |
| Overall length | 2455 mm, 2885 mm |
| Coupling height | 1383 mm |
| Overall width | 812 mm |
| Fork dimensions | 60x180x1500 mm |
| Width overall forks | 580 mm |
| Ground clearance | 29 mm |
| Aisle width for pallets 1000x1200mm | 2904 mm |
| Aisle width for pallets 800x1200mm | 2904 mm |
| Turning radius | 1897 mm |
| Travel speed, laden/unladen | 7.0/7.1 km/h |
| Lifting speed laden/unladen | 0.1/0.14 m/s |
| Lowering speed laden/unladen | 0.10/0.10 m/s |
| Battery type/voltage/capacity | LA/24/240 |
| Battery dimensions (I/W/H) | 654x440x254 mm |
| Service weight | 1195 kg |
