Mini Order Picker (MKV) 90-150 kg 4225 mm
Price
9.110,00 EUR
7.288,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

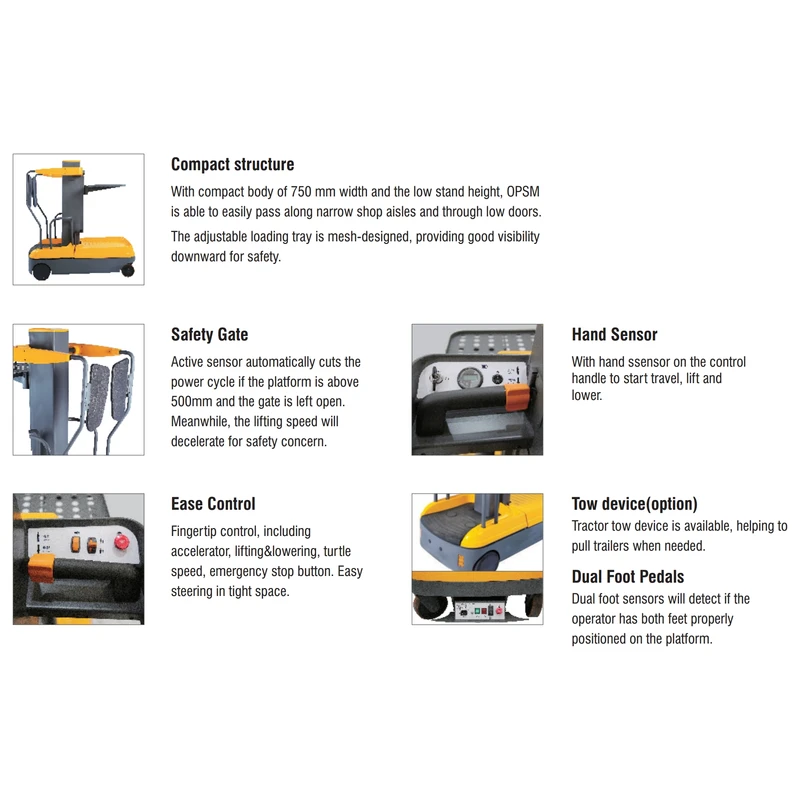

Compact mini order picker with 90-150 kg platform capacity and 4225 mm lifting height, slip-resistant floor and self-locking gate — ideal for stock picking, inspection, maintenance and installation work.
Key features
- Large working platform with solid slip-resistant floor
- Self-locking gate provides maximum safety for aerial work
- Electric motor: smooth, quiet, zero-emission operation
- Ergonomic design prioritises operator safety and comfort
- Platform capacities of 90, 130 and 150 kg
- Lifting height 4225 mm
- Ideal for stock picking, inspection, maintenance and installation
Technical overview
- Model / SKU: MKV
- Product family: Order Pickers
- Power: electric (storage battery)
- Operate type: stand driving

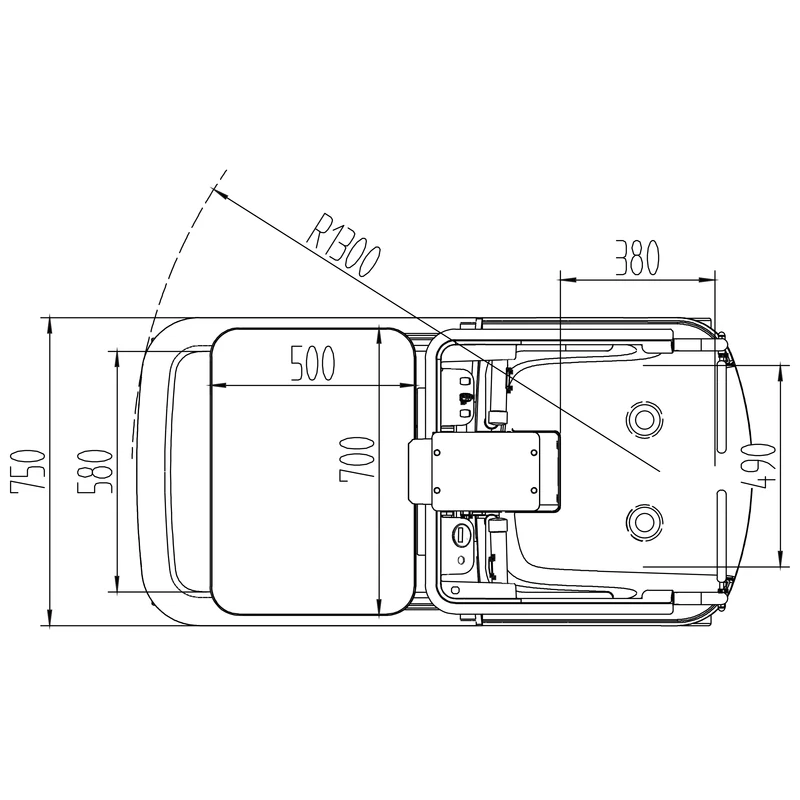

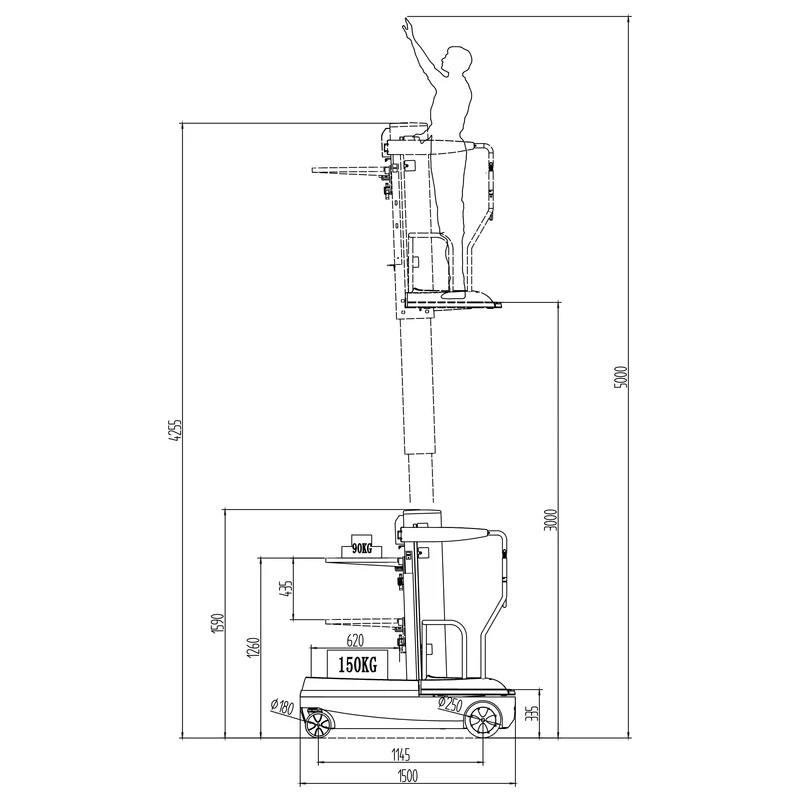

- Height, mast lowered: 1590 mm
- Overall length: 1500 mm
- Overall width: 750 mm
- Max. lift height: 2995 mm
- Max. reachable height: 5000 mm
- Turning radius: 1300 mm
- Size of loading tray: 700x500mm
- Load capacity of loading tray: 90 kg
- Load capacity of loading dock: 150 kg
- Tyre size, front: 180 mm
- Tyre size, rear: 250 mm
- Number of wheels, front/rear (x=driving) Φ: 2-2X
- Ground clearance: 65 mm

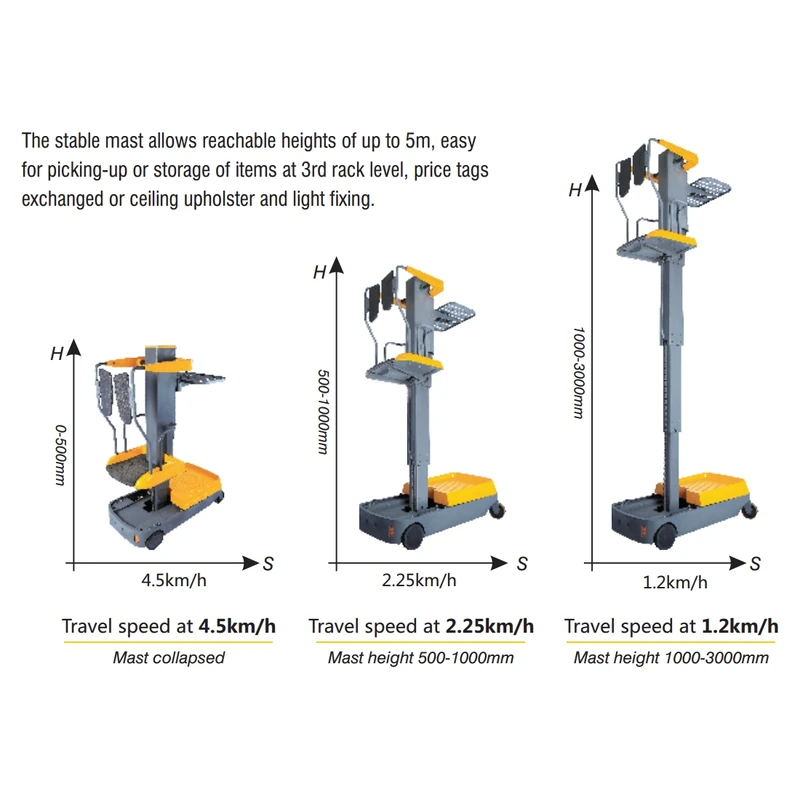

- Travel speed, laden/unladen: 4.5km/h
- Battery type/voltage/capacity: GEL/24/105
- Battery dimensions (I/W/H): 260x168x212mm
- Battery weight: 61 kg
- Service weight (with battery): 750 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Picking individual items or cartons from shelves — low level (floor to 2nd level) or high level (man-up).
- E-commerce, spare parts, retail distribution.
This model
Mini: small loads and very confined spaces. Order picking of cartons/items; check picking height. Battery: GEL/24/105. Turning radius: 1300 mm.
Check before you choose
- Picking height
- Load capacity of platform/forks
- Aisle width
- Battery and shifts
Not suitable for
- Full-pallet stacking
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Picking height: highest shelf; does the operator rise with the load? First determine the picking level, then capacity.
- Mass of goods/pallet per round; picks per hour; forks or platform; container type?
- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Determine the picking level first, then capacity; high-level machines depend on floor, protective systems and procedures.
Helpful to have ready: Shelf heights · Plan · Goods/pallets · Picks per hour · Aisle width · Shifts
Attributes
| Power | electric (storage battery) |
|---|---|
| Operate type | stand driving |
| Height, mast lowered | 1590 mm |
| Overall length | 1500 mm |
| Overall width | 750 mm |
| Lift height | 2995 mm |
| Max. reachable height | 5000 mm |
| Turning radius | 1300 mm |
| Size of loading tray | 700x500 mm |
| Load capacity of loading tray | 90 kg |
| Load capacity of loading dock | 150 kg |
| Tyre size, front | 180 mm |
| Tyre size, rear | 250 mm |
| Number of wheels, front/rear (x=driving) Φ | 2-2X |
| Ground clearance | 65 mm |
| Travel speed, laden/unladen | 4.5 km/h |
| Battery type/voltage/capacity | GEL/24/105 |
| Battery dimensions (I/W/H) | 260x168x212 mm |
| Battery weight | 61 kg |
| Service weight | 750 kg |
