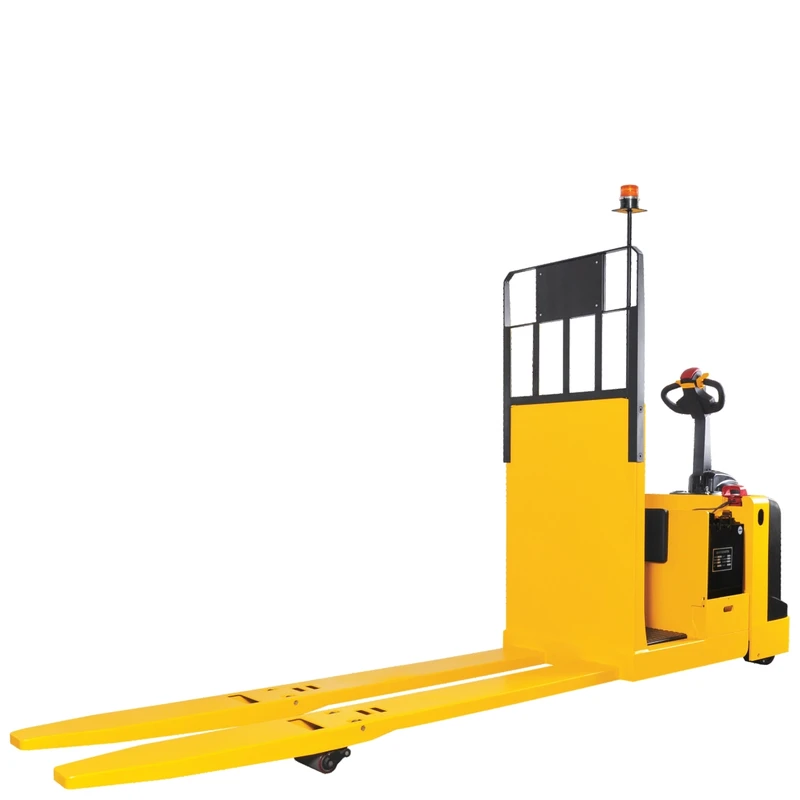

Low Level Central Rider Order Picker (NKV30-P) 3000 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Low level central rider order picker with 3000 kg capacity, advanced electric power steering with automatic speed reduction in turns and a cushioned anti-shock operator stand with ergonomic backrest.
Key features
- 3000 kg capacity for heavy order-picking runs
- Advanced EPS with automatic speed reduction in turns
- Cushioned anti-shock stand with ergonomic backrest
- Comfortable driving and control position
- Optional buzzer and warning lights for extra safety

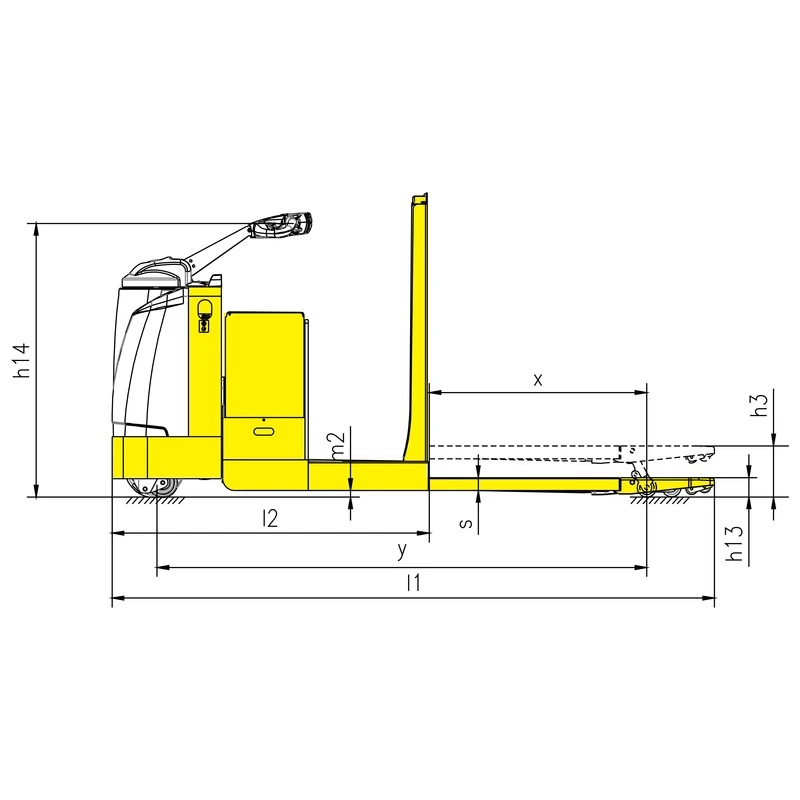

Technical overview
- Model / SKU: NKV30-P
- Product family: Order Pickers
- Load capacity: 3000 kg
- Load center: 600 mm
- Load distance, center of drive axle to fork: 933 mm
- Fork height, lowered: 82 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 82x173mm
- Additional wheels (dimensions): 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/2
- Max. lift height: 217 mm
- Height of tiller min/max: 1070/1370mm
- Overall length: 2570 mm
- Length to face of forks: 1350 mm
- Overall width: 823 mm
- Fork dimensions: 55x230x1220mm
- Width overall forks: 685 mm
- Aisle width for pallets 1000x1200mm: 3090 mm
- Aisle width for pallets 800x1200mm: 2965 mm
- Turning radius: 2290 mm
- Travel speed, laden/unladen: 8/8.5km/h
- Battery type/voltage/capacity: LA/24/560
- Battery weight: 559 kg
- Battery dimensions (I/W/H): 780x335x625mm
- Service weight (with battery): 1150 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Picking individual items or cartons from shelves — low level (floor to 2nd level) or high level (man-up).
- E-commerce, spare parts, retail distribution.
This model
Rider/platform: for longer travel distances and multi-shift use; check turning radius. Order picking of cartons/items; check picking height. Capacity options: 3000 kg. Battery: LA/24/560. Fork dimensions: 55x230x1220mm. Turning radius: 2290 mm.
Check before you choose
- Picking height
- Load capacity of platform/forks
- Aisle width
- Battery and shifts
Not suitable for
- Full-pallet stacking
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Picking height: highest shelf; does the operator rise with the load? First determine the picking level, then capacity.
- Mass of goods/pallet per round; picks per hour; forks or platform; container type?

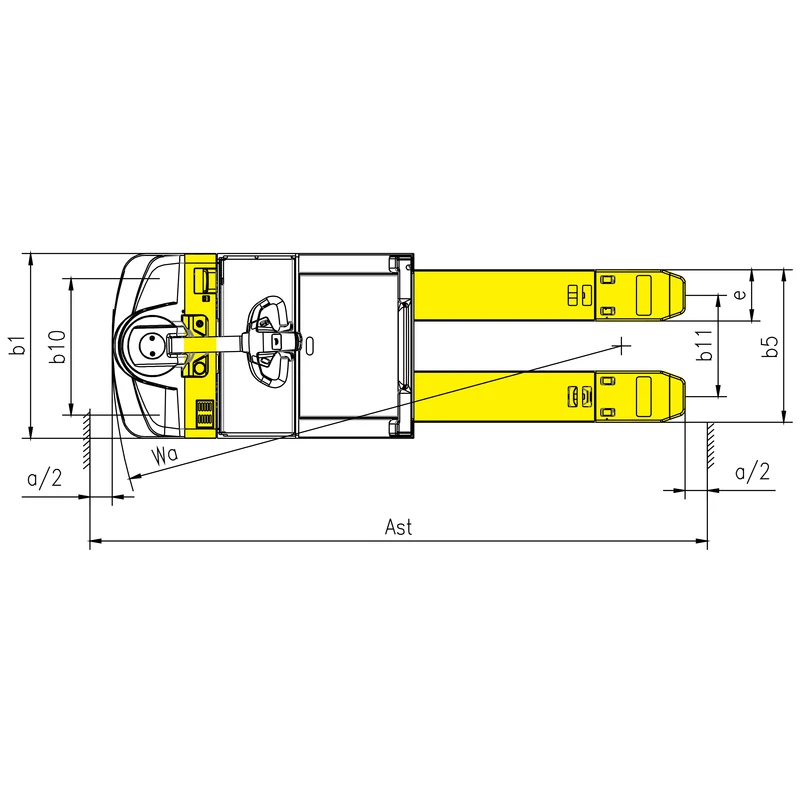

- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Determine the picking level first, then capacity; high-level machines depend on floor, protective systems and procedures.
Helpful to have ready: Shelf heights · Plan · Goods/pallets · Picks per hour · Aisle width · Shifts
Attributes
| Load capacity | 3000 kg |
|---|---|
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 933 mm |
| Lowered fork height | 82 mm |
| Tyre size, front | 250x80 mm |
| Tyre size, rear | 82x173 mm |
| Additional wheels (dimensions) | 127x57 mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/2 |
| Lift height | 217 mm |
| Height of tiller min/max | 1070/1370 mm |
| Overall length | 2570 mm |
| Length to face of forks | 1350 mm |
| Overall width | 823 mm |
| Fork dimensions | 55x230x1220 mm |
| Width overall forks | 685 mm |
| Aisle width for pallets 1000x1200mm | 3090 mm |
| Aisle width for pallets 800x1200mm | 2965 mm |
| Turning radius | 2290 mm |
| Travel speed, laden/unladen | 8/8.5 km/h |
| Battery type/voltage/capacity | LA/24/560 |
| Battery weight | 559 kg |
| Battery dimensions (I/W/H) | 780x335x625 mm |
| Service weight | 1150 kg |
