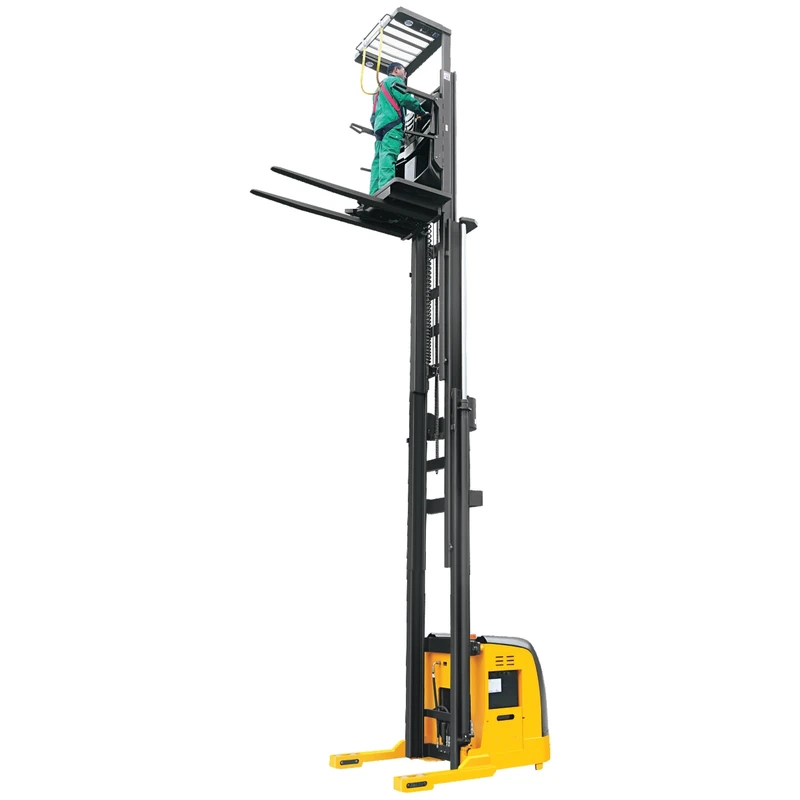

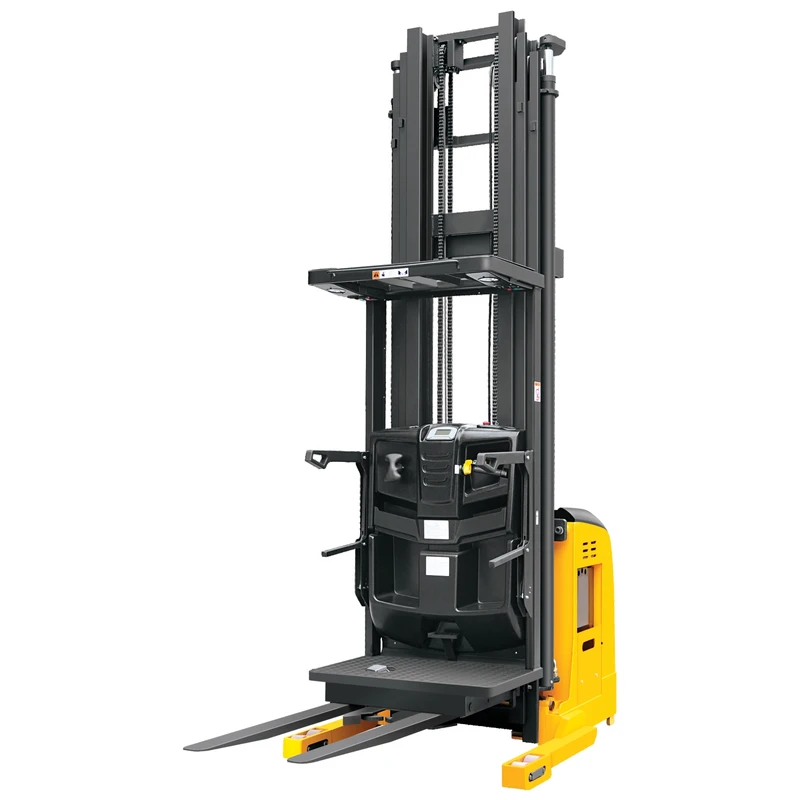

Electric high level order picker with 1500 kg capacity and lifting heights of 5000-9000 mm, joystick finger-tip control, stepless speed regulation and automatic deceleration at height — for high-racked warehouses.
Key features
- 1500 kg capacity with 5000-9000 mm lifting heights
- Low centre of gravity provides excellent stability
- EPS with auto reset, height display and high-level auto deceleration
- Finger-tip joystick control
- Stepless speed control for driving, lifting and lowering
- Oil cylinder buffer slows the mast near limits to avoid impacts
Technical overview
- Model / SKU: VKV15
- Product family: Order Pickers

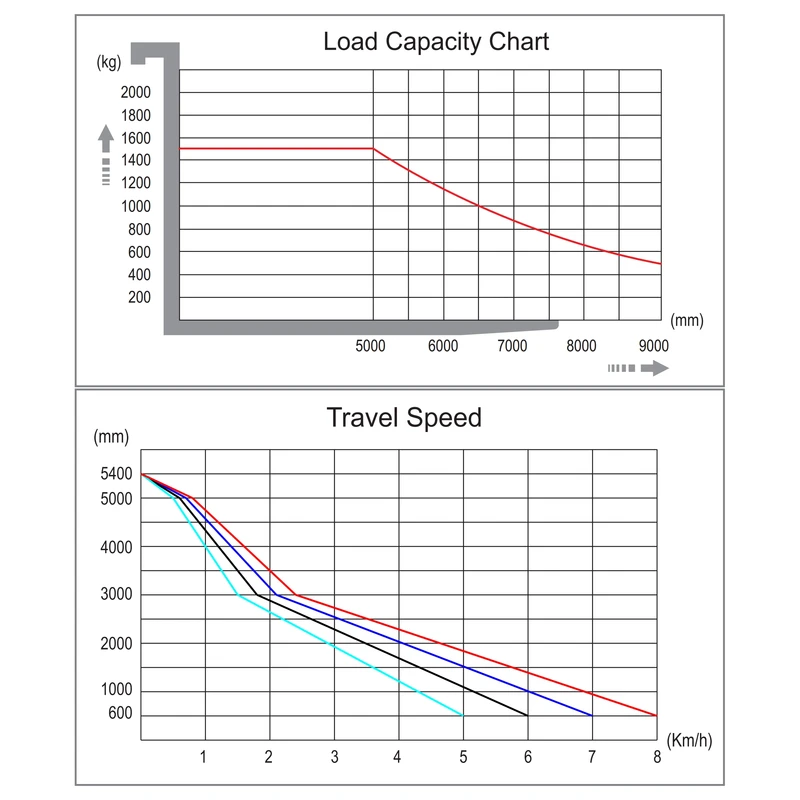

- Load capacity: 1500 kg
- Load center: 600 mm
- Load distance, center of drive axle to fork: 206 mm
- Tyre size, front: 310x25mm
- Tyre size, rear: 128x73mm
- Additional wheels: Φ150x47mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/4

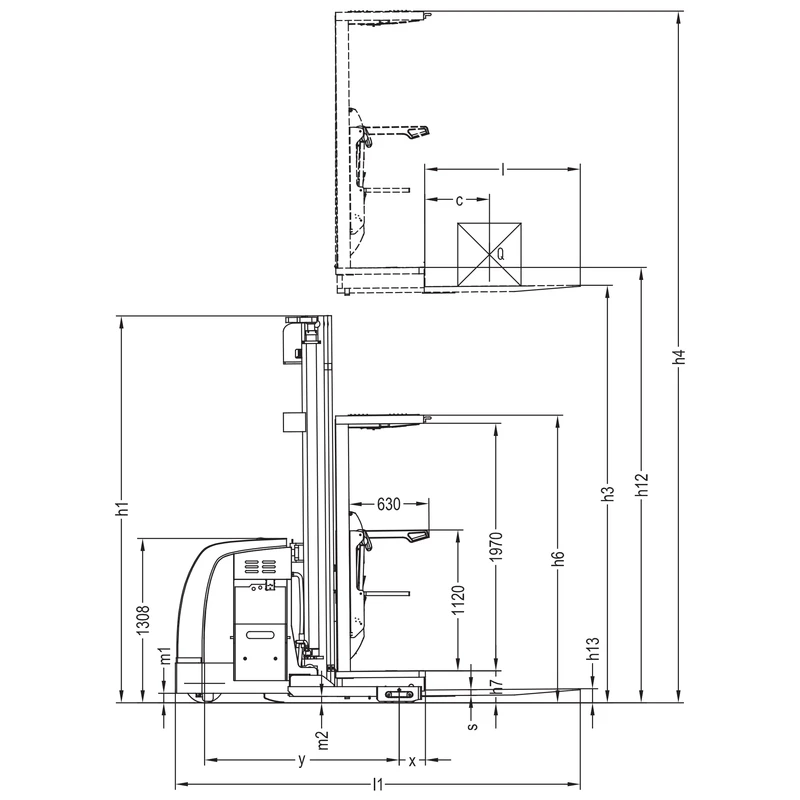

- Height, mast lowered: 2410/3080/3750mm
- Max. lift height: 5000/7000/9000mm
- Height, mast extended: 7230/9230/11230mm
- Platform height: 230 mm
- Fork height, lowered: 80 mm
- Overall length: 3200 mm
- Coupling height: 1975 mm
- Overall width: 1100/1352mm
- Fork dimensions: 45x100x1220mm
- Width overall forks: 530/715mm
- Height of overhead guard: 2290 mm

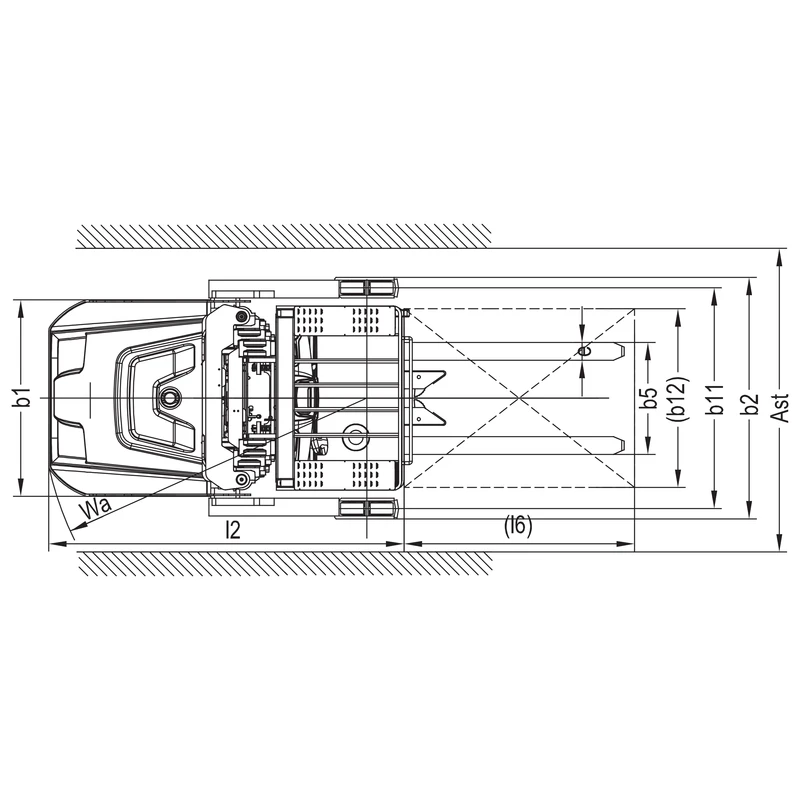

- Aisle width for pallets 1000x1200mm: 1400 mm
- Aisle width for pallets 800x1200mm: 1400 mm
- Turning radius: 1800 mm
- Travel speed, laden/unladen: 7.7/7.8km/h
- Lifting speed laden/unladen: 0-0.15/0-0.28m/s
- Lowering speed laden/unladen: 0-0.28/0-0.30m/s
- Battery type/voltage/capacity: LA/24/770
- Battery weight: 610kg (850kg)
- Battery dimensions (I/W/H): 982x397x561mm
- Service weight (with battery): 3870 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Picking individual items or cartons from shelves — low level (floor to 2nd level) or high level (man-up).
- E-commerce, spare parts, retail distribution.
This model
Man-up: operator rises with the load — picking or handling at height. Order picking of cartons/items; check picking height. Capacity options: 1500 kg. Battery: LA/24/770. Fork dimensions: 45x100x1220mm. Turning radius: 1800 mm.
Check before you choose
- Picking height
- Load capacity of platform/forks
- Aisle width
- Battery and shifts
Not suitable for
- Full-pallet stacking
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Picking height: highest shelf; does the operator rise with the load? First determine the picking level, then capacity.
- Mass of goods/pallet per round; picks per hour; forks or platform; container type?
- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Determine the picking level first, then capacity; high-level machines depend on floor, protective systems and procedures.
Helpful to have ready: Shelf heights · Plan · Goods/pallets · Picks per hour · Aisle width · Shifts
Attributes
| Load capacity | 1500 kg |
|---|---|
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 206 mm |
| Tyre size, front | 310x25 mm |
| Tyre size, rear | 128x73 mm |
| Additional wheels | Φ150x47 mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/4 |
| Height, mast lowered | 2410/3080/3750 mm |
| Lift height | 5000/7000/9000 mm |
| Height, mast extended | 7230/9230/11230 mm |
| Platform height | 230 mm |
| Lowered fork height | 80 mm |
| Overall length | 3200 mm |
| Coupling height | 1975 mm |
| Overall width | 1100/1352 mm |
| Fork dimensions | 45x100x1220 mm |
| Width overall forks | 530/715 mm |
| Height of overhead guard | 2290 mm |
| Aisle width for pallets 1000x1200mm | 1400 mm |
| Aisle width for pallets 800x1200mm | 1400 mm |
| Turning radius | 1800 mm |
| Travel speed, laden/unladen | 7.7/7.8 km/h |
| Lifting speed laden/unladen | 0-0.15/0-0.28 m/s |
| Lowering speed laden/unladen | 0-0.28/0-0.30 m/s |
| Battery type/voltage/capacity | LA/24/770 |
| Battery weight | 610 kg (850 kg) |
| Battery dimensions (I/W/H) | 982x397x561 mm |
| Service weight | 3870 kg |
