Very Narrow Aisle Truck, Man-Up (REV15TS) 1500 kg 9200-13000 mm
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Reach Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

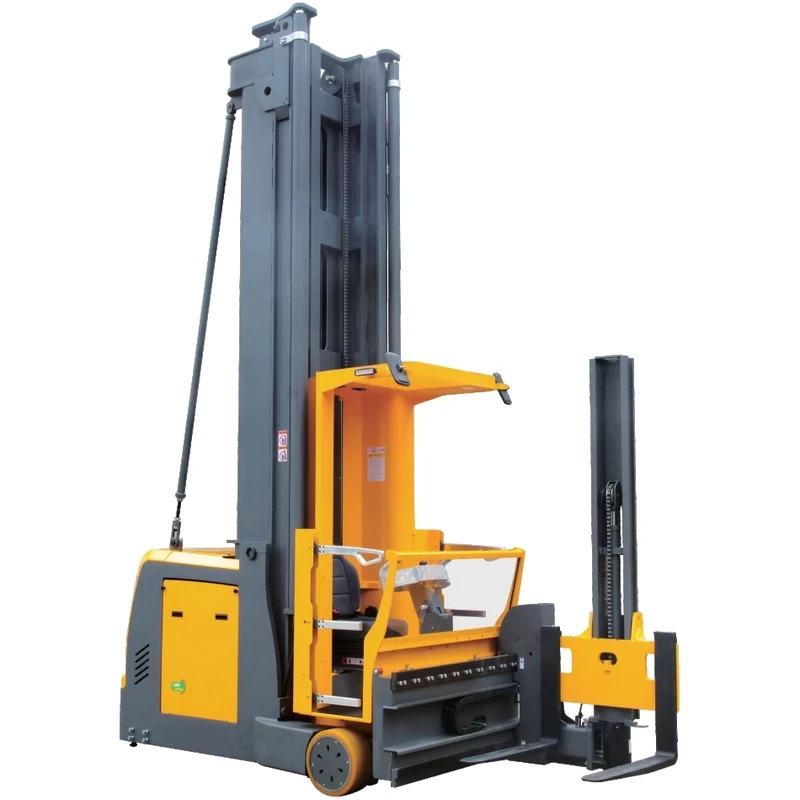

Very narrow aisle man-up truck with 1500 kg capacity and lift heights from 9200 to 13000 mm, three-point support with a low centre of gravity, dual energy regeneration and CAN-Bus intelligent management.
Key features
- Man-up operation with lift heights up to 13000 mm
- Three-point support with low centre of gravity and tight turning radius
- Two energy regeneration systems conserve energy and reduce costs
- High-torsion-resistant lifting mast reduces load shaking
- Full AC driving control technology
- Intelligent management system with CAN-Bus technology
Technical overview
- Model / SKU: REV15TS
- Product family: Reach Trucks
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Stacking to great heights (7–13 m) in narrow aisles — high-bay warehouses.
- Very-narrow-aisle (VNA) trucks for maximum storage density; multi-directional for long goods.
This model
Very narrow aisle: maximum storage density; requires guidance and flat floors. Man-up: operator rises with the load — picking or handling at height.
Check before you choose

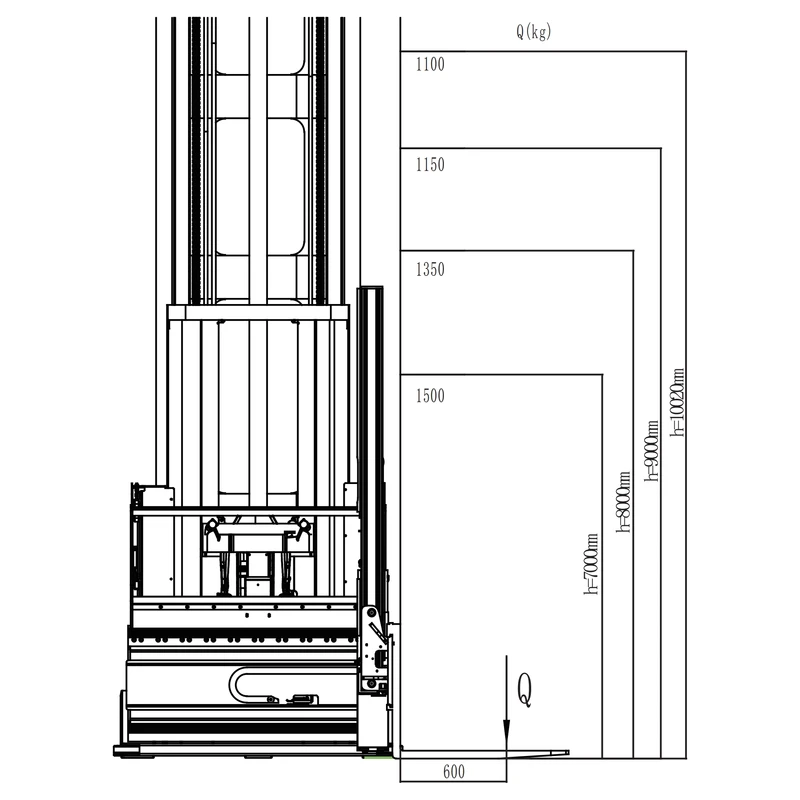

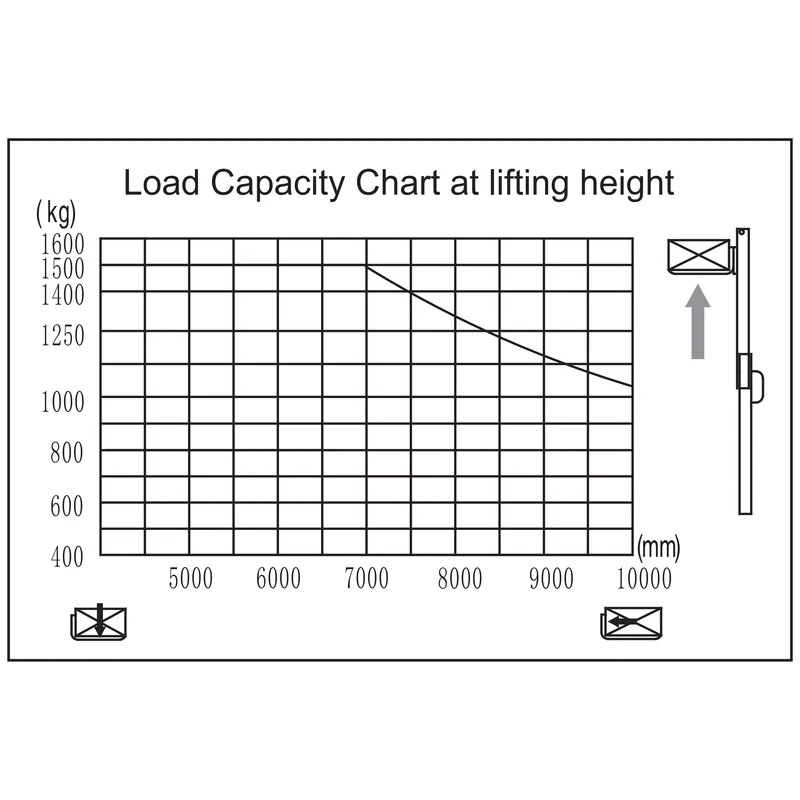

- Lift height and residual capacity at top level

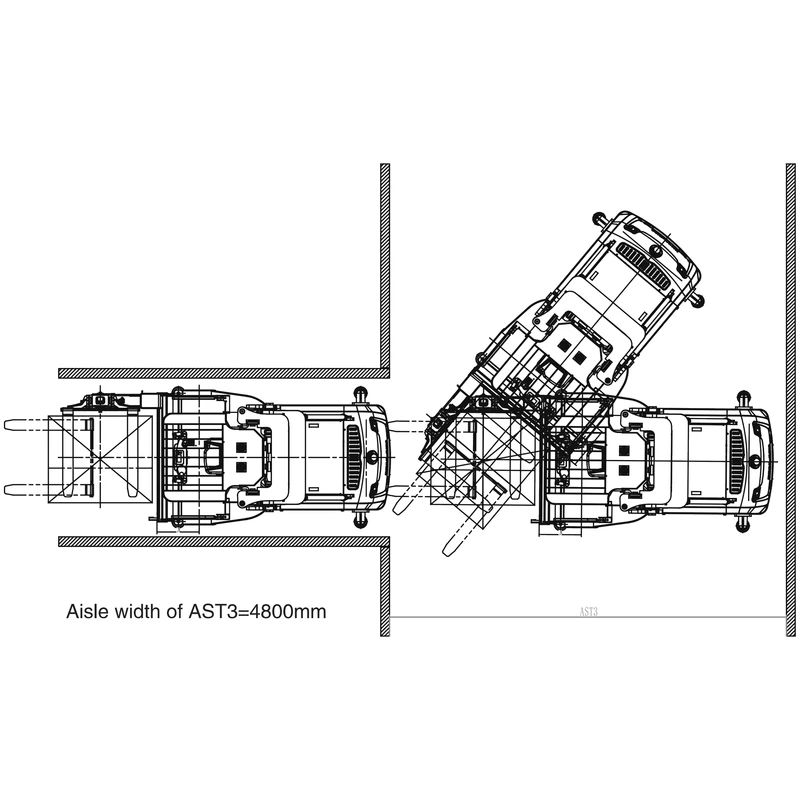

- Aisle width (reach vs. VNA guidance)
- Floor flatness class
- Operator position: seated, stand-on, man-up
- Battery capacity for shifts
Not suitable for
- Outdoor or rough floors
- Occasional low-height stacking (over-specified)
Before you order Project product — the final configuration is confirmed by our technical team before the order.
To confirm the right configuration we will ask you:
- Working aisle width; height; pallet; mass; residual capacity; man-up/man-down; rack geometry; guidance (rail/inductive); transfer aisle; floor class? VNA truck and racking must be designed as one system — a few cm in aisle, floor or racking decide feasibility.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Truck and racking are one system — a few cm in aisle, floor or racking decide feasibility.
Helpful to have ready: CAD/plan of the racking · Sections · Pallet and mass · Floor · Transfer aisle · Shifts
