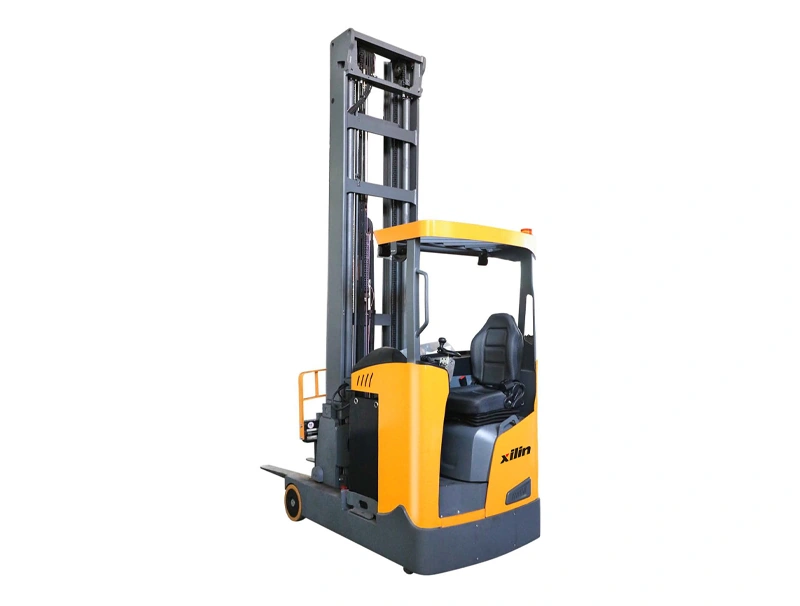

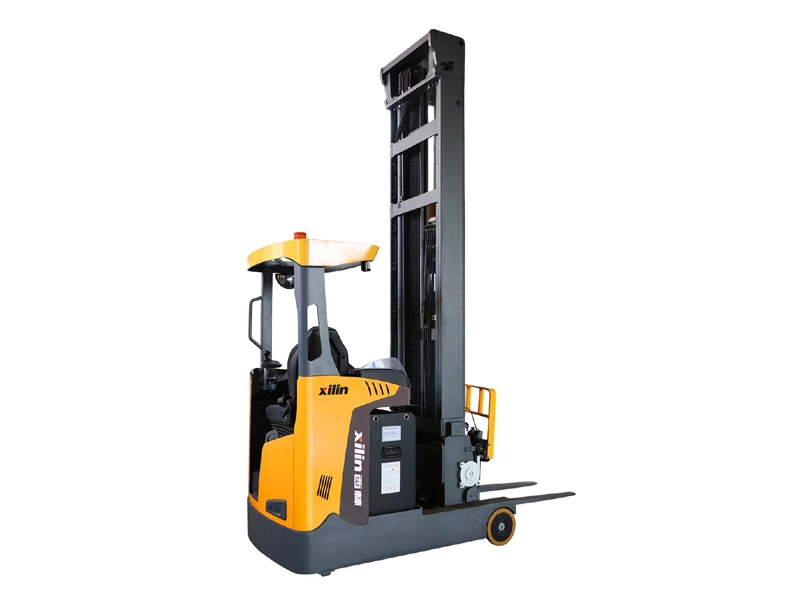

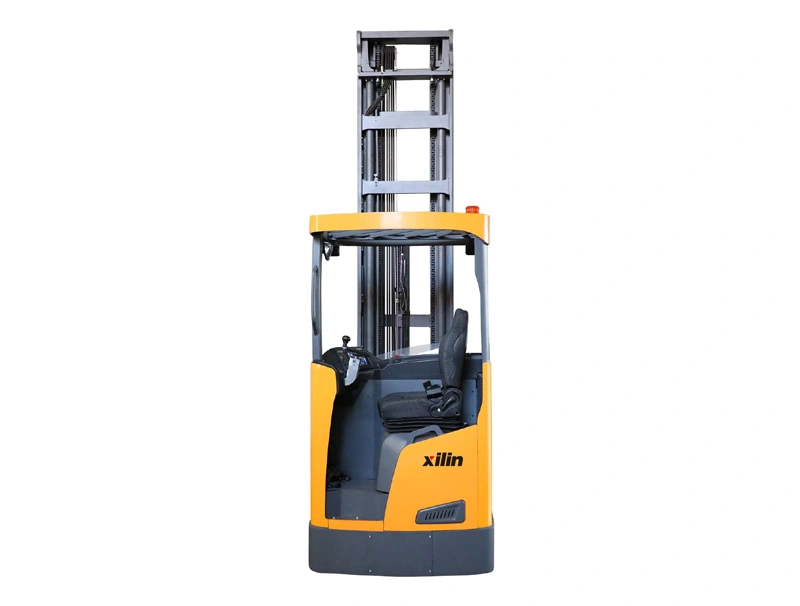

This is the D-series reach truck sized for the racking most warehouses actually have: up to about nine and a half metres, aisles around 2.8 m, loads to 1.6 tonnes. The seated cabin and 13-14 km/h travel speed make it the tool for long aisles and high pallet counts per shift.
Mast programme
- Eleven mast options with lift heights of 3000 to 9500 mm
- Free lift up to 2895 mm on the taller masts for working under mezzanines
- Mast tilt 2/4 degrees, reach distance 585 mm
In the aisle
- 1683 mm turning radius; 2780 mm aisle with an 800 x 1200 pallet lengthways
- Overall width 1260-1270 mm on a 1420 mm wheelbase
- Lift speeds up to 0.45 m/s unladen, lowering 0.50 m/s laden
Controls
- Electromagnetic service brake, 10% gradeability laden and unladen
- Fork carriage ISO 2328 class 2B, forks 40/120/1070 mm
Price and delivery
Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
What it is for
- Stacking to great heights (7–13 m) in narrow aisles — high-bay warehouses.
- Very-narrow-aisle (VNA) trucks for maximum storage density; multi-directional for long goods.
This model
Reach truck: high-bay racking; check residual capacity at top level and aisle width. Capacity options: 1600 kg.
Check before you choose
- Lift height and residual capacity at top level
- Aisle width (reach vs. VNA guidance)
- Floor flatness class
- Operator position: seated, stand-on, man-up
- Battery capacity for shifts
Not suitable for
- Outdoor or rough floors
- Occasional low-height stacking (over-specified)
Before you order Project product — the final configuration is confirmed by our technical team before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Dimensions (L×W×H) of the largest and of the heaviest load? Is the centre of gravity known and centred? The load centre moves away from the mast as the load gets longer; real capacity falls with load-centre distance and lift height (capacity diagram). Tall loads raise the COG.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- Floor flatness class (DIN 15185 / EN 15620), rack quality and depth? At 8–13 m a few mm of unevenness becomes a large sway at the fork tips; capacity at the top can be far below nominal.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- At great heights capacity may be far below nominal; floor flatness and rack quality become critical.
Helpful to have ready: Rack drawing · Pallet · Mass/COG · Top beam height · Aisle (Ast) · Floor · Shifts
Attributes
| Load capacity | 1600 kg |
|---|---|
| Lift height | 3000-9500 mm (11 masts) |
| Operator type | Seated |
| Turning radius | 1683 mm |
| Travel speed | 13/14 km/h laden/unladen |
| Fork dimensions | 40/120/1070 mm |
| Reach distance (l4) | 585 mm |
| Overall width (b1/b2) | 1260/1270 mm |
| Aisle width, 800x1200 lengthways (Ast) | 2780 mm |
| Battery and weight | Confirmed with quotation |
