Electric Reach Stacker, Multi-Valve Control (EVV12DS/EVV15DS) 1250-1500 kg 2500-5500 mm
Price
From 14.210,00 EUR
From 11.368,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Reach Stackers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Electric reach stacker with hydraulic multi-valve control of reach, tilt and lifting, 1250-1500 kg capacity, 2500-5500 mm lift height and 500 mm fork reach — built for very narrow aisle warehouses.
Key features
- Compact reach stacker built for very narrow aisle warehouses
- Hydraulic multi-valve controls fork reach, fork tilt and lifting/lowering
- Single-scissor fork reach of 500 mm; double reach up to 1200 mm optional
- Disassemble-type platform and protection arm
- Multi-function display with BDI and hour meter
- Low centre of gravity ensures safe operation
- Dividable, exchangeable mast and frame
Technical overview
- Model / SKU: EVV12DS_EVV15DS
- Product family: Electric Reach Stackers
- Load capacity: 1250 kg, 1500 kg
- Lift height: 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm
- Initial lift: no
- Engine type: AC
- Folding platform: yes
- Electric power steering: option
- Battery type/voltage/capacity: LA/24/320, LA/24/460, LFP/24/225
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Stacker with reaching mast/forks — denser racking and closed pallets in narrower aisles than a counterbalance.
- Medium warehouses.
This model
Capacity options: 1250 kg, 1500 kg. Lift heights: 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm. Battery: LA/24/320, LA/24/460, LFP/24/225. Drive: AC. Initial lift: no. Folding platform: yes. Power steering: option.
Check before you choose
- Reach distance and capacity
- Aisle width
- Lift height
Not suitable for
- Outdoor use
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.

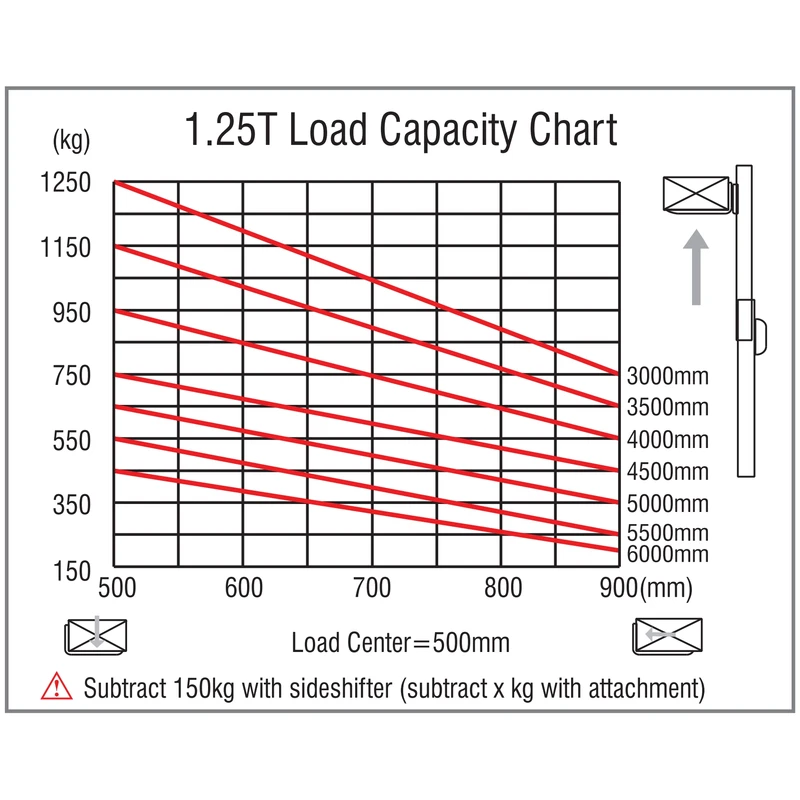

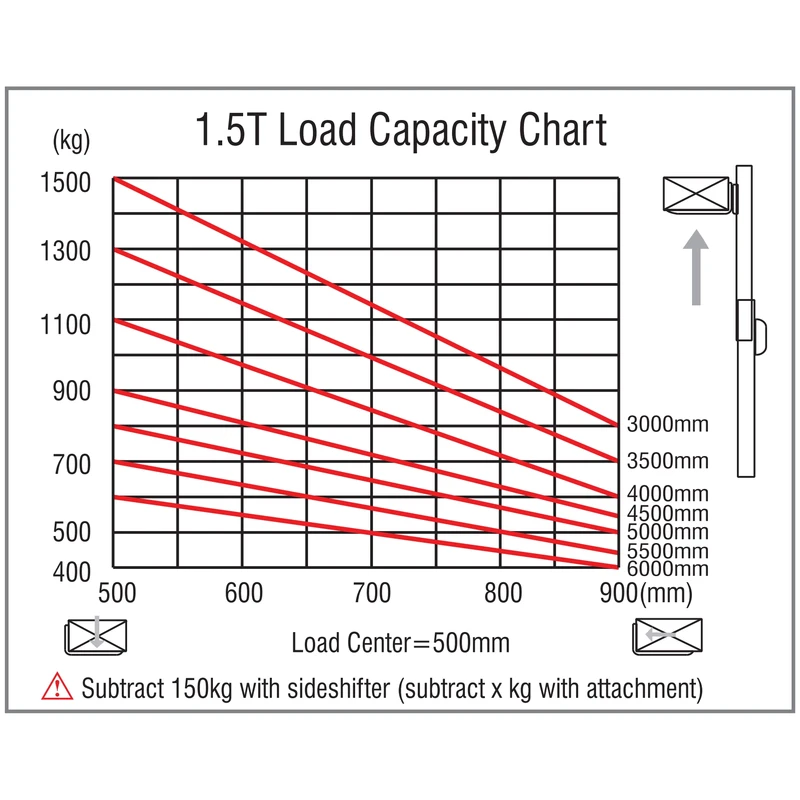

- Dimensions (L×W×H) of the largest and of the heaviest load? Is the centre of gravity known and centred? The load centre moves away from the mast as the load gets longer; real capacity falls with load-centre distance and lift height (capacity diagram). Tall loads raise the COG.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.

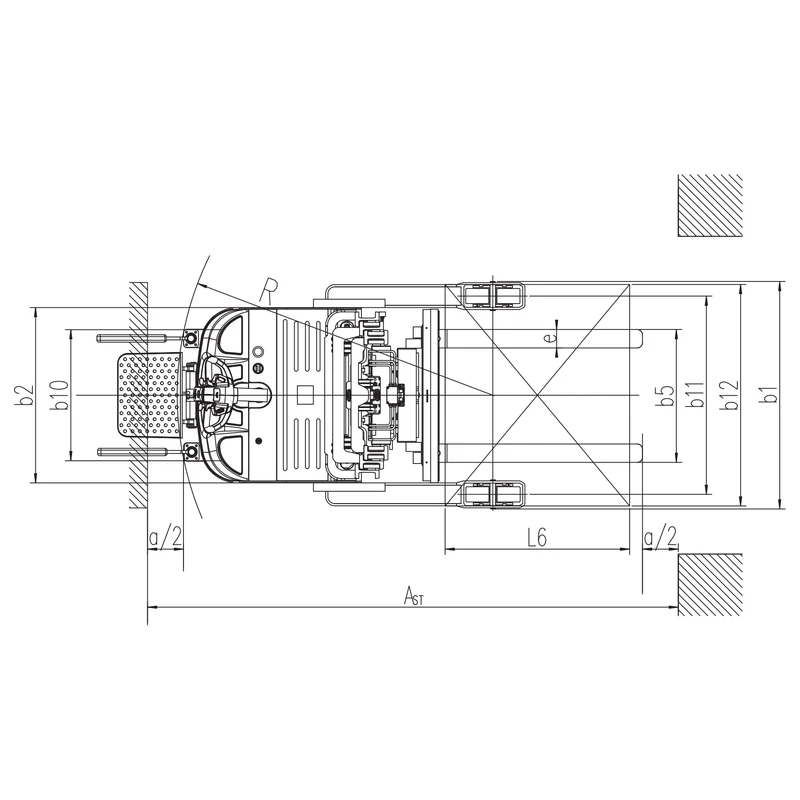

- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
- Horizontal reach required; rack depth; residual capacity at height AND reach? Height + reach + COG together can reduce capacity substantially.
Typical mistakes to avoid
- Height + reach + COG can cut capacity drastically — never use nominal capacity alone.
Helpful to have ready: Rack drawing · Pallets · Mass/COG · Heights and depths · Aisle · Floor
Attributes
| Lift height | 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm |
|---|---|
| Battery type/voltage/capacity | LFP/24/225, LA/24/280 |
| Load capacity | 1250 kg, 1500 kg |
| Initial lift | no |
| Engine type | AC |
| Folding platform | yes |
| Electric power steering | option |
