Double Scissor Lift Table 1000-4000 kg
Price
From 1.820,00 EUR
From 1.456,00 EUR
Up to −20%
Save up to 668 EUR
Direct factory order
— −20% · 12–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 12–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Some variants are in stock and ship immediately — look for the green buttons in the variant grid. In-stock pieces carry their own stock discount; the full factory discount applies to made-to-order units.
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Available variants
In stock — ships now
Factory order — made to order
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
High-Lift Hydraulic Tables
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Double scissor hydraulic lift table series with 1000, 2000 and 4000 kg capacities and raised heights up to 2050 mm for ergonomic mid-level work.
Key features
- Industrial lift tables designed for intensive use
- Series complies with EN 1570:1 and ANSI/ASME safety standards
- Can be installed above ground or recessed into a floor pit
- Aluminium safety contacts on the lower platform edge prevent injuries during lowering
- 24 V control box
- Internal power pack with overload relief valve and compensated valve for regulated lowering speed
- Cylinder-integrated drain system with a check valve that stops lowering in case of hose failure
- Automatic lubrication of the lifting points
- Eye bolts make installation easier
- AC motor drive
- Lift tables can also be manufactured to customer-specific requirements
Technical overview
- Model / SKU: DHS
- Product family: High-Lift Hydraulic Tables
- Load capacity: 1000 kg, 2000 kg, 4000 kg
- Platform length: 1300 mm, 1700 mm
- Platform width: 1200 mm, 820 mm, 850 mm
- Lowered height: 305 mm, 360 mm, 400 mm
- Raised height: 1780 mm, 2050 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1000 kg, 2000 kg, 4000 kg |
|---|---|
| Platform length | 1300 mm, 1700 mm |
| Platform width | 820 mm, 850 mm, 1200 mm |
| Lowered height | 305 mm, 360 mm, 400 mm |
| Raised height | 1780 mm, 2050 mm |
Related products
Quadruple Scissor Lift Table 400-2000 kg
From 3.400,00 EUR

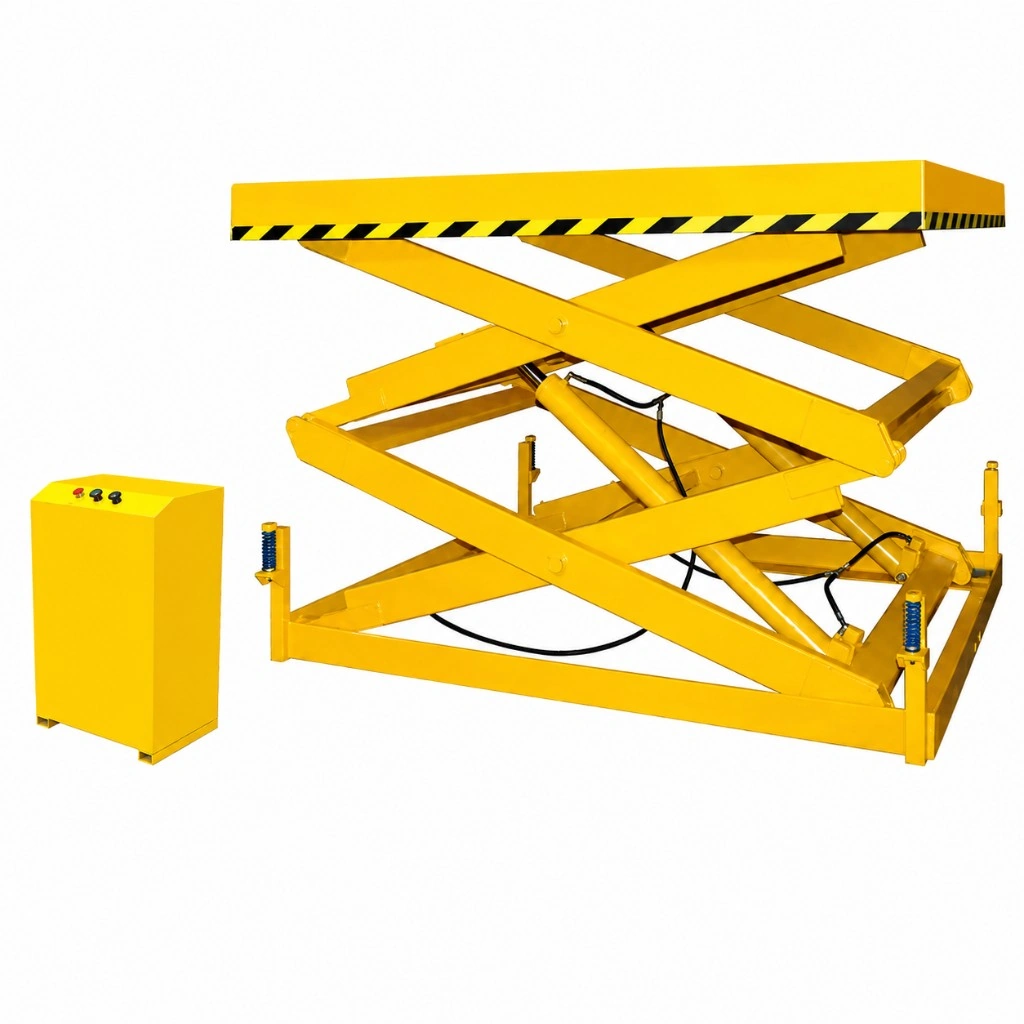

Heavy Duty Double Scissor Lift Table 2000 kg
