Electric Forklift Truck Full AC (ECV16S-ECV35S) 1600-3500 kg 3000-6500 mm
Price
From 18.825,00 EUR
From 15.060,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Forklifts
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Full AC electric counterbalance forklift truck with 1600-3500 kg capacity and 3000-6500 mm lift height, H-type driving axle, high-torque AC drive motor and hydraulic service brake on pneumatic or solid tyres.
Key features
- Five models from 1600 kg to 3500 kg capacity, lift heights to 6500 mm
- Popular H-type driving axle with optimized structure layout
- Large-diameter AC drive motor outputs high torque with improved cooling
- Brushless AC driving motor — maintenance free, low current, silent
- Low centre of gravity from relocated battery enhances steering stability
- Steering circuit preference saves energy when steering and lifting together
- Multifunctional display: running info, fault codes, battery status, hours
- Hydraulic service brake; pneumatic or solid tyres
Technical overview
- Model / SKU: ECV16S_ECV20S_ECV25S_ECV30S_ECV35S
- Product family: Electric Forklifts
- Load capacity: 1600 kg, 2000 kg, 2500 kg, 3000 kg, 3500 kg
- Lift height: 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Counterbalance electric forklift for pallets and goods indoors and on paved yards — loading trucks, general handling.
- Heavier loads (1.5–3.5 t) and higher heights than stackers.
- 3- and 4-wheel variants by manoeuvrability and stability.
This model
Capacity options: 1600 kg, 2000 kg, 2500 kg, 3000 kg, 3500 kg. Lift heights: 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000 mm.
Check before you choose
- Capacity at load centre and height
- Mast type and collapsed height (containers/doors)
- Tyres: cushion (indoor) vs. pneumatic (yard)
- Battery and charging
- Operator licence and safety requirements
Not suitable for
- Very narrow aisles — reach/VNA
- Rough terrain without proper tyres
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.

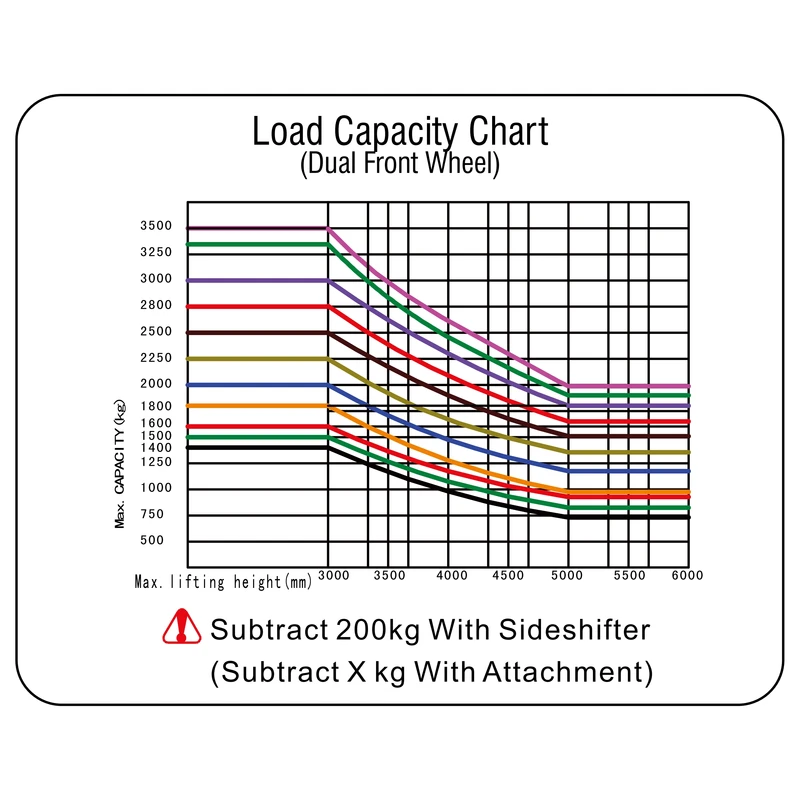

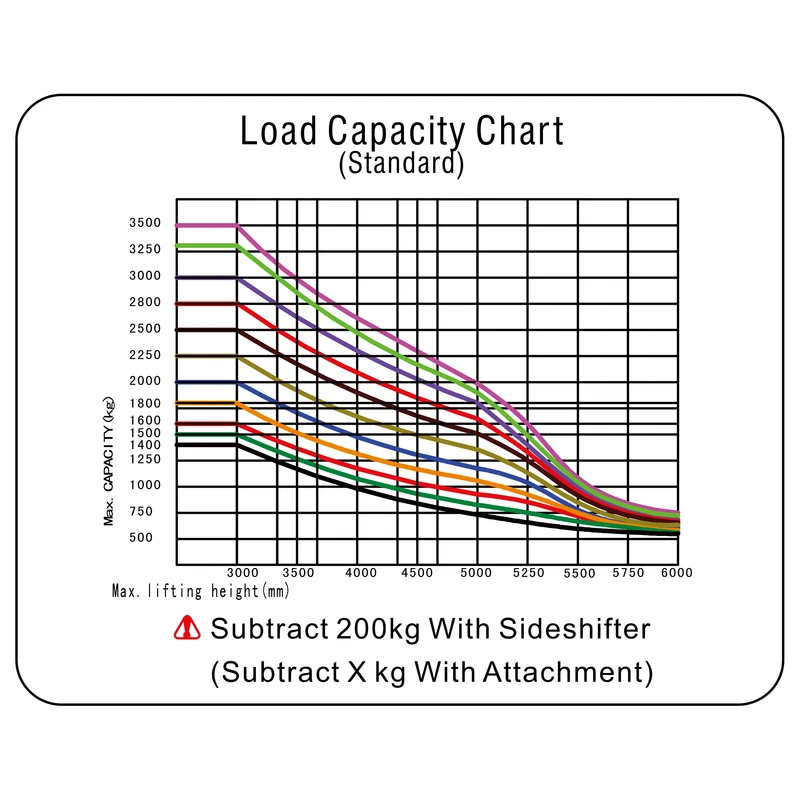

- Dimensions (L×W×H) of the largest and of the heaviest load? Is the centre of gravity known and centred? The load centre moves away from the mast as the load gets longer; real capacity falls with load-centre distance and lift height (capacity diagram). Tall loads raise the COG.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.

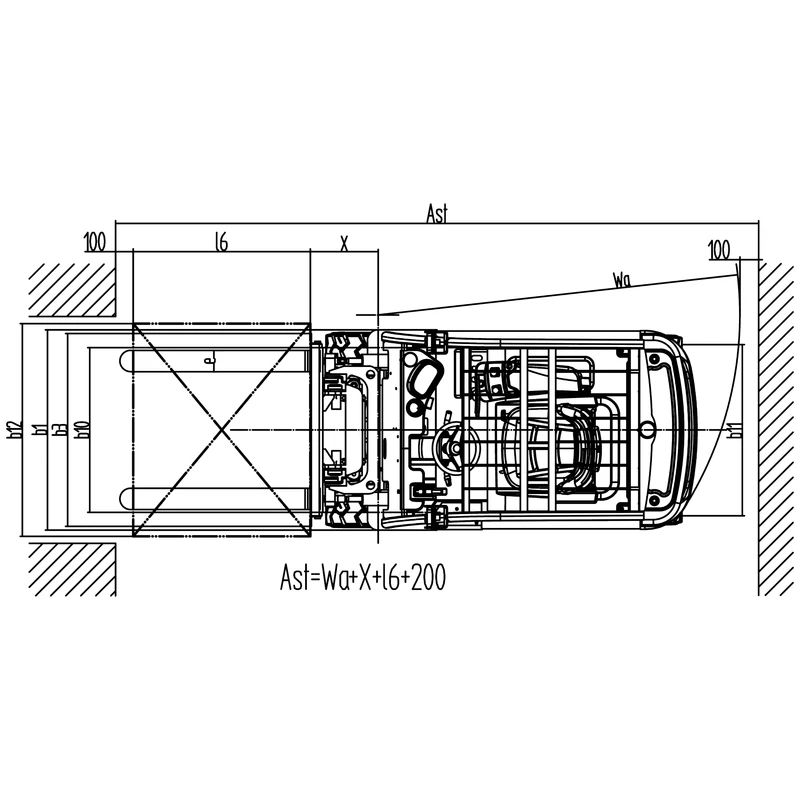

- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- Indoor, outdoor or both; floor surface; gradients? Tyre type and drive follow; the counterbalance forklift is the only truck type designed for gradients > 5 % over > 20 m.
- 3-wheel or 4-wheel: tight manoeuvring or stability with heavy loads/outdoor?
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
- Attachments (side shift, fork positioner, clamp, rotator)? Every attachment changes mass, COG and residual capacity.
Typical mistakes to avoid
- Each attachment changes mass, COG and residual capacity — confirm the combination truck + attachment + height.
Helpful to have ready: Load/COG · Pallet · Max height · Plan · Doors · Floor/gradient · Shifts · Desired attachment
Attributes
| Load capacity | 1600 kg, 2000 kg, 2500 kg, 3000 kg, 3500 kg |
|---|---|
| Lift height | 3000 mm, 3300 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 5600 mm, 6000 mm, 6500 mm |
Related products
Premium 3-Wheel Electric Forklift (ECV20T) 1600-2000 kg 3000-6200 mm
From 21.016,00 EUR

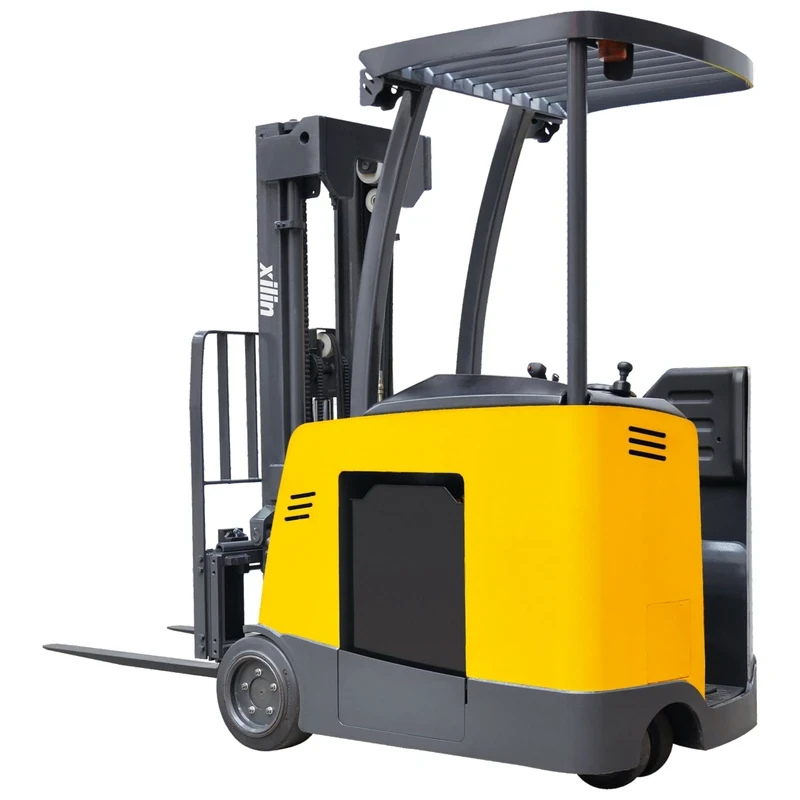

Stand-Up Counterbalance Electric Forklift (SECV20) 1500 kg 2500-5600 mm
On request
Simple product
Request a quote

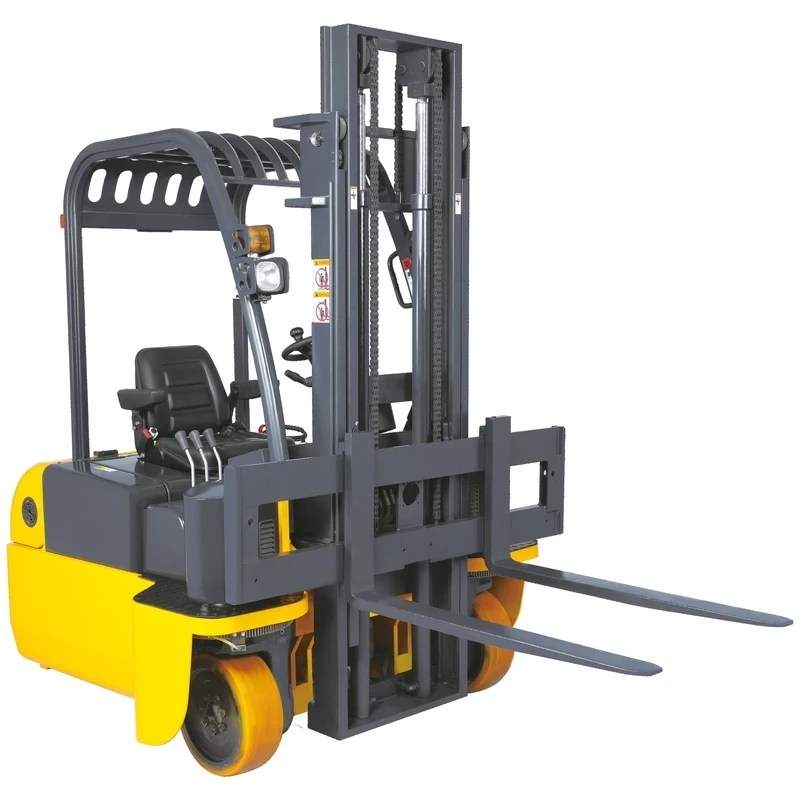

4-Directional Electric Forklift (ECV16CD/ECV20CD) 1600-2000 kg 3000-6200 mm
