Stand-Up Counterbalance Electric Forklift (SECV20) 1500 kg 2500-5600 mm
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Forklifts
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Stand-up counterbalance electric forklift with 1500 kg capacity and 2500-5600 mm lift height, multi-function joystick, German magnetic multi-valve and a clear standing-operator field of vision — ideal for container work and crowded aisles.
Key features
- Standing-type design with a clear field of vision
- Ideal for entering containers and transporting goods in crowded aisles
- Imported drive wheel and mast
- Programmable multi-function LED display with BDI, fault codes and hour meter
- Advanced AC control system, brushless motor with regenerative braking
- Three driving speeds: low, regular and high
- Multi-function joystick controls direction, lifting, tilting and side shift
- German magnetic multi-valve with proportional valve for adjustable speeds
Technical overview
- Model / SKU: ECV20ST
- Product family: Electric Forklifts
- Load capacity: 1600 kg, 1800 kg
- Lift height: 3000 mm, 4500 mm, 6000 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Counterbalance electric forklift for pallets and goods indoors and on paved yards — loading trucks, general handling.
- Heavier loads (1.5–3.5 t) and higher heights than stackers.
- 3- and 4-wheel variants by manoeuvrability and stability.
This model
Counterbalanced (no straddle legs): closed-bottom pallets, side-loading of vehicles, longer chassis. Capacity options: 1600 kg, 1800 kg. Lift heights: 3000 mm, 4500 mm, 6000 mm.
Check before you choose
- Capacity at load centre and height
- Mast type and collapsed height (containers/doors)
- Tyres: cushion (indoor) vs. pneumatic (yard)
- Battery and charging
- Operator licence and safety requirements
Not suitable for
- Very narrow aisles — reach/VNA
- Rough terrain without proper tyres
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.

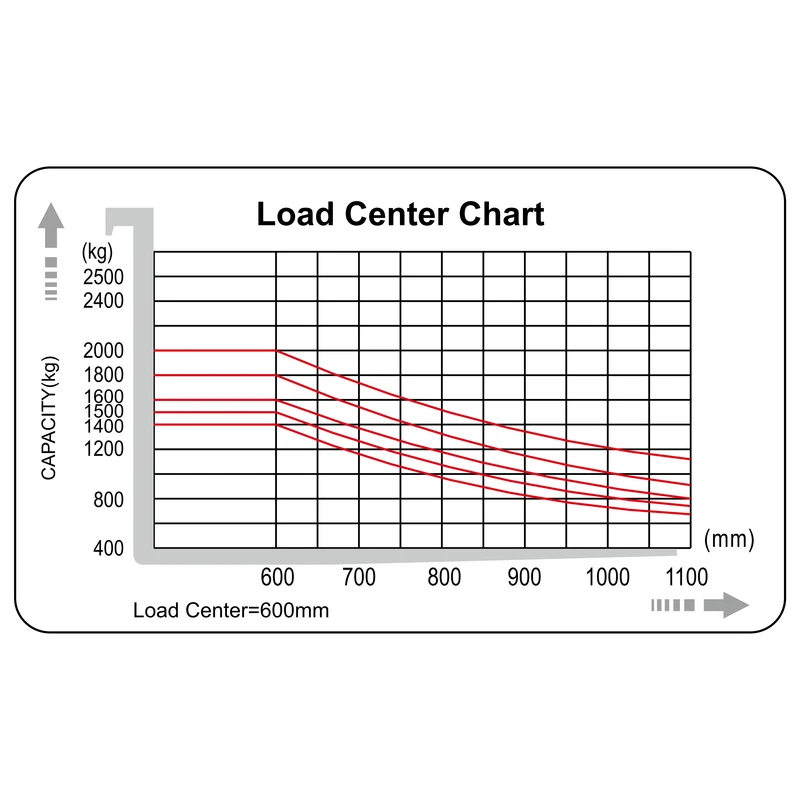

- Dimensions (L×W×H) of the largest and of the heaviest load? Is the centre of gravity known and centred? The load centre moves away from the mast as the load gets longer; real capacity falls with load-centre distance and lift height (capacity diagram). Tall loads raise the COG.

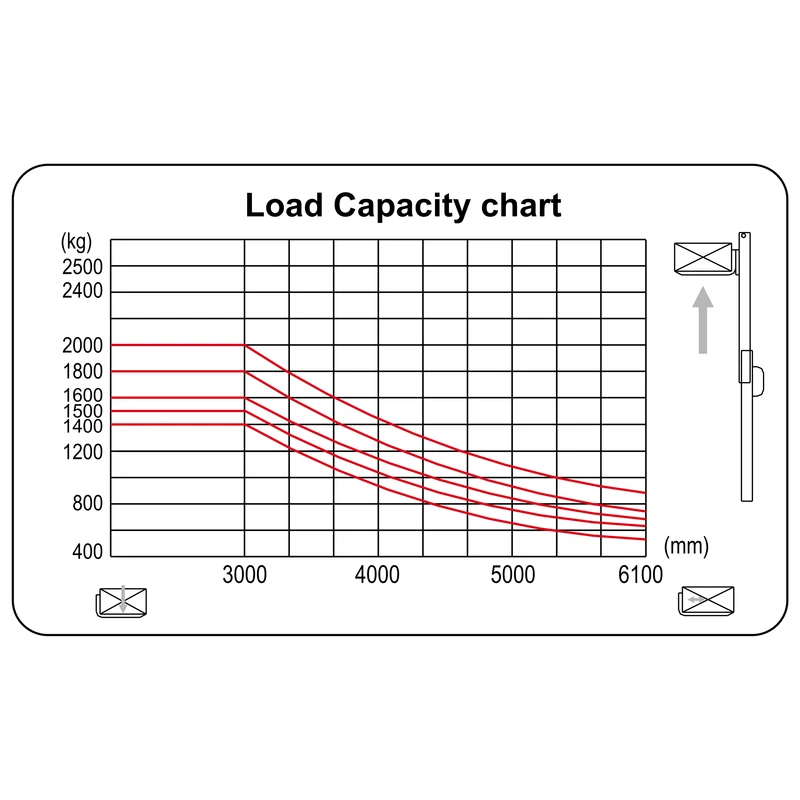

- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.

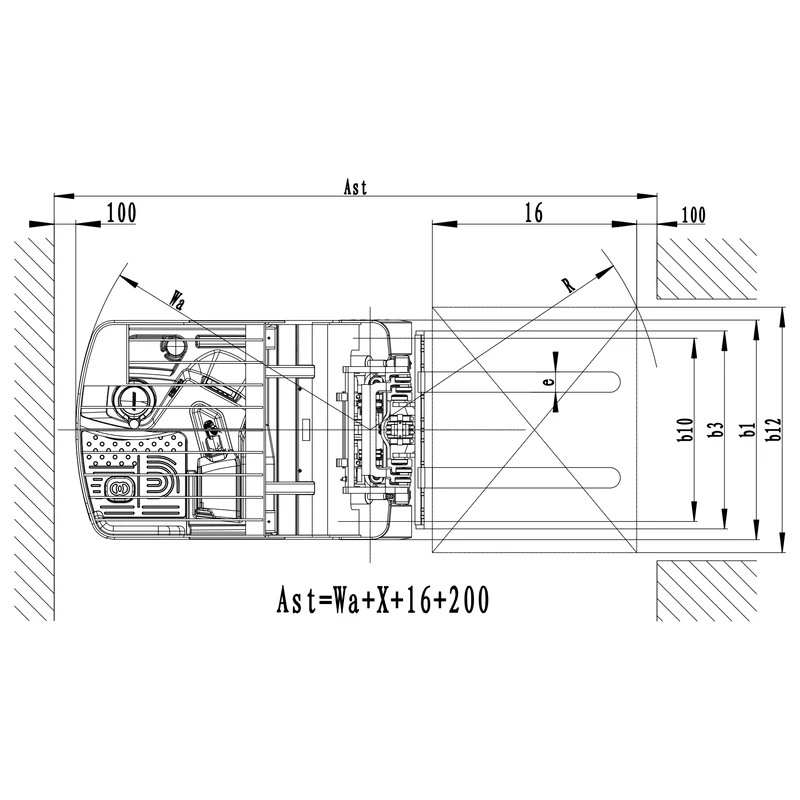

- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- Indoor, outdoor or both; floor surface; gradients? Tyre type and drive follow; the counterbalance forklift is the only truck type designed for gradients > 5 % over > 20 m.
- 3-wheel or 4-wheel: tight manoeuvring or stability with heavy loads/outdoor?
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
- Attachments (side shift, fork positioner, clamp, rotator)? Every attachment changes mass, COG and residual capacity.
Typical mistakes to avoid
- Each attachment changes mass, COG and residual capacity — confirm the combination truck + attachment + height.
Helpful to have ready: Load/COG · Pallet · Max height · Plan · Doors · Floor/gradient · Shifts · Desired attachment
Attributes
| Load capacity | 1600 kg, 1800 kg |
|---|---|
| Lift height | 3000 mm, 4500 mm, 6000 mm |
