The RVV-KPV combines a manual stacker with laterally adjustable forged forks: three capacities, 500, 1000 and 1500 kg, forks that slide from 200 mm out to 745 or 950 mm, and fork lengths of 800 or 1060 mm. It is the compact alternative to the fixed-fork RVV for anyone whose goods arrive on more than one pallet size — the 500 kg model is only 805 mm wide and turns in 1180 mm.
Where it fits in the RVV range
Against the fixed-fork RVV500 to RVV1500 it trades 1150 mm welded forks for shorter 800 mm forged forks (1060 mm on request) that can be set to the pallet; against the RVV-PV it is shorter, with 800 mm forks instead of 1070 mm, and in the 500 kg class much lighter — the RVV500-KPV weighs 161 kg and is 1380 mm long. The RVV1000-KPV is the only model of the three available with a 2500 mm two-stage mast; the RVV500-KPV and RVV1500-KPV lift 1600 mm. For closed-bottom loads choose the RVV-DSV with straddle legs; for 2000 kg the RVV2000-KPV.
Typical applications
Wholesale and retail stores that handle EU pallets, half pallets and display pallets with one truck; workshops moving crates, boxes and short skids; laboratories, print shops and electronics assembly where a narrow 805 mm truck has to pass between machines; stores with a single rack level served by hand.
Design and safe operation
- Adjustable forged forks: 48 x 100 mm section on the 500 kg model, 30 x 100 mm on the 1000 and 1500 kg models; 800 mm long with 1060 mm alternative; spread 200–745 mm (500 kg) or 200–950 mm (1000 and 1500 kg)
- Lowered fork height 80 mm (500 kg) or 90 mm (1000 and 1500 kg); fixed support legs run under the pallet
- Hydraulic lifting by hand or foot — 23 / 25, 20 / 22 and 16 / 18 mm per stroke laden / unladen for 500, 1000 and 1500 kg; hand-operated lowering
- Rigid steel mast and frame; metal mesh guard separates the operator from the lifting chains; wheel guards and parking brake
- Rated capacity at a 500 mm load centre; set both forks symmetrically, check the mast height against doors (up to 2085 mm lowered) and travel with the forks lowered
Technical overview
- Models: RVV500-KPV, RVV1000-KPV, RVV1500-KPV
- Product family: Manual Stackers (adjustable forged forks)
- Load capacity: 500 / 1000 / 1500 kg at 500 mm load centre
- Lift height: 1600 mm; RVV1000-KPV also 2500 mm
- Lowered fork height: 80 mm (RVV500-KPV); 90 mm (RVV1000-KPV, RVV1500-KPV)

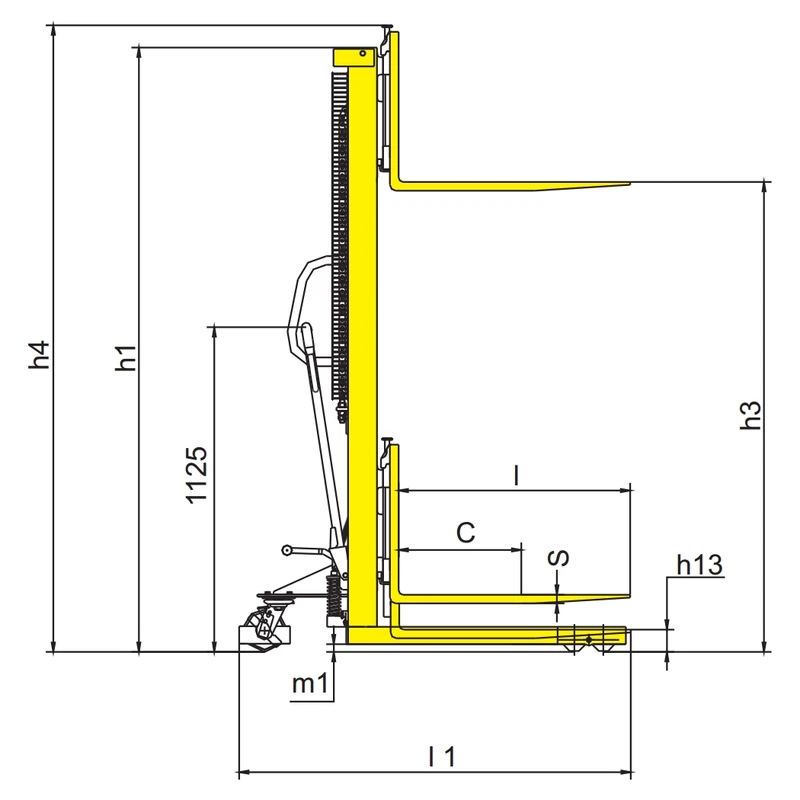

- Mast height, lowered / extended: 1990 / 2010 mm (500 kg); 2085 / 2125 mm or 1840 / 3050 mm (1000 kg, by mast); 2085 / 2125 mm (1500 kg)
- Fork dimensions (s/e/l): 48 / 100 / 800 (1060) mm (500 kg); 30 / 100 / 800 (1060) mm (1000 and 1500 kg)
- Overall fork spread: 200–745 mm (500 kg); 200–950 mm (1000 and 1500 kg)
- Overall length with 800 (1060) mm forks: 1380 (1640) mm (500 kg); 1332 (1592) or 1355 (1615) mm (1000 kg, by mast); 1355 (1615) mm (1500 kg)
- Overall width: 805 mm (500 kg); 1000 or 860 mm (1000 kg, by mast); 1000 mm (1500 kg)

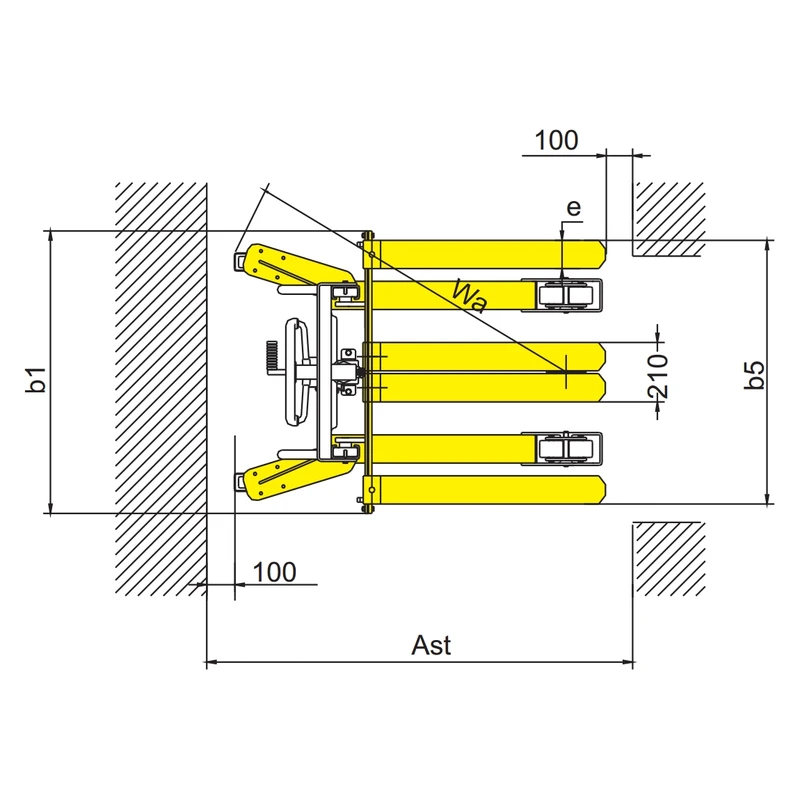

- Working aisle, pallet 1000 x 1200 mm crossways: 1996 (2137) mm; 2002 (2156) or 2030 (2180) mm; 2025 (2185) mm
- Turning radius: 1180 (1420) mm; 1210 (1450) or 1255 (1475) mm; 1235 (1480) mm
- Lift per stroke, laden / unladen: 23 / 25 mm; 20 / 22 mm; 16 / 18 mm
- Service weight with 800 (1060) mm forks: 161 (170) kg; 250 (265) or 316 (331) kg; 280 (295) kg
The product brochure and the dimension drawing are available for download on this page.
What it is for
- Hydraulic hand stacker for lifting pallets to racks, benches or vehicle beds — occasional use up to ~1 500 kg.
- Small warehouses, workshops, shops.
- Loading machines and work tables.
This model
Adjustable: several spans/positions with one unit. Capacity options: 1000 kg, 1500 kg, 500 kg. Lift heights: 1600 mm, 2500 mm.
Check before you choose
- Capacity and lift height (residual capacity drops at height)
- Pallet type: straddle legs for closed-bottom pallets, standard forks for EUR pallets
- Adjustable forks needed?
- Mast height when lowered vs. doorways
Not suitable for
- Frequent or multi-shift use — semi-/full electric
- Heavy pallets above 1 500 kg
- Long distances
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Lifts per day and distance moved? Manual hydraulics and pushing a raised 1 t load are tiring; manual stackers are for occasional use.
Typical mistakes to avoid
- Frequent mistake: closed pallet into which the front legs cannot enter.
- Check residual capacity at height where stated.
Helpful to have ready: Exact pallet dimensions from below · Mass · Shelf height · Aisle · Doors/ceiling · Photo of the floor
Attributes
| Load capacity | 500 kg, 1000 kg, 1500 kg |
|---|---|
| Lift height | 1600 mm, 2500 mm |
| Load centre distance (c) | 500 mm |
| Lowered fork height | RVV500-KPV: 80 mm, RVV1000-KPV: 90 mm, RVV1500-KPV: 90 mm |
| Height, mast lowered | RVV500-KPV: 1990 mm, RVV1000-KPV: 2085 / 1840 mm, RVV1500-KPV: 2085 mm |
| Height, mast extended | RVV500-KPV: 2010 mm, RVV1000-KPV: 2125 / 3050 mm, RVV1500-KPV: 2125 mm |
| Fork dimensions | RVV500-KPV: 48/100/800 (1060) mm, RVV1000-KPV: 30/100/800 (1060) mm, RVV1500-KPV: 30/100/800 (1060) mm |
| Width overall forks | RVV500-KPV: 200–745 mm, RVV1000-KPV: 200–950 mm, RVV1500-KPV: 200–950 mm |
| Overall length | RVV500-KPV: 1380 (1640) mm, RVV1000-KPV: 1332 (1592) / 1355 (1615) mm, RVV1500-KPV: 1355 (1615) mm |
| Overall width (b1) | RVV500-KPV: 805 mm, RVV1000-KPV: 1000 / 860 mm, RVV1500-KPV: 1000 mm |
| Ground clearance, laden, below mast (m1) | RVV500-KPV: 20 mm, RVV1000-KPV: 25 mm, RVV1500-KPV: 25 mm |
| Aisle width for pallets 1000x1200mm | RVV500-KPV: 1996 (2137) mm, RVV1000-KPV: 2002 (2156) / 2030 (2180) mm, RVV1500-KPV: 2025 (2185) mm |
| Turning radius | RVV500-KPV: 1180 (1420) mm, RVV1000-KPV: 1210 (1450) / 1255 (1475) mm, RVV1500-KPV: 1235 (1480) mm |
| Lift per stroke, laden/unladen | RVV500-KPV: 23/25 mm, RVV1000-KPV: 20/22 mm, RVV1500-KPV: 16/18 mm |
| Lowering | Manual control |
| Service weight | RVV500-KPV: 161 (170) kg, RVV1000-KPV: 250 (265) / 316 (331) kg, RVV1500-KPV: 280 (295) kg |
