Heavy Duty Single Scissor Lift Table 2000 kg
Price
From 3.125,00 EUR
From 2.500,00 EUR
−20%
Save up to 640 EUR
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Available variants
In stock — ships now
Factory order — made to order
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Low-Lift Hydraulic Tables
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Heavy duty stationary single scissor hydraulic lift table rated at 2000 kg, designed for industrial applications such as production lines, machine feeding and stacking. The compact and robust scissor construction provides precise, controlled lifting and lowering of heavy loads.
Key features

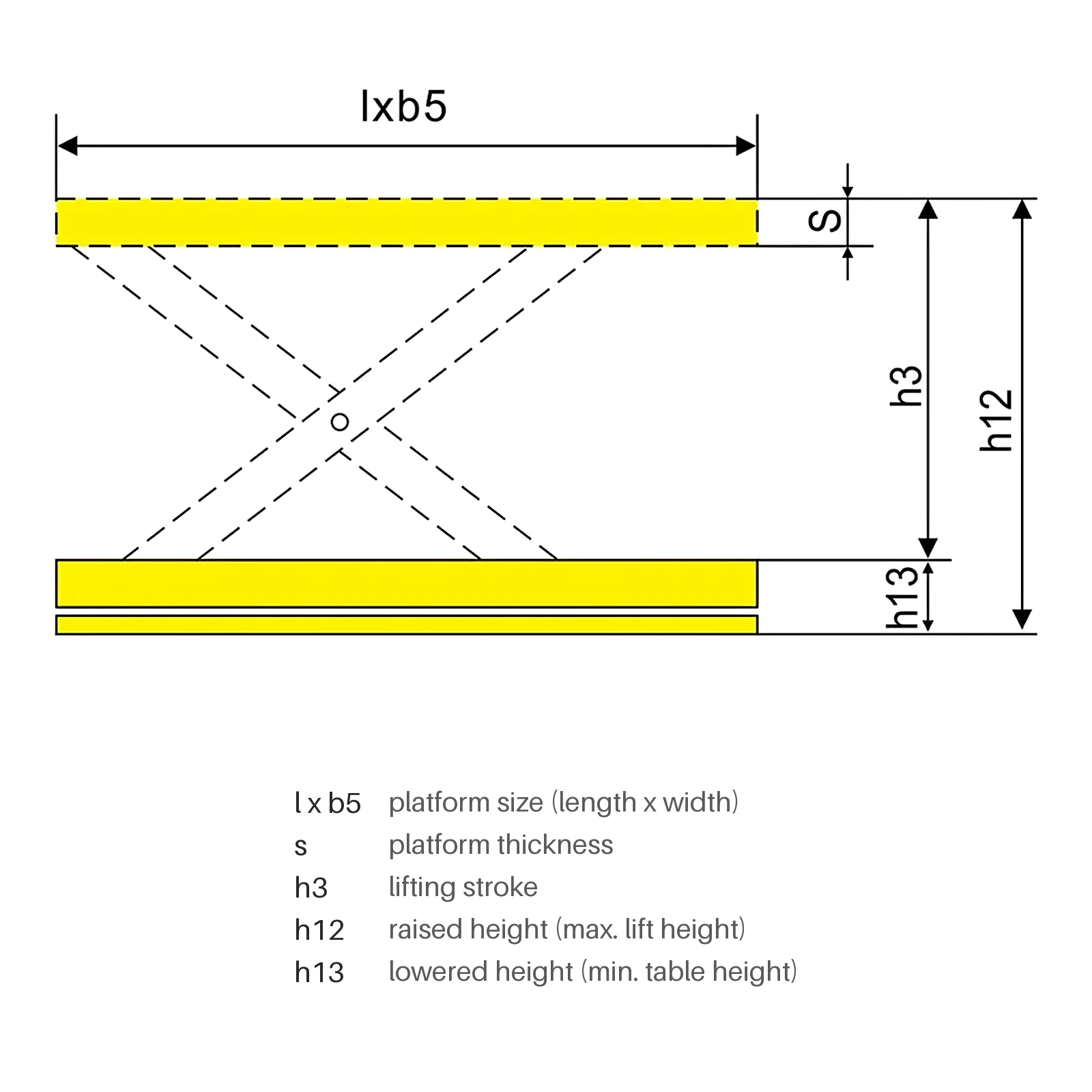

- Load capacity 2000 kg, raised height 1000 mm, lowered height 230 mm
- Platform sizes 1350x800 mm and 1500x1000 mm
- Double acting hydraulic cylinders
- Lifting limit switch
- Aluminium safety contacts on the table frame cut off power to protect workers from injury
- 0.75 kW motor, 220/380 V input voltage, rise time 38 s
- Regulated lowering speed (max. 150 mm/s)
- Strong and durable frame design providing stability and support for heavy loads
- Other sizes and capacities available on request
What it is for
- Stationary scissor table raising loads to ~1–1.6 m — pallet loading/unloading, assembly.
- Production line feeding.
This model
Heavy duty: reinforced frame for the heaviest loads and intensive use. Single scissor: lift ≈ 1–1.6 m. Capacity options: 2000 kg. Lift heights: 1000 mm. Platform width: 800 mm, 1000 mm. Platform length: 1350 mm, 1500 mm. Lowered height: 230 mm.
Check before you choose
- Capacity 1–8 t
- Platform size vs. pallet
- Lowered height (pit or ramp needed?)
- Power and control
Not suitable for
- Heights above 1.6 m — double/triple scissor
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Load mass, dimensions and how it is placed: centred, at an edge, rolled on, point load? Does a pallet truck or forklift drive onto the platform? Rated capacity does not permit any point or eccentric load; edge/rolling loads count as 50 % / 33 %; a vehicle on the platform adds wheel loads.
- Platform size vs. load footprint; lowered and raised height; travel; cycles per hour; lifting time? Lowered height decides pit or ramp; travel decides single/double/triple scissor; cycle rate sizes motor and hydraulics.
Typical mistakes to avoid
- Nominal capacity does not allow arbitrary point or eccentric loading — check the permitted distribution.
Helpful to have ready: Mass/dimensions/COG · Heights · Cycles · Power · Drawing of pit/space · Loading method
Attributes
| Platform length | 1350 mm, 1500 mm |
|---|---|
| Platform width | 800 mm, 1000 mm |
| Lowered height | 230 mm |
| Raised height | 1000 mm |
| Load capacity | 2000 kg |
| Motor power | 0.75 kW |
| Input voltage | 220/380 V |
