Manual Pallet Stacker (RVV1000) 1000 kg 1600 mm
Price
690,00 EUR
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Manual Stackers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The RVV1000 with a 1600 mm mast is the all-round manual stacker: 1000 kg on fixed welded forks, lifted to the first beam level of pallet racking by hand or foot pump, on a chassis that is 755 mm wide and turns in 1325 to 1350 mm. The mast measures 2080 mm lowered and 2087 mm fully raised, so the truck is as tall standing still as it is at full lift.
Where it fits in the RVV range
It carries twice the load of the RVV500 with the same mast for 1 kg more service weight, and it is the version to choose when goods arrive as full EU pallets and leave on a rack shelf. If the racking has a second or third level, the two-stage RVV1000 masts with 2500 and 3000 mm lift are the next step; if the 1000 kg limit is reached often, the RVV1500 provides 1500 kg at the same 1600 mm. For pallets that cannot be entered from the long side, the RVV-PV and RVV-KPV with adjustable forks replace the fixed 550 mm spread.
Typical applications
Putting full pallets of packaged goods, beverages, paper and building materials onto the first rack level; double-stacking pallets in block storage; loading lorries and containers at bed height; lifting tooling, dies and machine parts to the working level of a machine. Because the stacker needs no power supply, it also serves cold stores, outdoor covered areas and remote storage buildings.
Design and safe operation

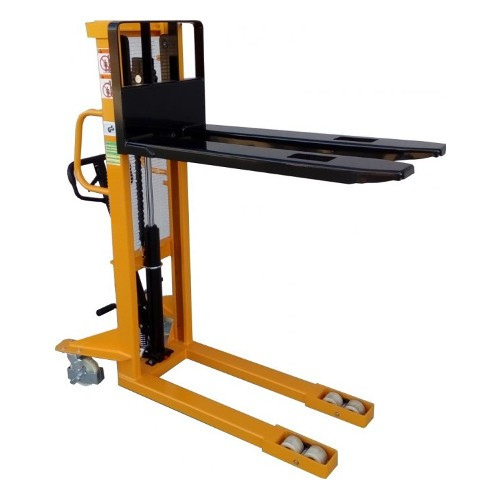

- Fixed welded forks 55 mm thick, 170 mm wide, 1150 mm long; 90 mm lowered fork height
- Hydraulic lifting by hand or foot, 20 mm per stroke laden and 22 mm unladen; hand-operated lowering

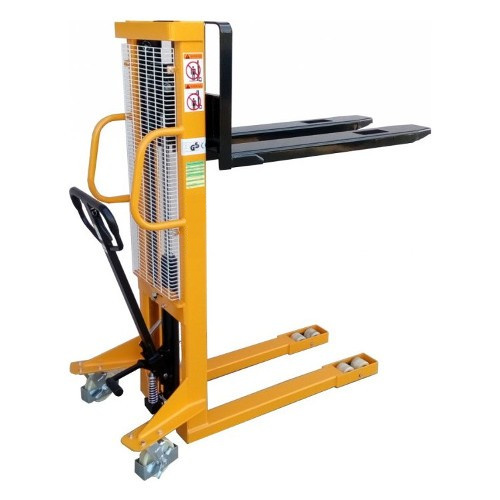

- Rigid steel mast and frame; metal mesh guard separates the operator from the lifting chains; wheel guards and parking brake
- 1000 kg at a 600 mm load centre; check that the rack beam carries the pallet before releasing it, and never leave a load raised on a parked truck
Technical overview
- Model / SKU: RVV1000-1600mm
- Product family: Manual Stackers (fixed forks)
- Load capacity: 1000 kg at 600 mm load centre
- Lift height: 1600 mm
- Lowered fork height: 90 mm

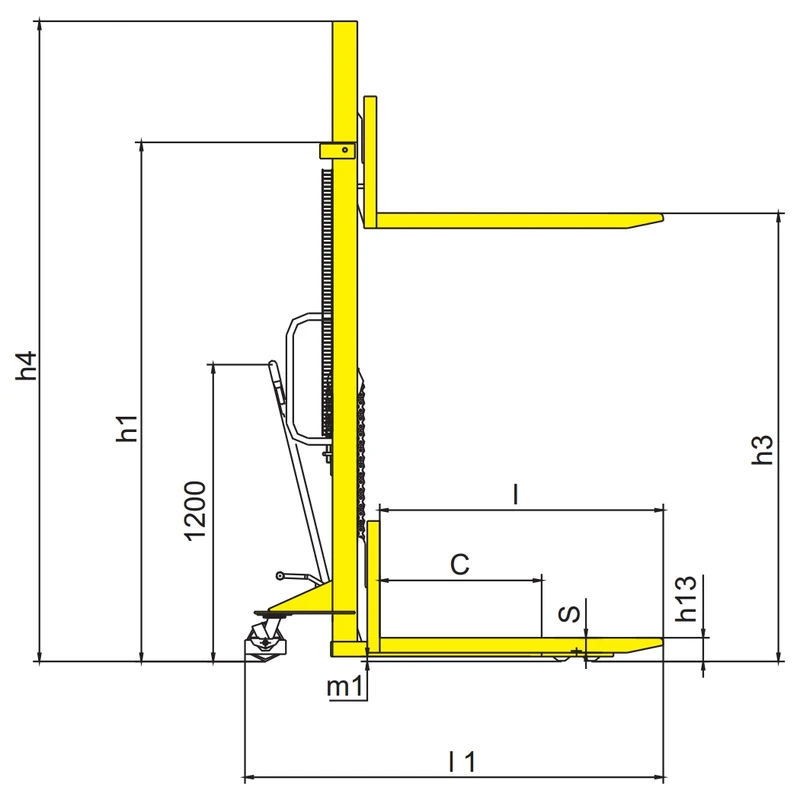

- Mast height, lowered / extended: 2080 / 2087 mm
- Fork dimensions (s/e/l): 55 / 170 / 1150 mm, overall fork spread 550 mm
- Overall length x width: 1685–1695 x 755 mm

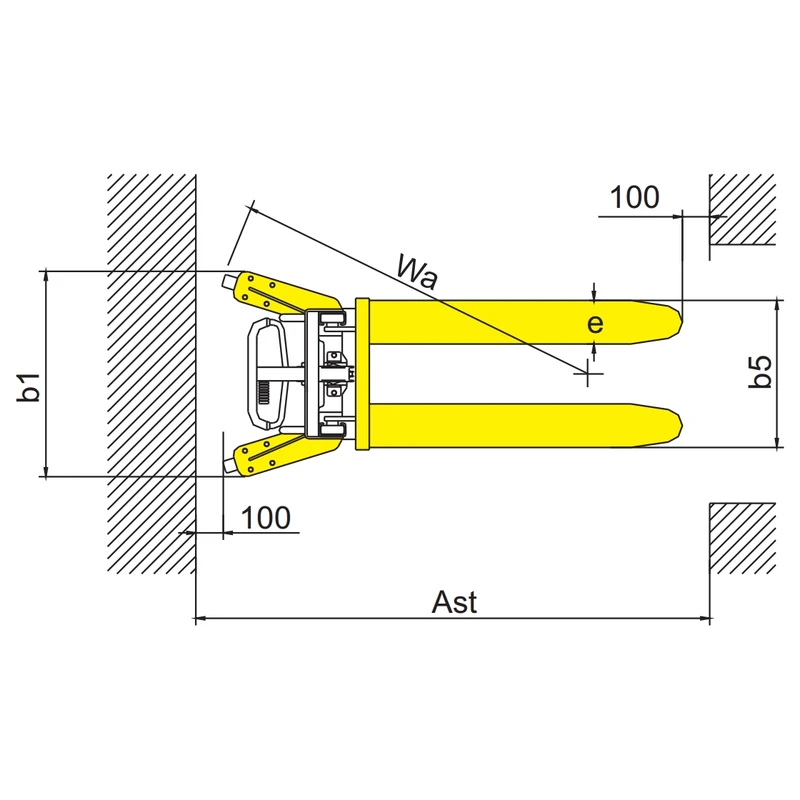

- Working aisle: 2057–2082 mm (pallet 1000 x 1200 mm crossways), 1991–2016 mm (pallet 800 x 1200 mm lengthways)
- Turning radius: 1325–1350 mm
- Lift per stroke, laden / unladen: 20 / 22 mm
- Service weight: 214 kg
The product brochure and the dimension drawing are available for download on this page.
What it is for
- Hydraulic hand stacker for lifting pallets to racks, benches or vehicle beds — occasional use up to ~1 500 kg.
- Small warehouses, workshops, shops.
- Loading machines and work tables.
This model
Capacity options: 1000 kg. Lift heights: 1600 mm. Fork dimensions: 61/170/1150 mm. Turning radius: 1380 mm.
Check before you choose
- Capacity and lift height (residual capacity drops at height)
- Pallet type: straddle legs for closed-bottom pallets, standard forks for EUR pallets
- Adjustable forks needed?
- Mast height when lowered vs. doorways
Not suitable for
- Frequent or multi-shift use — semi-/full electric
- Heavy pallets above 1 500 kg
- Long distances
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Lifts per day and distance moved? Manual hydraulics and pushing a raised 1 t load are tiring; manual stackers are for occasional use.
Typical mistakes to avoid
- Frequent mistake: closed pallet into which the front legs cannot enter.
- Check residual capacity at height where stated.
Helpful to have ready: Exact pallet dimensions from below · Mass · Shelf height · Aisle · Doors/ceiling · Photo of the floor
Attributes
| Load capacity | 1000 kg |
|---|---|
| Load centre distance (c) | 600 mm |
| Lift height | 1600 mm |
| Lowered fork height | 90 mm |
| Height, mast lowered | 2080 mm |
| Height, mast extended | 2087 mm |
| Fork dimensions | 55/170/1150 mm |
| Width overall forks | 550 mm |
| Overall length | 1685–1695 mm |
| Overall width (b1) | 755 mm |
| Ground clearance, laden, below mast (m1) | 20 mm |
| Aisle width for pallets 1000x1200mm | 2057–2082 mm |
| Aisle width for pallets 800x1200mm | 1991–2016 mm |
| Turning radius | 1325–1350 mm |
| Lift per stroke, laden/unladen | 20/22 mm |
| Lowering | Manual control |
| Service weight | 214 kg |
