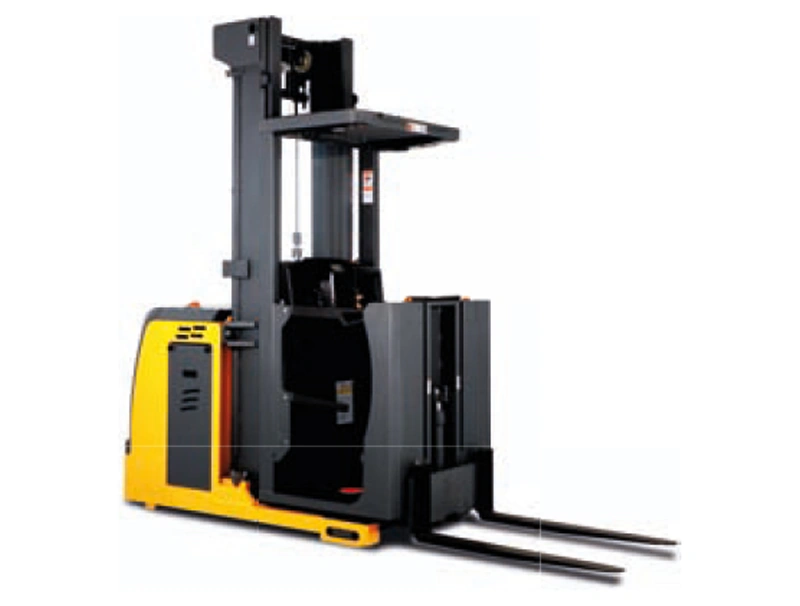

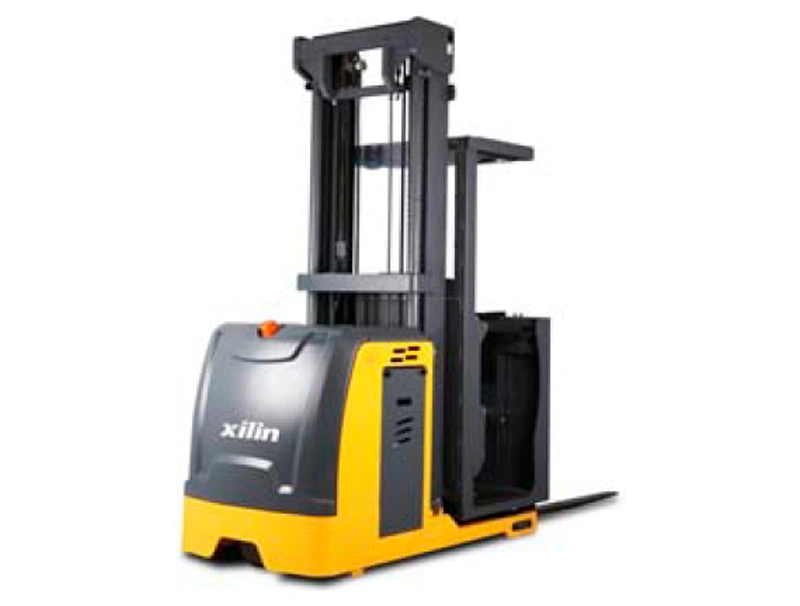

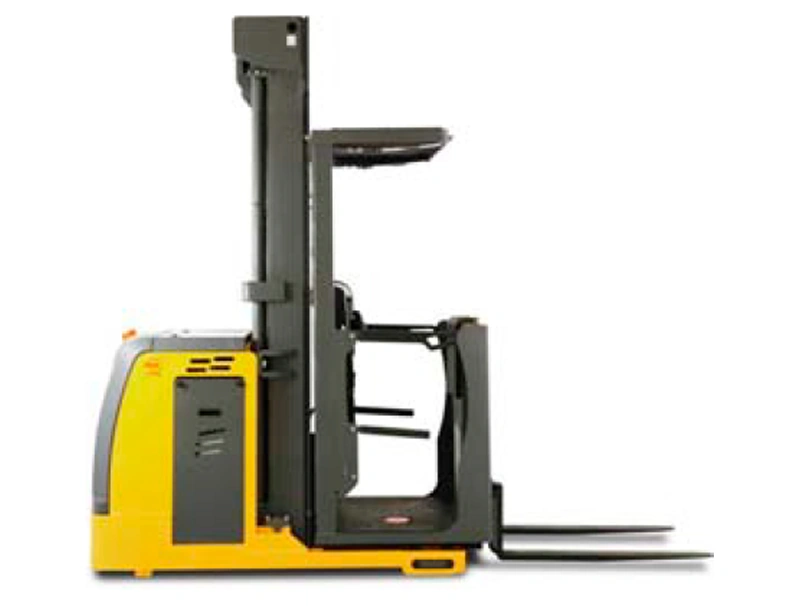

Electric Middle Level Order Picker (OPS15-BD) 1500 kg 4500-5500 mm
Price
From 32.460,00 EUR
From 25.968,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Between ground-level picking and full VNA equipment there is a wide band of warehouses that pick from the second and third rack level. The OPS15-BD serves exactly that band: the operator rides up with the platform, picks directly onto the forks, and comes down with the order - no ladders and no repalletising.
Working at height
- Three mast options put the platform at pick faces up to 5500 mm
- Low centre of gravity design keeps the truck stable with the platform raised
- Triple lift limiting - electronic, cylinder and mechanical - backed by a pressure-compensated accumulator with an explosion-proof valve
- Below 500 mm the platform slows automatically to soften the landing
Day-to-day handling
- Electric steering with automatic return and roughly 90 degree swing keeps the 1765 mm turning radius usable in picking aisles
- Height display with timing function at the console
- 4.5 kW AC drive, 8 km/h in both directions, 24 V / 560 Ah battery for full-shift endurance
- Frame and mast are separable and interchangeable, which simplifies major service
Price and delivery
Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
What it is for
- Picking individual items or cartons from shelves — low level (floor to 2nd level) or high level (man-up).
- E-commerce, spare parts, retail distribution.
This model
Order picking of cartons/items; check picking height. Capacity options: 1500 kg. Lift heights: 4500 mm, 5000 mm, 5500 mm.
Check before you choose
- Picking height
- Load capacity of platform/forks
- Aisle width
- Battery and shifts
Not suitable for
- Full-pallet stacking
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Picking height: highest shelf; does the operator rise with the load? First determine the picking level, then capacity.
- Mass of goods/pallet per round; picks per hour; forks or platform; container type?
- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Determine the picking level first, then capacity; high-level machines depend on floor, protective systems and procedures.
Helpful to have ready: Shelf heights · Plan · Goods/pallets · Picks per hour · Aisle width · Shifts
Attributes
| Lift height | 4500 mm, 5000 mm, 5500 mm, 6000 mm, 7000 mm, 8000 mm, 9000 mm |
|---|---|
| Load capacity | 1500 kg |
| Operator type | Man-up platform (order picker) |
| Platform height | 225 mm lowered |
| Fork dimensions | 35/100/1070 mm |
| Turning radius | 1765 mm |
| Travel speed | 8 km/h |
| Battery | 24 V / 560 Ah |
| Motors | Drive 4.5 kW AC, Lift 7.5 kW |
| Overhead guard height (h6) | 2250 mm |
