Manual Straddle Stacker with Extended Legs (RVV-DSV) 500-1000 kg
Price
From 985,00 EUR
From 788,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Manual Stackers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The RVV-DSV is a straddle stacker: its support legs are set wide apart, 1300 mm clear on the 500 kg model and 1250 mm on the 1000 kg model, and pass alongside the load instead of under it. That is what makes it the manual stacker for closed-bottom pallets, machine bases, crates on bearers and drums that a conventional stacker with legs under the forks cannot pick up. Adjustable forged forks and a 70 mm lowered fork height complete the picture.
Where it fits in the RVV range
The fixed-fork RVV family and the adjustable RVV-PV and RVV-KPV all run their support legs under the pallet, which works for open EU pallets and nothing else. Choose the RVV-DSV when the underside of the load is closed or uneven. Both models lift 1600 mm; the RVV500-DSV uses 48 mm forks on a 1525 mm wide chassis and weighs 223 kg, the RVV1000-DSV uses 30 mm forged forks spreading to 950 mm on a 1475 mm chassis and weighs 294 kg. The price of the straddle legs is width: the truck needs a 2065 to 2072 mm aisle with 800 mm forks and about 2315 to 2322 mm with 1060 mm forks.
Typical applications
Machine builders and workshops moving machine bases, welded frames and switch cabinets on closed skids; chemical and food plants handling drums and IBCs on bearers; import warehouses with closed-deck or one-way pallets; sheet-metal and joinery shops lifting stacks of panels on timber bearers to the first rack level or onto a machine table.
Design and safe operation
- Wide straddle support legs with 1300 mm (500 kg) or 1250 mm (1000 kg) clear distance; overall width 1525 or 1475 mm
- Adjustable forged forks 800 mm long, 1060 mm as alternative; spread 200–745 mm (500 kg) or 200–950 mm (1000 kg); lowered fork height 70 mm
- Hydraulic lifting by hand or foot, 23 / 25 mm per stroke on the 500 kg model and 20 / 22 mm on the 1000 kg model; hand-operated lowering
- Rigid steel mast and frame; metal mesh guard separates the operator from the lifting chains; wheel guards and parking brake; 30 mm ground clearance under the mast with load
- Rated capacity at a 500 mm load centre; set both forks to the same spread, keep the load between the legs and travel with the forks lowered
Technical overview
- Models: RVV500-DSV, RVV1000-DSV
- Product family: Manual Stackers (straddle legs, adjustable forged forks)
- Load capacity: 500 kg / 1000 kg at 500 mm load centre
- Lift height: 1600 mm
- Lowered fork height: 70 mm
- Mast height, lowered / extended: 1990 / 1990 mm (500 kg); 2070 / 2105 mm (1000 kg)
- Fork dimensions (s/e/l): 48 / 100 / 800 (1060) mm (500 kg); 30 / 100 / 800 (1060) mm (1000 kg)
- Overall fork spread: 200–745 mm (500 kg); 200–950 mm (1000 kg)
- Clear distance between support legs: 1300 mm (500 kg); 1250 mm (1000 kg)
- Overall length x width: 1350 (1610) x 1525 mm (500 kg); 1350 (1610) x 1475 mm (1000 kg)
- Working aisle, pallet 1000 x 1200 mm crossways: 2065 (2315) mm (500 kg); 2072 (2322) mm (1000 kg)
- Turning radius: 1220 (1470) mm (500 kg); 1235 (1485) mm (1000 kg)
- Lift per stroke, laden / unladen: 23 / 25 mm (500 kg); 20 / 22 mm (1000 kg)
- Service weight: 223 kg (500 kg); 294 kg (1000 kg)

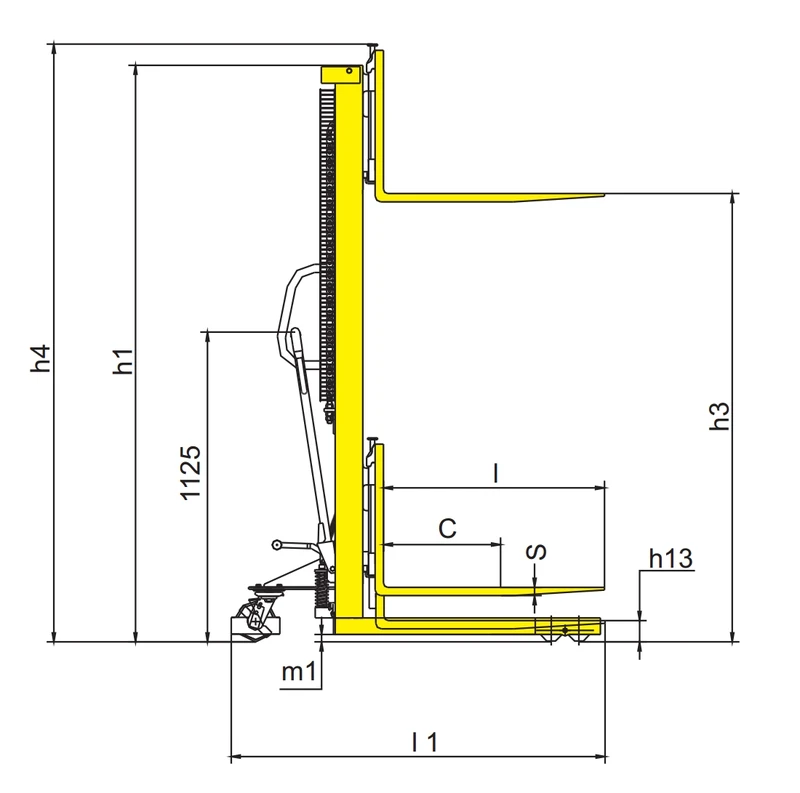

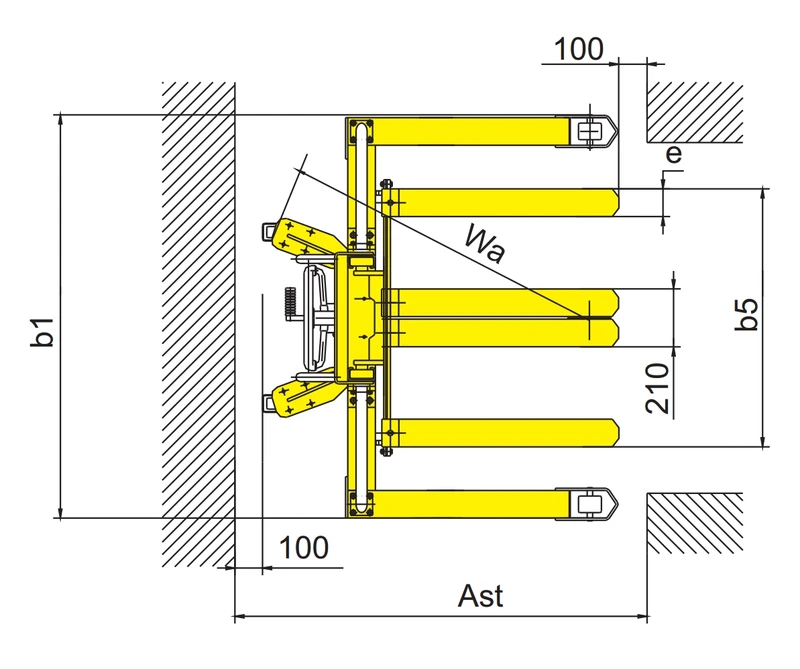

The product brochure and the dimension drawing are available for download on this page.
What it is for
- Hydraulic hand stacker for lifting pallets to racks, benches or vehicle beds — occasional use up to ~1 500 kg.
- Small warehouses, workshops, shops.
- Loading machines and work tables.
This model
Straddle legs: for closed-bottom / CHEP pallets and mixed pallet types; needs a slightly wider aisle. Capacity options: 1000 kg, 500 kg. Lift heights: 1600 mm.
Check before you choose
- Capacity and lift height (residual capacity drops at height)
- Pallet type: straddle legs for closed-bottom pallets, standard forks for EUR pallets
- Adjustable forks needed?
- Mast height when lowered vs. doorways
Not suitable for
- Frequent or multi-shift use — semi-/full electric
- Heavy pallets above 1 500 kg
- Long distances
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Lifts per day and distance moved? Manual hydraulics and pushing a raised 1 t load are tiring; manual stackers are for occasional use.
Typical mistakes to avoid
- Frequent mistake: closed pallet into which the front legs cannot enter.
- Check residual capacity at height where stated.
Helpful to have ready: Exact pallet dimensions from below · Mass · Shelf height · Aisle · Doors/ceiling · Photo of the floor
Attributes
| Load capacity | 500 kg, 1000 kg |
|---|---|
| Lift height | 1600 mm, 2500 mm |
| Load centre distance (c) | 500 mm |
| Lowered fork height | 70 mm |
| Height, mast lowered | RVV500-DSV: 1990 mm, RVV1000-DSV: 2070 mm |
| Height, mast extended | RVV500-DSV: 1990 mm, RVV1000-DSV: 2105 mm |
| Fork dimensions | RVV500-DSV: 48/100/800 (1060) mm, RVV1000-DSV: 30/100/800 (1060) mm |
| Width overall forks | RVV500-DSV: 200–745 mm, RVV1000-DSV: 200–950 mm |
| Overall length | 1350 (1610) mm |
| Overall width (b1) | RVV500-DSV: 1525 mm, RVV1000-DSV: 1475 mm |
| Ground clearance, laden, below mast (m1) | 30 mm |
| Aisle width for pallets 1000x1200mm | RVV500-DSV: 2065 (2315) mm, RVV1000-DSV: 2072 (2322) mm |
| Turning radius | RVV500-DSV: 1220 (1470) mm, RVV1000-DSV: 1235 (1485) mm |
| Lift per stroke, laden/unladen | RVV500-DSV: 23/25 mm, RVV1000-DSV: 20/22 mm |
| Lowering | Manual control |
| Service weight | RVV500-DSV: 223 kg, RVV1000-DSV: 294 kg |
