Electric Order Picker (EKV400) 400 kg 3500-4500 mm
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Full electric order picker with 400 kg capacity and 3500-4500 mm lifting height, large slip-resistant working platform and self-locking gate for safe aerial work.
Key features
- Large working platform with solid slip-resistant floor
- Self-locking gate provides maximum safety for aerial work
- Electric motor: smooth, quiet, zero-emission operation
- Ergonomic design prioritises operator safety and comfort
- 400 kg capacity with 3500-4500 mm lifting height
- Full electric drive and lifting
Technical overview

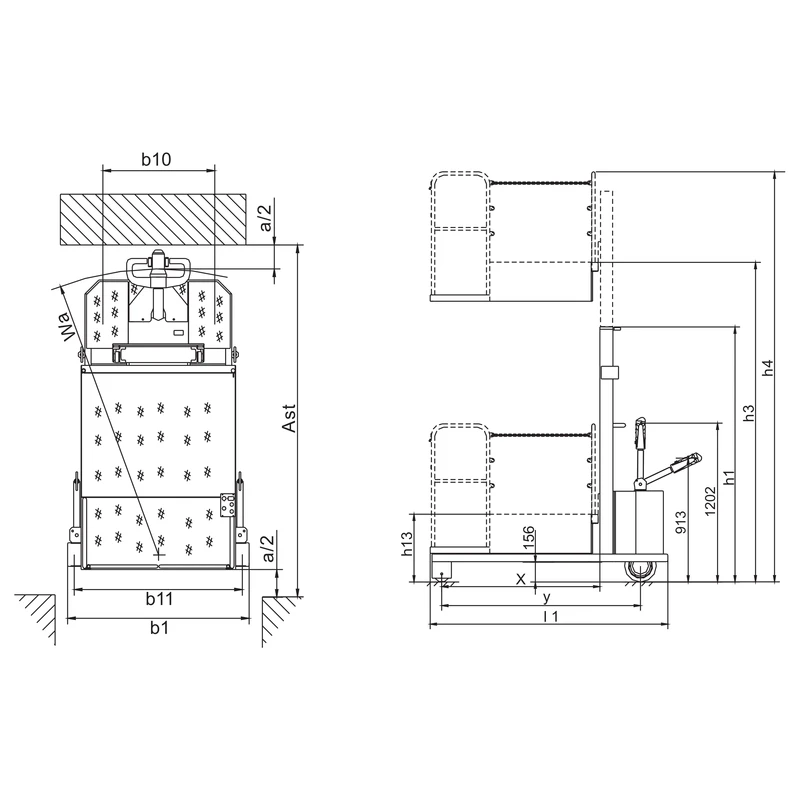

- Model / SKU: EKV400
- Product family: Order Pickers
- Load capacity: 400 kg
- Load distance, center of drive axle to fork: 1247 mm
- Fork height, lowered: 534 mm
- Wheelbase: 1568 mm
- Tread, front: 730 mm
- Tread, rear: 1118 mm
- Height, mast lowered: 2250/2500/2750mm
- Max. lift height: 3500/4000/4500mm
- Height, mast extended: 4222/4722/5222mm
- Overall length: 1860 mm
- Overall width: 1174 mm
- Aisle width for pallets 1000x1200mm: 2621 mm
- Turning radius: 1830 mm
- Travel speed, laden/unladen: 4.5/6.0km/h
- Lifting speed laden/unladen: 0.09/0.10m/s
- Lowering speed laden/unladen: 0.14/0.12m/s
- Max. gradeability laden/unladen: 5/10%
- Drive motor rating S2 60 min: 0.75kW
- Lift motor rating at S3 15%: 1.5kW
- Battery type/voltage/capacity: LA/24/200
- Battery weight: 120 kg
- Battery dimensions (I/W/H): 250x190x295mm
- Service weight (with battery): 710/770/830kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Picking individual items or cartons from shelves — low level (floor to 2nd level) or high level (man-up).
- E-commerce, spare parts, retail distribution.
This model
Order picking of cartons/items; check picking height. Capacity options: 400 kg. Battery: LA/24/200. Turning radius: 1830 mm.
Check before you choose
- Picking height
- Load capacity of platform/forks
- Aisle width
- Battery and shifts
Not suitable for
- Full-pallet stacking
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Picking height: highest shelf; does the operator rise with the load? First determine the picking level, then capacity.
- Mass of goods/pallet per round; picks per hour; forks or platform; container type?
- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Determine the picking level first, then capacity; high-level machines depend on floor, protective systems and procedures.
Helpful to have ready: Shelf heights · Plan · Goods/pallets · Picks per hour · Aisle width · Shifts
Attributes
| Load capacity | 400 kg |
|---|---|
| Load distance, center of drive axle to fork | 1247 mm |
| Lowered fork height | 534 mm |
| Wheelbase | 1568 mm |
| Tread, front | 730 mm |
| Tread, rear | 1118 mm |
| Height, mast lowered | 2250/2500/2750 mm |
| Lift height | 3500/4000/4500 mm |
| Height, mast extended | 4222/4722/5222 mm |
| Overall length | 1860 mm |
| Overall width | 1174 mm |
| Aisle width for pallets 1000x1200mm | 2621 mm |
| Turning radius | 1830 mm |
| Travel speed, laden/unladen | 4.5/6.0 km/h |
| Lifting speed laden/unladen | 0.09/0.10 m/s |
| Lowering speed laden/unladen | 0.14/0.12 m/s |
| Max. gradeability laden/unladen | 5/10% |
| Drive motor rating S2 60 min | 0.75 kW |
| Lift motor rating at S3 15% | 1.5 kW |
| Battery type/voltage/capacity | LA/24/200 |
| Battery weight | 120 kg |
| Battery dimensions (I/W/H) | 250x190x295 mm |
| Service weight | 710/770/830 kg |
