Heavy Duty Hand Pallet Truck (RPV5000HD) 5000 kg
Price
On request
Direct factory order
— 16–20 weeks · 50% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 50%
- Balance: 50% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Group order
1 of 6 units secured — 5 more to confirm the group
Be the first to order and get an extra −2% — already included in the price at checkout. Your booked deposit starts the countdown for the rest of the group.
A 50% deposit secures your units. If the group is not completed in time, your deposit is refunded in full within 5 working days. Group order terms
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Tags:
Manual Pallet Trucks,
Pallet Jacks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The heavy duty hand pallet truck is built for the toughest everyday handling jobs — moving loads of up to 5000 kg across warehouses, production floors and loading bays. Its fork frame is welded from high-rigidity steel plate yet kept deliberately light, and the complete rocker-arm linkage spreads the load evenly across the whole chassis for a service life the manufacturer rates at five years of daily use.
Key features
- Load capacity 5000 kg on tandem ø85 mm fork rollers
- Double-speed lifting for loads under 600 kg — the pump automatically switches back to regular speed above that weight
- Impact-free lifting protects sensitive cargo during pick-up
- Overload protection valve safeguards the hydraulics and the operator
- High-rigidity steel fork frame with a light overall service weight of 103-110 kg
- Complete rocker-arm design keeps the truck evenly pressed under load
- Structure designed for easy assembly and disassembly, with a finger hole at the handle-to-pump connection
Configuration
Available with 1150 or 1220 mm forks in 550 or 685 mm overall width, with an 88 mm lowered fork height and a 205 mm maximum lift height on ø200 mm steering wheels.
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Moving pallets short distances at floor level by hand — loading bays, shops, workshops.
- Occasional use, vehicle unloading, tight spaces.
- Special variants: stainless (food), galvanized (wet/outdoor), scale, low-profile, long/short forks, rough terrain.
This model
Heavy duty: reinforced frame for the heaviest loads and intensive use. Capacity options: 5000 kg.
Check before you choose
- Capacity (2 000–5 000 kg) with reserve
- Fork length/width vs. pallet (EUR 1200×800: standard 1150 mm forks; long forks for 2 pallets or long goods)
- Lowered fork height for low pallets
- Wheels: nylon (hard floor), polyurethane (quiet, delicate floors), rubber
- Environment: food/pharma → stainless; wet → galvanized
Not suitable for
- Lifting pallets onto racking or vehicles (max ~200 mm lift) — use a stacker
- Long distances or multi-shift — electric pallet truck
- Gradients/ramps with heavy loads
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet type/dimensions (EUR 1200×800, industrial 1200×1000, half, display, custom)? Closed-bottom or low pallets? Entry height? Pallet compatibility matters more than capacity: fork length, overall width, lowered height and pallet underside.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Distance per trip, trips per day, ramps? A hand truck is for short level moves; pushing 2 t up a ramp is unsafe.
Typical mistakes to avoid
- Pallet compatibility is more important than capacity — check entry height and pallet underside.
Helpful to have ready: Photo/dimensions of the pallet · Max mass · Transport distance · Floor · Special version

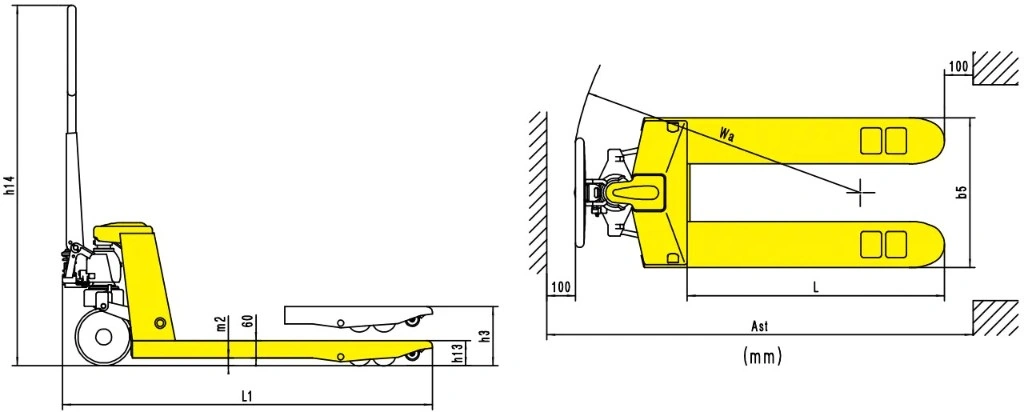

Attributes
| Load capacity | 5000 kg |
|---|---|
| Fork length (L) | 1150 mm, 1220 mm |
| Width overall forks | 550 mm, 685 mm |
| Lowered fork height | 88 mm |
| Lift height | 205 mm |
| Steering wheels | ø200 mm |
| Fork rollers | ø85x80 mm (tandem) |
| Overall length (L1) | 1544 mm, 1614 mm |
| Height, mast lowered | 1253 mm |
| Turning radius | 1300 mm, 1370 mm |
| Aisle width for pallets 1000x1200mm | 1744 mm, 1814 mm |
| Aisle width for pallets 800x1200mm | 1794 mm, 1814 mm |
| Ground clearance (m2) | 28 mm |
| Service weight | 103-110 kg |
