Premium Hand Pallet Truck (RPV2500PT/RPV3000PT) 2500-3000 kg
Price
On request
Direct factory order
— 16–20 weeks · 50% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 50%
- Balance: 50% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Group order
1 of 6 units secured — 5 more to confirm the group
Be the first to order and get an extra −2% — already included in the price at checkout. Your booked deposit starts the countdown for the rest of the group.
A 50% deposit secures your units. If the group is not completed in time, your deposit is refunded in full within 5 working days. Group order terms
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Tags:
Manual Pallet Trucks,
Pallet Jacks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The premium hand pallet truck is the top of our manual pallet truck range, available in 2500 kg (RPV2500PT) and 3000 kg (RPV3000PT) load ratings. Its defining feature is the integrated cast pump unit: because the body is cast in one piece instead of being welded together, there are no seams that can weep or fail, which is the most common cause of downtime on a hard-working pallet truck.
Key features
- Two capacity variants: 2500 kg (RPV2500PT) and 3000 kg (RPV3000PT)

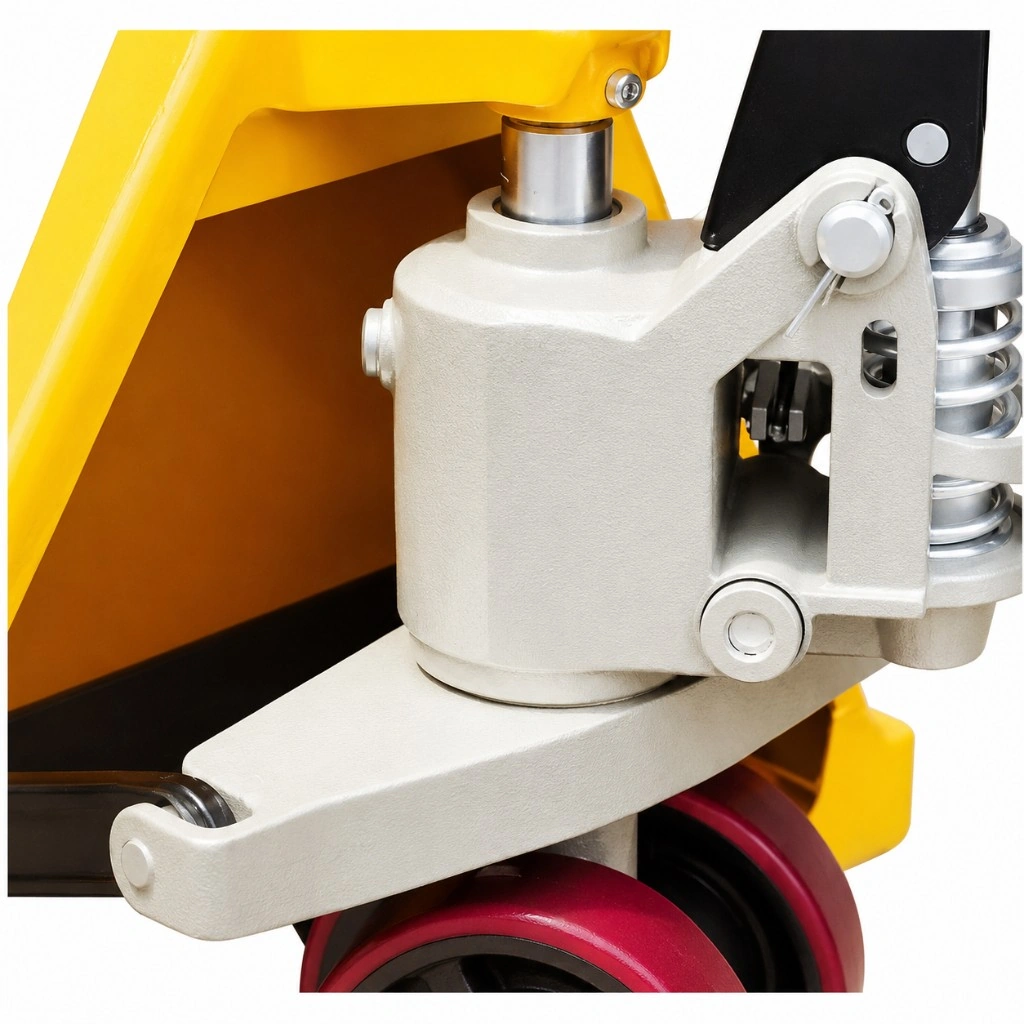

- Integrated cast pump with no welded joints — no leaking problems
- Redesigned frame with better force distribution for higher reliable strength
- Controllable fork lowering speed with an overload valve that prevents overloading
- Entry/exit rollers on the fork tips as standard for smooth pallet pick-up
- Handle seat pre-drilled for quick, tool-friendly installation of the control chain
- Ergonomic metal handle as standard, rubber-wrapped handle available
- Light service weight of 56-70 kg depending on configuration
Wheel and configuration options

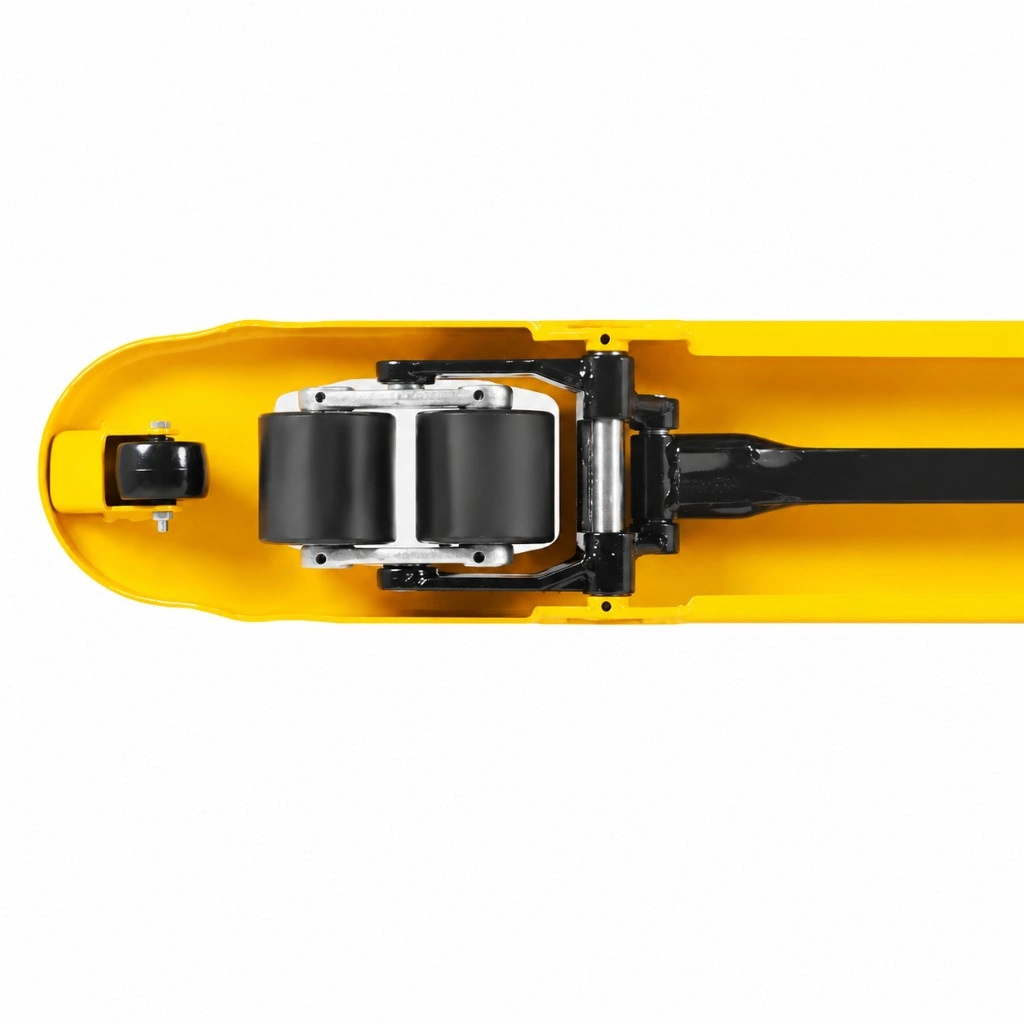

The standard configuration has 1150 x 550 mm forks, an 85 mm lowered fork height and a 195 mm maximum lift height on ø180 mm steering wheels with ø74 mm fork rollers; ø200 mm steering wheels with ø80 mm rollers are available. Wheels can be supplied in nylon, polyurethane or rubber, with single or tandem fork rollers. Further options include 1220 mm forks, 520 or 685 mm overall fork widths, short forks of 800-1100 mm, foot pedal release, a black-painted pump and quick lift (double-speed lifting).
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Moving pallets short distances at floor level by hand — loading bays, shops, workshops.
- Occasional use, vehicle unloading, tight spaces.
- Special variants: stainless (food), galvanized (wet/outdoor), scale, low-profile, long/short forks, rough terrain.
This model
Premium: intensive daily use, better wheels and pump. Capacity options: 2500 kg, 3000 kg.
Check before you choose
- Capacity (2 000–5 000 kg) with reserve
- Fork length/width vs. pallet (EUR 1200×800: standard 1150 mm forks; long forks for 2 pallets or long goods)
- Lowered fork height for low pallets

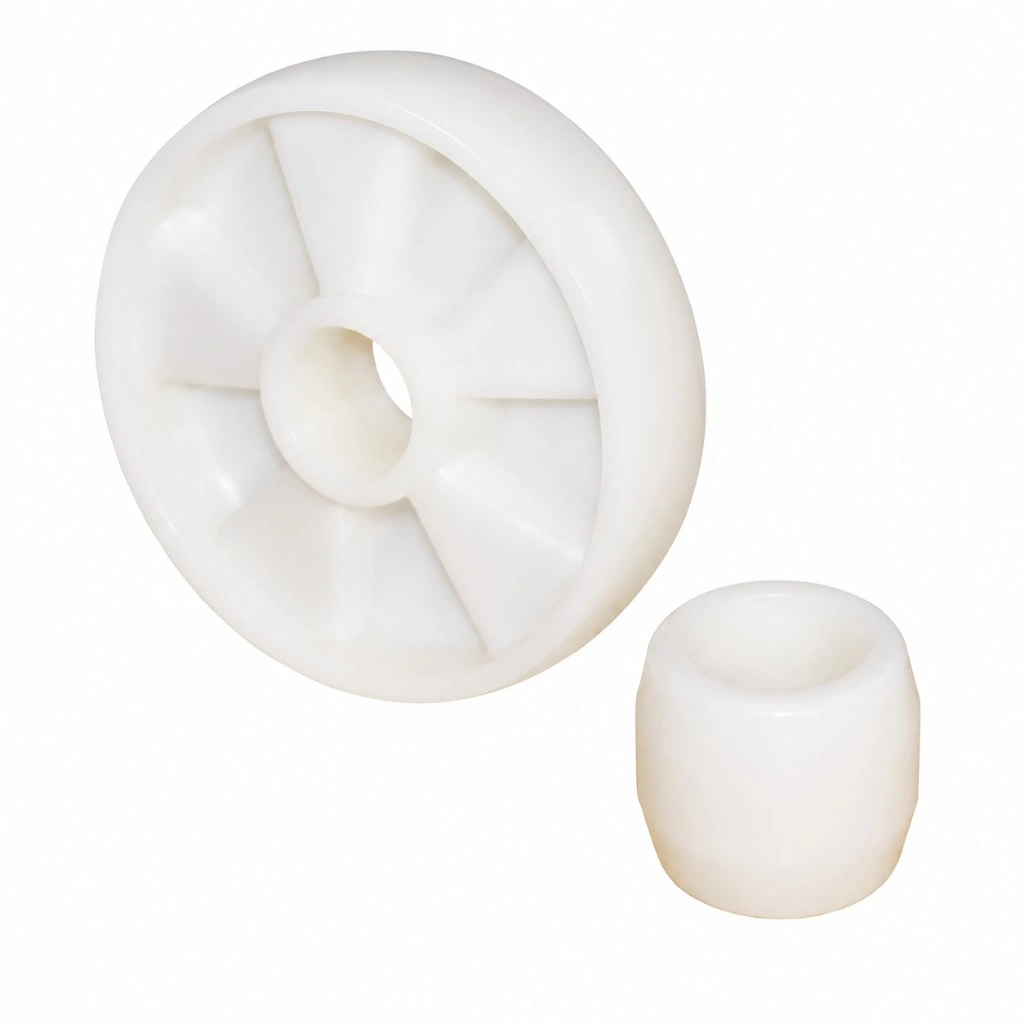

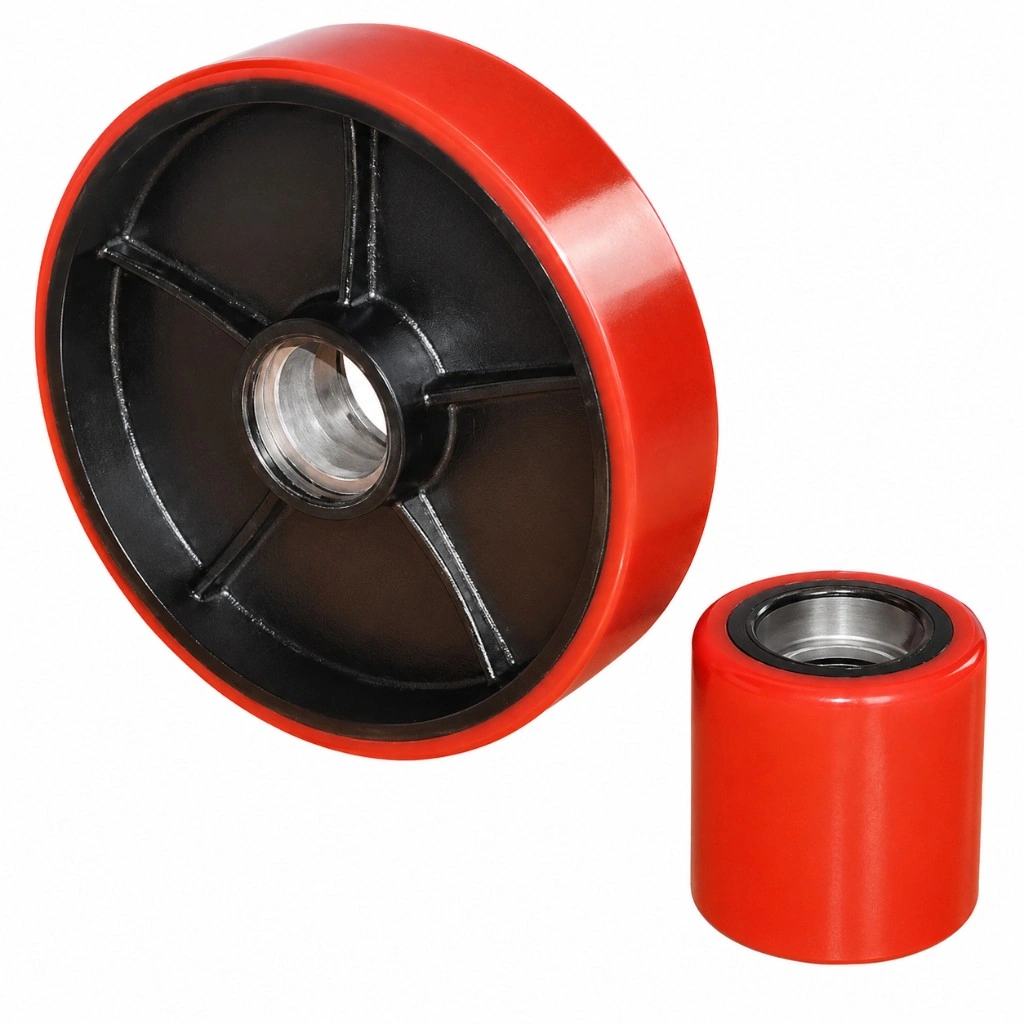

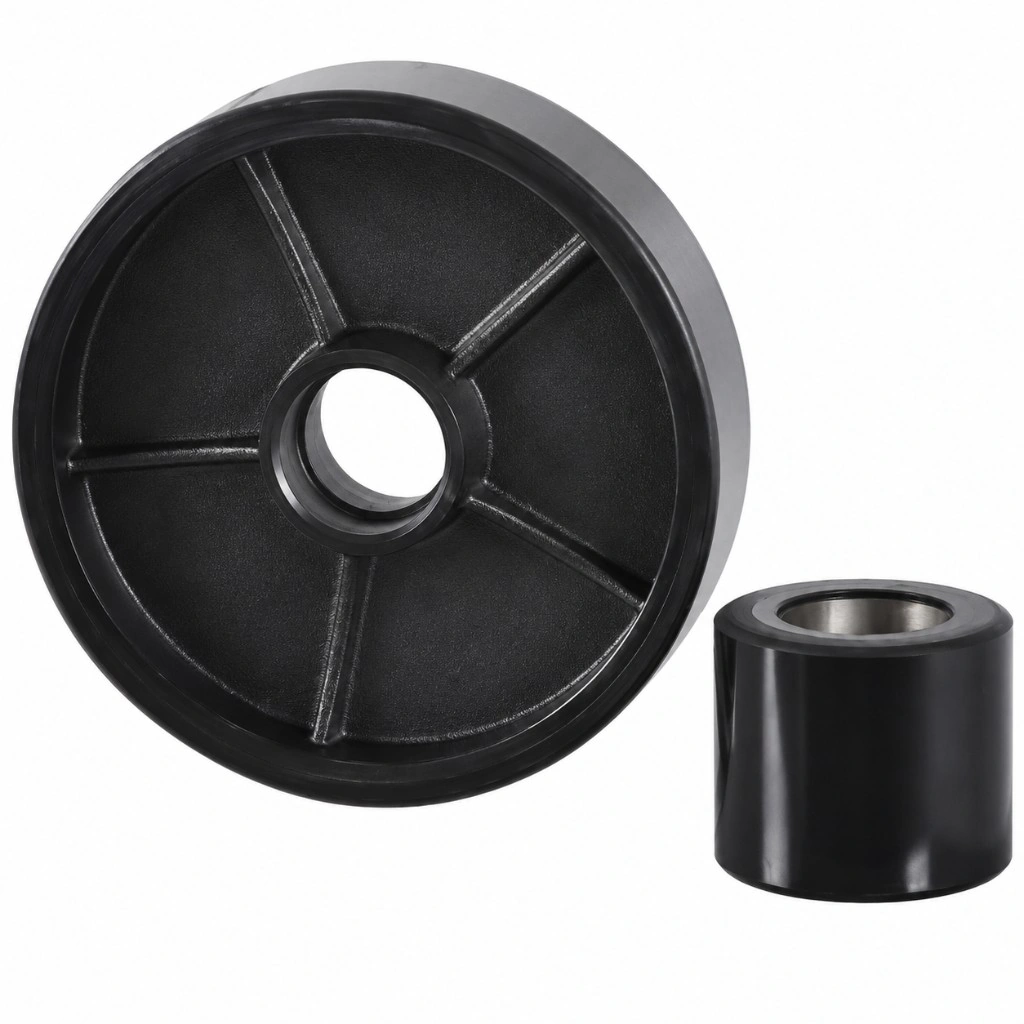

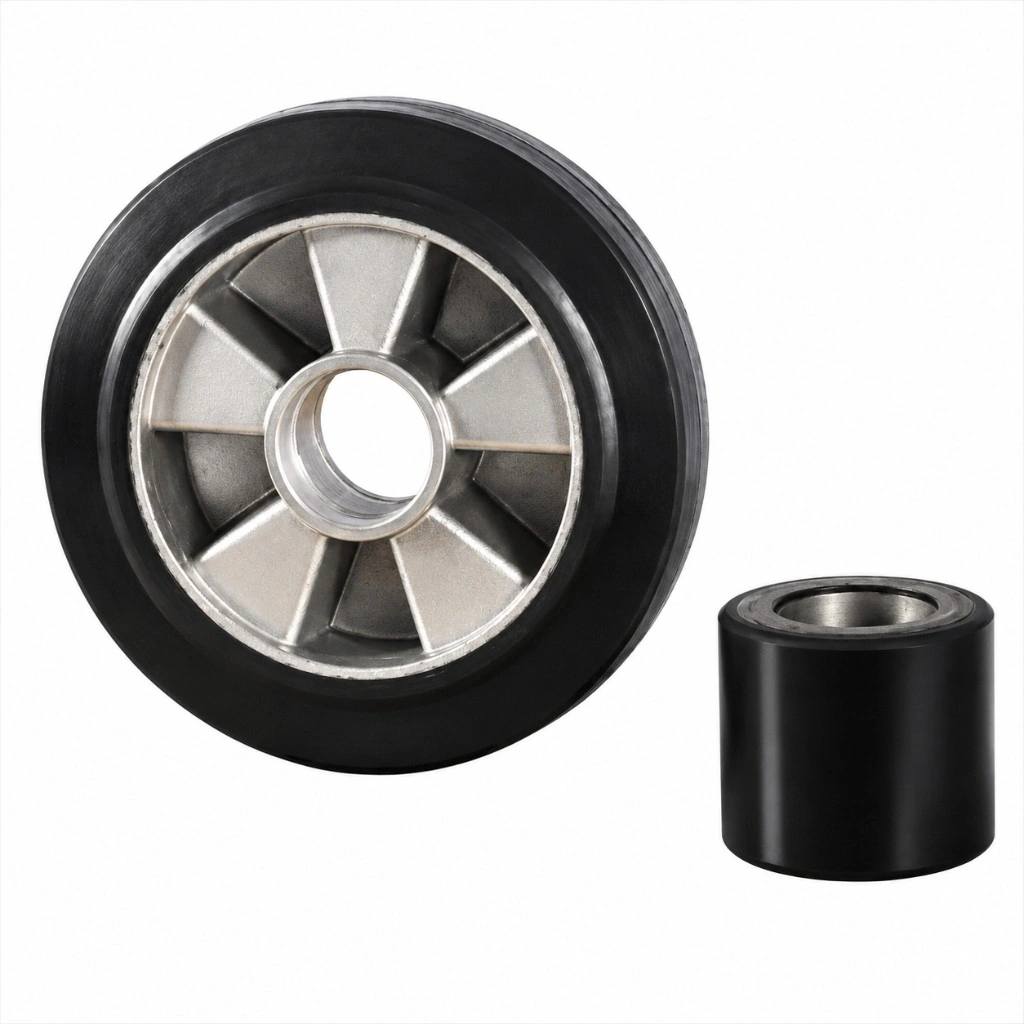

- Wheels: nylon (hard floor), polyurethane (quiet, delicate floors), rubber
- Environment: food/pharma → stainless; wet → galvanized
Not suitable for
- Lifting pallets onto racking or vehicles (max ~200 mm lift) — use a stacker
- Long distances or multi-shift — electric pallet truck
- Gradients/ramps with heavy loads
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet type/dimensions (EUR 1200×800, industrial 1200×1000, half, display, custom)? Closed-bottom or low pallets? Entry height? Pallet compatibility matters more than capacity: fork length, overall width, lowered height and pallet underside.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Distance per trip, trips per day, ramps? A hand truck is for short level moves; pushing 2 t up a ramp is unsafe.
Typical mistakes to avoid
- Pallet compatibility is more important than capacity — check entry height and pallet underside.
Helpful to have ready: Photo/dimensions of the pallet · Max mass · Transport distance · Floor · Special version

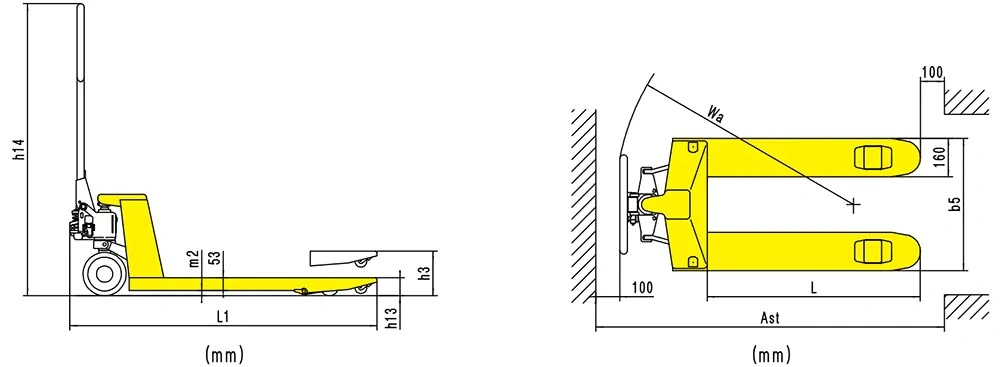

Attributes
| Load capacity | 2500 kg, 3000 kg |
|---|---|
| Fork length (L) | 1150 mm, 1220 mm |
| Width overall forks | 520 mm, 550 mm, 685 mm |
| Lowered fork height | 85 mm |
| Lift height | 195 mm |
| Steering wheels | ø180 mm, ø200 mm (option) |
| Fork rollers | ø74x93 mm (single), ø74x70 mm (tandem) |
| Wheel materials | Nylon, Polyurethane, Rubber |
| Overall length (L1) | 1543 mm, 1613 mm |
| Tiller height in drive position (h14) | 1214 mm |
| Turning radius | 1276 mm, 1346 mm |
| Aisle width for pallets 1000x1200mm | 1743 mm, 1813 mm |
| Aisle width for pallets 800x1200mm | 1793 mm, 1813 mm |
| Ground clearance (m2) | 32 mm |
| Service weight | 56-70 kg |
