Classic Hand Pallet Truck (RPV2500CT/RPV3000CT) 2500-3000 kg
Price
On request
Direct factory order
— 16–20 weeks · 50% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 50%
- Balance: 50% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Group order
1 of 6 units secured — 5 more to confirm the group
Be the first to order and get an extra −2% — already included in the price at checkout. Your booked deposit starts the countdown for the rest of the group.
A 50% deposit secures your units. If the group is not completed in time, your deposit is refunded in full within 5 working days. Group order terms
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Tags:
Manual Pallet Trucks,
Pallet Jacks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The classic hand pallet truck is the everyday workhorse for moving palletised goods around warehouses, production halls and retail back rooms. It comes in two load ratings — 2500 kg (RPV2500CT) and 3000 kg (RPV3000CT) — and pairs a reinforced fork frame with a fully sealed hydraulic pump unit that keeps servicing to a minimum through years of daily use.
Key features
- Two capacity variants: 2500 kg (RPV2500CT) and 3000 kg (RPV3000CT)
- Sealed, leak-proof hydraulic pump with an adjustable pump cap for a long service life
- Built-in overload valve protects the hydraulics if the truck is loaded beyond its rating
- Three-position hand control — raise, neutral, lower — with controllable lowering speed operated by hand lever or foot pedal
- 210° steering arc and a turning radius from 1216 mm for manoeuvring in narrow aisles
- Entry/exit rollers on the fork tips for smooth pallet pick-up and release
- Strengthened ribbing under the top triangle cover adds rigidity above the pump
- Ergonomic rubber-coated handle with three control levers
- 12 grease nipples on all moving parts make routine lubrication quick and easy
Configuration and options
The standard configuration has 1150 x 550 mm forks, an 85 mm lowered fork height and a 200 mm maximum lift height, riding on ø200 mm steering wheels and ø80 mm fork rollers. On request the truck can be supplied with 1100 or 1220 mm fork lengths, 520 or 685 mm overall fork widths, nylon, polyurethane or rubber wheels, single or tandem fork rollers and a foot-pedal release; special fork sizes (including short 800–1000 mm forks) are available to order.
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Moving pallets short distances at floor level by hand — loading bays, shops, workshops.
- Occasional use, vehicle unloading, tight spaces.
- Special variants: stainless (food), galvanized (wet/outdoor), scale, low-profile, long/short forks, rough terrain.
This model
Entry-level: occasional use, budget priority. Capacity options: 2500 kg, 3000 kg.
Check before you choose
- Capacity (2 000–5 000 kg) with reserve
- Fork length/width vs. pallet (EUR 1200×800: standard 1150 mm forks; long forks for 2 pallets or long goods)
- Lowered fork height for low pallets
- Wheels: nylon (hard floor), polyurethane (quiet, delicate floors), rubber
- Environment: food/pharma → stainless; wet → galvanized
Not suitable for
- Lifting pallets onto racking or vehicles (max ~200 mm lift) — use a stacker
- Long distances or multi-shift — electric pallet truck
- Gradients/ramps with heavy loads
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet type/dimensions (EUR 1200×800, industrial 1200×1000, half, display, custom)? Closed-bottom or low pallets? Entry height? Pallet compatibility matters more than capacity: fork length, overall width, lowered height and pallet underside.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Distance per trip, trips per day, ramps? A hand truck is for short level moves; pushing 2 t up a ramp is unsafe.
Typical mistakes to avoid
- Pallet compatibility is more important than capacity — check entry height and pallet underside.
Helpful to have ready: Photo/dimensions of the pallet · Max mass · Transport distance · Floor · Special version

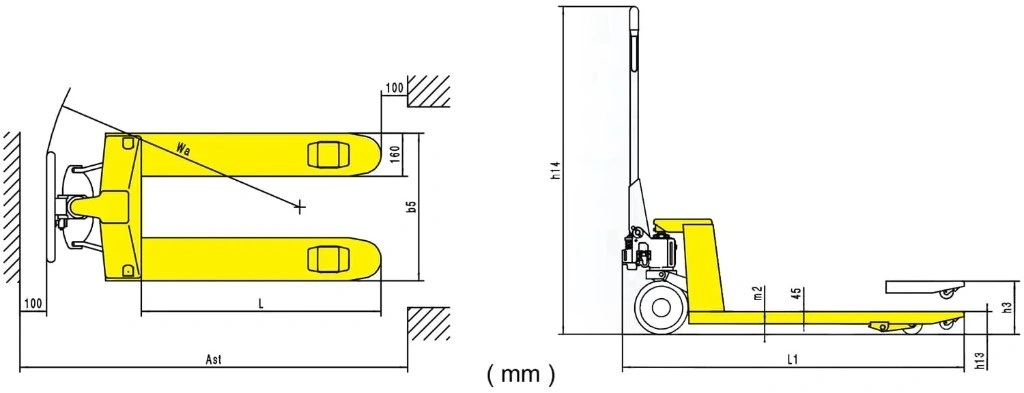

Attributes
| Load capacity | 2500 kg, 3000 kg |
|---|---|
| Fork length | 1100 mm, 1150 mm, 1220 mm |
| Width overall forks | 520 mm, 550 mm, 685 mm |
| Lowered fork height | 85 mm |
| Lift height | 200 mm |
| Steering wheels | ø200 mm |
| Fork rollers | ø80x93 mm (single), ø80x70 mm (tandem) |
| Overall length | 1483 mm, 1533 mm, 1603 mm |
| Height, mast lowered | 1224 mm |
| Turning radius | 1216 mm, 1266 mm, 1336 mm |
| Aisle width for pallets 1000x1200mm | 1683 mm, 1733 mm, 1803 mm |
| Aisle width for pallets 800x1200mm | 1783 mm, 1803 mm |
| Ground clearance (m2) | 40 mm |
| Service weight | 60-75 kg |
