Semi-Electric High Lift Pallet Truck (PESV8) 1000 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Scissor Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

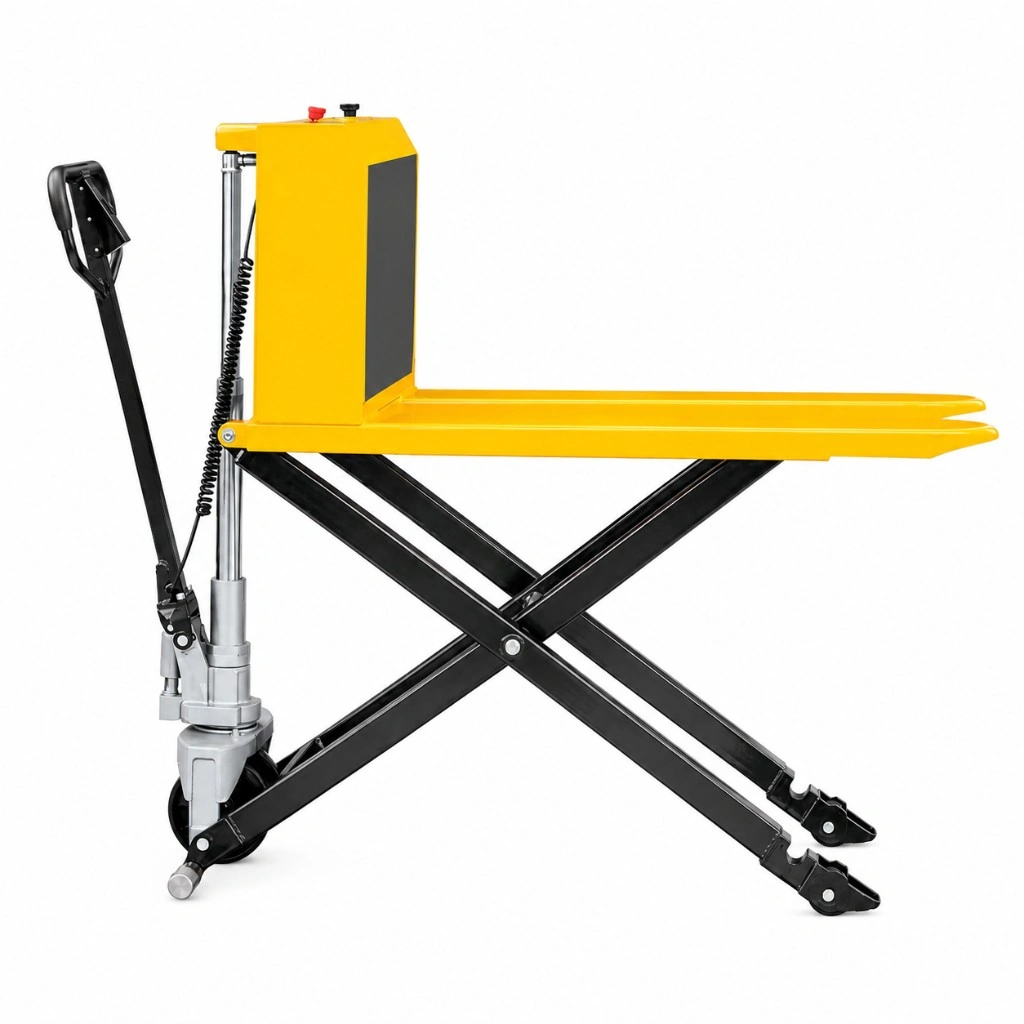

The semi-electric high lift pallet truck combines a pallet truck and a mobile scissor lift table in a single machine. Rated at 1000 kg, it picks up a pallet like an ordinary hand pallet truck and then raises it electrically to a maximum fork height of 800 mm — no pumping needed — bringing the load to a comfortable, ergonomic working height for picking, packing and assembly tasks. Travel is manual by the tiller handle, so the truck stays light, simple and easy to manoeuvre.
Key features
- Load capacity 1000 kg, electric lifting to 800 mm fork height
- 0.7 kW lift motor (S3 15%) powered by a 12 V / 100 Ah battery
- Push-button raising with controlled lowering — descent speed slows automatically under heavy load to protect the goods
- Support legs deploy automatically when the forks rise, locking the truck in place for operator safety
- Two lateral stabilisers keep the raised load steady
- Scissor design doubles as a mobile work table at any height within the lifting range
- 1245 mm forks suitable for standard EUR and industrial pallets
- Manual travel with a 210° steering arc for tight spaces
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Hand pallet truck that lifts the pallet to ~800 mm — a mobile work table for picking and packing.
- Ergonomic loading of goods onto/off pallets.
This model
Capacity options: 1000 kg. Lift heights: 800 mm.
Check before you choose
- Capacity (usually 1 000 kg)
- Manual vs. electric lift
- Stability when raised
Not suitable for
- Stacking onto racks
- Transport of raised loads
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet type (open/closed bottom), forks, min/max height, manual or semi-electric lift, use as transport or as a work table? With forks raised it is not a transport pallet truck; stabilisers and pallet compatibility matter.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
Typical mistakes to avoid
- With forks raised the machine is not a classic transport pallet truck — check stabilisation and pallet compatibility.
Helpful to have ready: Pallet · Mass · Working height · Cycles · Floor

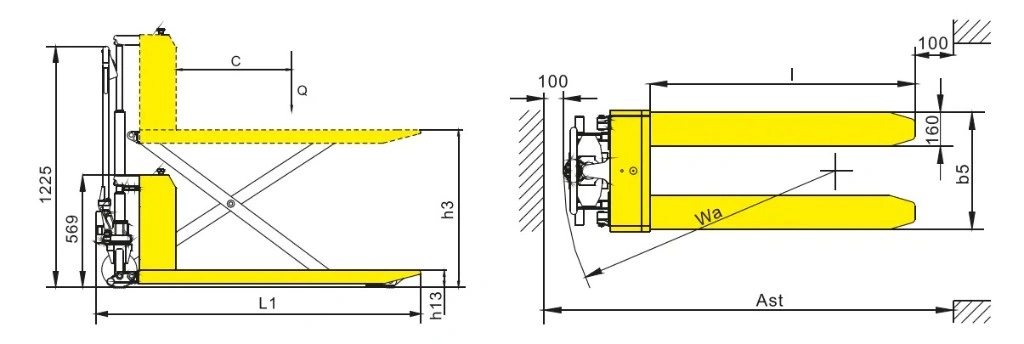

Attributes
| Load capacity | 1000 kg |
|---|---|
| Fork length | 1245 mm |
| Width overall forks | 550 mm, 685 mm |
| Lowered fork height | 85 mm |
| Lift height | 800 mm |
| Steering wheels | ø180x50 mm |
| Fork wheels | ø74x50 mm |
| Overall length (L1) | 1652 mm |
| Total height | 1225 mm |
| Turning radius | 1480 mm |
| Aisle width for pallets 1000x1200mm | 1852 mm |
| Aisle width for pallets 800x1200mm | 1852 mm |
| Lift motor rating (S3 15%) | 0.7 kW |
| Battery | 12 V / 100 Ah |
| Battery weight | 31 kg |
| Service weight | 181 kg |
