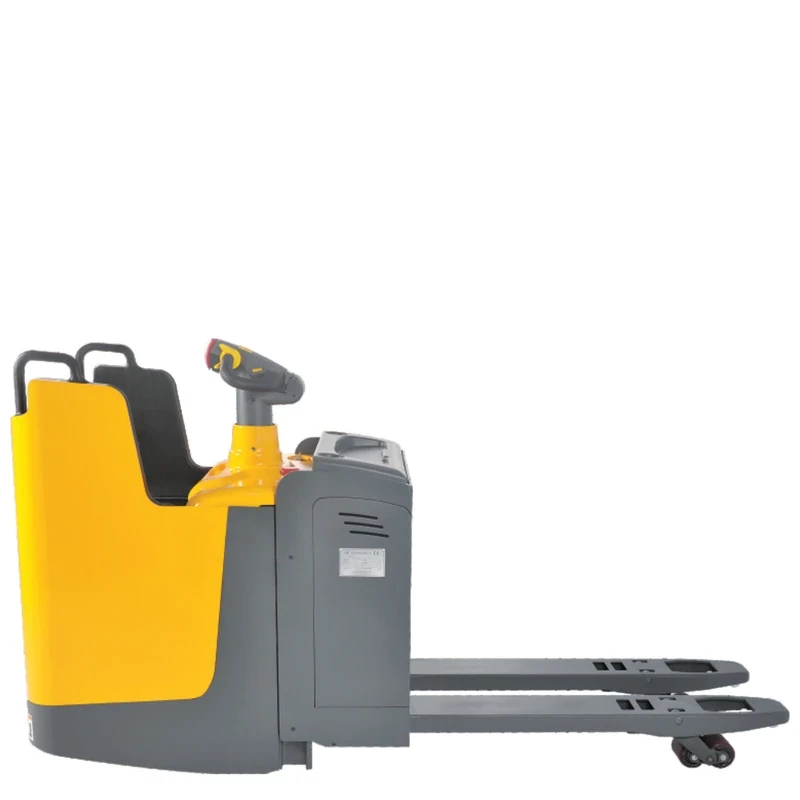

Electric Stand-On Pallet Truck (EPV20ST) 2000 kg

Heavy-duty stand-on pallet truck with fixed platform and closed protection arm, 2000 kg capacity, ergonomic backrest, electric power steering and up to 8/17% gradeability for long-distance transport.

Key features

• Fixed platform with closed protection arm — heavy-duty design
• Ergonomic symmetric backrest and handrail suit any operator
• Vibration-damped platform for operator comfort
• Safety power switch locks the truck when no operator is present
• Max gradeability 8/17% laden/unladen
• Two steel entry rollers for gentle pallet entry
• Electric power steering as standard

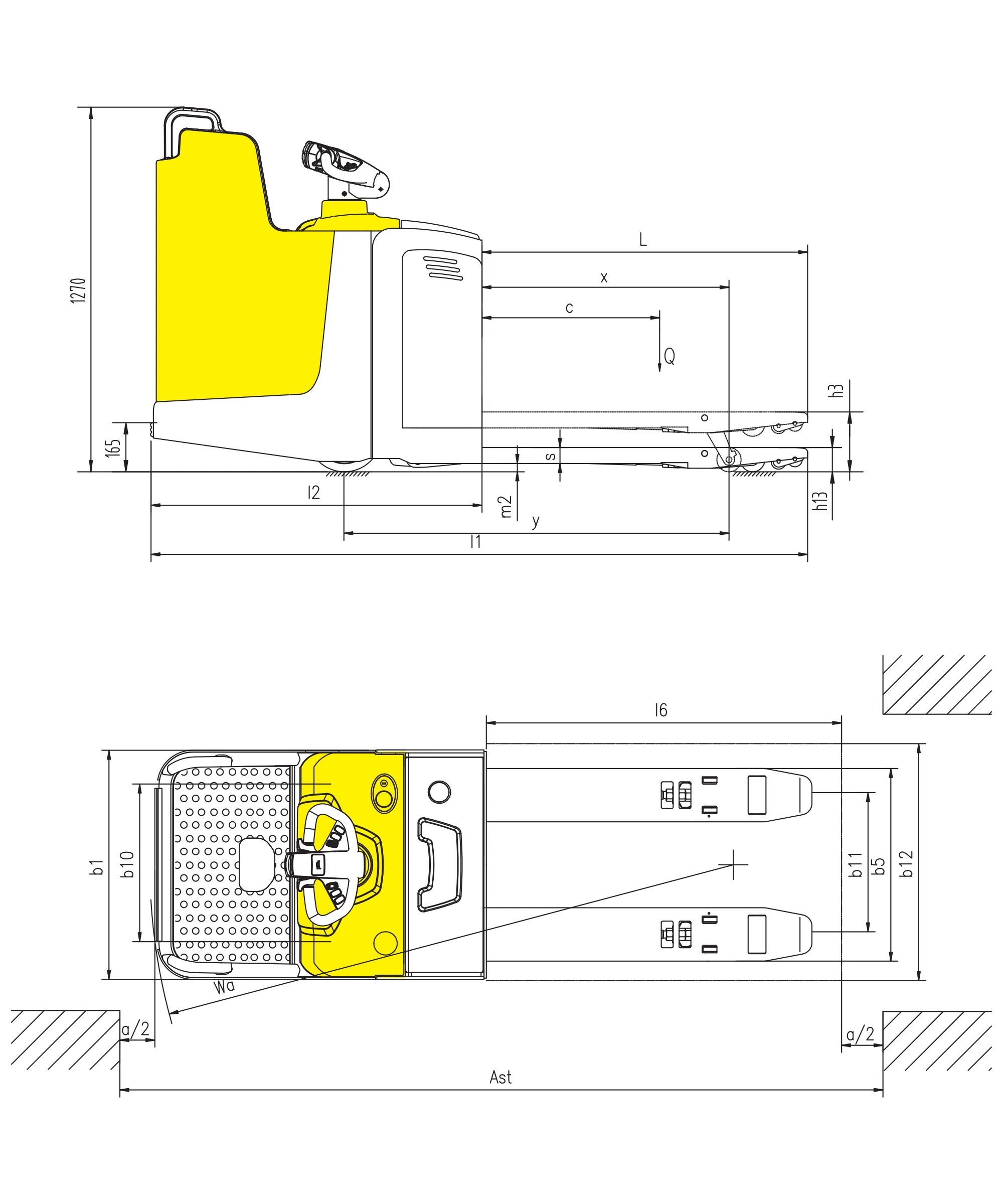

Technical overview

• Model / SKU: EPV20ST
• Product family: Electric Pallet Trucks
• Load capacity: 2000 kg
• Engine type: AC
• Load center: 600 mm
• Load distance, center of drive axle to fork: 815/865/935mm
• Fork height, lowered: 82 mm
• Tyre size, front: 250x80mm
• Tyre size, rear: 82x126(98)mm
• Additional wheels (dimensions): 127x57mm
• Number of wheels, front/rear (x=driving) Φ: 1X+2/2(4)
• Max. lift height: 202 mm
• Overall length: 2220/2270/2340mm
• Length to face of forks: 1120 mm
• Overall width: 773 mm
• Fork dimensions: 54x180x1100mm (1150/1220)
• Width overall forks: 520/550/650/685mm
• Aisle width for pallets 1000x1200mm: 2970/3020/3090mm
• Aisle width for pallets 800x1200mm: 2900/2930/2965mm
• Turning radius: 1970/2020/2090mm
• Travel speed, laden/unladen: 7.0/7.1km/h
• Initial lift: no
• Folding platform: stand-on
• Electric power steering: yes
• Battery type/voltage/capacity: LA/24/240, LFP/24/125, LFP/24/225
• Battery weight: 225 kg
• Battery dimensions (I/W/H): 650x249x504mm
• Service weight (with battery): 820 kg

Order online or send a quote request for delivery terms and customer-specific configurations.
