Electric Seated Pallet Truck (EPV20SD/EPV25SD) 2000-2500 kg

Seated electric pallet truck with 2000-2500 kg capacity, electric power steering, intelligent regenerative plus electromagnetic braking and a roll-out side battery — for medium distances in large warehouses.

Key features

• Seated operation for medium-distance transport
• Advanced AC control with speed frequency regulation
• Electric power steering (EPS) system
• Electromagnetic plus intelligent regenerative braking
• Roll-out side battery is easy to handle
• Precisely adjustable connecting rod resists bending
• Guiding wheel on the fork head eases pallet work

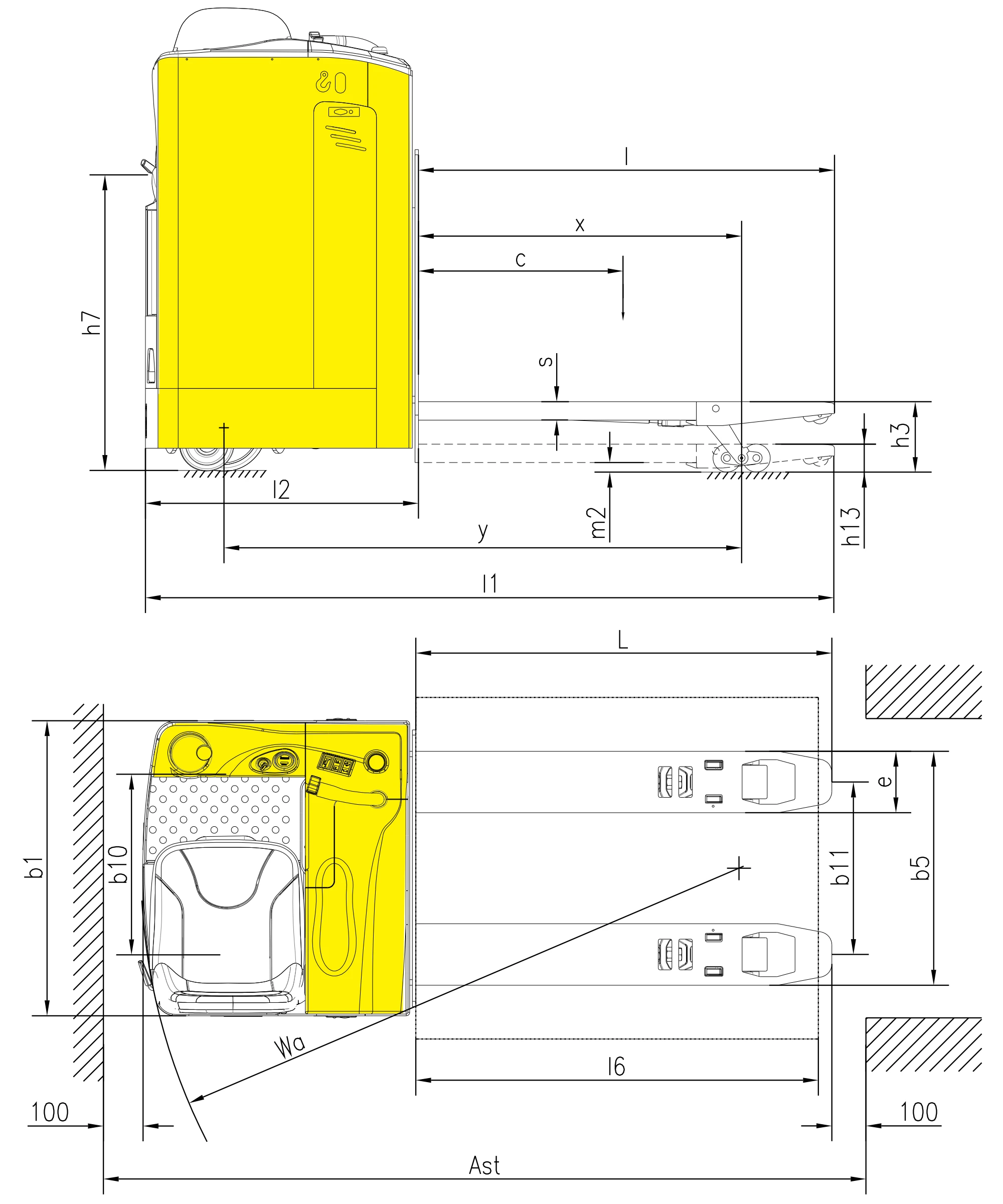

Technical overview

• Model / SKU: EPV20SD_EPV25SD
• Product family: Electric Pallet Trucks
• Operate type: seated
• Load capacity: 2000 kg, 2500 kg
• Engine type: AC
• Load center: 600 mm
• Load distance, center of drive axle to fork: 914/964/1034mm
• Fork height, lowered: 82 mm
• Tyre size, front: 250x80mm
• Tyre size, rear: 82x98mm
• Additional wheels (dimensions): 160x55mm
• Number of wheels, front/rear (x=driving) Φ: 1X+1/4
• Max. lift height: 202 mm
• Seat height / stand height: 900 mm
• Overall length: 1900/1950/2020mm
• Length to face of forks: 800 mm
• Overall width: 864 mm
• Fork dimensions: 54x180x1100mm (1150/1220)
• Width overall forks: 520/550/650/685mm
• Aisle width for pallets 1000x1200mm: 2465/2505/2565mm
• Aisle width for pallets 800x1200mm: 2385/2400/2430mm
• Turning radius: 1630/1680/1750mm
• Travel speed, laden/unladen: 7.5/8.0km/h
• Initial lift: no
• Folding platform: seated
• Electric power steering: yes
• Battery type/voltage/capacity: LA/24/270, LA/24/300
• Battery weight: 264 kg, 270 kg
• Service weight (with battery): 900 kg

Order online or send a quote request for delivery terms and customer-specific configurations.
