ENDO ATEX Pneumatic Chain Hoist (EHV Series) 250-1000 kg
Price
From 2.420,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Available — ships in 5–7 working days
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Pneumatic Chain Hoists
Tags:
Air Hoists,
Workshop Cranes
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

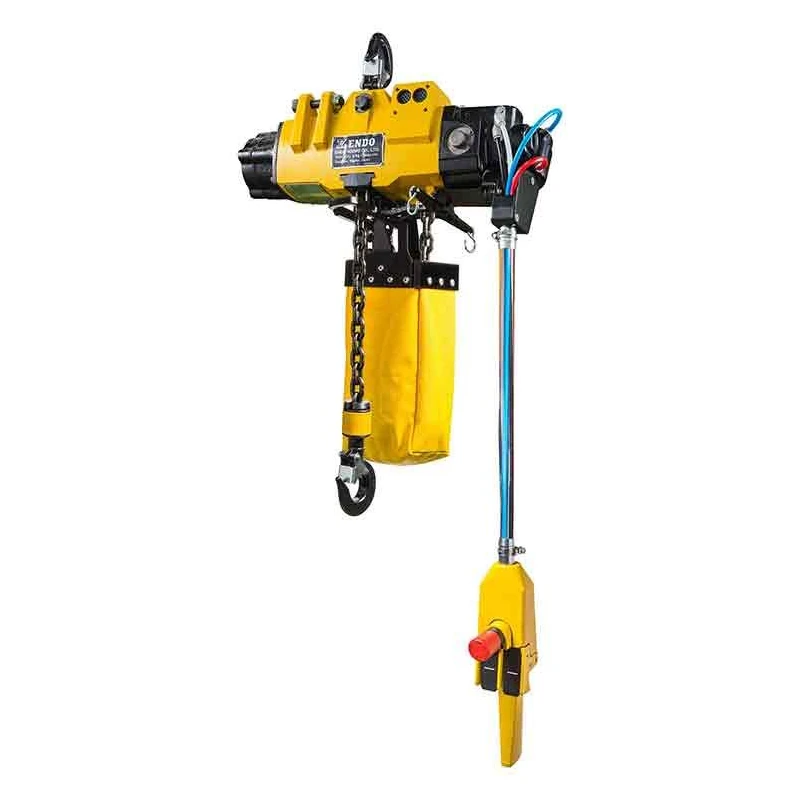

Japanese-made ATEX pneumatic chain hoist EHV series (EHV25, EHV50, EHV100WP) for 250, 500 and 1000 kg loads with stepless pull-chain speed control, automatic friction brake and a 3 m grade-DAT alloy load chain extendable up to 20 m.
Key features
- Capacities 250, 500 and 1000 kg (EHV25, EHV50, EHV100WP)
- Standard pull-chain control handle — speed follows the pulling force
- Optional pendant push-button control with safety STOP
- Lifting speeds: EHV25 12/16/18, EHV50 7.5/9/10.5, EHV100WP 3.7/4.5/5.2 m/min
- Automatic friction brake with no adjustment needed
- Standard 3 m grade-DAT load chain, extendable up to 20 m
- Air pressure 0.4/0.5/0.6 MPa, air inlet Rp 1/2
- Net weight 23-29 kg; mounts on standard or pneumatic MTH-series trolleys
- ATEX certified — safe for use in potentially explosive atmospheres
- Stepless variable speed control for precise load positioning
- Self-cooling air motor — unlimited lifts and duty hours, no overheating
- Alloy-steel load chain with excellent toughness and wear resistance
- Robust, compact and lightweight construction, made in Japan
- Compressed air must be filtered and lubricated; indoor use, -10 to 50 °C
Technical overview
- Model / SKU: ENDO-EHV
- Product family: Pneumatic Chain Hoists
- Capacity: 1000 kg, 250 kg, 3000 kg, 500 kg
- Chain length: 3 m
- Control type: Pull-chain control handle, Pendant push-button control
- Chain diameter: 12,5 mm, 6,3 mm, 7,1 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Air-powered hoist for explosive (ATEX), wet or dusty areas where electricity is unwanted.
- Chemical, paint, offshore, food washdown zones.
- Very high duty cycles (air motors do not overheat).
This model
Pneumatic/ATEX: explosive, wet or dusty areas; needs compressed air.
Check before you choose
- Air supply pressure and flow available
- ATEX zone/category required
- WLL and lift height
- Control: pendant, rope, remote
Not suitable for
- Places without compressed air
- General use where an electric hoist is cheaper to run
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Air pressure AT THE HOIST and required flow; supply line diameter and length; other consumers on the network? The compressor must deliver pressure and flow at the hoist after losses; '6 bar' alone is not enough.
- Heaviest load and how often per hour / per day? Duty class (FEM/ISO) must match the cycle rate or the hoist overheats and wears fast. WLL alone never decides the model.
- Lift height (hook path) and headroom available between beam/hook and the load? Chain length must cover the hook path; hoist + trolley + hook height must fit the headroom, measured on the whole assembly.
- Is there a certified suspension point: beam, jib crane, gantry, runway? Beam profile (IPE/HEA/HEB) and flange width/thickness? Without a suspension point the hoist cannot be used; the trolley must fit the flange and the beam must carry the load.
Typical mistakes to avoid
- Pressure alone does not confirm performance — pressure at the hoist, flow and line size are required.
Helpful to have ready: Pressure/flow · Piping · Mass/hook path/duty · Zone · Beam profile
Attributes
| Load capacity | 250 kg, 500 kg, 1000 kg |
|---|---|
| Control type | Pull-chain control handle, Pendant push-button control |
| Chain length | 3 m |
| Chain diameter | 12.5 mm, 6.3 mm, 7.1 mm |
