Electric Rider Pallet Stacker (EVV20-P) 2000 kg 2500-6500 mm
Price
From 11.040,00 EUR
From 8.832,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Full Electric Stackers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

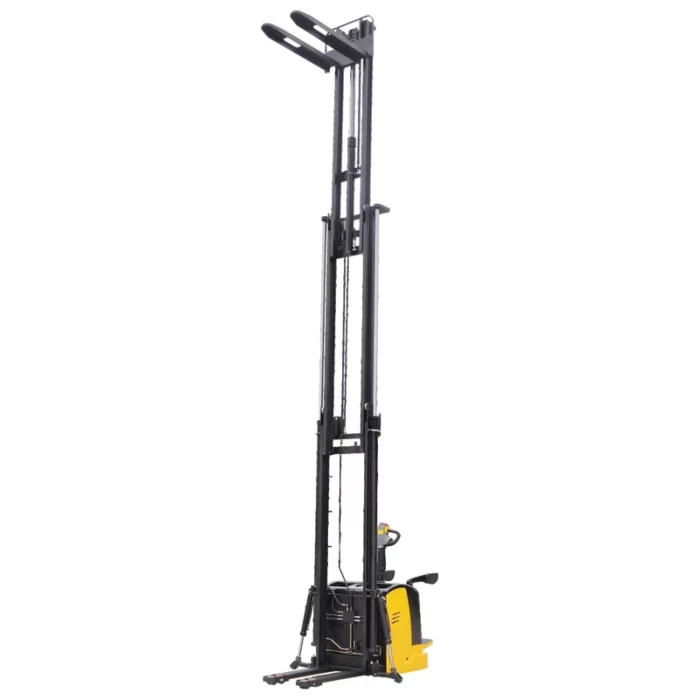

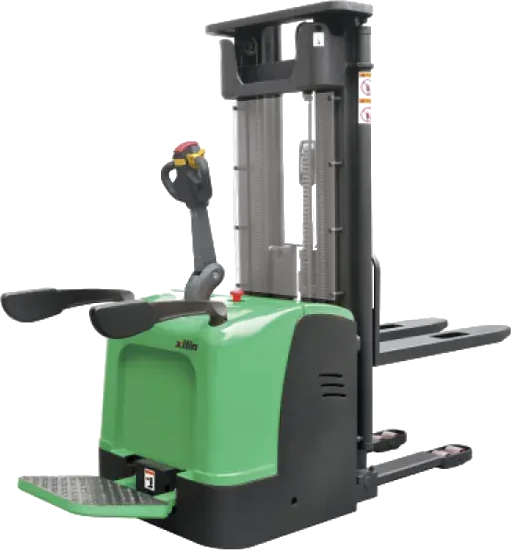

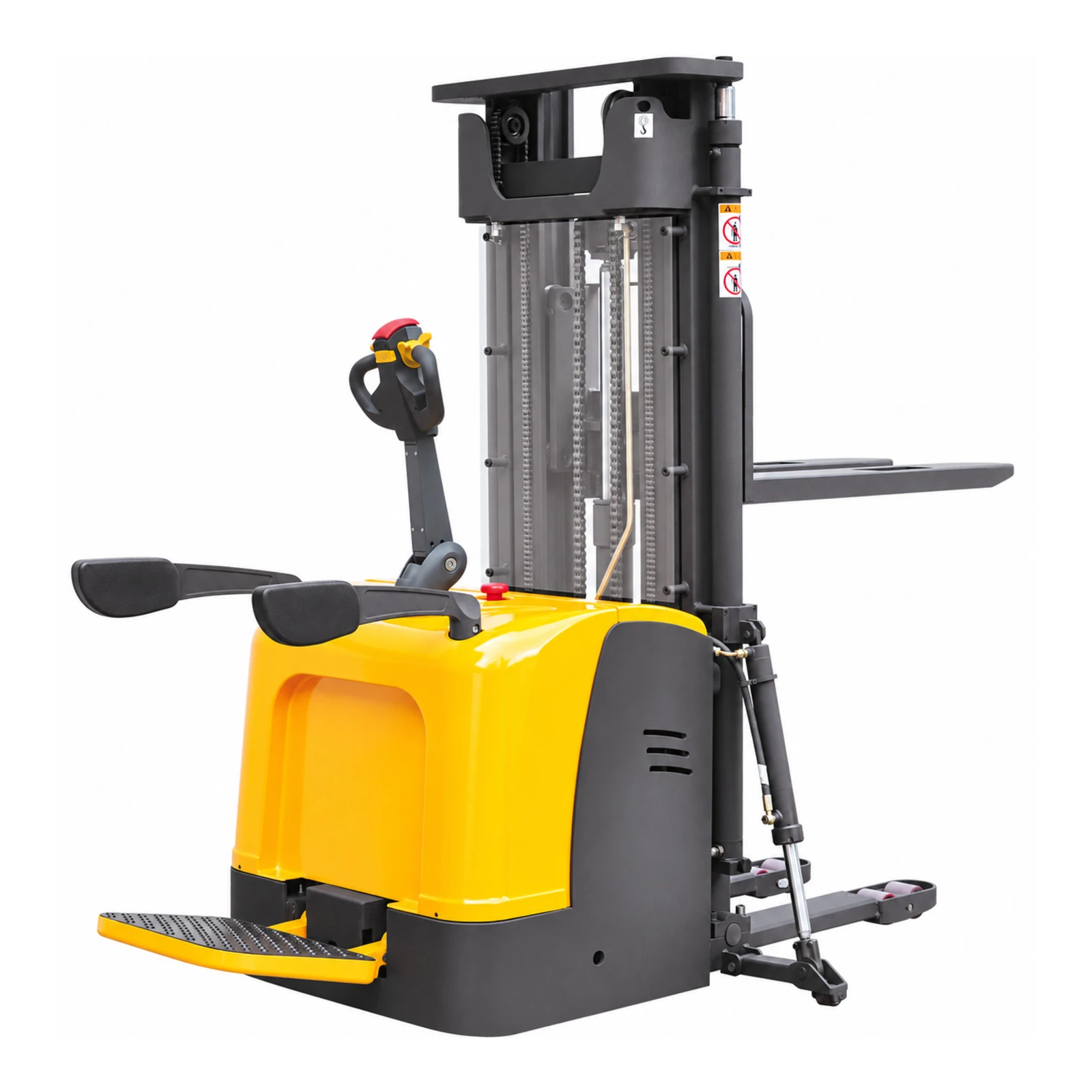

Heavy-duty electric rider pallet stacker with 2000 kg capacity and mast options up to 6500 mm, AC motor, multi-function BDI display and supporting legs on both sides of the triplex mast.
Key features
- Heavy-duty 2000 kg rider pallet stacker
- Brushless AC motor — no carbon brush replacement
- Multi-function display with BDI and hour meter

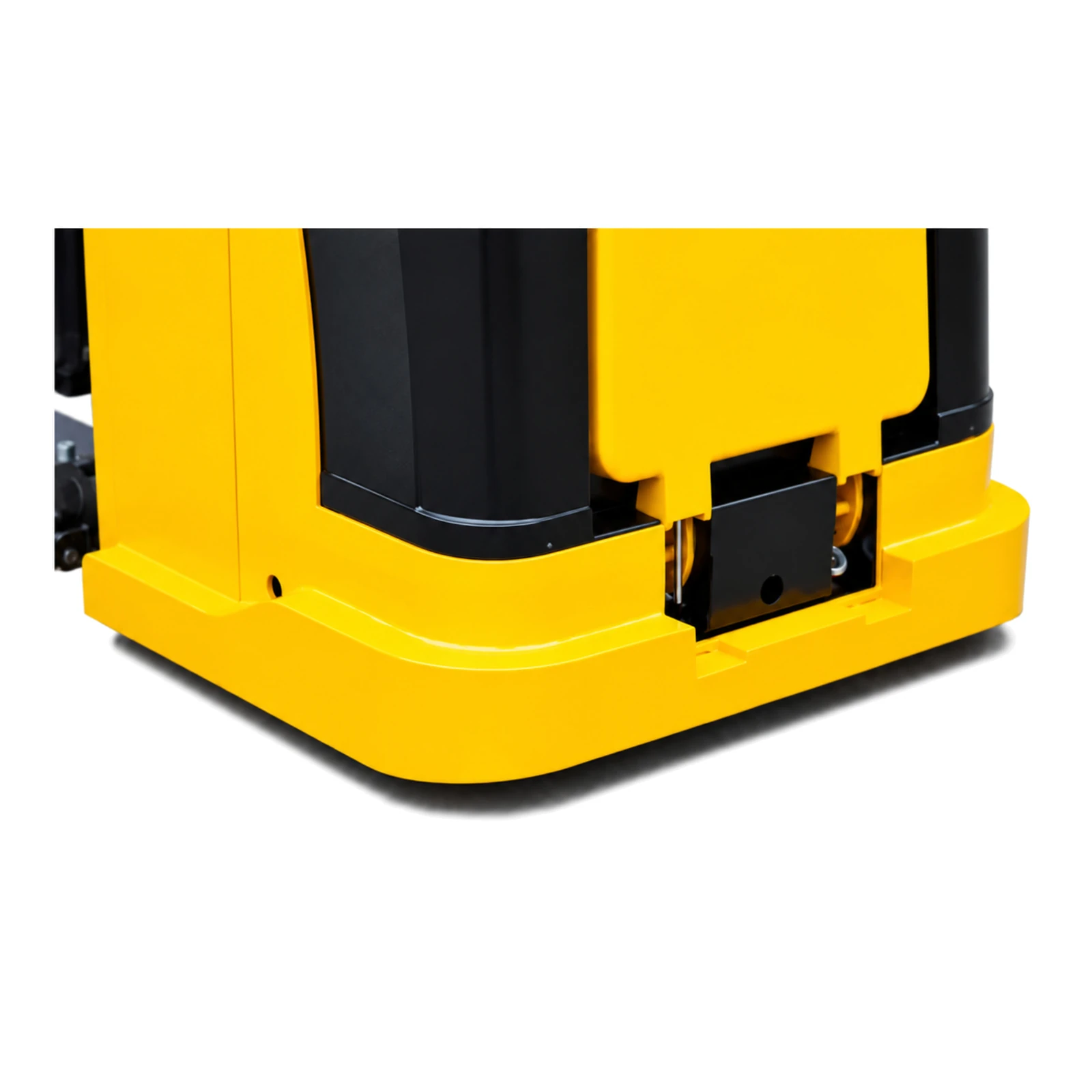

- Side-way battery is easy to maintain

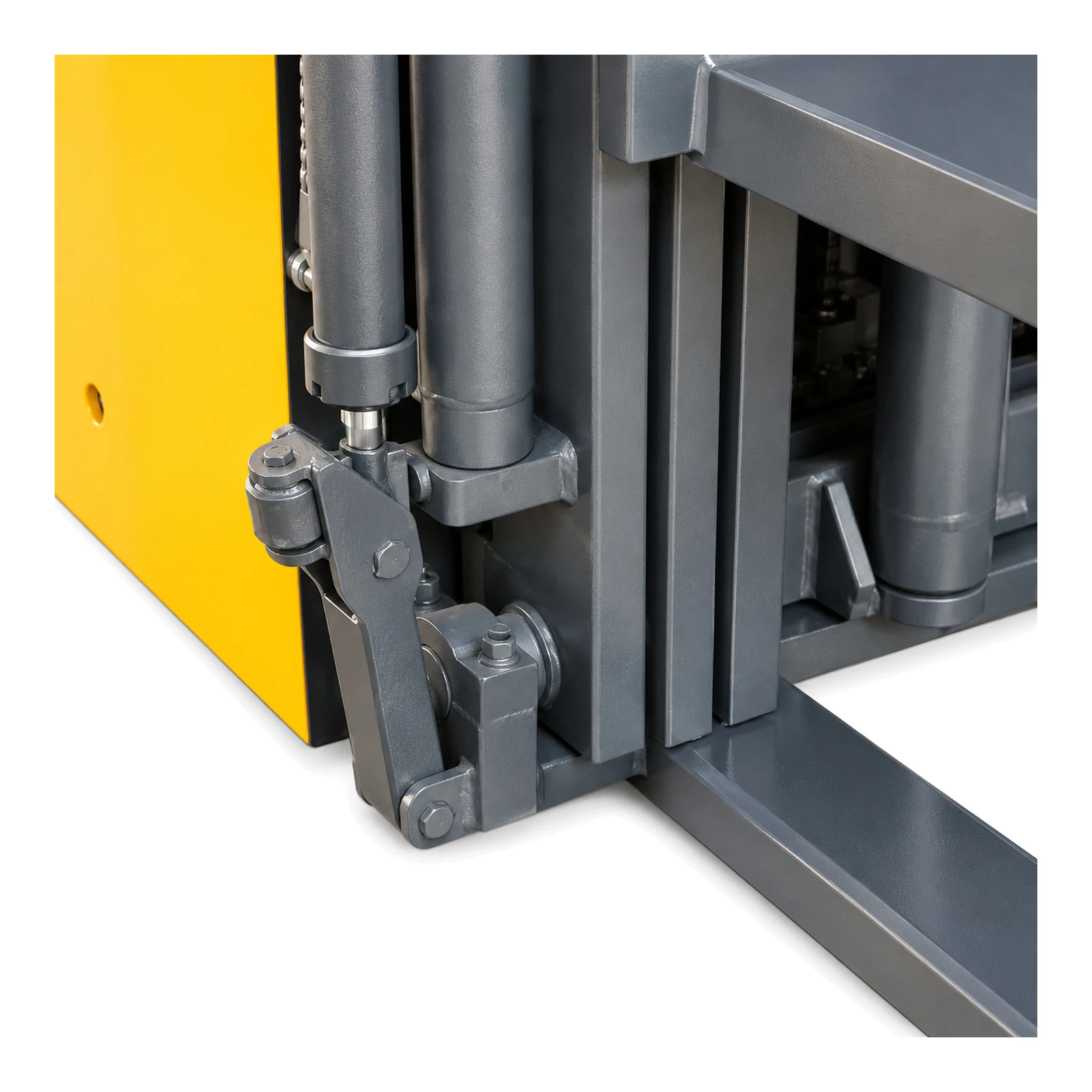

- Supporting legs on both sides of the triplex mast (duplex mast without legs)
- Emergency reversing device, turtle low-speed switch and stepless speed control
- Low centre of gravity ensures stable operation
Technical overview
- Model / SKU: EVV20-P
- Product family: Full Electric Stackers
- Load capacity: 2000 kg
- Engine type: AC
- Load center: 500 mm, 600 mm
- Load distance: 672 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 80x84mm
- Additional wheels: Φ150×60mm

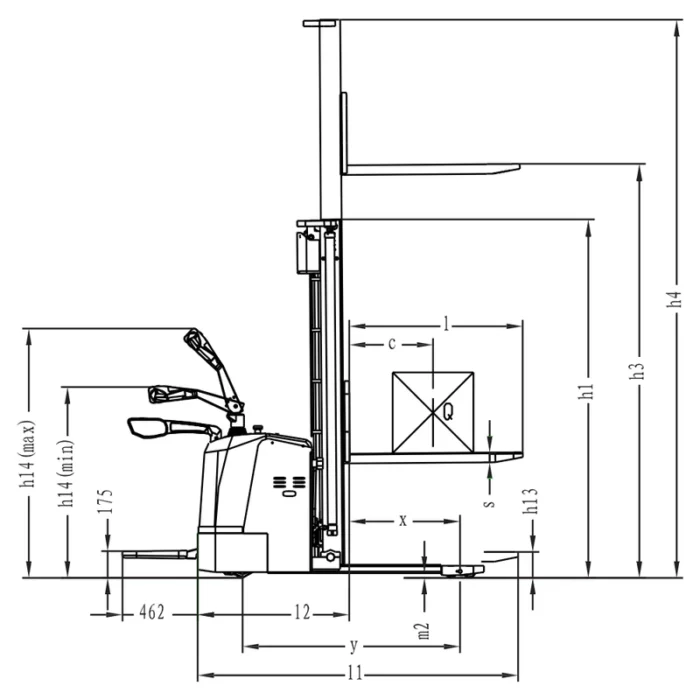

- Number of wheels, front/rear (x=driving) Φ: 1X+2/4

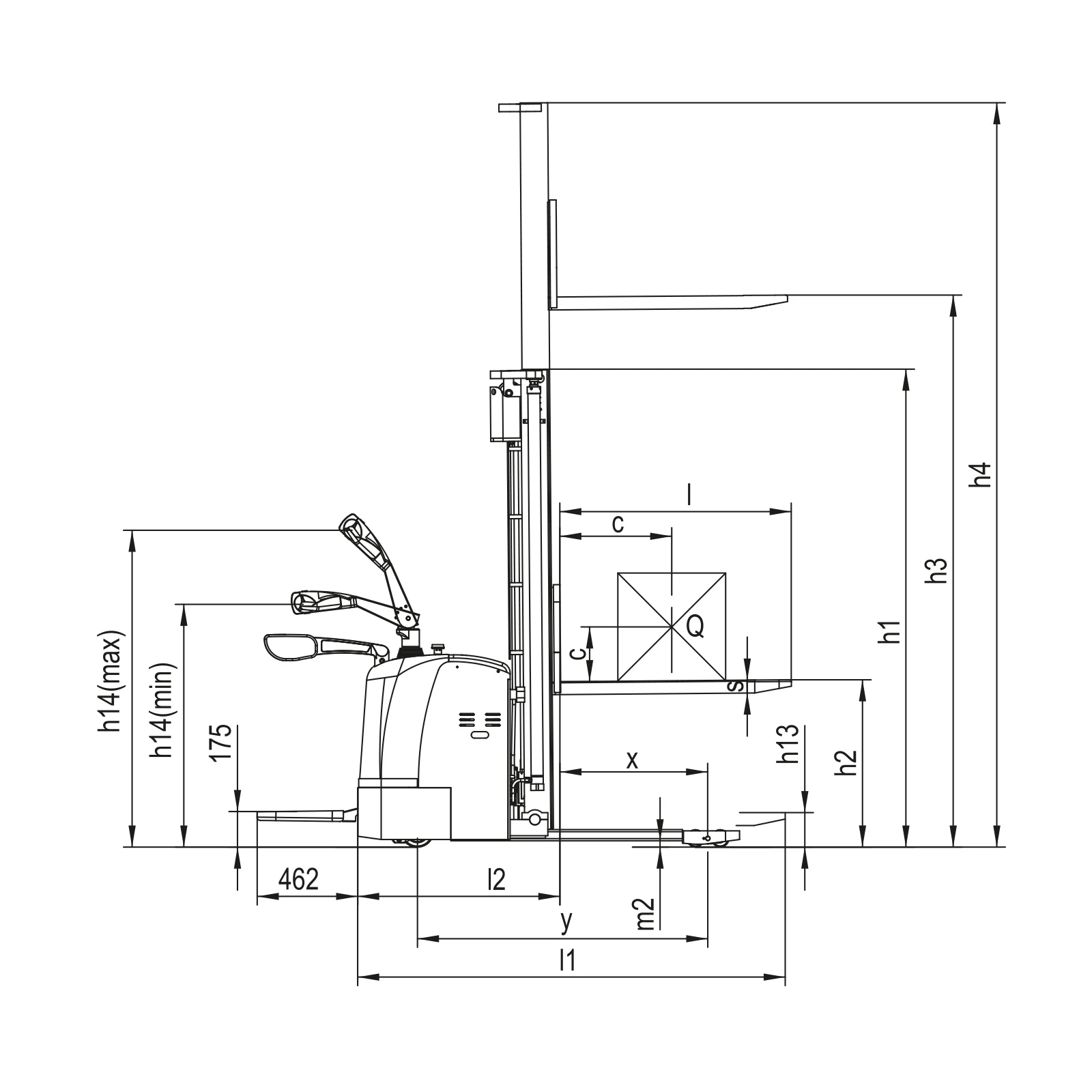

- Height, mast lowered: 1735 mm, 1985 mm, 2050 mm, 2135 mm, 2210 mm, 2235 mm, 2410 mm, 2710 mm
- Free lift: 1570 mm, 1740 mm, 1940 mm, 2240 mm

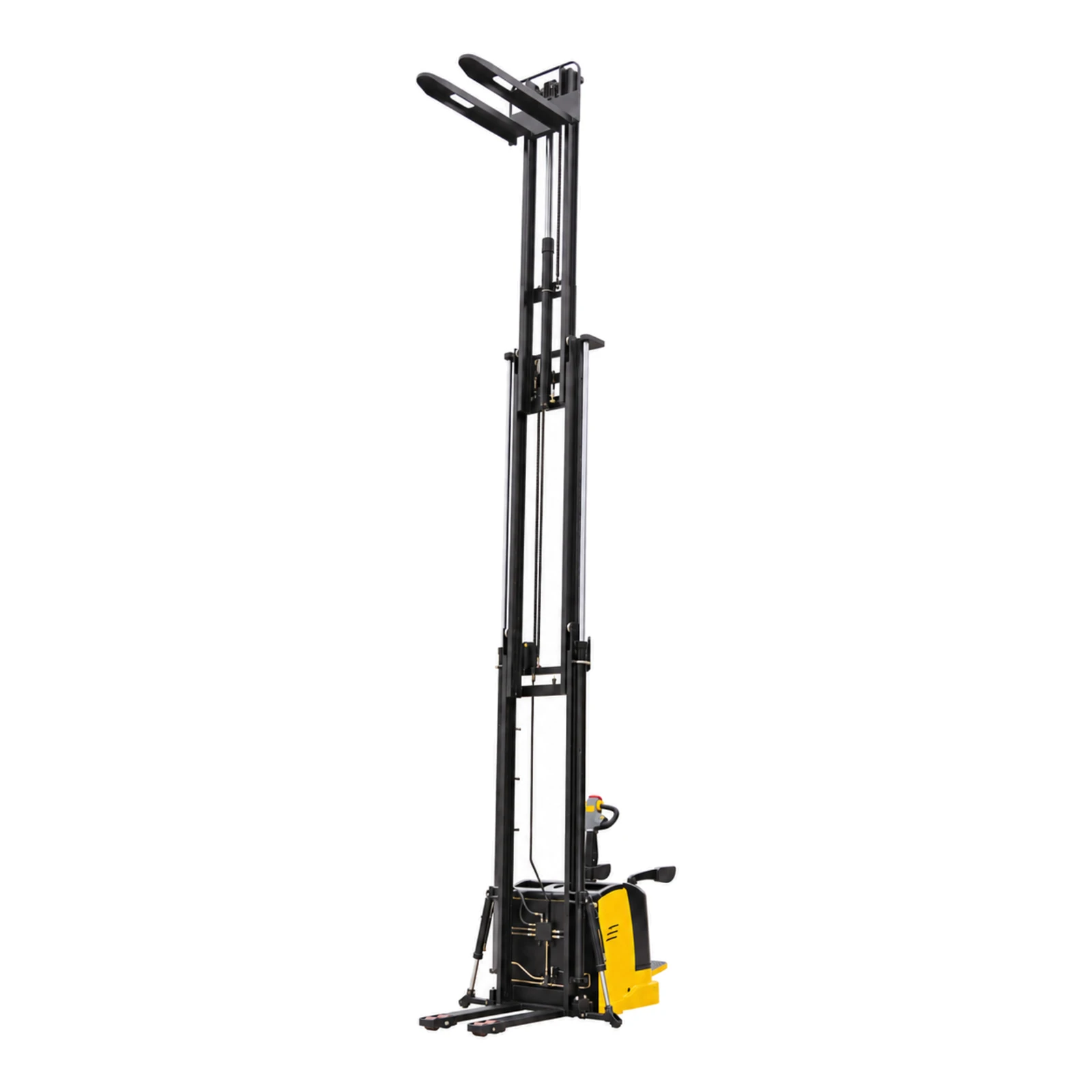

- Max. lift height: 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm, 6500 mm
- Initial lift: no
- Height, mast extended: 2955 mm, 3455 mm, 3755 mm, 3955 mm, 5030 mm, 5510 mm, 6110 mm
- Height of tiller min/max: 1150/1450mm
- Fork height, lowered: 90 mm
- Overall length: 2020/2100mm, 2100/2180mm
- Length to face of forks: 950 mm

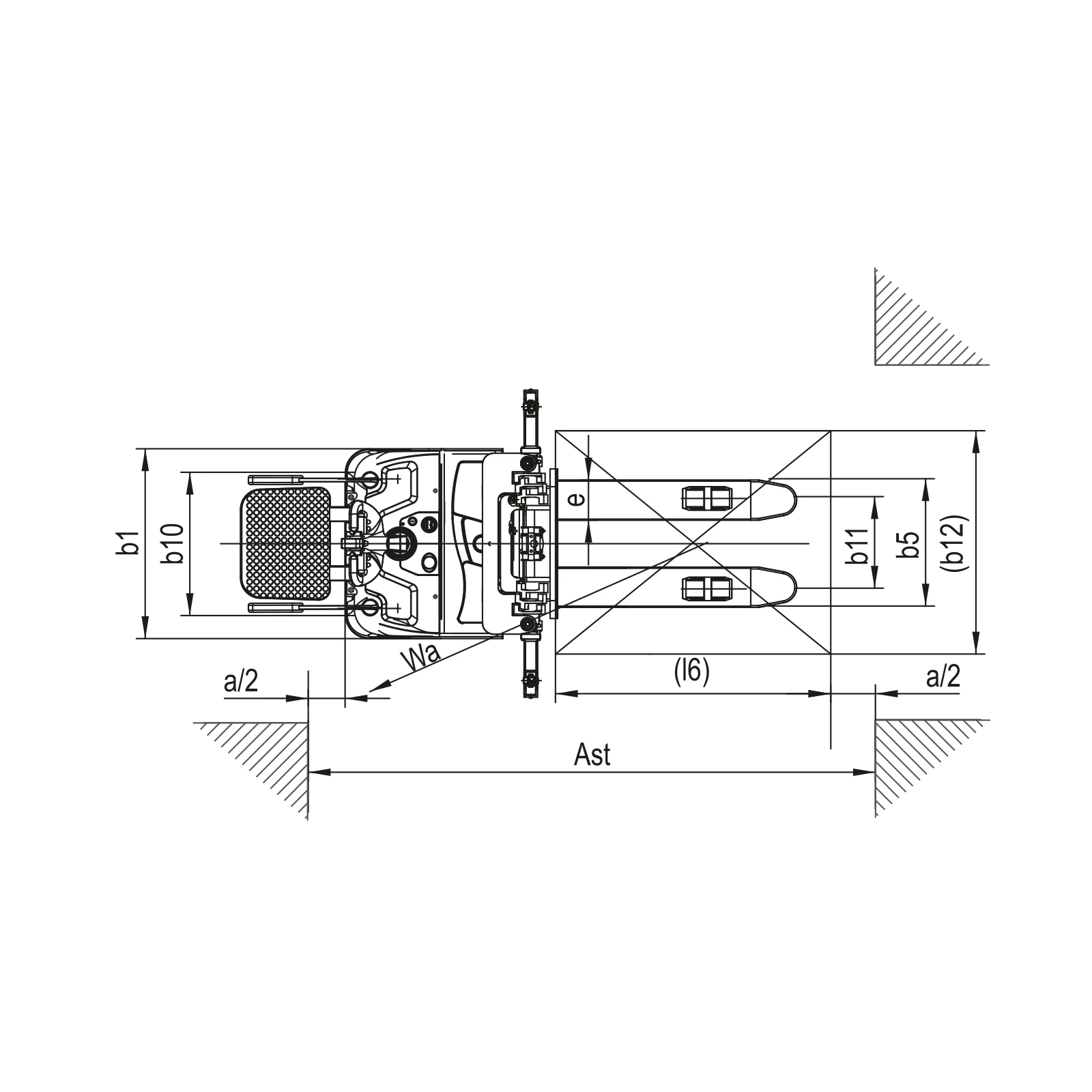

- Overall width: 850 mm, 950 mm
- Fork dimensions: 60x180x1070mm (1150)
- Width overall forks: 570/695mm

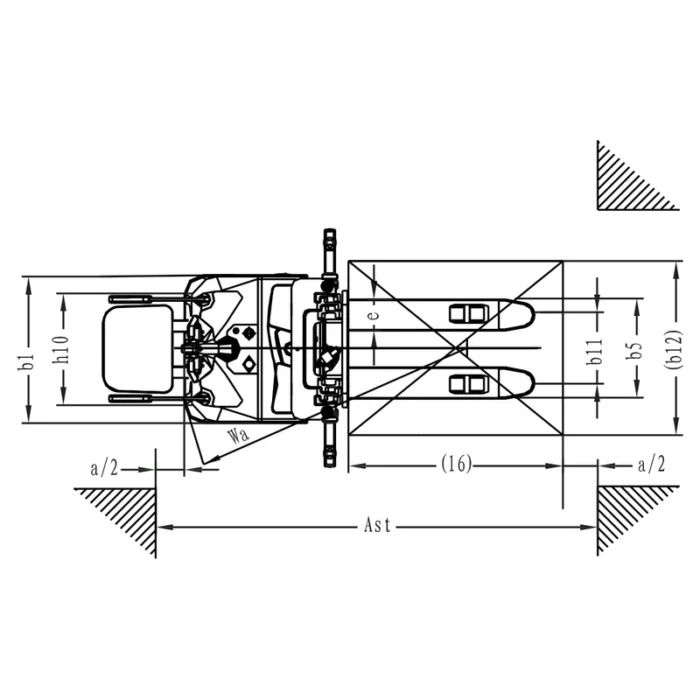

- Aisle width for pallets 800x1200mm: 2515 mm, 2595 mm
- Turning radius: 1655 mm, 1735 mm
- Travel speed, laden/unladen: 7.0/7.1km/h
- Lifting speed laden/unladen: 0.11/0.16m/s
- Lowering speed laden/unladen: 0.12/0.11m/s
- Folding platform: yes
- Electric power steering: yes
- Battery type/voltage/capacity: LA/24/300, LFP/24/225
- Battery weight: 300 kg
- Battery dimensions (I/W/H): 675x248x545mm
- Service weight (with battery): 1280 kg, 1320 kg, 1350 kg, 1640 kg, 1680 kg, 1720 kg, 1850 kg, 2020 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Electric lift and travel: the workhorse for stacking EUR pallets to 1.6–5.6 m in production and warehouses.
- Truck loading via dock, replenishment, machine feeding.
- Rider versions for longer distances.
This model
Rider/platform: for longer travel distances and multi-shift use; check turning radius. Capacity options: 2000 kg. Battery: LA/24/300, LFP/24/225. Drive: AC. Initial lift: no. Folding platform: yes. Power steering: yes. Free lift: 1570 mm, 1740 mm, 1940 mm, 2240 mm. Fork dimensions: 60x180x1070mm (1150). Turning radius: 1655 mm, 1735 mm.
Check before you choose
- Weight vs. lift height (residual capacity)
- Straddle version for closed pallets
- Walkie vs. rider platform
- Battery and charger
- Mast type (free lift for low ceilings)
Not suitable for
- Rough or outdoor floors
- Loads above ~2 000 kg
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Dimensions (L×W×H) of the largest and of the heaviest load? Is the centre of gravity known and centred? The load centre moves away from the mast as the load gets longer; real capacity falls with load-centre distance and lift height (capacity diagram). Tall loads raise the COG.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid

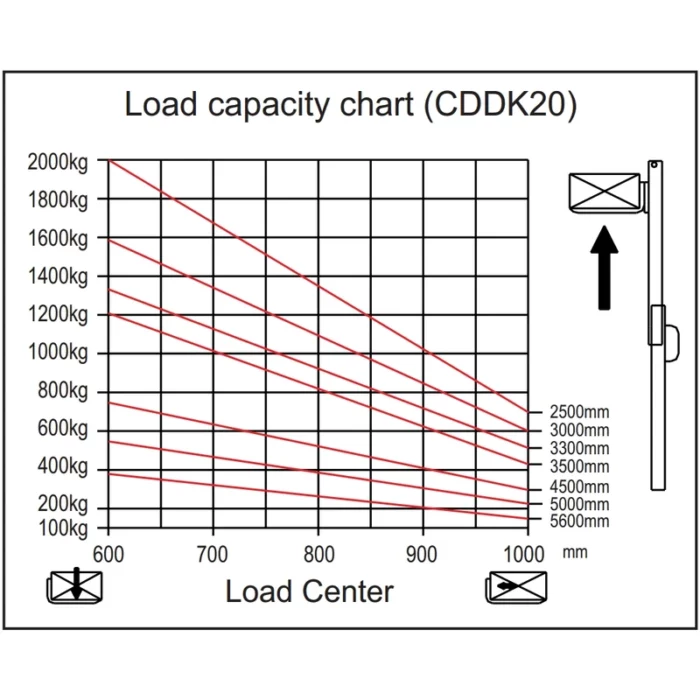

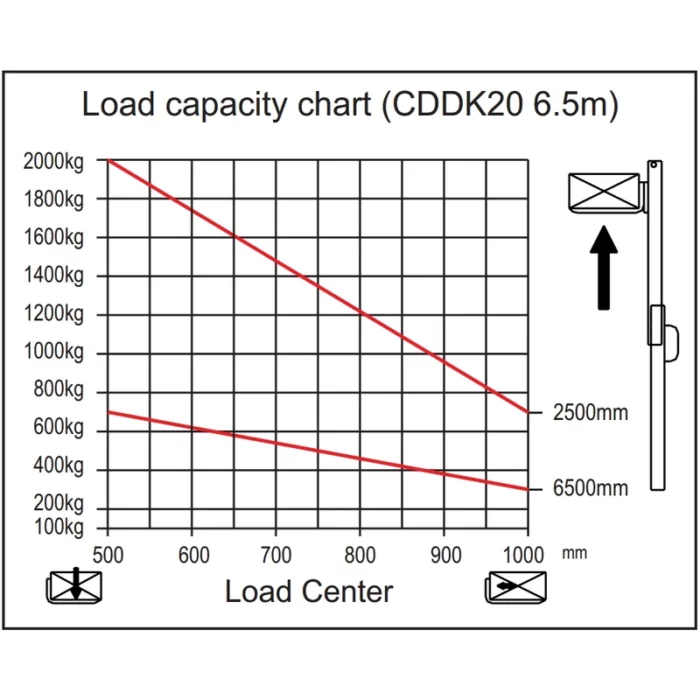

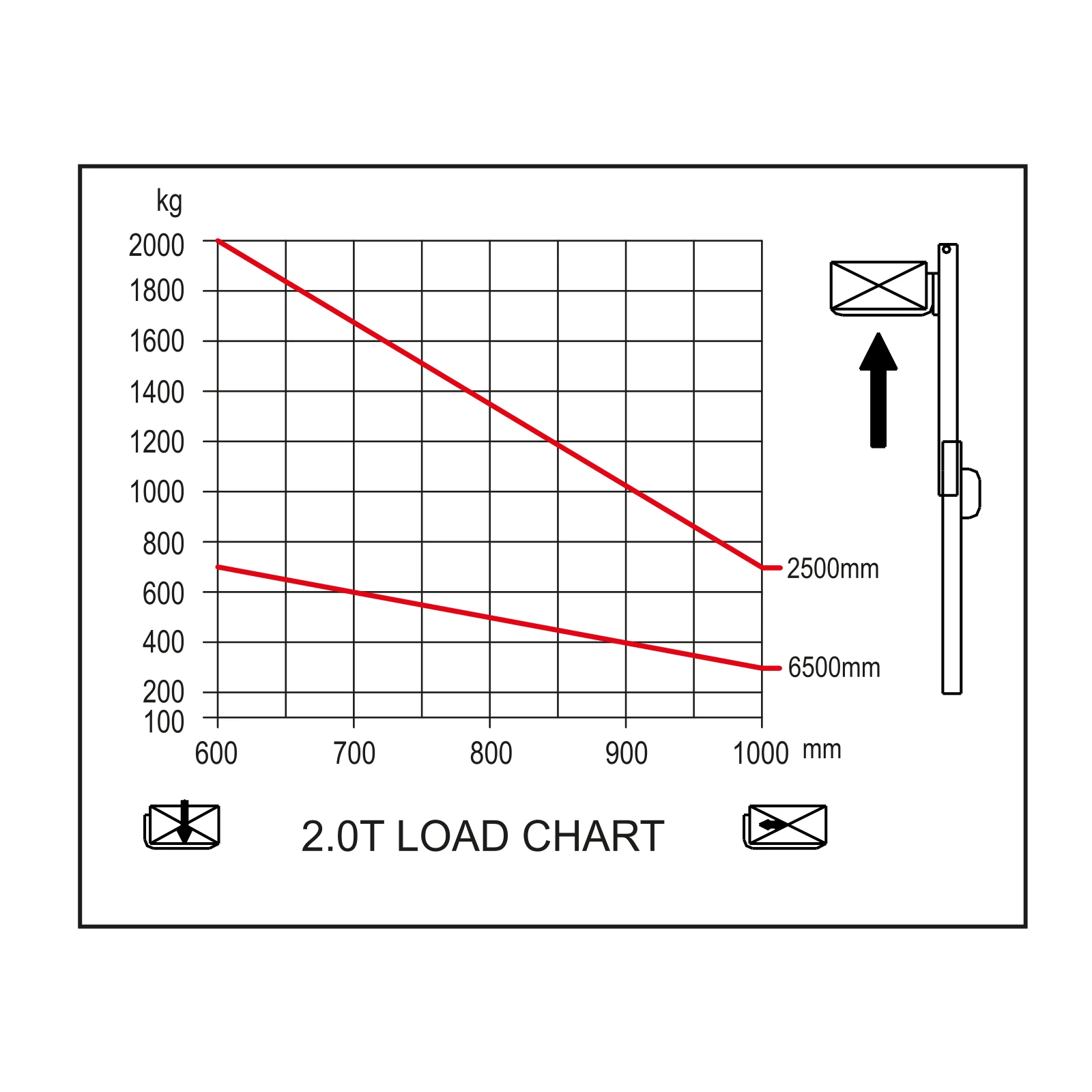

- Nominal capacity is not enough — confirm residual capacity at the actual height and COG (load chart).
Helpful to have ready: Pallet · Mass/COG · Height · Aisle (Ast) · Doors/ceiling · Gradient · Route · Shifts · Charging voltage
Attributes
| Max. lift height | 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm, 6500 mm |
|---|---|
| Battery type/voltage/capacity | LFP/24/225, LA/24/300 |
| Load capacity | 2000 kg |
| Engine type | AC |
| Load center | 500 mm, 600 mm |
| Load distance | 672 mm |
| Tyre size, front | 250x80 mm |
| Tyre size, rear | 80x84 mm |
| Additional wheels | Φ150×60 mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/4 |
| Height, mast lowered | 1735 mm, 1985 mm, 2050 mm, 2135 mm, 2210 mm, 2235 mm, 2410 mm, 2710 mm |
| Free lift | 1570 mm, 1740 mm, 1940 mm, 2240 mm |
| Lift height | 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm, 6500 mm |
| Initial lift | no |
| Height, mast extended | 2955 mm, 3455 mm, 3755 mm, 3955 mm, 5030 mm, 5510 mm, 6110 mm |
| Height of tiller min/max | 1150/1450 mm |
| Lowered fork height | 90 mm |
| Overall length | 2020/2100 mm, 2100/2180 mm |
| Length to face of forks | 950 mm |
| Overall width | 850 mm, 950 mm |
| Fork dimensions | 60x180x1070 mm (1150) |
| Width overall forks | 570/695 mm |
| Aisle width for pallets 800x1200mm | 2515 mm, 2595 mm |
| Turning radius | 1655 mm, 1735 mm |
| Travel speed, laden/unladen | 7.0/7.1 km/h |
| Lifting speed laden/unladen | 0.11/0.16 m/s |
| Lowering speed laden/unladen | 0.12/0.11 m/s |
| Folding platform | yes |
| Electric power steering | yes |
| Battery weight | 300 kg |
| Battery dimensions (I/W/H) | 675x248x545 mm |
| Service weight | 1280 kg, 1320 kg, 1350 kg, 1640 kg, 1680 kg, 1720 kg, 1850 kg, 2020 kg |
