Narrow Hand Pallet Truck (RPV2000UV) 2000 kg
Price
On request
Direct factory order
— 16–20 weeks · 50% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 50%
- Balance: 50% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Group order
1 of 6 units secured — 5 more to confirm the group
Be the first to order and get an extra −2% — already included in the price at checkout. Your booked deposit starts the countdown for the rest of the group.
A 50% deposit secures your units. If the group is not completed in time, your deposit is refunded in full within 5 working days. Group order terms
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Tags:
Manual Pallet Trucks,
Pallet Jacks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Some doorways, lifts and vehicle bodies simply refuse a standard pallet truck. This version is built around a fork spread of 406 mm and a fork length of 800 mm, so it fits where a 1150 mm truck with 685 mm forks has no chance — and it still carries 2000 kg.
Narrow where it matters
- 406 mm overall fork width and 800 mm fork length
- 2000 kg capacity with a 75 mm lowered fork height and lift to 190 mm
- ø160 mm steering wheels and ø70 mm fork rollers on a short wheelbase for tight turns
- Only 65 kg service weight, easy to push through a building and into a lift
Where it earns its place
- Half pallets, display pallets, mesh boxes and drum pallets
- Retail units, pharmacies and archives with narrow doors and small goods lifts
- Van and box-body deliveries where the truck travels with the vehicle
- Machine rooms and older buildings with 700-800 mm doorways

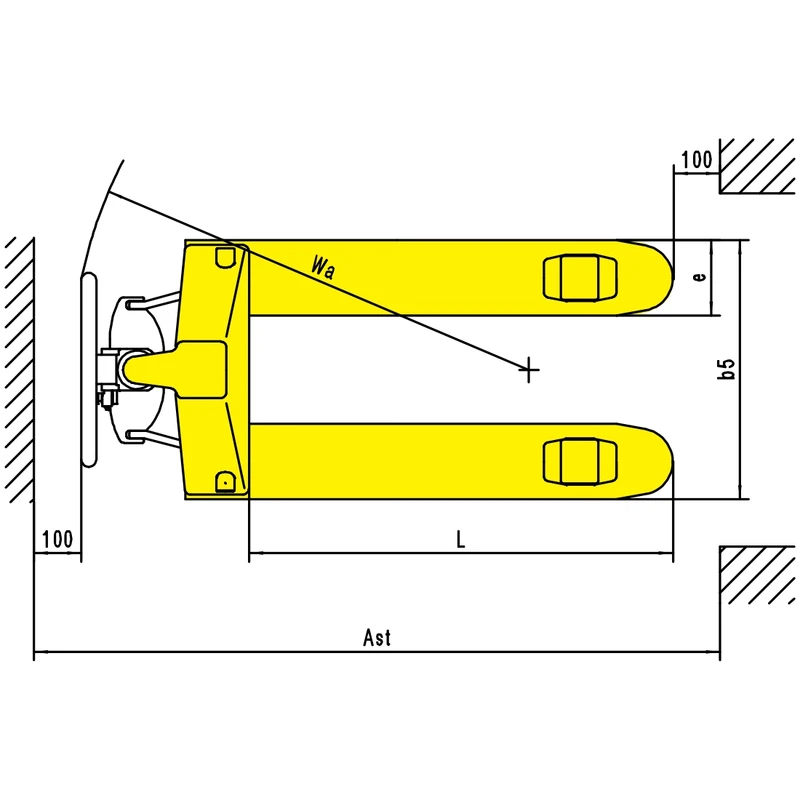

Dimensions

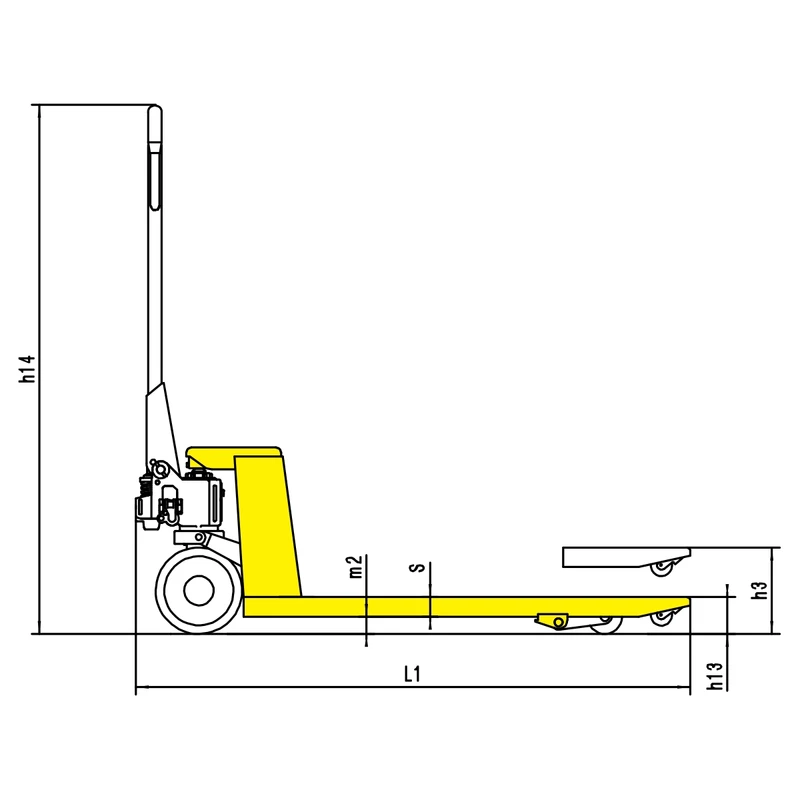

Height without the tiller is 401.5 mm, lowered fork height is 75 mm and total lift height 190 mm. Confirm the internal dimensions of your pallets before ordering: with 800 mm forks the truck is meant for short and half pallets rather than full 1200 mm EUR pallets.
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Moving pallets short distances at floor level by hand — loading bays, shops, workshops.
- Occasional use, vehicle unloading, tight spaces.
- Special variants: stainless (food), galvanized (wet/outdoor), scale, low-profile, long/short forks, rough terrain.
This model
Narrow: display pallets, tight aisles. Capacity options: 2000 kg.
Check before you choose
- Capacity (2 000–5 000 kg) with reserve
- Fork length/width vs. pallet (EUR 1200×800: standard 1150 mm forks; long forks for 2 pallets or long goods)
- Lowered fork height for low pallets
- Wheels: nylon (hard floor), polyurethane (quiet, delicate floors), rubber
- Environment: food/pharma → stainless; wet → galvanized
Not suitable for
- Lifting pallets onto racking or vehicles (max ~200 mm lift) — use a stacker
- Long distances or multi-shift — electric pallet truck
- Gradients/ramps with heavy loads
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet type/dimensions (EUR 1200×800, industrial 1200×1000, half, display, custom)? Closed-bottom or low pallets? Entry height? Pallet compatibility matters more than capacity: fork length, overall width, lowered height and pallet underside.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Distance per trip, trips per day, ramps? A hand truck is for short level moves; pushing 2 t up a ramp is unsafe.
Typical mistakes to avoid
- Pallet compatibility is more important than capacity — check entry height and pallet underside.
Helpful to have ready: Photo/dimensions of the pallet · Max mass · Transport distance · Floor · Special version
Attributes
| Load capacity | 2000 kg |
|---|---|
| Width overall forks | 406 mm |
| Fork length | 800 mm |
| Lowered fork height | 75 mm |
| Lift height | 190 mm |
| Height without tiller | 401.5 mm |
| Steering wheels | ø160 mm |
| Fork rollers | ø70 mm |
| Service weight | 65 kg |
