Manual Pallet Stacker (RVV1000) 1000 kg 3000 mm
Price
1.015,00 EUR
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Manual Stackers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The RVV1000 with a 3000 mm mast is the tallest manual stacker in the Delacco range. A two-stage mast lifts 1000 kg to three metres, high enough for the third beam level of many pallet racks, and still measures 2080 mm when lowered — the same as the 1600 mm single-mast version. Fully raised, the mast stands 3512 mm tall.
Where it fits in the RVV range
Choose the 3000 mm configuration when a single manual truck has to serve every level of a three-level rack. It shares the 860 mm wide chassis and 580 mm fork spread with the 2500 mm version and weighs 13 kg more, 305 kg in total. Lifting a full tonne to three metres by pump takes effort and time, so where this lift is needed many times a day an electric stacker is the better tool; where it is needed a few times a week, this stacker does it without a battery.
Typical applications
Spare-parts stores, archives and material stores with three-level racking and low turnover per location; seasonal and slow-moving stock that is put away once and retrieved months later; workshops that keep heavy tooling on high shelves; small warehouses whose electric stacker is reserved for the busy aisles. Fixed 1150 mm forks at 580 mm spread take EU pallets from the long side.
Design and safe operation
- Two-stage mast, 2080 mm lowered and 3512 mm extended; rigid steel frame 860 mm wide for stability at height
- Fixed welded forks 55 / 170 / 1150 mm; lowered fork height 90 mm; 20 mm ground clearance under the mast with load
- Hydraulic lifting by hand or foot, 20 mm per stroke laden and 22 mm unladen; hand-operated lowering

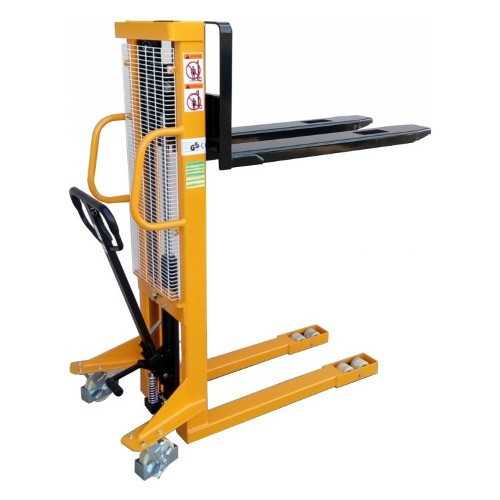

- Metal mesh guard separates the operator from the lifting chains; wheel guards and parking brake
- 1000 kg at a 600 mm load centre; at three metres the load must be centred and secured, the floor level and the truck braked — never travel with the forks raised
Technical overview
- Model / SKU: RVV1000-3000mm
- Product family: Manual Stackers (fixed forks, two-stage mast)
- Load capacity: 1000 kg at 600 mm load centre
- Lift height: 3000 mm
- Lowered fork height: 90 mm
- Mast height, lowered / extended: 2080 / 3512 mm
- Fork dimensions (s/e/l): 55 / 170 / 1150 mm, overall fork spread 580 mm
- Overall length x width: 1685–1695 x 860 mm

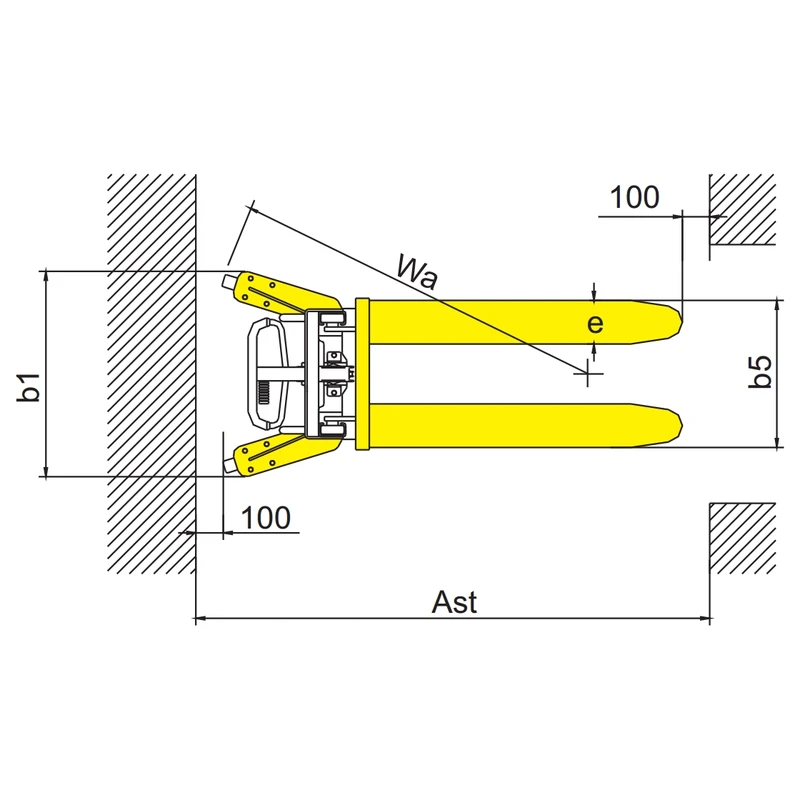

- Working aisle: 2057–2082 mm (pallet 1000 x 1200 mm crossways), 1991–2016 mm (pallet 800 x 1200 mm lengthways)
- Turning radius: 1325–1350 mm
- Lift per stroke, laden / unladen: 20 / 22 mm
- Service weight: 305 kg

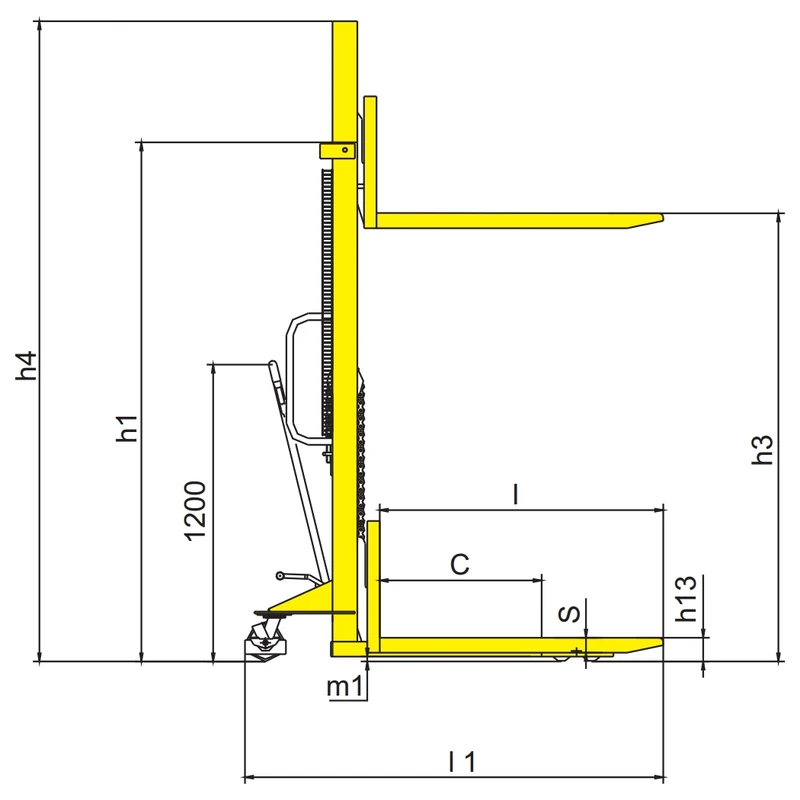

The product brochure and the dimension drawing are available for download on this page.
What it is for
- Hydraulic hand stacker for lifting pallets to racks, benches or vehicle beds — occasional use up to ~1 500 kg.
- Small warehouses, workshops, shops.
- Loading machines and work tables.
This model
Capacity options: 1000 kg. Lift heights: 3000 mm. Fork dimensions: 61/170/1150 mm. Turning radius: 1380 mm.
Check before you choose
- Capacity and lift height (residual capacity drops at height)
- Pallet type: straddle legs for closed-bottom pallets, standard forks for EUR pallets
- Adjustable forks needed?
- Mast height when lowered vs. doorways
Not suitable for
- Frequent or multi-shift use — semi-/full electric
- Heavy pallets above 1 500 kg
- Long distances
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Lifts per day and distance moved? Manual hydraulics and pushing a raised 1 t load are tiring; manual stackers are for occasional use.
Typical mistakes to avoid
- Frequent mistake: closed pallet into which the front legs cannot enter.
- Check residual capacity at height where stated.
Helpful to have ready: Exact pallet dimensions from below · Mass · Shelf height · Aisle · Doors/ceiling · Photo of the floor
Attributes
| Load capacity | 1000 kg |
|---|---|
| Load centre distance (c) | 600 mm |
| Lift height | 3000 mm |
| Lowered fork height | 90 mm |
| Height, mast lowered | 2080 mm |
| Height, mast extended | 3512 mm |
| Fork dimensions | 55/170/1150 mm |
| Width overall forks | 580 mm |
| Overall length | 1685–1695 mm |
| Overall width (b1) | 860 mm |
| Ground clearance, laden, below mast (m1) | 20 mm |
| Aisle width for pallets 1000x1200mm | 2057–2082 mm |
| Aisle width for pallets 800x1200mm | 1991–2016 mm |
| Turning radius | 1325–1350 mm |
| Lift per stroke, laden/unladen | 20/22 mm |
| Lowering | Manual control |
| Service weight | 305 kg |
