Not every very-narrow-aisle warehouse is ten metres tall. The OPD15Z brings tri-lateral handling to the 4.5 to 7.5 metre band with a shorter mast, a lighter chassis and a price point below the big VNA machines, while keeping the feature that matters: a lateral fork that rotates 180 degrees to serve both sides of the aisle.
Endurance
- Full AC system with a 48 V / 450 Ah battery - specified for two shifts on one charge
- Regenerative and reverse braking plus ramp anti-slip
- Side-way battery slides out for maintenance or exchange
Operator station
- Seated cabin; one-hand console integrates all fork and travel operations
- Seat with adjustable backrest, position and suspension; telescoping steering wheel
- Central display with operator permissions, status, faults and multilingual interface
Structure
- Seven masts, 4500 to 7500 mm, free lift to 2300 mm
- German-import mast profile and guided mast structure with a new roof-guard frame
- Width across guide rolls 1550 mm; 1600 mm aisle for a 1000 x 1200 pallet crossways
- 6.5 kW drive and 8.2 kW lift motor, EPS with automatic wheel return
Price and delivery

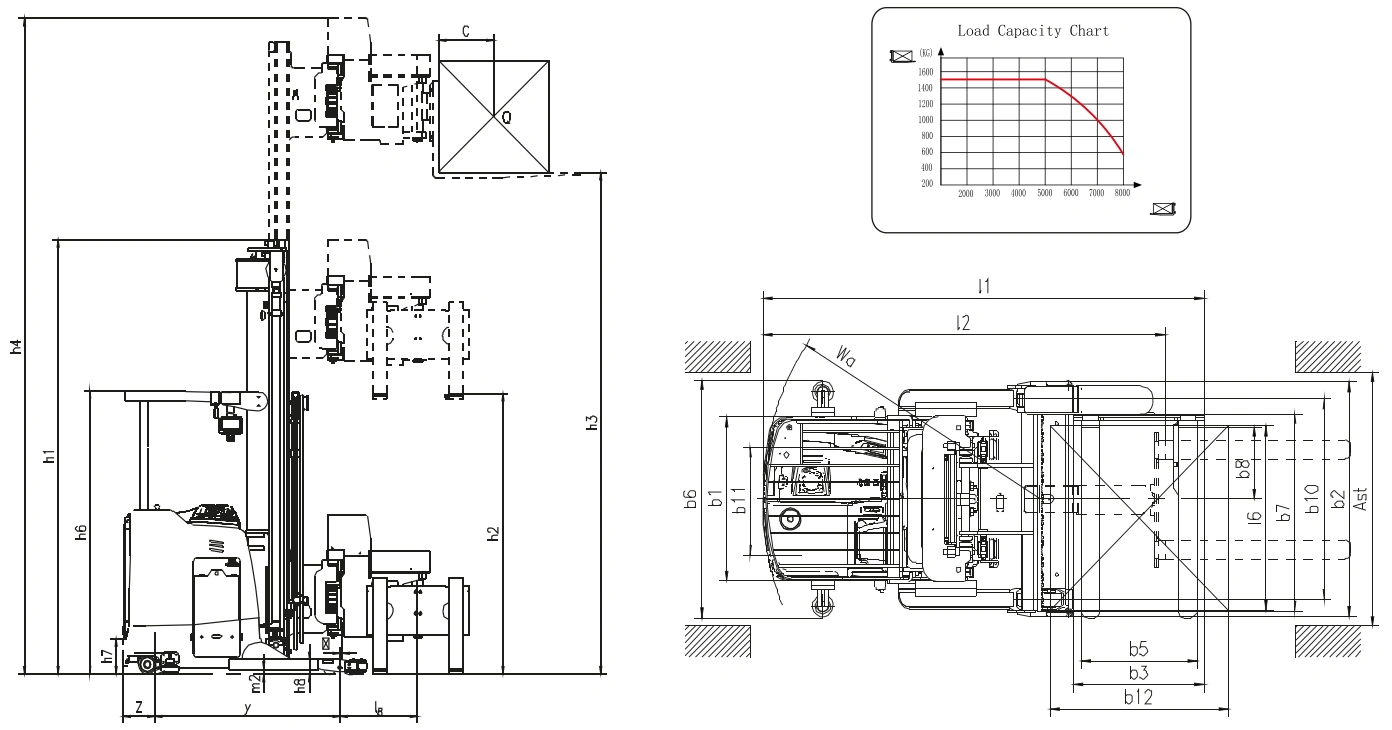

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
What it is for
- Stacking to great heights (7–13 m) in narrow aisles — high-bay warehouses.
- Very-narrow-aisle (VNA) trucks for maximum storage density; multi-directional for long goods.
This model
Very narrow aisle: maximum storage density; requires guidance and flat floors. Capacity options: 1500 kg.
Check before you choose
- Lift height and residual capacity at top level
- Aisle width (reach vs. VNA guidance)
- Floor flatness class
- Operator position: seated, stand-on, man-up
- Battery capacity for shifts
Not suitable for
- Outdoor or rough floors
- Occasional low-height stacking (over-specified)
Before you order Project product — the final configuration is confirmed by our technical team before the order.
To confirm the right configuration we will ask you:
- Working aisle width; height; pallet; mass; residual capacity; man-up/man-down; rack geometry; guidance (rail/inductive); transfer aisle; floor class? VNA truck and racking must be designed as one system — a few cm in aisle, floor or racking decide feasibility.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Truck and racking are one system — a few cm in aisle, floor or racking decide feasibility.
Helpful to have ready: CAD/plan of the racking · Sections · Pallet and mass · Floor · Transfer aisle · Shifts
Attributes
| Load capacity | 1500 kg |
|---|---|
| Lift height | 4500-7500 mm (7 masts) |
| Operator type | Seated |
| Battery | 48 V / 450 Ah |
| Width across guide rolls (b6) | 1550 mm |
| Lateral reach (b7) | 1290 mm |
| Fork dimensions | 45/125/1200 mm |
| Travel speed | 8/8.5 km/h laden/unladen |
| Motors | Drive 6.5 kW, Lift 8.2 kW |
| Aisle width for pallets 1000x1200mm | 1600 mm |
