Electric End Control Pallet Truck (EPV25EC/EPV30EC) 2500-3000 kg

Heavy-duty end-control rider pallet truck with 2500-3000 kg capacity, side-standing operation with safety handle bar, electric power steering and high-capacity batteries for long shifts.

Key features

• Heavy-duty rider truck for 2500-3000 kg loads
• Side-standing operation with safety handle bar
• Electric power steering (EPS)
• Multi-function display: hour meter, fault code, slow mode, battery status
• Armrest switch controls for lifting, lowering, slow running and horn
• High-capacity battery and powerful drive motor for long shifts
• Adjustable-speed AC motor with excellent ramp performance

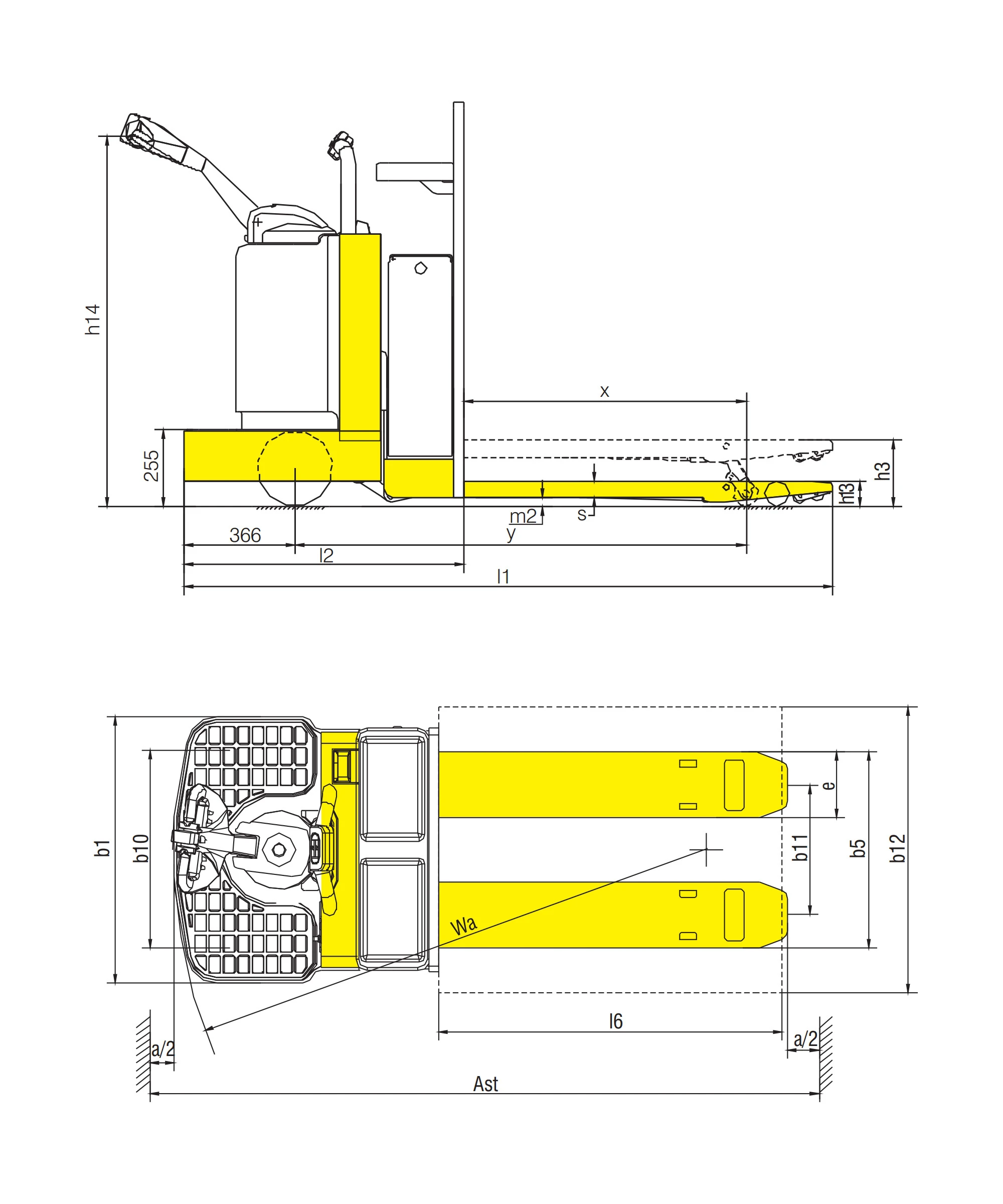

Technical overview

• Model / SKU: EPV25EC_EPV30EC
• Product family: Electric Pallet Trucks
• Load capacity: 2500 kg, 3000 kg
• Engine type: AC
• Load center: 600 mm
• Load distance, center of drive axle to fork: 933 mm
• Fork height, lowered: 82 mm
• Tyre size, front: 250x80mm
• Tyre size, rear: 82x173mm
• Additional wheels (dimensions): 127x57mm
• Number of wheels, front/rear (x=driving) Φ: 1X+2/2
• Max. lift height: 217 mm
• Height of tiller min/max: 1041/1374mm
• Overall length: 2143 mm
• Length to face of forks: 923 mm
• Overall width: 936 mm
• Fork dimensions: 55x230x1220mm
• Width overall forks: 685 mm
• Aisle width for pallets 1000x1200mm: 2343 mm, 2665 mm
• Aisle width for pallets 800x1200mm: 2343 mm, 2540 mm
• Turning radius: 1860 mm
• Travel speed, laden/unladen: 6.0/6.5km/h, 7.5/8.0km/h
• Initial lift: no
• Folding platform: stand-on
• Electric power steering: yes
• Battery type/voltage/capacity: LA/24/300, LFP/24/225
• Battery weight: 300 kg
• Battery dimensions (I/W/H): 810x212x665mm
• Service weight (with battery): 860 kg

Order online or send a quote request for delivery terms and customer-specific configurations.
