Manual Stacker with Adjustable Forks (RVV-PV) 1000-1500 kg
Price
From 990,00 EUR
From 792,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Manual Stackers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The RVV-PV is the Delacco manual stacker for loads that do not come on a standard pallet. Its forks sit on a shaft and slide sideways, from 295 to 930 mm overall on the 1000 kg model and from 310 to 930 mm on the 1500 kg model, so the same truck handles half pallets, crates, boxes on bearers and odd-sized skids. Lifting is hydraulic by hand or foot; the support legs are fixed and run under the load.
Where it fits in the RVV range
The fixed-fork RVV500, RVV1000 and RVV1500 are the cheaper choice for EU pallets only. The RVV-PV adds the adjustable spread with welded forks of 60 mm section, 1070 mm long as standard or 1150 mm as an alternative, and keeps the familiar 90 mm lowered fork height. The RVV1000-PV lifts to 1600 mm or, with a two-stage mast, to 2500 mm; the RVV1500-PV is built for 1600 mm. If the load needs clearance between the support legs — closed pallets, machine bases, drums on bearers — the RVV-DSV straddle stacker is the right model instead.
Typical applications
Mixed-goods warehouses that receive both EU and industrial pallets; workshops moving machine bases, frames and crates of different widths; packaging and timber trades handling non-standard skids; stores with narrow display or half pallets that fixed 550 mm forks cannot pick up safely. The 1500 kg model covers dense loads such as castings, sacks and drums.
Design and safe operation
- Shaft-mounted welded forks, 60 x 142 mm (1000 kg) or 60 x 154 mm (1500 kg) section, 1070 mm long with 1150 mm alternative; adjust both forks symmetrically before lifting
- Hydraulic lifting by hand or foot — 20 / 22 mm per stroke laden / unladen on the 1000 kg model, 16 / 18 mm on the 1500 kg model; hand-operated lowering
- Rigid steel mast and frame; metal mesh guard between the operator and the lifting chains; wheel guards and parking brake
- Rated capacity applies at a 500 mm load centre; with the mast at 2500 mm the lowered mast height is 1840 mm and the extended height 2960 mm, so check overhead clearance before lifting
- Travel with the forks lowered, keep the load centred between the support legs and never lift people
Technical overview
- Models: RVV1000-PV, RVV1500-PV
- Product family: Manual Stackers (adjustable forks)
- Load capacity: 1000 kg / 1500 kg at 500 mm load centre
- Lift height: 1600 or 2500 mm (RVV1000-PV); 1600 mm (RVV1500-PV)
- Lowered fork height: 90 mm
- Mast height, lowered / extended: 2080 / 2080 mm or 1840 / 2960 mm (RVV1000-PV, by mast); 2085 / 2085 mm (RVV1500-PV)
- Fork dimensions (s/e/l): 60 / 142 / 1070 (1150) mm (RVV1000-PV); 60 / 154 / 1070 (1150) mm (RVV1500-PV)
- Overall fork spread: 295–930 or 295–850 mm (RVV1000-PV, by mast); 310–930 mm (RVV1500-PV)
- Overall length with 1070 (1150) mm forks: 1650 (1730) or 1660 (1740) mm (RVV1000-PV, by mast); 1660 (1740) mm (RVV1500-PV)
- Overall width: 967 or 886 mm (RVV1000-PV); 967 mm (RVV1500-PV)

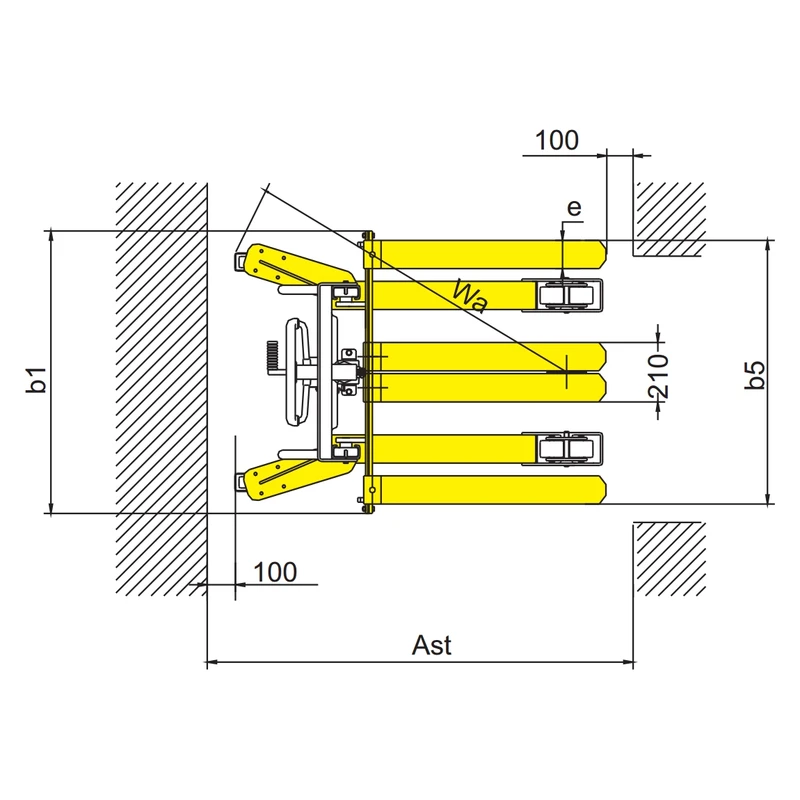

- Working aisle, pallet 1000 x 1200 mm crossways: 2048 mm (1000 kg), 2063 mm (1500 kg)
- Turning radius: 1260 / 1253 mm (RVV1000-PV); 1280 mm (RVV1500-PV)
- Service weight: 250 / 322 kg (RVV1000-PV, by mast); 270 kg (RVV1500-PV)

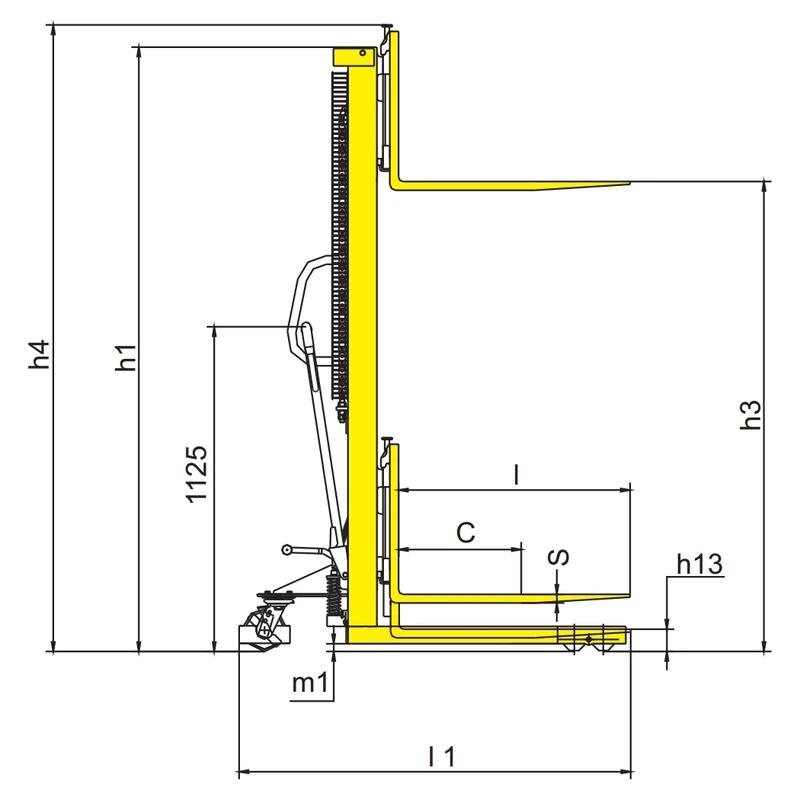

The product brochure and the dimension drawing are available for download on this page.
What it is for
- Hydraulic hand stacker for lifting pallets to racks, benches or vehicle beds — occasional use up to ~1 500 kg.
- Small warehouses, workshops, shops.
- Loading machines and work tables.
This model
Adjustable: several spans/positions with one unit. Capacity options: 1000 kg, 1500 kg. Lift heights: 1600 mm, 2500 mm.
Check before you choose
- Capacity and lift height (residual capacity drops at height)
- Pallet type: straddle legs for closed-bottom pallets, standard forks for EUR pallets
- Adjustable forks needed?
- Mast height when lowered vs. doorways
Not suitable for
- Frequent or multi-shift use — semi-/full electric
- Heavy pallets above 1 500 kg
- Long distances
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Lifts per day and distance moved? Manual hydraulics and pushing a raised 1 t load are tiring; manual stackers are for occasional use.
Typical mistakes to avoid
- Frequent mistake: closed pallet into which the front legs cannot enter.
- Check residual capacity at height where stated.
Helpful to have ready: Exact pallet dimensions from below · Mass · Shelf height · Aisle · Doors/ceiling · Photo of the floor
Attributes
| Load capacity | 1000 kg, 1500 kg |
|---|---|
| Lift height | 1600 mm, 2500 mm |
| Load centre distance (c) | 500 mm |
| Lowered fork height | 90 mm |
| Height, mast lowered | RVV1000-PV: 2080 / 1840 mm, RVV1500-PV: 2085 mm |
| Height, mast extended | RVV1000-PV: 2080 / 2960 mm, RVV1500-PV: 2085 mm |
| Fork dimensions | RVV1000-PV: 60/142/1070 (1150) mm, RVV1500-PV: 60/154/1070 (1150) mm |
| Width overall forks | RVV1000-PV: 295–930 / 295–850 mm, RVV1500-PV: 310–930 mm |
| Overall length | RVV1000-PV: 1650 (1730) / 1660 (1740) mm, RVV1500-PV: 1660 (1740) mm |
| Overall width (b1) | RVV1000-PV: 967 / 886 mm, RVV1500-PV: 967 mm |
| Ground clearance, laden, below mast (m1) | RVV1000-PV: 20 mm, RVV1500-PV: 25 mm |
| Aisle width for pallets 1000x1200mm | RVV1000-PV: 2048 mm, RVV1500-PV: 2063 mm |
| Aisle width for pallets 800x1200mm | RVV1000-PV: 2030 mm, RVV1500-PV: 2040 mm |
| Turning radius | RVV1000-PV: 1260 / 1253 mm, RVV1500-PV: 1280 mm |
| Lift per stroke, laden/unladen | RVV1000-PV: 20/22 mm, RVV1500-PV: 16/18 mm |
| Lowering | Manual control |
| Service weight | RVV1000-PV: 250 / 322 kg, RVV1500-PV: 270 kg |
