Electric Scale Pallet Truck (CBD15W-EC/CBD20W-EC) 1500-2000 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Wherever goods are priced, invoiced or batched by weight, the detour to a floor scale is pure lost time. This truck removes it: the weighing system sits in the fork frame, the reading appears at the tiller, and the pallet is weighed while it is already on its way to the rack or the ramp.
Why the electric base matters
- Electric travel and electric lift, so the operator's effort does not change with the load - important when every pallet also has to be weighed and logged
- Electric braking holds the truck on the spot during the weighing pause
- Tiller works between 700 and 1250 mm, comfortable for operators of any height
Sized like a standard walkie
- 1670-1740 mm overall length and a 1465 mm turning radius, no bigger than a plain electric pallet truck
- Forks 1150 mm (1220 mm option), width across forks 560 or 690 mm for euro and industrial pallets
- 24 V battery: 65 Ah on the 1.5-tonne truck, 105 Ah on the 2-tonne truck
Choosing between the two
The two capacities share dimensions and speeds; the 2000 kg version carries the larger battery and a slightly stronger drive motor. If your pallets regularly exceed 1.5 tonnes, take the CBD20W-EC and keep a reserve.
Price and delivery

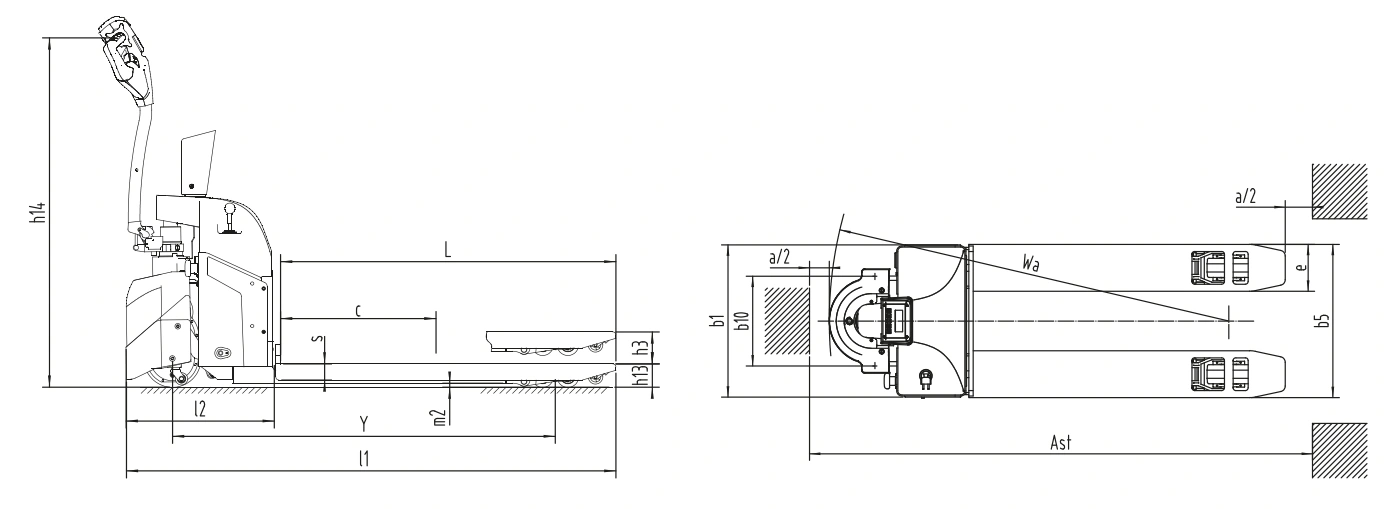

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
What it is for
- Powered horizontal transport of pallets over longer distances and higher frequency than hand trucks.
- Loading/unloading trucks, cross-docking, supermarket back-of-house.
- Rider (platform/seated) versions for long routes; double-decker for two pallets.
This model
Integrated scale: weighing while moving; check accuracy and whether verified. Capacity options: 1500 kg, 2000 kg.
Check before you choose
- Capacity 1 500–3 000 kg
- Walkie vs. platform/stand-on vs. seated by distance and shifts
- Battery type (Li-ion for opportunity charging), charger
- Fork length for 1 or 2 pallets
- Ramps and gradients (drive motor power)
- Aisle width
Not suitable for
- Lifting onto racking (lift ~120–200 mm) — use a stacker
- Outdoor rough terrain
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet sizes; one or two pallets per trip; fork length?
- Distance per trip and pallets per hour? Decides pedestrian vs. platform vs. seated.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- A small walkie is no substitute for a rider truck on long routes — choose the operator position by distance and intensity.
Helpful to have ready: Mass/pallet · Average and max distance · Pallets per hour · Gradients · Shifts · Charging
Attributes
| Load capacity | 1500 kg, 2000 kg |
|---|---|
| Lift height | 110 mm |
| Fork dimensions | 55/172/1150 (1220) mm |
| Width overall forks | 560 mm, 690 mm |
| Turning radius | 1465 mm |
| Travel speed | 4.3/4.8 km/h laden/unladen |
| Service weight | 205 kg (1.5 t), 220 kg (2 t) |
| Battery | 24 V / 65 Ah (1.5 t), 24 V / 105 Ah (2 t) |
| Handle height (h14) | 700-1250 mm |
| Weighing accuracy | Confirmed with quotation |
