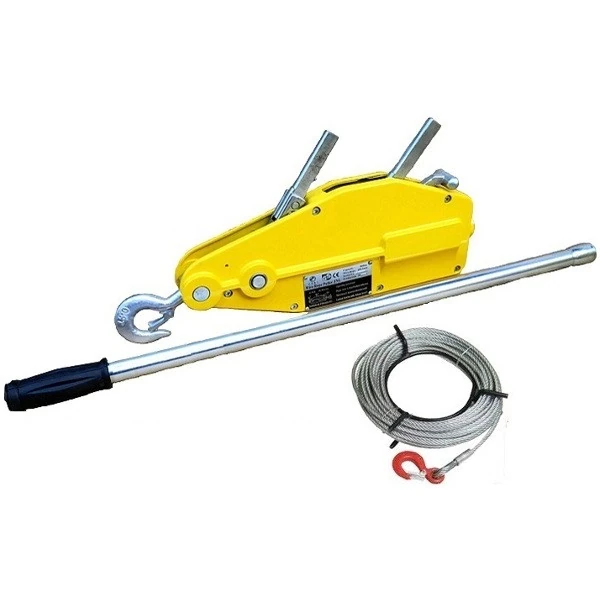

Wire Rope Pulling Hoist (RPDS5400) 5400 kg 20 m
Price
905,00 EUR
Available — ships in 1–2 working days
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Pulling Hoists
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Heavy-duty wire rope pulling hoist with a 5400 kg working load limit, 20 m of 20 mm rope and an 8000 kg pulling capacity for lifting, pulling and millimetre-precise load positioning.
Key features
- For lifting, pulling and positioning loads in demanding conditions
- Rope advance by telescopic operating handle
- Overload protection with spare shear pins included
- Millimetre-precise load positioning and safe rope release
- G80 safety hook
- Lightweight and easily portable
- Compliant with EN 13157
- Available in blue, green, yellow or red
Technical overview
- Model / SKU: RPDS5400
- Product family: Pulling Hoists
- Load capacity: 5400 kg
- Cable length: 20 m
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Wire-rope pulling hoist for long distances and horizontal/inclined pulling.
- Construction, forestry, cable pulling, recovery.
- Vertical lifting with unlimited rope length.
This model
Pulling hoist: long-distance pulling with wire rope. Capacity options: 5400 kg.
Check before you choose
- Pull capacity (lifting vs. pulling rating differ)
- Rope length and diameter
- Anchor point
Not suitable for
- High-frequency lifting
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Required force; vertical or horizontal; slope; friction; rope length; anchor point; path; stroke? For horizontal pulling the force is not equal to the mass — include friction, slope and any pulleys.
Typical mistakes to avoid
- Horizontal pulling force ≠ mass: include friction, slope and pulleys.
Helpful to have ready: Mass · Slope · Surface · Distance · Anchor point · Route sketch
Attributes
| Load capacity | 5400 kg |
|---|---|
| Cable length | 20 m |
