Electric Pallet Truck for Two Pallets (EPV20-I/EPV20LD-I) 2000 kg 800-2500 mm
Price
From 8.010,00 EUR
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Double-pallet electric truck with initial lift: 120 mm leg lift negotiates ramps and bridging plates, carries two pallets at once with 2000 kg total capacity and mast options up to 2500 mm.
Key features
- Carries two pallets at the same time — 2000 kg total capacity
- 120 mm initial lift negotiates ramps and bridging plates
- Emergency reverse switch on the tiller head
- Built-in pressure relief valve protects against overload
- Stepless speed control with turtle speed switch
- Vertical driving wheel gives a small turning radius
- Dividable, exchangeable mast and floating balance wheel

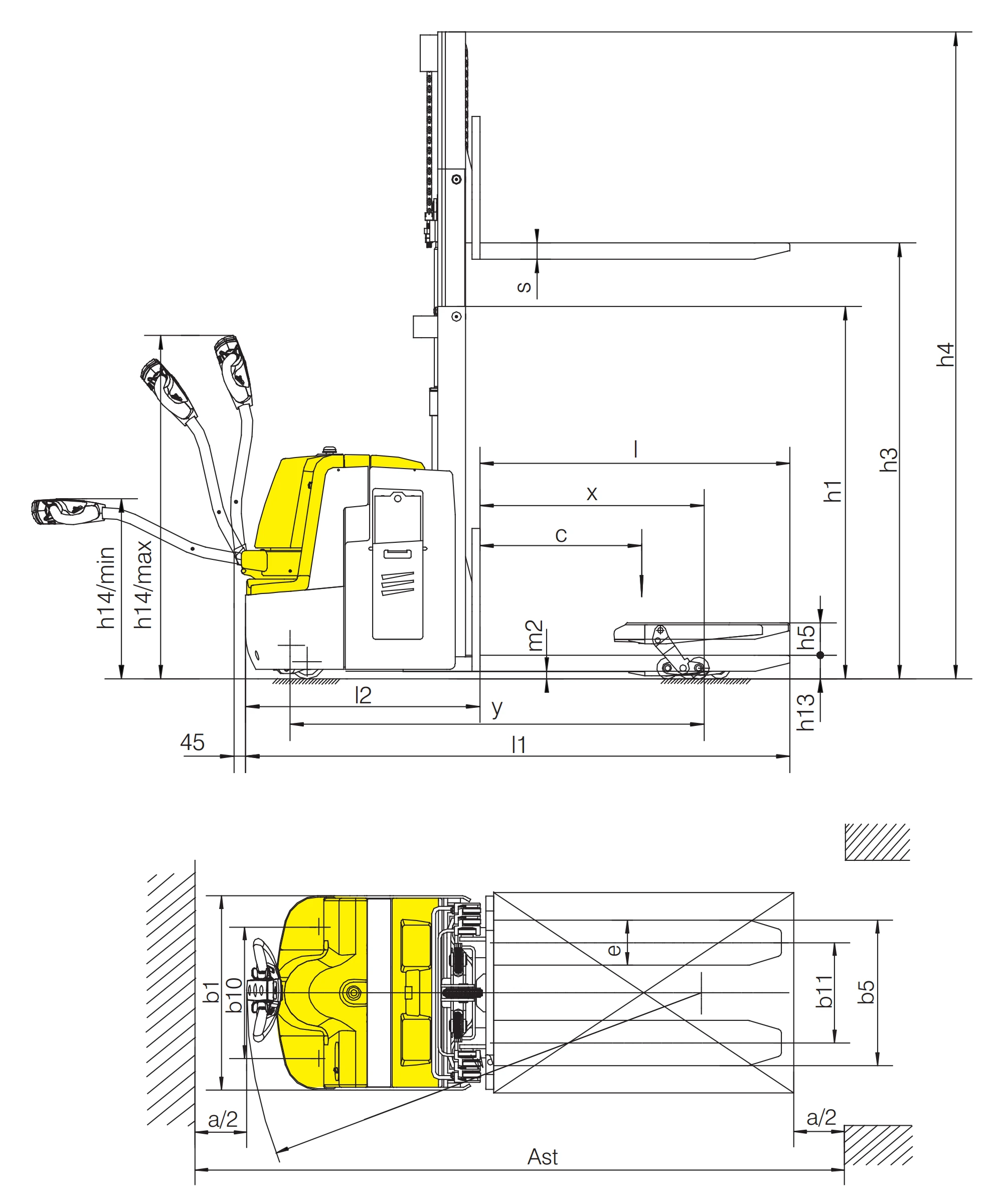

Technical overview
- Model / SKU: EPV20-I_EPV20LD-I
- Product family: Electric Pallet Trucks
- Load capacity: 2000 kg
- Engine type: AC
- Load capacity - mast fork: 1000 kg
- Load capacity - lower fork: 2000 kg
- Load center: 600 mm
- Load distance, center of drive axle to fork: 802 mm, 831 mm
- Fork height, lowered: 90 mm
- Tyre size, front: 250x70mm
- Tyre size, rear: 80x70mm
- Additional wheels (dimensions): 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/4
- Height, mast lowered: 1082/1212/1382mm
- Max. lift height: 1600 mm, 2000 mm, 2500 mm, 800 mm
- Initial lift: yes
- Height of tiller min/max: 780/1230mm
- Overall length: 1760 mm, 1962 mm
- Length to face of forks: 608 mm, 862 mm
- Overall width: 682 mm, 775 mm
- Fork dimensions: 60x180x1100mm, 60x180x1150mm
- Width overall forks: 550 mm, 570/650mm
- Aisle width for pallets 1000x1200mm: 1972 mm, 2238 mm
- Aisle width for pallets 800x1200mm: 2022 mm, 2288 mm
- Turning radius: 1422 mm, 1705 mm
- Travel speed, laden/unladen: 4.5/5.2km/h, 6.0/6.0km/h
- Lifting speed laden/unladen: 0.03/0.04m/s, 0.06/0.11m/s
- Lowering speed laden/unladen: 0.05/0.045m/s, 0.12/0.13m/s
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LA/24/160, LA/24/210, LFP/24/100, LFP/24/125
- Battery weight: 160 kg, 196 kg
- Battery dimensions (I/W/H): 645x148x560mm, 750x170x580mm
- Service weight (with battery): 600 kg, 950 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Powered horizontal transport of pallets over longer distances and higher frequency than hand trucks.
- Loading/unloading trucks, cross-docking, supermarket back-of-house.
- Rider (platform/seated) versions for long routes; double-decker for two pallets.
This model
Two pallets per trip (one on the lower forks, one on the raised upper forks). Capacity options: 2000 kg. Battery: LA/24/160, LA/24/210, LFP/24/100, LFP/24/125. Drive: AC. Initial lift: yes. Folding platform: no. Power steering: no. Fork dimensions: 60x180x1100mm, 60x180x1150mm. Turning radius: 1422 mm, 1705 mm.
Check before you choose
- Capacity 1 500–3 000 kg
- Walkie vs. platform/stand-on vs. seated by distance and shifts
- Battery type (Li-ion for opportunity charging), charger
- Fork length for 1 or 2 pallets
- Ramps and gradients (drive motor power)
- Aisle width
Not suitable for
- Lifting onto racking (lift ~120–200 mm) — use a stacker
- Outdoor rough terrain
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Masses of lower and upper pallet and combined; dimensions; stacking height; route; doors; cycles? Confirm permitted combined AND individual capacity — the total does not apply to every combination.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Confirm combined and individual capacity; total capacity does not hold for every combination.
Helpful to have ready: Both pallets: mass, dimensions, height · Route · Doors · Shifts
Attributes
| Max. lift height | 800 mm, 1600 mm, 2000 mm, 2500 mm |
|---|---|
| Battery type/voltage/capacity | LFP/24/100, LFP/24/125, LA/24/160, LA/24/210 |
| Load capacity | 2000 kg |
| Engine type | AC |
| Load capacity - mast fork | 1000 kg |
| Load capacity - lower fork | 2000 kg |
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 802 mm, 831 mm |
| Lowered fork height | 90 mm |
| Tyre size, front | 250x70 mm |
| Tyre size, rear | 80x70 mm |
| Additional wheels (dimensions) | 127x57 mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/4 |
| Height, mast lowered | 1082/1212/1382 mm |
| Lift height | 1600 mm, 2000 mm, 2500 mm, 800 mm |
| Initial lift | yes |
| Height of tiller min/max | 780/1230 mm |
| Overall length | 1760 mm, 1962 mm |
| Length to face of forks | 608 mm, 862 mm |
| Overall width | 682 mm, 775 mm |
| Fork dimensions | 60x180x1100 mm, 60x180x1150 mm |
| Width overall forks | 550 mm, 570/650 mm |
| Aisle width for pallets 1000x1200mm | 1972 mm, 2238 mm |
| Aisle width for pallets 800x1200mm | 2022 mm, 2288 mm |
| Turning radius | 1422 mm, 1705 mm |
| Travel speed, laden/unladen | 4.5/5.2 km/h, 6.0/6.0 km/h |
| Lifting speed laden/unladen | 0.03/0.04 m/s, 0.06/0.11 m/s |
| Lowering speed laden/unladen | 0.05/0.045 m/s, 0.12/0.13 m/s |
| Folding platform | no |
| Electric power steering | no |
| Battery weight | 160 kg, 196 kg |
| Battery dimensions (I/W/H) | 645x148x560 mm, 750x170x580 mm |
| Service weight | 600 kg, 950 kg |
