Counterbalanced Electric Reach Stacker (EVVP12C-P/EVVP15C-P) 1250-1500 kg 2500-5600 mm
Price
From 10.815,00 EUR
From 8.652,00 EUR
Sale
Direct factory order
— −20% · 16–20 weeks · 40% deposit
Direct factory order — save 20%
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Counterbalanced Electric Stackers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Counterbalanced electric reach stacker with rider platform, 1250-1500 kg capacity and 2500-5600 mm lift height, German special-steel mast and multi-valve regulating lever.
Key features
- Counterbalanced design without straddle legs — works with any pallet type
- Two lifting cylinders placed on the outer sides of the mast
- Mast made of special steel imported from Germany
- AC frequency-conversion traction motor with regenerative braking
- Tilting forks make loading and stacking easy
- Combined magnetic and regenerative braking extends friction-plate life
- Multi-valve regulating lever, emergency stop switch and electrical lock
- Adjustable regulator valve controls mast lowering speed
- Magnet-suction battery cover for simple installation and upkeep
Technical overview
- Model / SKU: EVVP12C-P_EVVP15C-P
- Product family: Counterbalanced Electric Stackers
- Load capacity: 1250 kg, 1500 kg
- Lift height: 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 5600 mm
- Initial lift: no
- Engine type: AC
- Folding platform: yes
- Electric power steering: option
- Battery type/voltage/capacity: LA/24/270, LFP/24/225
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Stacker without straddle legs — handles closed-bottom pallets, loads vehicles from the side, works like a small forklift.
- Mixed pallet types, machine loading, containers.
This model
Counterbalanced (no straddle legs): closed-bottom pallets, side-loading of vehicles, longer chassis. Capacity options: 1250 kg, 1500 kg. Lift heights: 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 5600 mm. Battery: LA/24/270, LFP/24/225. Drive: AC. Initial lift: no. Folding platform: yes. Power steering: option.
Check before you choose
- Capacity and load centre
- Lift height
- Longer chassis → aisle width
- Rider option
Not suitable for
- Very narrow aisles
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.

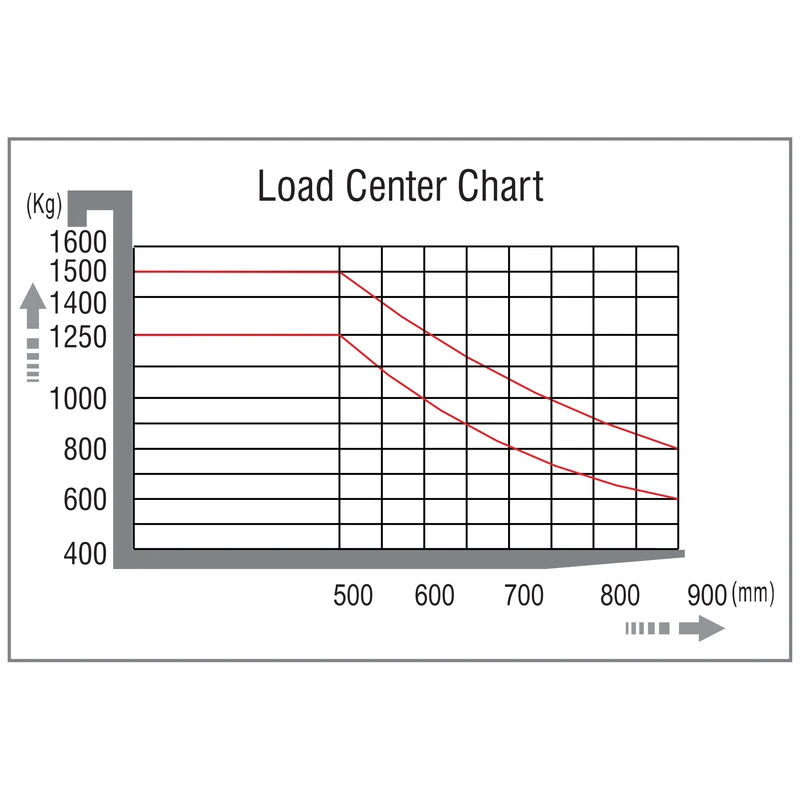

- Dimensions (L×W×H) of the largest and of the heaviest load? Is the centre of gravity known and centred? The load centre moves away from the mast as the load gets longer; real capacity falls with load-centre distance and lift height (capacity diagram). Tall loads raise the COG.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.

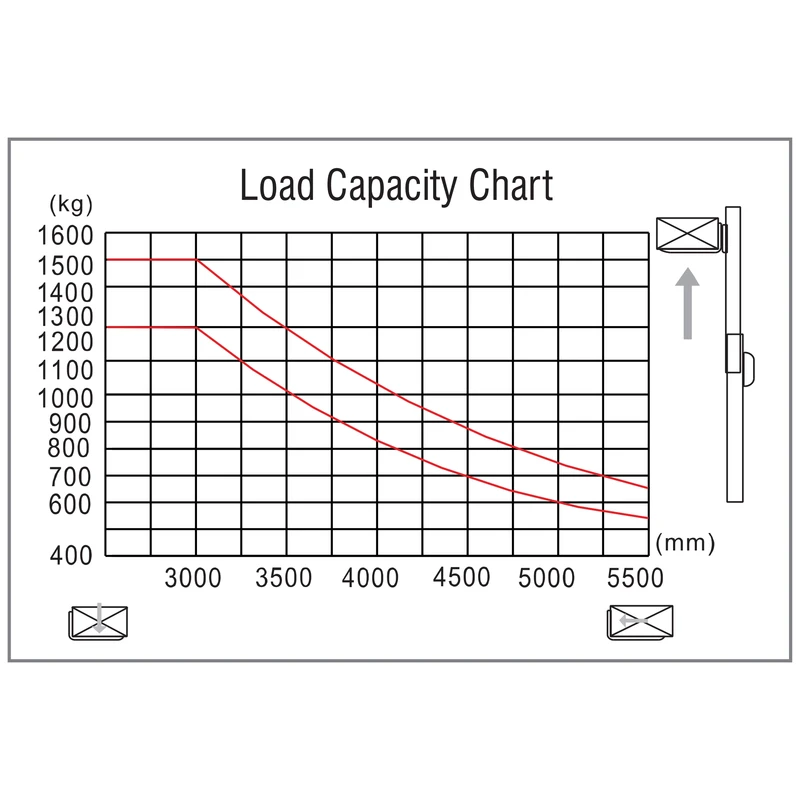

- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.

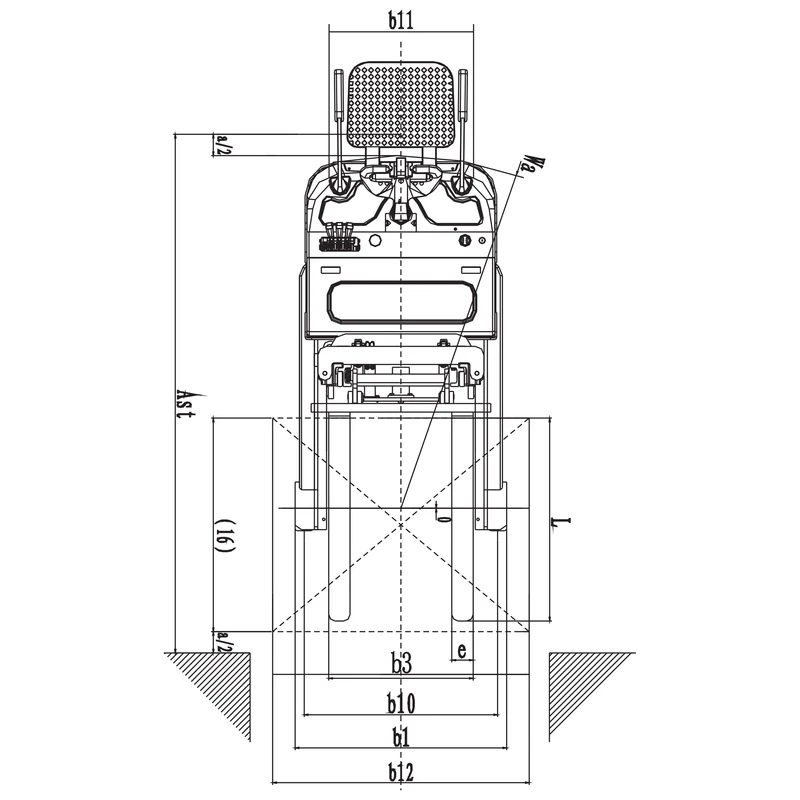

- Aisle width between racks and the narrowest passage / door? Every truck has a stacking-aisle width (Ast). Compare with Ast, not with the truck width.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Are there gradients (ramps, slopes) in the working area? How steep (%) and how long (m)? Pedestrian and stand-on trucks are designed for level floors; motor, brakes and drive-wheel traction are sized for occasional short ramps. On a long or steep slope they overheat, lose traction or cannot hold the load.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- No support legs but a longer chassis; residual capacity and stability remain decisive.
Helpful to have ready: Mass/COG · Pallet/load · Height · Aisle · Plan · Shifts
Attributes
| Load capacity | 1250 kg, 1500 kg, 2000 kg |
|---|---|
| Lift height | 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5600 mm |
| Battery type/voltage/capacity | LFP/24/225, LA/24/270, LA/24/280, LFP/24/300 |
| Initial lift | no |
| Engine type | AC |
| Folding platform | yes |
| Electric power steering | option |
