Very narrow aisle racking only pays off if the truck can serve both sides of the aisle without turning around. On the OPD15 the fork head does the turning: it swivels and traverses to pick or place a pallet left or right while the chassis stays in line, guided by rollers on rails at floor level.
VNA geometry
- Masts from 5000 to 10500 mm with free lift up to 3170 mm
- Width across guide rolls 1600 mm; lateral reach 1300 mm, 495 mm from the truck centreline
- Swivelling-fork pivot 800 mm ahead of the mast
Operator and drive
- Seated man-down cabin with overhead guard - the operator stays at floor level while the load travels up
- 8.0/8.5 km/h travel, 0.20/0.30 m/s lift laden/unladen
- Service weight 6370 kg on polyurethane wheels
When to choose it
Pick the OPD15 where pallets are full-in, full-out and the priority is storage density; if operators also pick single items at height, look at the man-up OPTS15 in this category instead.
Price and delivery

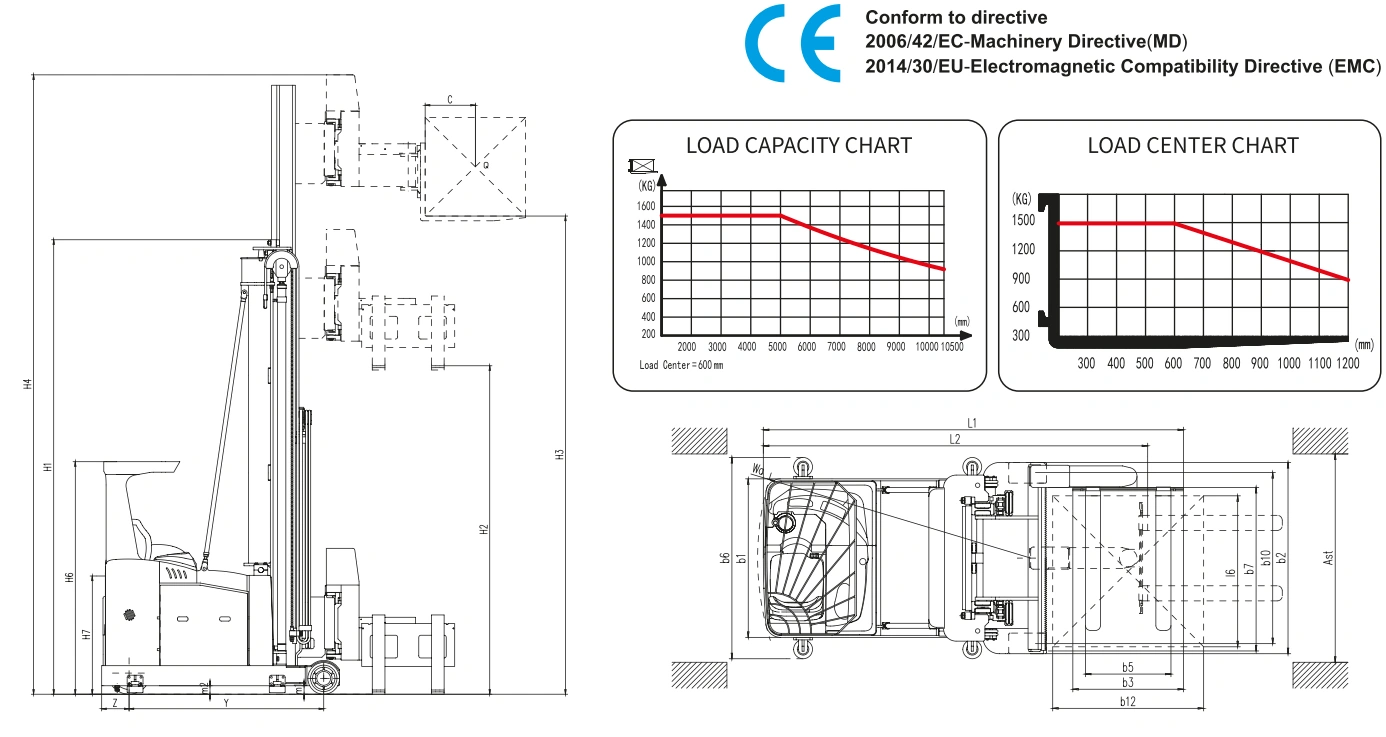

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
What it is for
- Stacking to great heights (7–13 m) in narrow aisles — high-bay warehouses.
- Very-narrow-aisle (VNA) trucks for maximum storage density; multi-directional for long goods.
This model
Very narrow aisle: maximum storage density; requires guidance and flat floors. Capacity options: 1500 kg.
Check before you choose
- Lift height and residual capacity at top level
- Aisle width (reach vs. VNA guidance)
- Floor flatness class
- Operator position: seated, stand-on, man-up
- Battery capacity for shifts
Not suitable for
- Outdoor or rough floors
- Occasional low-height stacking (over-specified)
Before you order Project product — the final configuration is confirmed by our technical team before the order.
To confirm the right configuration we will ask you:
- Working aisle width; height; pallet; mass; residual capacity; man-up/man-down; rack geometry; guidance (rail/inductive); transfer aisle; floor class? VNA truck and racking must be designed as one system — a few cm in aisle, floor or racking decide feasibility.
- How long must the truck run continuously, how many hours per day and shifts? Pallets per hour, distance per trip? Battery capacity and truck class follow from this. Most buyers under-specify on price and end up with a truck that stops mid-shift.
Typical mistakes to avoid
- Truck and racking are one system — a few cm in aisle, floor or racking decide feasibility.
Helpful to have ready: CAD/plan of the racking · Sections · Pallet and mass · Floor · Transfer aisle · Shifts
Attributes
| Load capacity | 1500 kg |
|---|---|
| Lift height | 5000-10500 mm (7 masts) |
| Operator type | Seated, man-down |
| Service weight | 6370 kg |
| Width across guide rolls (b6) | 1600 mm |
| Lateral reach (b7) | 1300 mm |
| Fork dimensions | 45/125/1250 mm |
| Travel speed | 8.0/8.5 km/h laden/unladen |
| Turning radius | 2170 mm |
