Two tonnes is the practical ceiling for a stacker that runs on nothing but a foot pump, and this is the model built for it. The mast, chassis and lifting linkage are dimensioned for loads that would overload a 1000 or 1500 kg stacker, while the truck still needs no battery, no charger and no annual electrical inspection.

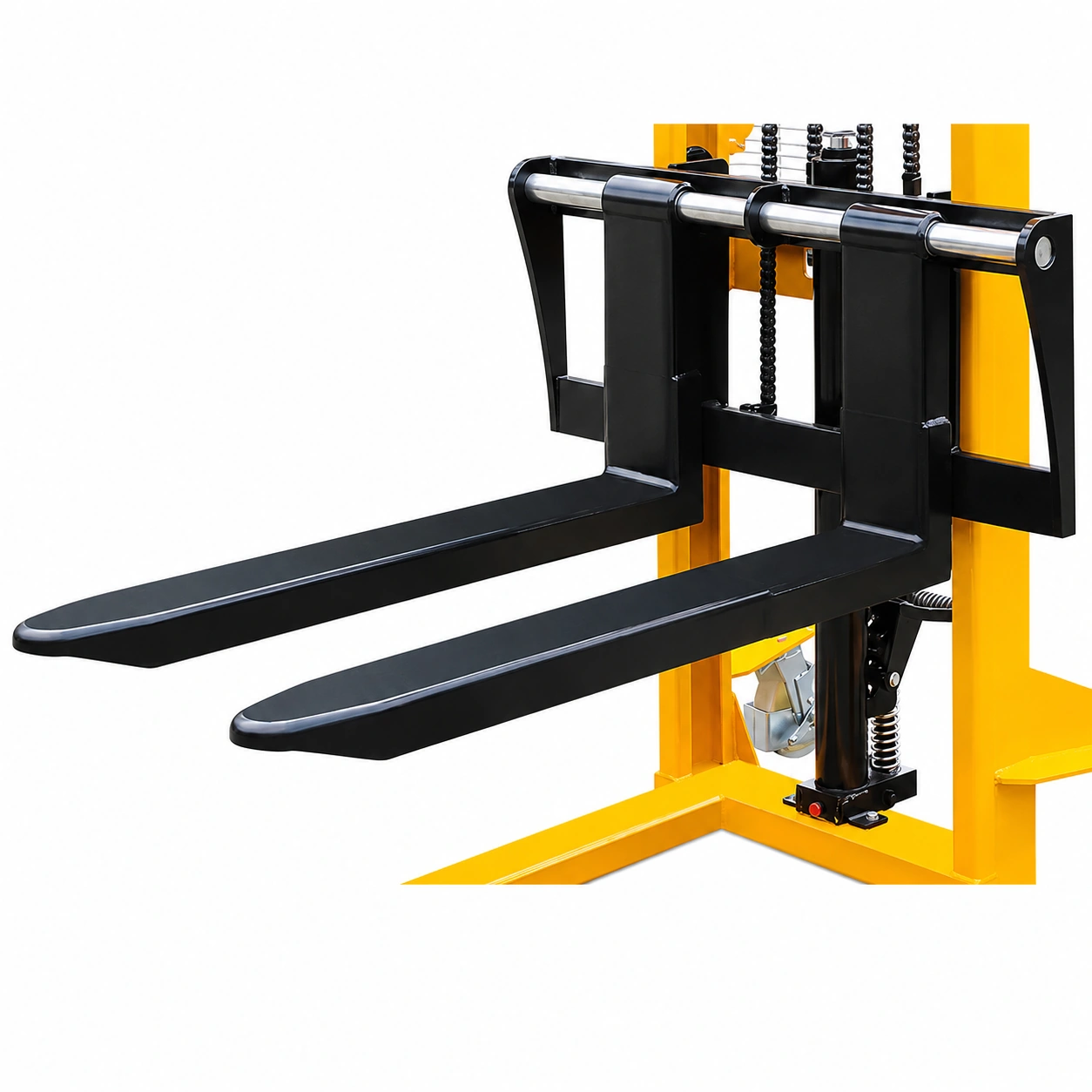

Two fork versions
- RVV2000-KPV carries forged forks 30 mm thick at the heel and 120 mm wide over a 900 mm length, adjustable by hand from 250 to 950 mm on a 1000 mm wide chassis. This is the version for mixed pallet sizes, from narrow crates through to wide industrial pallets.
- RVV2000T-KPV doubles the fork section to 60 mm thickness and 166 mm width, with a 350 to 710 mm spread on a chassis only 830 mm across. This is the version for dense loads on a small footprint and for aisles that a wide-bodied stacker cannot turn in.
- Both versions lift 1500 mm from a 90 mm lowered fork height, enough for the second level of most racking, and share the 2085 mm mast that does not grow when extended

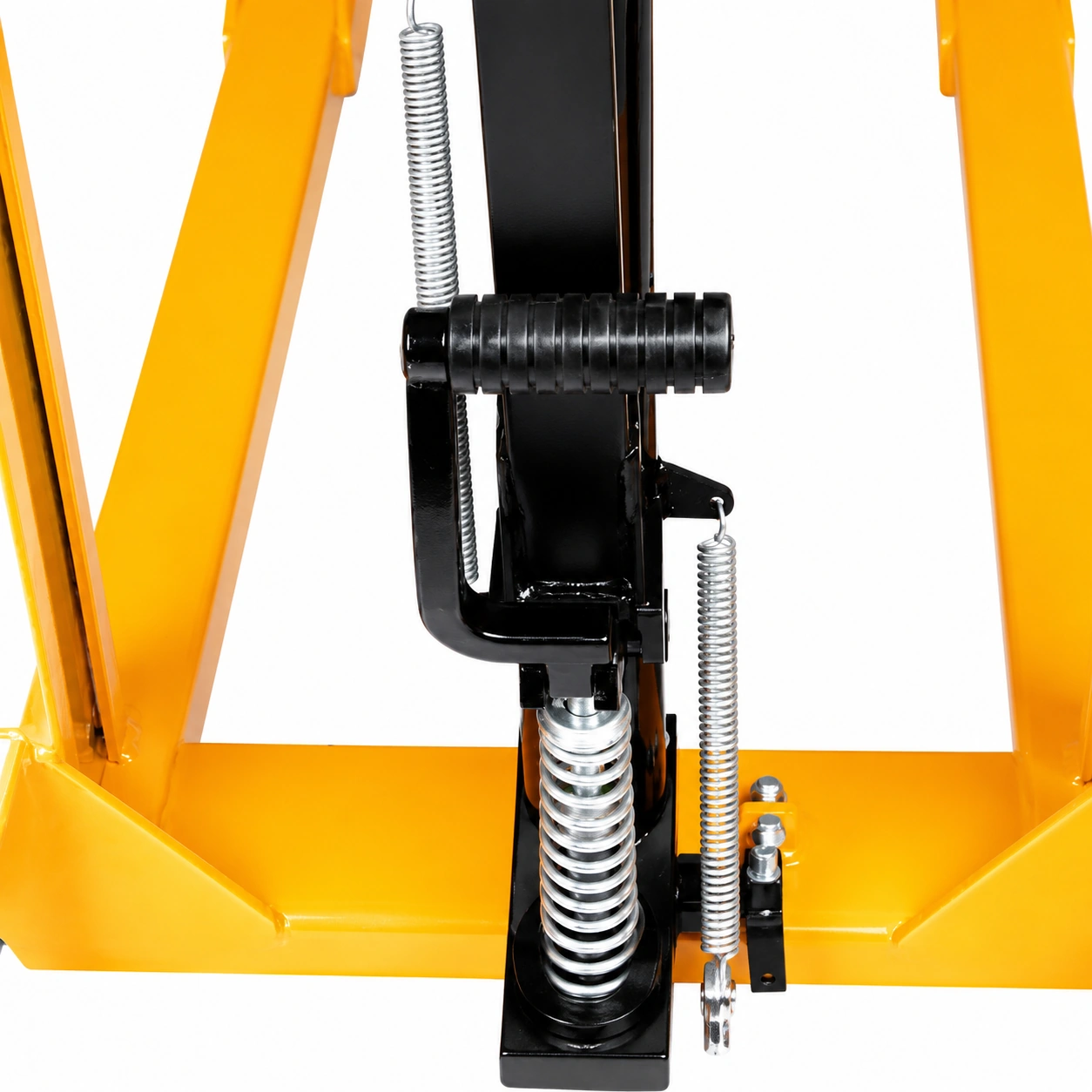

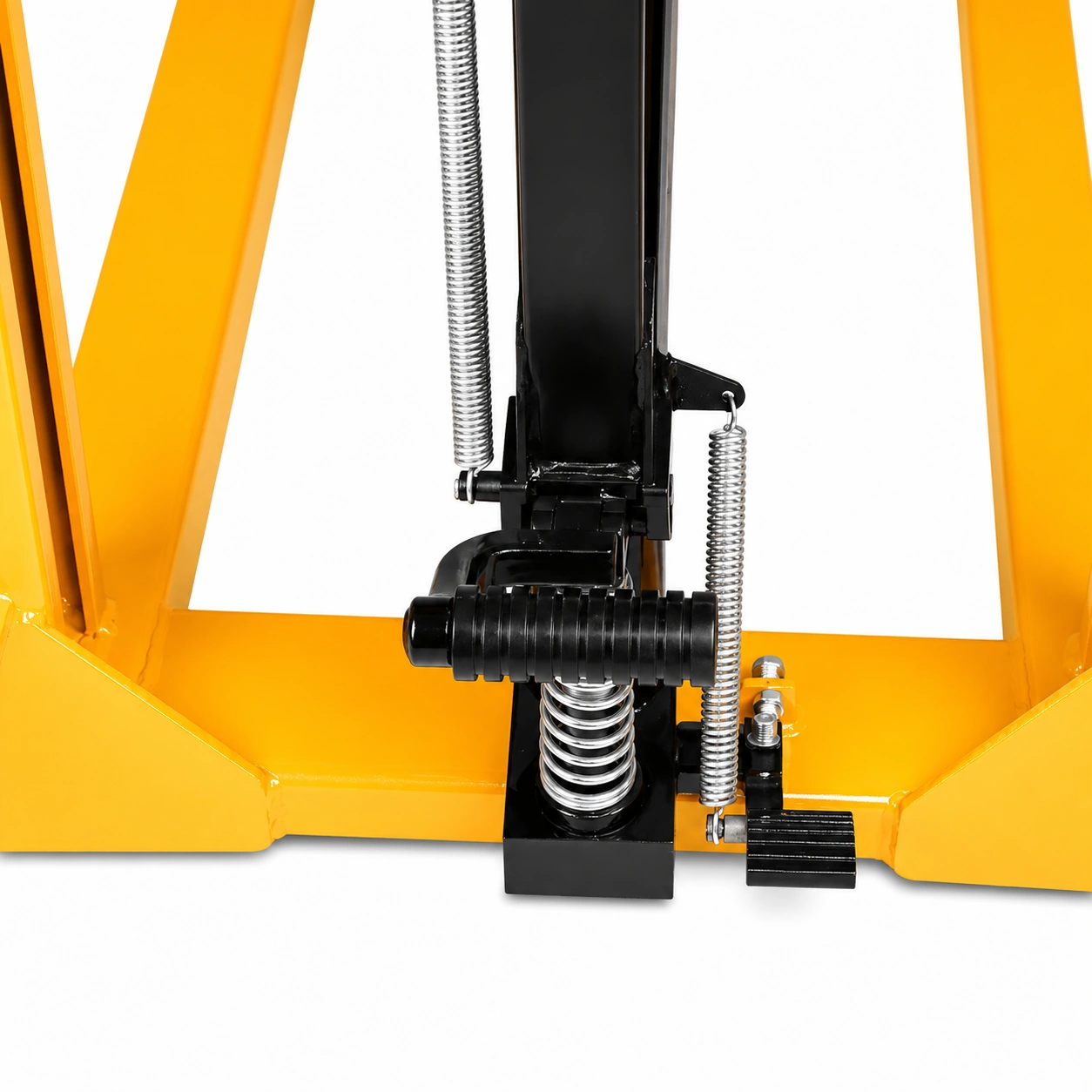

- Screw release lowers the load under control; lifting is foot operated so both hands stay on the truck
Where it earns its place
- Workshops and stores that move heavy pallets a few times a day and cannot justify an electric stacker
- Cold stores, paint shops and other areas where batteries and chargers are unwelcome
- Backup unit that keeps goods moving when the powered stacker is in service

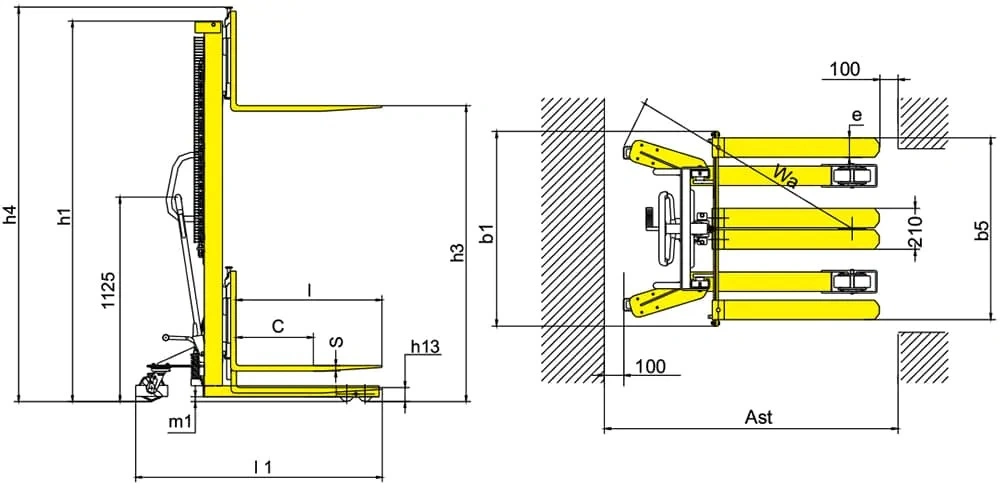

Space it needs
The wide version is 1410 mm long and 1000 mm wide and works in a 2050 mm aisle with a 1000x1200 pallet handled crossways, or 2040 mm with an 800x1200 pallet handled lengthways. The narrow version is 1516 mm long and 830 mm wide and needs 2166 mm for the same crossways pallet. Turning radius is 1250 mm on both, and mast height stays 2085 mm lowered and extended, so the truck passes under standard doors at any lift height. Service weight is 292 kg for the wide version and 260 kg for the narrow one.
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Hydraulic hand stacker for lifting pallets to racks, benches or vehicle beds — occasional use up to ~1 500 kg.
- Small warehouses, workshops, shops.
- Loading machines and work tables.
This model
Adjustable: several spans/positions with one unit. Capacity options: 2000 kg. Lift heights: 1500 mm.
Check before you choose
- Capacity and lift height (residual capacity drops at height)
- Pallet type: straddle legs for closed-bottom pallets, standard forks for EUR pallets
- Adjustable forks needed?
- Mast height when lowered vs. doorways
Not suitable for
- Frequent or multi-shift use — semi-/full electric
- Heavy pallets above 1 500 kg
- Long distances
Before you order Technical check — we confirm a few parameters and compatibility with you before the order.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- How high must the load be lifted — top rack beam, vehicle bed, machine table? How many rack levels? Capacity at maximum height is much lower than nominal (residual capacity). Customers know 'the rack', not millimetres — ask them to measure the top beam.
- Is the load always on a EUR pallet (open bottom)? Or CHEP / closed-bottom / plastic pallets, boxes, or goods placed directly on the forks? Dimensions of the pallet underside? Forks with support legs underneath need an open-bottom pallet. Goods without a pallet load the forks at points and bend them. Pallet compatibility matters more than capacity.
- Lowest passage in the working area (doors, beams, pipes, mezzanine, container, lift)? Ceiling height where stacking happens? Lowered mast height must pass every obstacle; extended mast must fit under ceiling, lighting and sprinklers.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Lifts per day and distance moved? Manual hydraulics and pushing a raised 1 t load are tiring; manual stackers are for occasional use.
Typical mistakes to avoid
- Frequent mistake: closed pallet into which the front legs cannot enter.
- Check residual capacity at height where stated.
Helpful to have ready: Exact pallet dimensions from below · Mass · Shelf height · Aisle · Doors/ceiling · Photo of the floor
Attributes
| Fork profile | Forged 30/120 mm, spread 250-950 mm, Forged 60/166 mm, spread 350-710 mm |
|---|---|
| Load capacity | 2000 kg |
| Load centre distance (c) | 400 mm |
| Lift height | 1500 mm |
| Lowered fork height | 90 mm |
| Height, mast lowered | 2085 mm |
| Height, mast extended | 2085 mm |
| Fork dimensions | 30/120/900 mm, 60/166/900 mm |
| Width overall forks | 250-950 mm, 350-710 mm |
| Overall length | 1410 mm, 1516 mm |
| Overall width (b1) | 1000 mm, 830 mm |
| Ground clearance, laden, below mast (m1) | 25 mm, 20 mm |
| Aisle width for pallets 1000x1200mm | 2050 mm, 2166 mm |
| Aisle width for pallets 800x1200mm | 2040 mm |
| Turning radius | 1250 mm |
| Lift per stroke, laden/unladen | 18/20 mm |
| Lowering | Manual control |
| Service weight | 292 kg, 260 kg |
