Short Fork Hand Pallet Truck (RPV-KV)
Price
On request
Direct factory order
— 16–20 weeks · 50% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 50%
- Balance: 50% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Group order
1 of 6 units secured — 5 more to confirm the group
Be the first to order and get an extra −2% — already included in the price at checkout. Your booked deposit starts the countdown for the rest of the group.
A 50% deposit secures your units. If the group is not completed in time, your deposit is refunded in full within 5 working days. Group order terms
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Tags:
Manual Pallet Trucks,
Pallet Jacks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
In a goods lift, a container or the body of a delivery van, the limit is not the weight but the length. A standard 1150 mm fork leaves no room to turn, and the truck ends up being dragged instead of steered. Shorter forks give back that room while keeping the same familiar hydraulics and controls.
Made to your space
- Fork length shorter than the standard 1150 mm, specified per order
- Fork width and spread chosen for half pallets, display pallets or custom supports
- Shorter overall length, so the truck turns inside a lift car or a container
- Capacity confirmed for the chosen fork length
Where it is used
- Goods and passenger lifts with limited floor area
- Sea containers, box bodies and delivery vans
- Half and quarter pallets, display pallets and small crates
- Machine rooms, archives and older buildings with tight corners
How to order
This truck is built to order, so its dimension table follows your configuration. Send us the pallet or load dimensions and the size of the space the truck has to work in, and we will confirm fork length, fork spread, capacity and delivery time.
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Moving pallets short distances at floor level by hand — loading bays, shops, workshops.
- Occasional use, vehicle unloading, tight spaces.
- Special variants: stainless (food), galvanized (wet/outdoor), scale, low-profile, long/short forks, rough terrain.
This model
Short forks: half pallets and tight spaces.
Check before you choose
- Capacity (2 000–5 000 kg) with reserve
- Fork length/width vs. pallet (EUR 1200×800: standard 1150 mm forks; long forks for 2 pallets or long goods)
- Lowered fork height for low pallets
- Wheels: nylon (hard floor), polyurethane (quiet, delicate floors), rubber
- Environment: food/pharma → stainless; wet → galvanized
Not suitable for
- Lifting pallets onto racking or vehicles (max ~200 mm lift) — use a stacker
- Long distances or multi-shift — electric pallet truck
- Gradients/ramps with heavy loads
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Heaviest load including pallet, packaging and any attachment? Rule of thumb: use at most 80 % of rated capacity for safety and service life.
- Pallet type/dimensions (EUR 1200×800, industrial 1200×1000, half, display, custom)? Closed-bottom or low pallets? Entry height? Pallet compatibility matters more than capacity: fork length, overall width, lowered height and pallet underside.
- What is the floor: industrial concrete, asphalt, paving, gravel, uneven, potholes, sharp edges, expansion joints, thresholds, drains? Small polyurethane wheels and no suspension: tolerance for unevenness is very low. Sharp edges cut the PU tread; gaps stop the small load rollers.
- Distance per trip, trips per day, ramps? A hand truck is for short level moves; pushing 2 t up a ramp is unsafe.
Typical mistakes to avoid
- Pallet compatibility is more important than capacity — check entry height and pallet underside.
Helpful to have ready: Photo/dimensions of the pallet · Max mass · Transport distance · Floor · Special version
Attributes

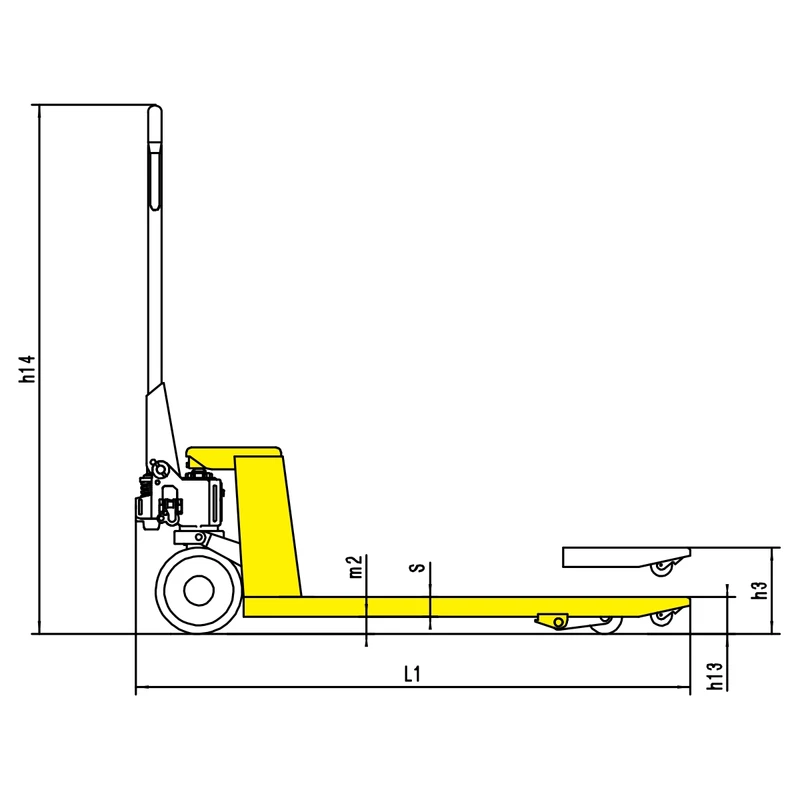

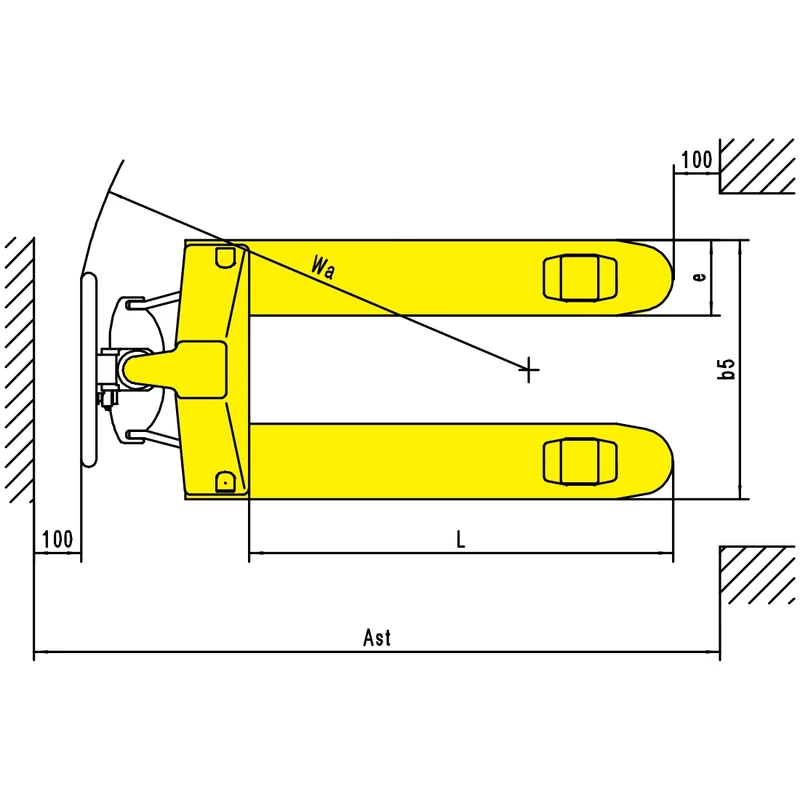

| Fork length | Made to order, shorter than 1150 mm |
|---|---|
| Width overall forks | Made to order |
| Load capacity | Confirmed per configuration |
| Chassis | Standard hand pallet truck chassis |
| Lead time | Factory order, confirmed with the quotation |
