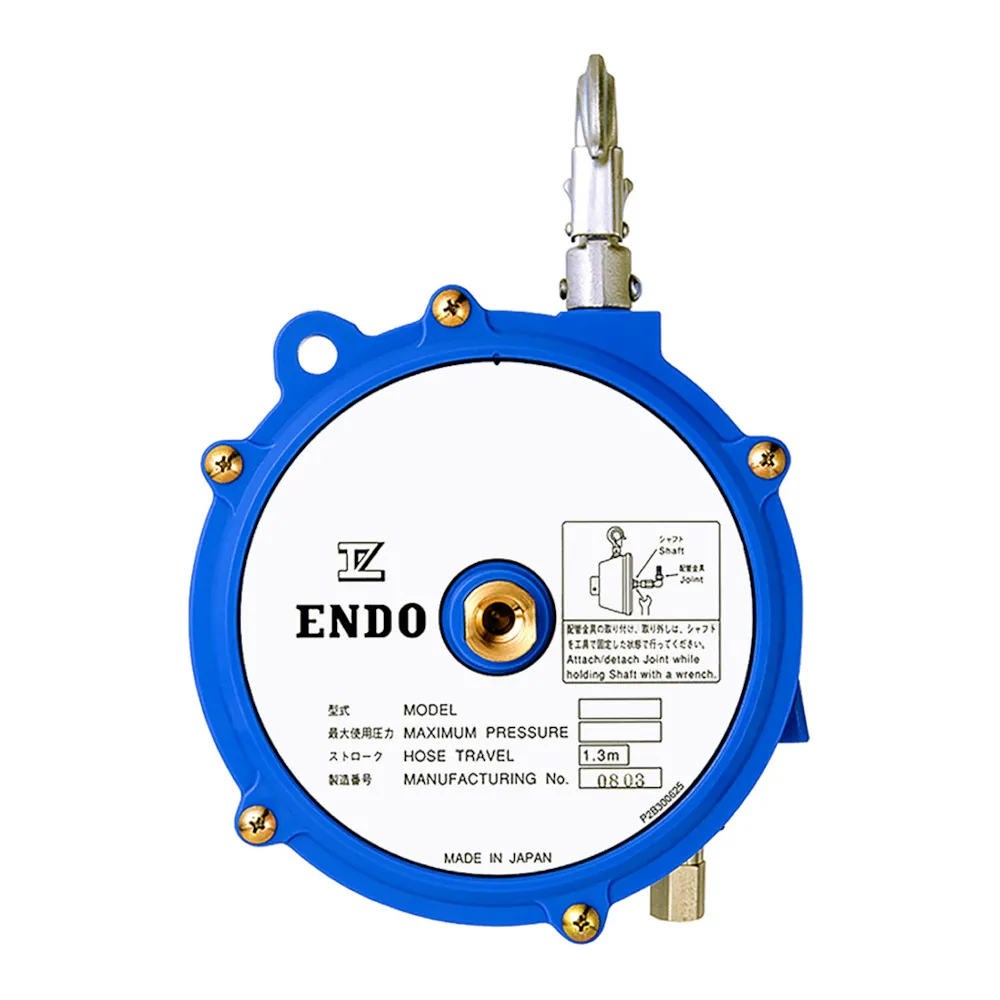

ENDO Spring Balancer for Pneumatic Tools (THB-65A) 5-6.5 kg
Price
184,00 EUR
Available — ships in 5–7 working days
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Spring Balancers for Pneumatic Tools
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Japanese-made spring balancer for pneumatic tools with a 5-6.5 kg working range and a 1.3 m braided polyurethane air hose (9.52 mm) that supplies the tool through the balancer, rated up to 145 psi (1.0 MPa).
Key features
- Braided polyurethane air hose supplies the tool through the balancer
- Maximum rated pressure 145 psi (1.0 MPa / 10 bar)
- Holds the tool weightless (zero gravity) without drift or tension
- Impact-resistant ABS housing
- Steel swivel top hook with safety latch
- Top support lug for fitting a safety chain (secondary support)
- Tapered drum, quality springs and ball bearings for smooth travel
- CE marked, made in Japan
Technical overview
- Model / SKU: THB-65A
- Product family: Spring Balancers for Pneumatic Tools
- Working load range: 5 - 6,5kg
- Hose length: 1,3 m
- Hose diameter: 9,52 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Spring balancer with air hose passing through — one hose for support and supply of pneumatic tools.
- Assembly lines with air tools.
This model
Pneumatic/ATEX: explosive, wet or dusty areas; needs compressed air. Balancer: tool/part weight must be inside the min–max range. Spring balancer: hand tools; not a hoist.
Check before you choose
- Tool weight range
- Hose pressure and diameter
- Cable travel
Not suitable for
- Electric tools (use standard spring balancer)
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Total suspended mass: tool + adapters + the part of hose/cable the balancer carries? Any mass change during work? Mass must be inside the working range; an oversized balancer gives too much return force, an undersized one sinks.
- Cable stroke needed; mounting height; highest and lowest working point? Stroke must cover the working range.
- Air pressure, tool consumption, connection type, hose diameter? The integrated hose must supply the tool's flow; mechanical capacity alone is not enough.
Typical mistakes to avoid
- The integrated hose must deliver the flow the tool needs.
Helpful to have ready: Tool mass · Consumption and pressure · Connection · Stroke
Attributes
| Working load range | 5 - 6.5 kg |
|---|---|
| Hose length | 1,3 m |
| Hose diameter | 9,52 mm |
