ENDO ATEX Pneumatic Balancer EHB (BC2 Module) 0-270 kg
Price
From 5.170,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Available — ships in 5–7 working days
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Pneumatic Balancers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

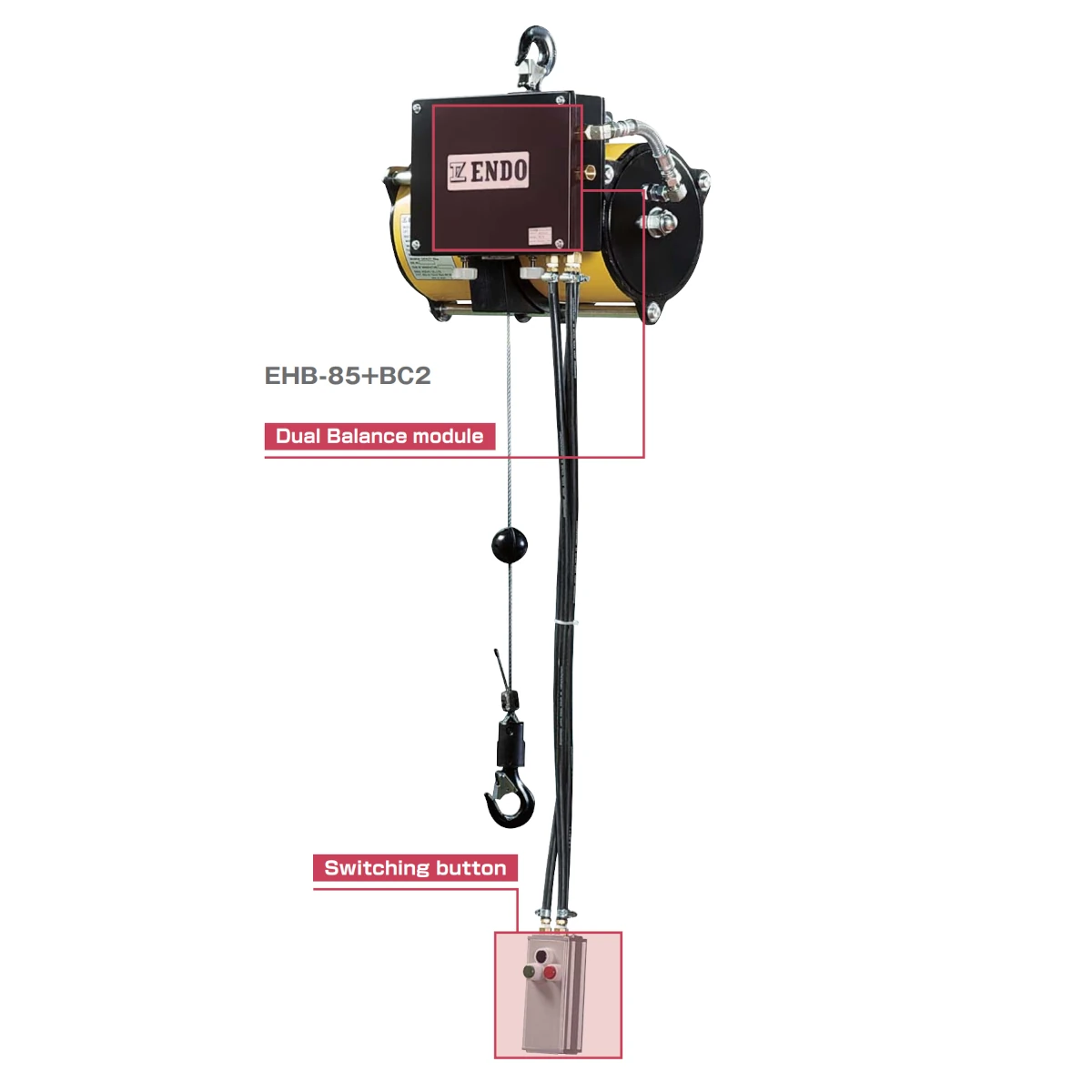

Japanese-made ATEX zero gravity pneumatic balancer EHB with the BC2 Module and a 0-270 kg working range — air consumption about seven times lower than an air hoist, with a 1.9 m wire rope.
Key features
- ATEX zero gravity pneumatic balancer, made in Japan
- Integrated DOWN STOP safety function — the suspended load will not fall even if the air supply is cut or a hose bursts
- Air consumption about seven times lower than a pneumatic hoist
- No lubrication required during operation, very low noise
- Air pressure 0.4-0.7 MPa, air inlet Rc 3/8
- Lifting and lowering speed adjustable on the control module
- Floating range of about 35 cm in both directions for hand positioning
- Wire rope 1.9 m (4.76 mm; EHB-270 model 6 mm)
Technical overview
- Model / SKU: EHB-BC2
- Product family: Pneumatic Balancers
- Balancer type: Pneumatic balancer
- Working load range: 150 - 270kg, 32 - 55kg, 50 - 90kg, 80 - 140kg
- Cable length: 1,9 m
- Cable diameter: 4,76 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
What it is for
- Air balancer for larger parts and tools: float mode, preset load positions, precise handling up to hundreds of kg.
- Assembly of heavy components, machine loading.
This model
Pneumatic/ATEX: explosive, wet or dusty areas; needs compressed air. Balancer: tool/part weight must be inside the min–max range.
Check before you choose
- Load weight and range
- Air supply
- Stroke and control mode (float / up-down)
- Rail/trolley mounting
Not suitable for
- Where no compressed air
Before you order Project product — the final configuration is confirmed by our technical team before the order.
To confirm the right configuration we will ask you:
- Mass and mass range; stroke; pressure and flow; control module; gripper; cycles; speed; the whole handling process? Configuration follows the process, not only kilograms; gripper and COG are often decisive.
Typical mistakes to avoid
- Configured to the process, not to kilograms — gripper and COG are often decisive.
Helpful to have ready: Video/description of the process · Min/max mass · Dimensions/COG · Pick/place · Cycle time · Pressure/flow
Attributes
| Working load range | 32-55 kg, 50-90 kg, 80-140 kg, 150-270 kg |
|---|---|
| Balancer type | Pneumatic balancer |
| Cable length | 1.9 m |
| Cable diameter | 4.76 mm |
